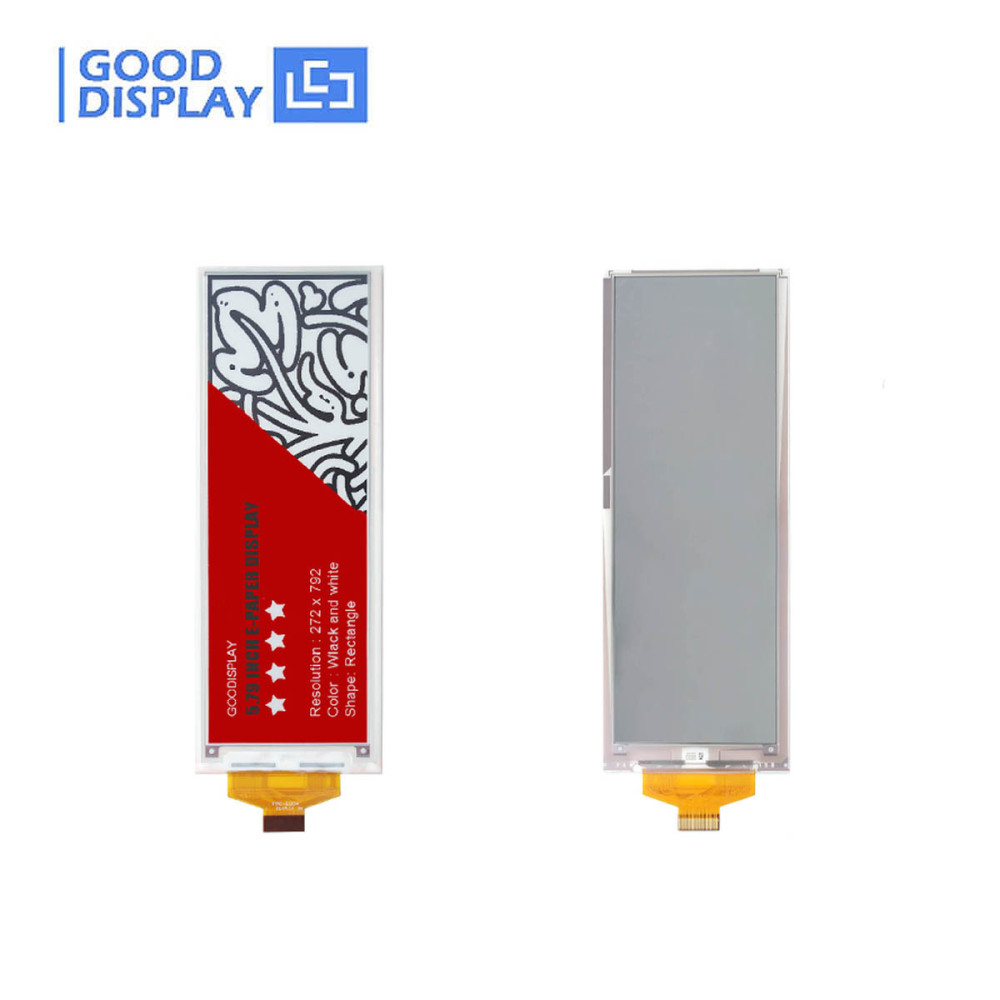

5inch Advanced Epaper Eink Screen Expansion HAT Colors E-Ink Display HAS Starter Kit GDEY0579Z93

Name: 5inch Advanced Epaper Eink Screen Expansion HAT Colors E-Ink Display HAS Starter Kit GDEY0579Z93
Brand: GOOD DISPLAY
SKU: GDEY0579Z93
Price: 9.78 USD
Availability: InStock

(0)

25 Sold

$9.78 ~~$16.30~~

40% OFF

A versatile marvel equipped with 792x272 resolution and supporting red, black, and white colors via SPI interface. With refresh options of 22s full refresh, 16s fast refresh, 1.3s partial refresh

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

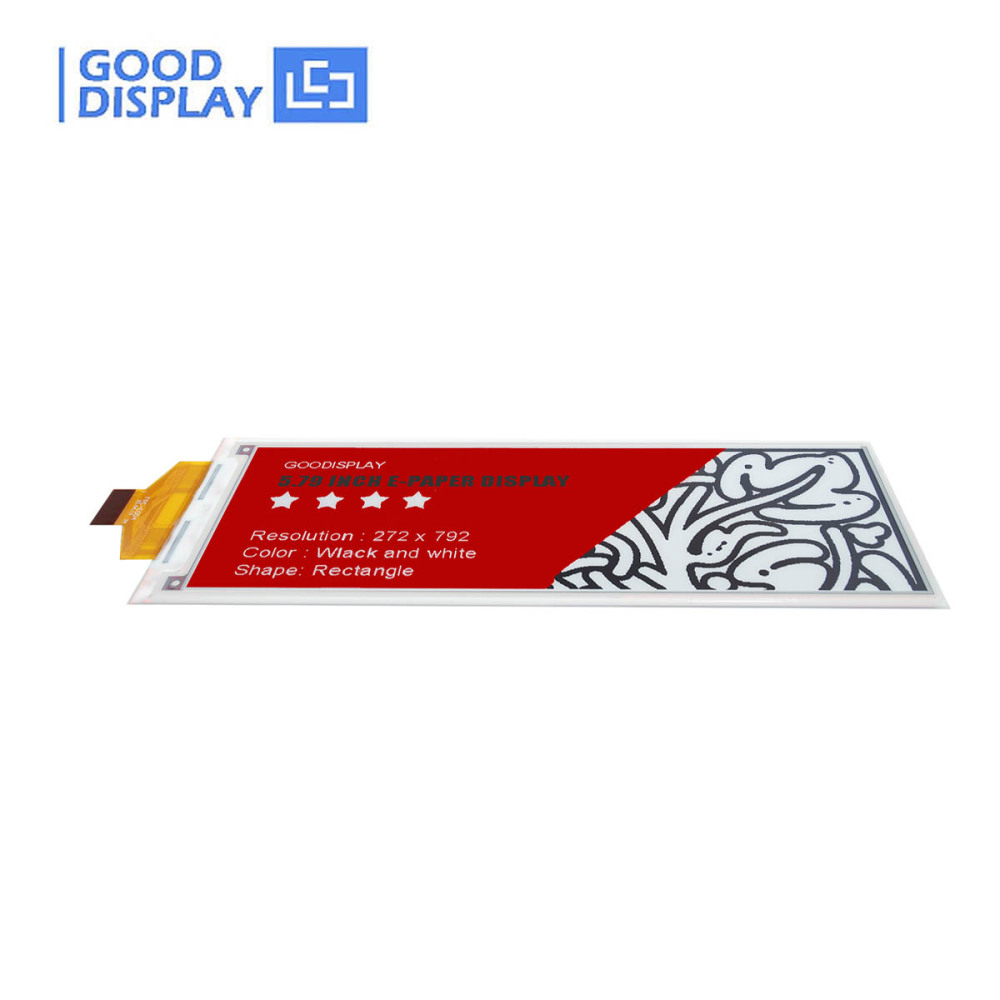

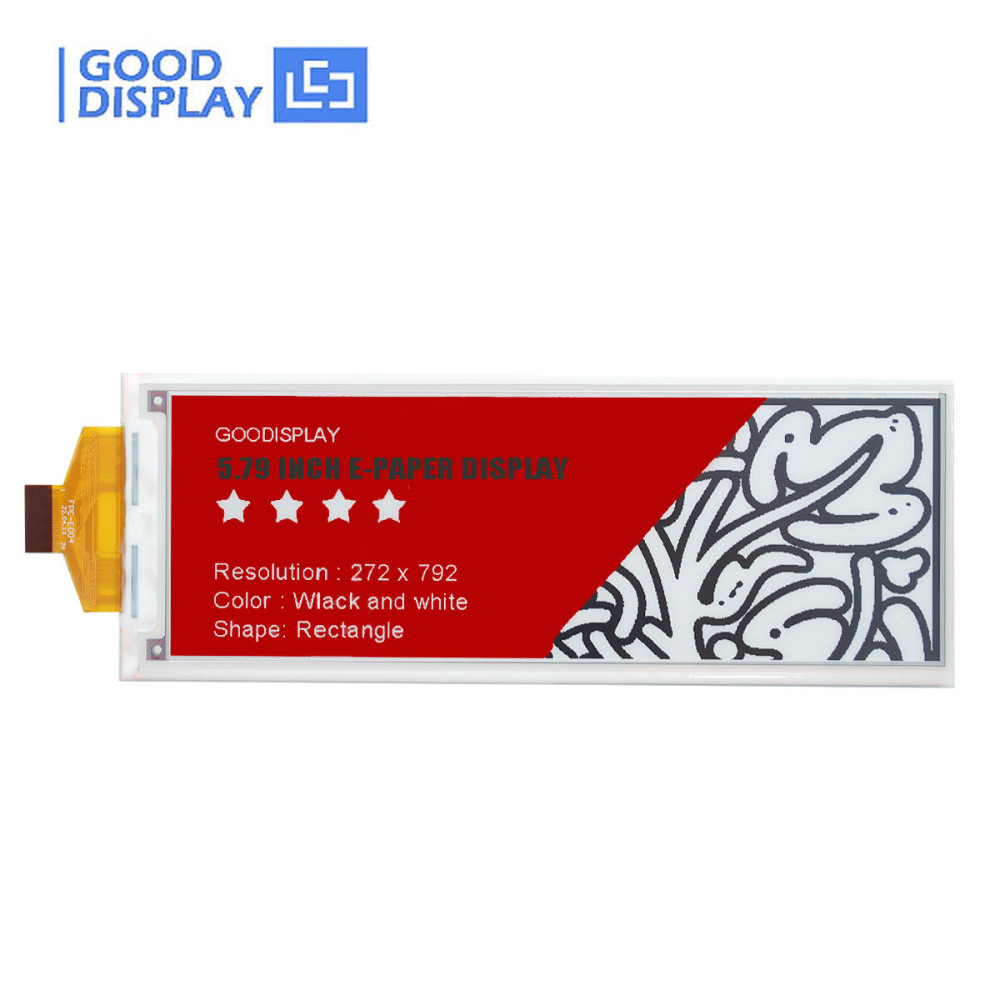

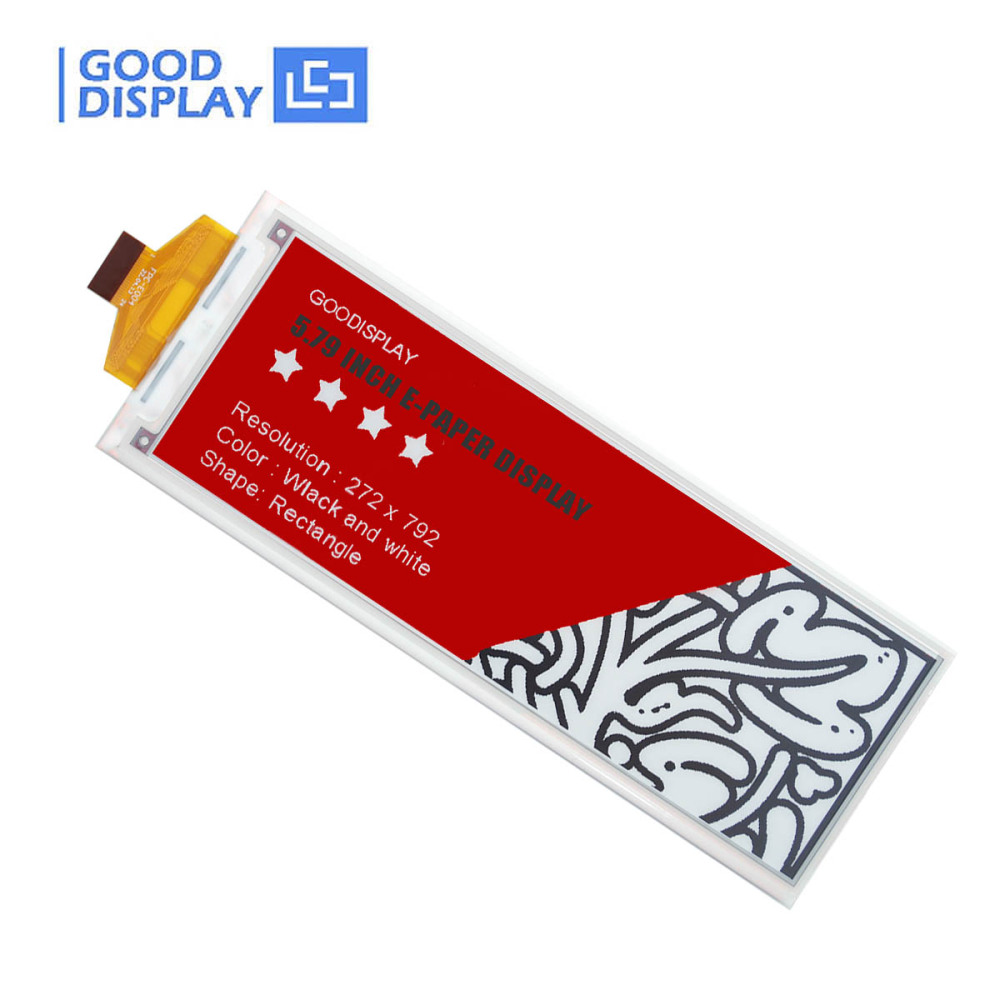

		5.79-Inch Red E-Ink Display 792x272 SPI Interface

		Discover the 5.79-inch Red E-Ink Display. Ideal for solar or battery-powered devices, it maintains images indefinitely without power, perfect for applications like digital price tags, electronic shelf labels, and dynamic signage that demand reliability and energy efficiency.

	Special Features
	● Efficient Refresh Rates: Experience full refresh in just 22s, fast refresh in 16s, and lightning-fast partial refresh in only 1.3s, ensuring quick and dynamic updates. ● Versatile Display Orientation: Can be mounted horizontally or vertically to suit various installation needs and maximize visibility. ● Vivid Color Options: Supports red, black, and white colors with a high-resolution 792x272 display powered by SSD1683 drive IC and SPI interface, delivering vibrant and clear visuals. ● Bistable Technology: Features a bistable display that retains images indefinitely without power, perfect for applications requiring persistent information display. ● Enhanced Viewing Experience: Enjoy a wide viewing angle exceeding 170 degrees and a pure reflection display mode with anti-glare hard coating for clear visibility in any lighting condition. ● Energy Efficient and Safe: Consumes zero power when not refreshing, contributing to energy conservation, while also emitting no blue light and zero radiation for eye protection

	Technical Details

Product Specifications

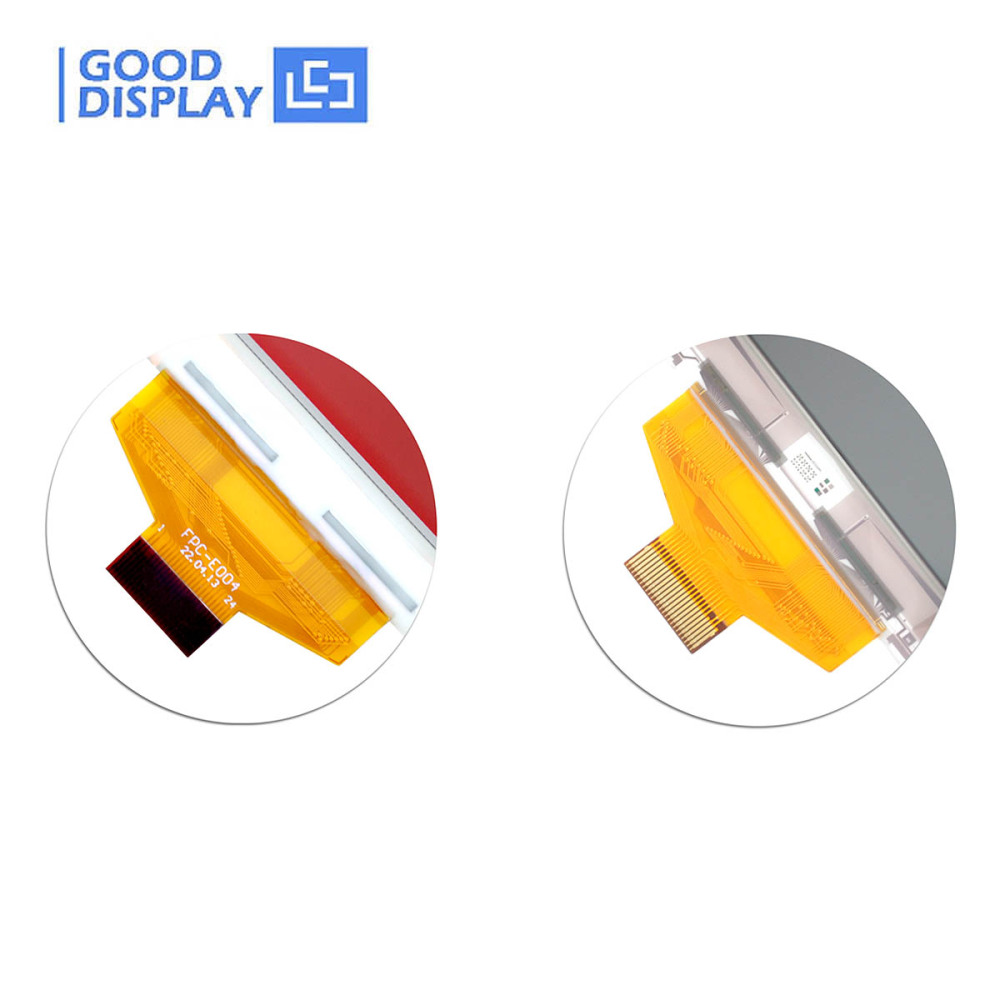

PART NUMBER	GDEY0579Z93	CONNECTOR	24 PIN 0.5mm
SIZE	5.79 inch	COLOR	Black,White,Red
TYPE	Dot Matrix	FULL UPDATE(s)	22
IC	SSD1683	FAST UPDATE(s)	16
RESOLUTION	792x272	PARTIAL REFRESHS(s)	1.3
PPI	144.63	OPERATING TEMP.	0℃~40℃

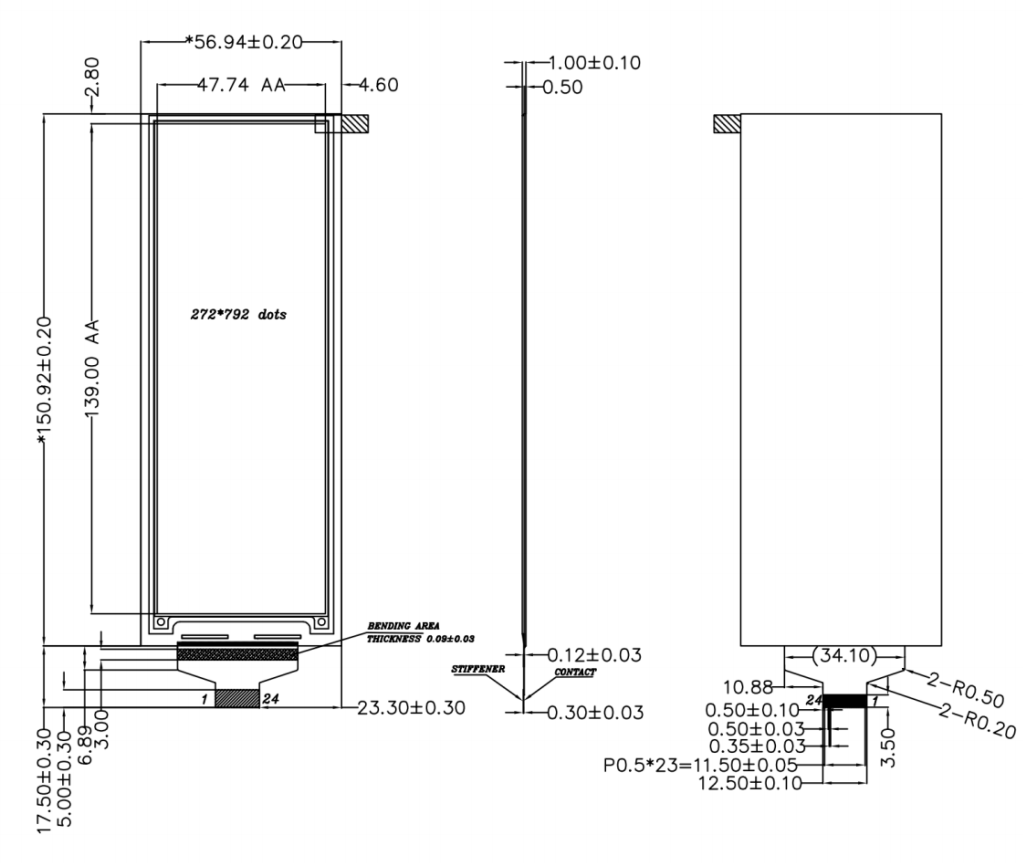

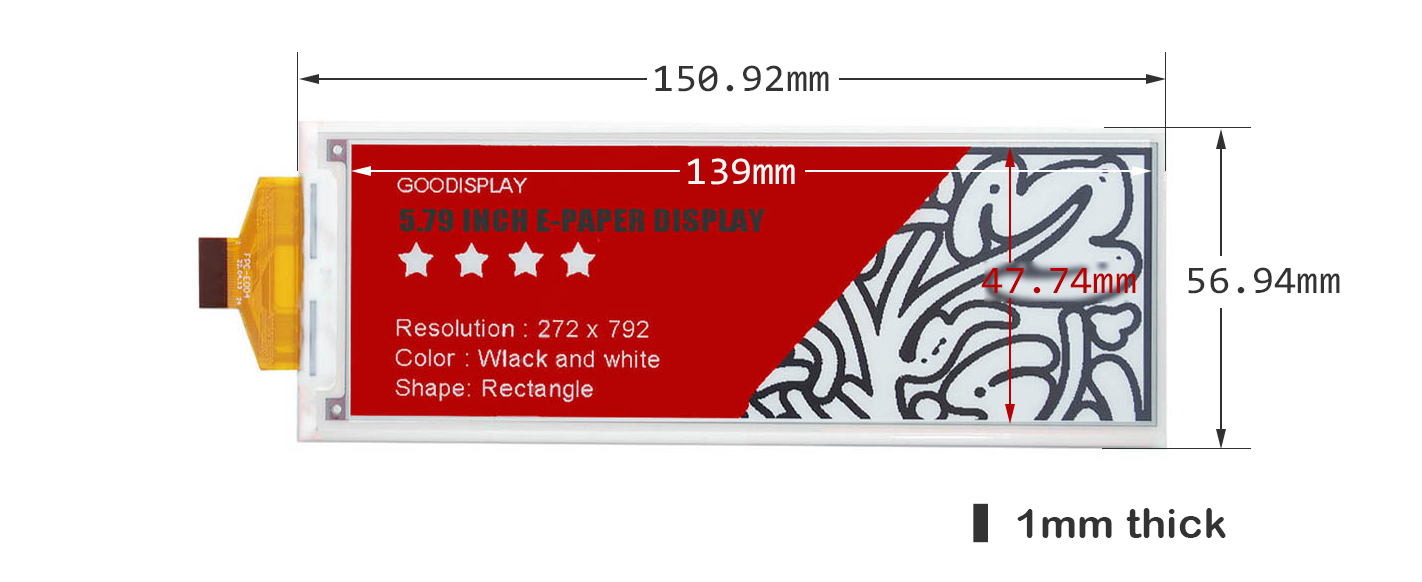

OUTLINE SIZE(mm)	150.92x56.94x1.0	POWER CONSUMPTION OF THE REFRESH(mW)	-25℃~70℃
ACTIVE SIZE(mm)	139.00×47.74	STANDBY POWER CONSUMPTION (mW)	27
PIXEL PITCH(mm)	0.1755×0.1755	STANDBY POWER CONSUMPTION (mW)	0.006
INTERFACE	SPI

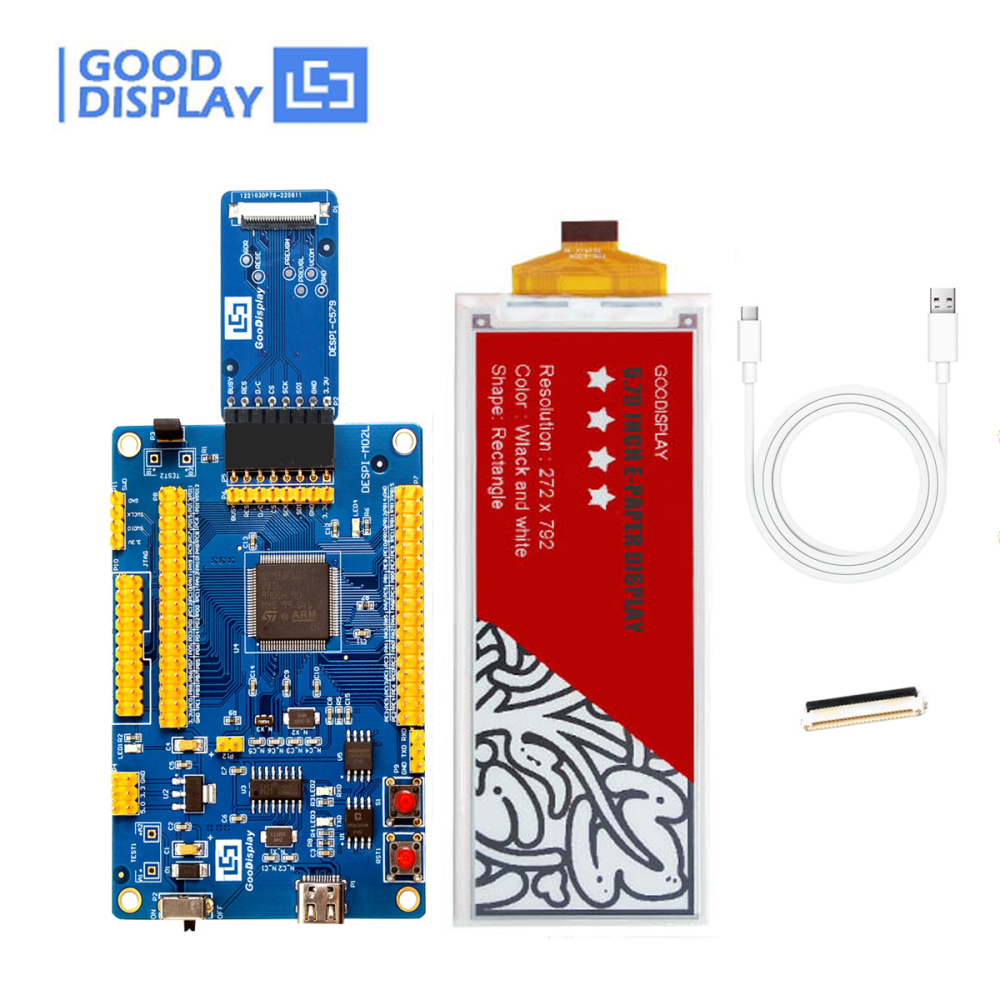

Matching Driver Boards

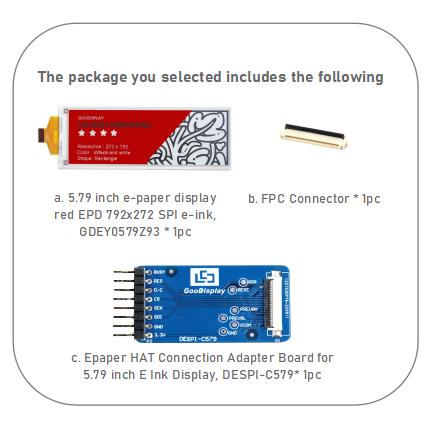

Ⅰ. DESPI-C579 (E-ink Display adapter Board)

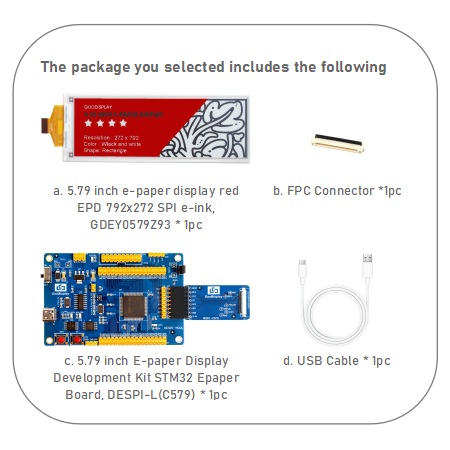

Ⅱ. DESPI-L(C579) (STM32 Demo Kit)

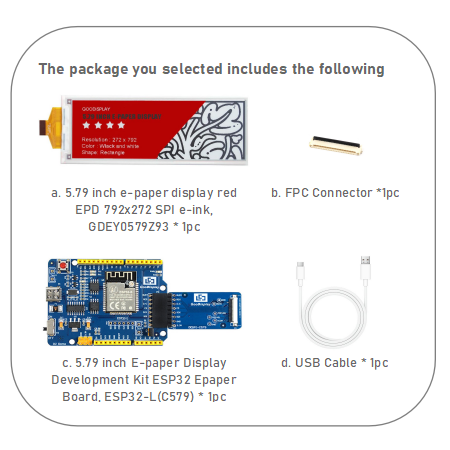

Ⅲ. ESP32-L(C579) (ESP32 Demo Kit)

	Files And Download
	● GDEY0579Z93 Specification	● GDEY0579Z93 ESP32 Sample Code
	● IC Driver SSD1683	● GDEY0579Z93 ESP8266 Sample Code
	● GDEY0579Z93 Picture Production and Bitmap Conversion	● The Latest Catalog of ePaper Display
	● GDEY0579Z93 STM32 Sample Code	● Why can't I download the files(updated)?

Product Application

Portable e-Reader	Transportation and Access Control	Sensors/ Smart Home Device	Industrial Instrument
