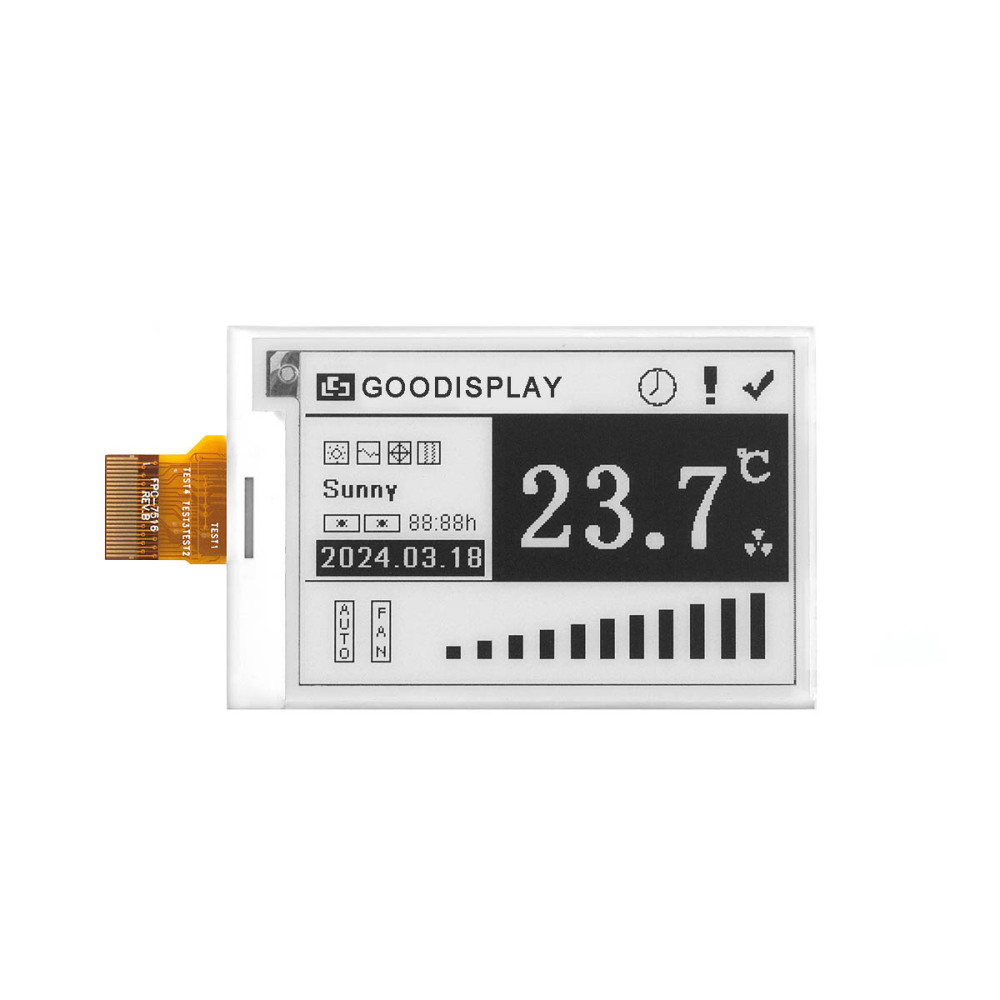

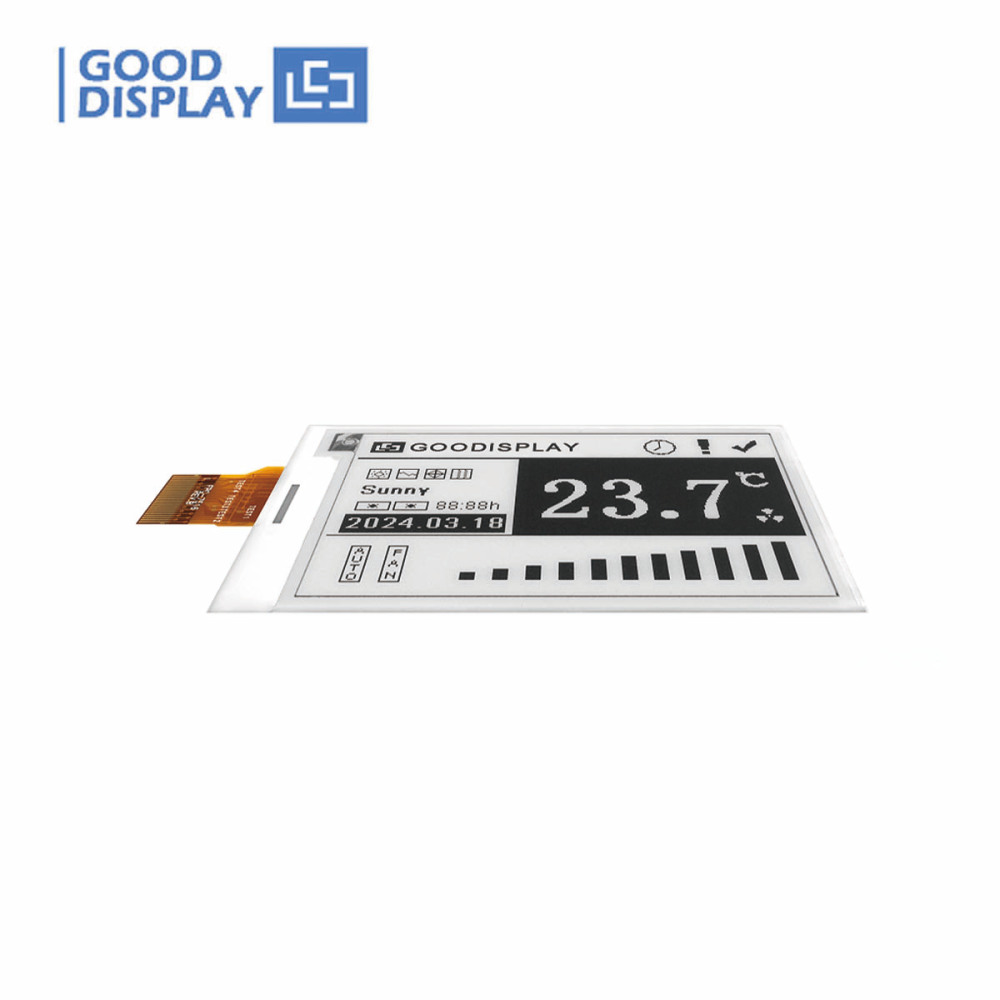

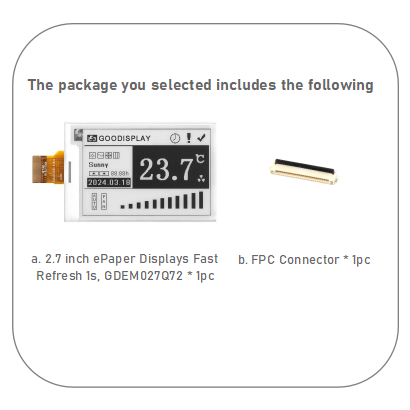

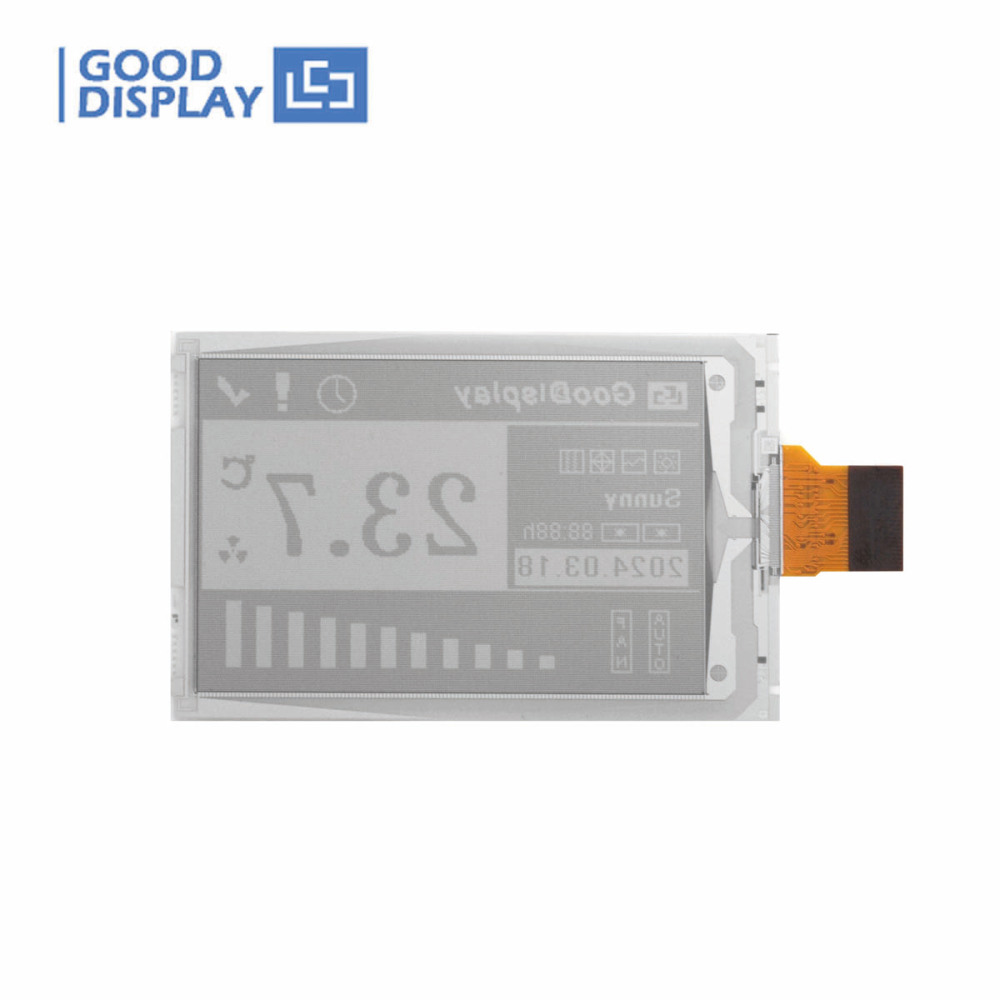

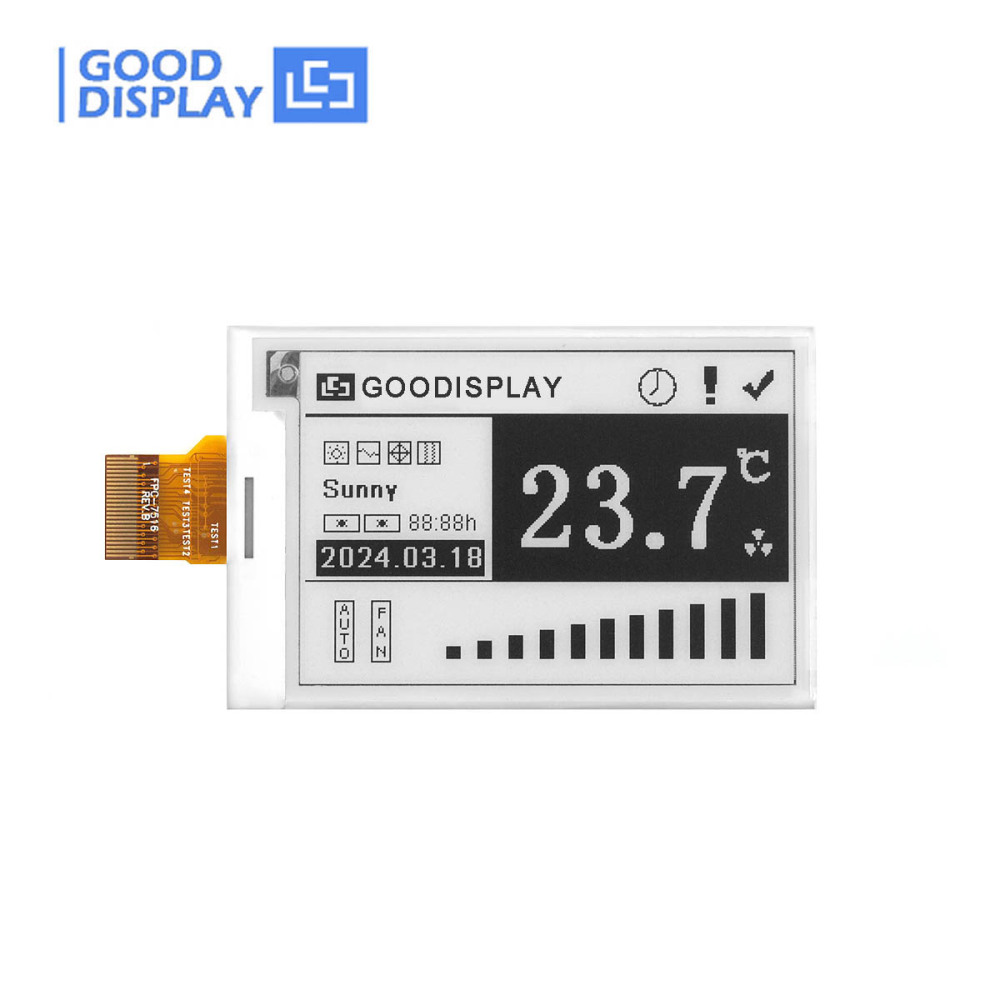

GooDisplay 1s Fast Refresh 2.7inch E-Ink Display Panel with SPI Interface Black/White Two Colors

GDEM027Q72

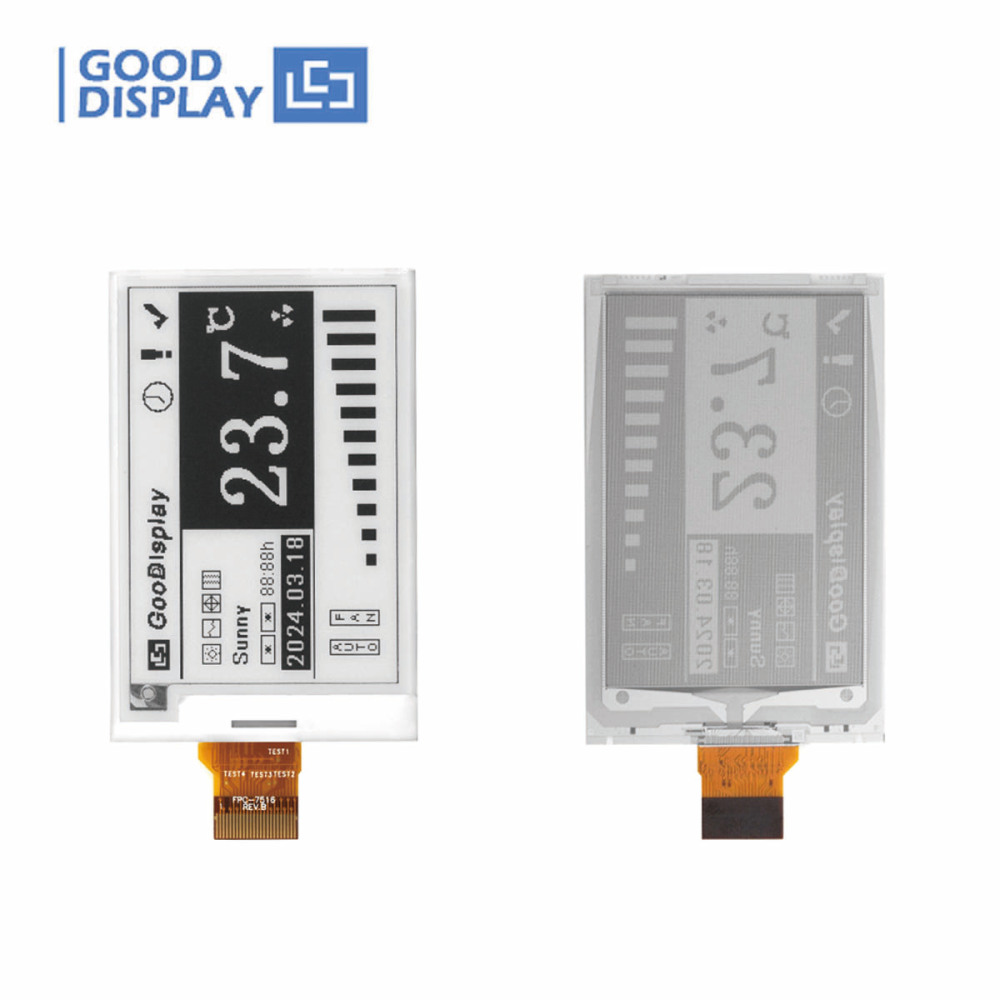

This 2.7-inch monochrome display features a resolution of 264x176 black and white pixels, set against a crisp white background.
1 Review(s) Sold:1
Have a question?
Price:
USD
$8.37
  • product:
    EPD

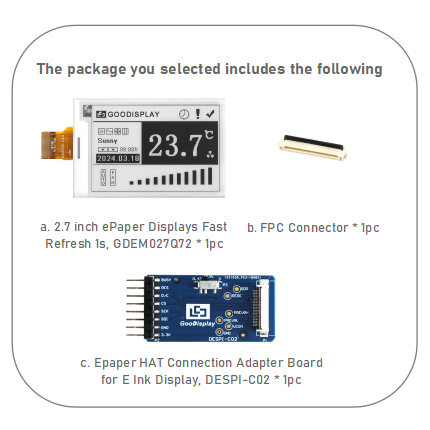

    EPD with adapter board

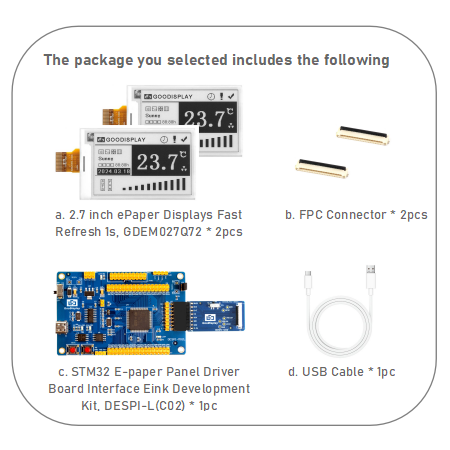

    EPD with STM32 Demo kit

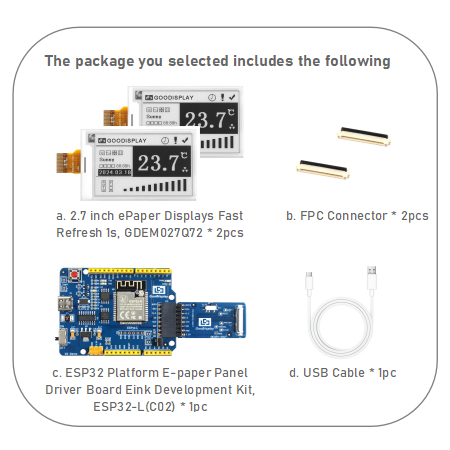

    EPD with ESP32 Demo Kit
Quantity:
-
+
(24 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(1)





2.7inch e-Paper Refresh Time of Just 1s e-Ink Display HAT - Ideal for Smart Devices










Introducing our cutting-edge 2.7-inch ePaper display, designed to deliver an exceptional reading and viewing experience. With its ultra-fast refresh rate of just 1 second, this display ensures that your content updates seamlessly, whether you're showcasing information or engaging in interactive applications. Perfectly suited for a variety of uses, from smart home devices to retail signage, this display offers versatility and performance in one compact package.

















Special Features








Our product boasts distinctive features that set it apart from the competition








  ●  Ultra-Fast Refresh Rates: Experience remarkable responsiveness with a full and fast refresh time of just 1 second, ensuring your content is always up-to-date.
  ●  Versatile Display Orientation: Choose between horizontal or vertical display modes to best fit your application needs, providing flexibility in design and usability.

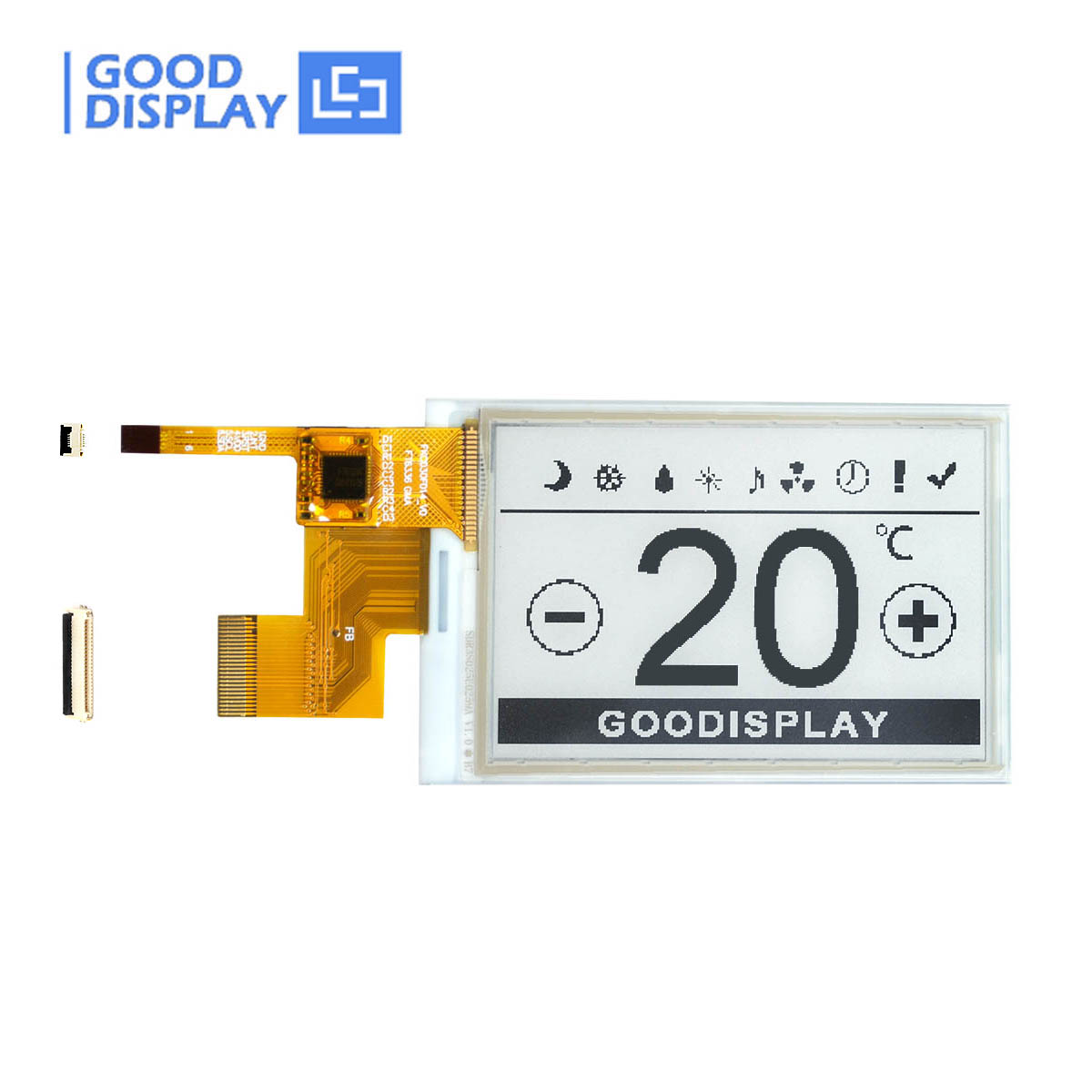

  ●  Customizable Options: Tailor your display with optional touchscreen functionality and a front light, enhancing user interaction and visibility in various lighting conditions.
  ●  Reliable Performance: Built with the SSD1680 driver IC, this display operates efficiently at 3.3V and is suitable for environments with temperatures ranging from 0 to 50°C, making it ideal for a wide range of applications.
  ●  Eco-Friendly Technology: With ePaper's low power consumption and excellent readability in direct sunlight, you can enjoy a sustainable solution that reduces energy usage while delivering superior visual clarity.















Technical Details









Please refer to the product drawings for detailed dimensions














Product Specifications









Please refer to the product specifications for more details

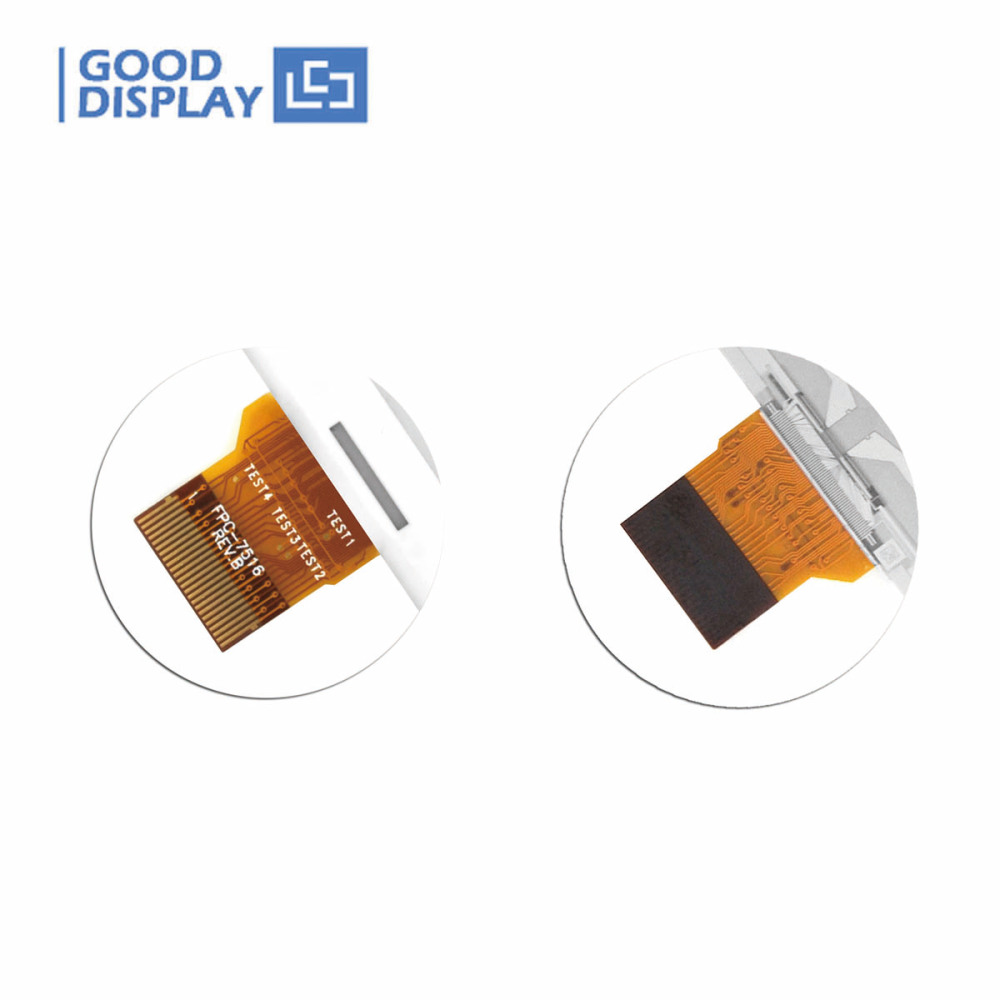

PART NUMBER GDEM027Q72 CONNECTOR 24 Pin 0.5mm
TYPE Dot Matrix MAX GRAYSCALE 4
SIZE 2.7 inch COLOR Black, White
IC SSD1680 INTERFACE SPI
RESOLUTION 264x176 FULL UPDATE(s) 1
PPI / PARTIAL UPDATE(s) 1
OUTLINE SIZE(mm) 70.42x45.8x1.0 FAST UPDATE(s) 1
ACTIVE SIZE(mm)  57.29x38.19 POWER CONSUMPTION OF THE REFRESH(mW) 6.6
PIXEL PITCH(mm)  0.217x0.217 STANDBY POWER CONSUMPTION (mW) 0.003
OPERATING TEMP. 0℃~50℃  4 GRAY UPDATE TIME(s) 2
STORAGE TEMP. -25℃~70℃












Matching Driver Board



To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

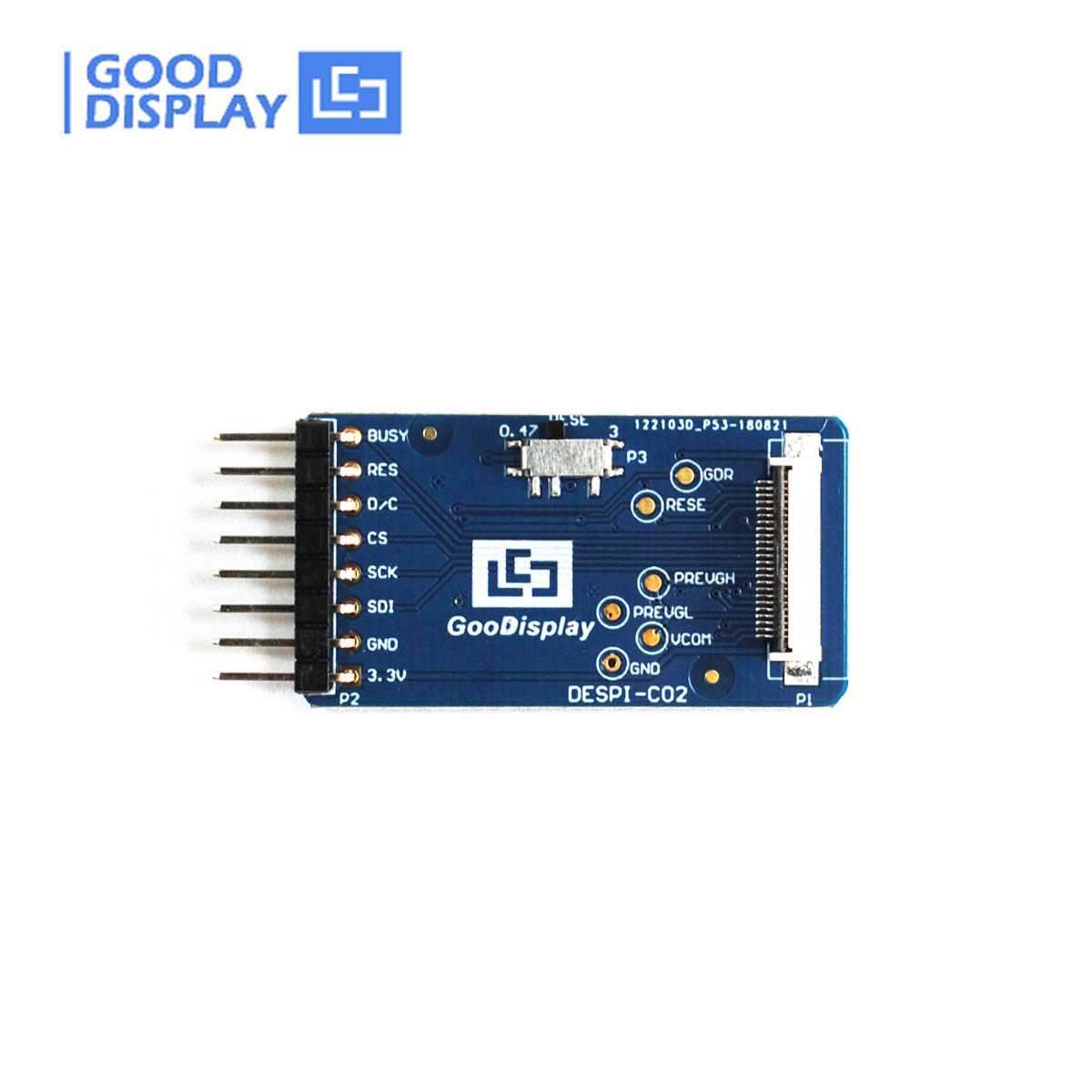

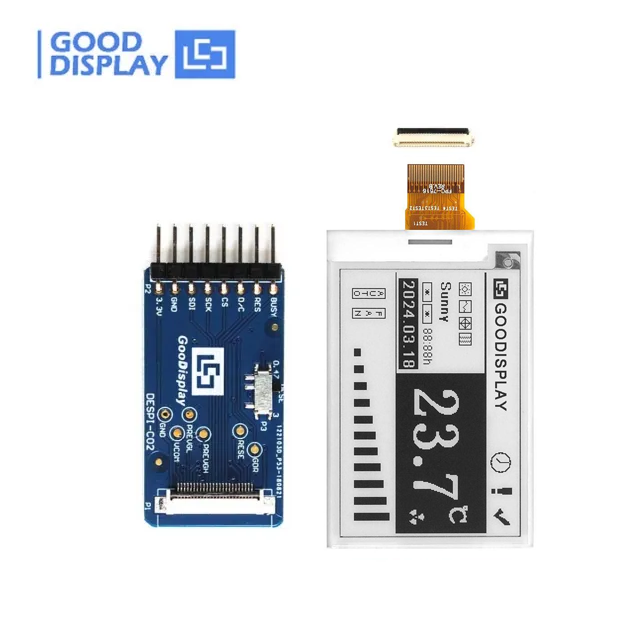

a. DESPI-C02 (E-ink Display adapter Board)

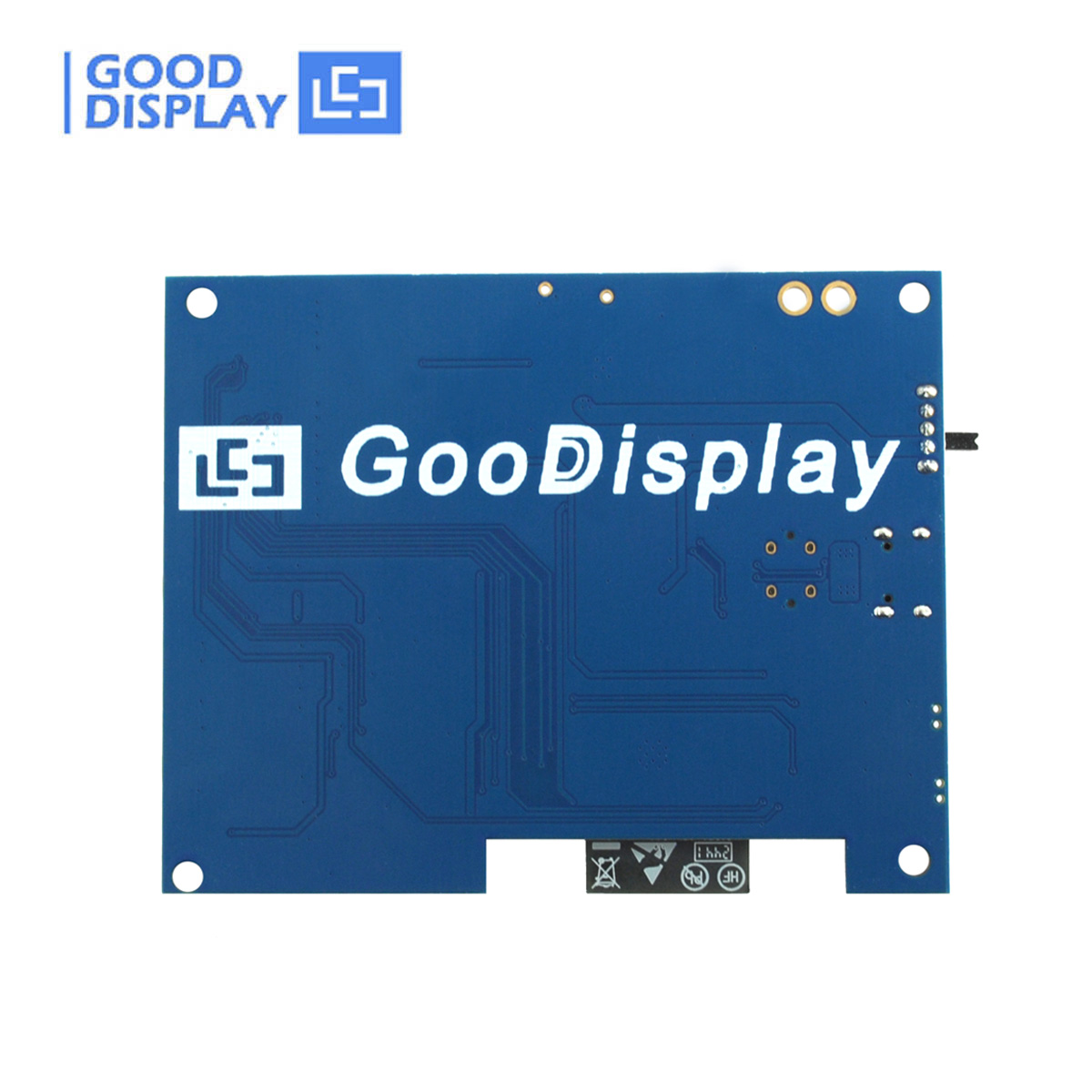

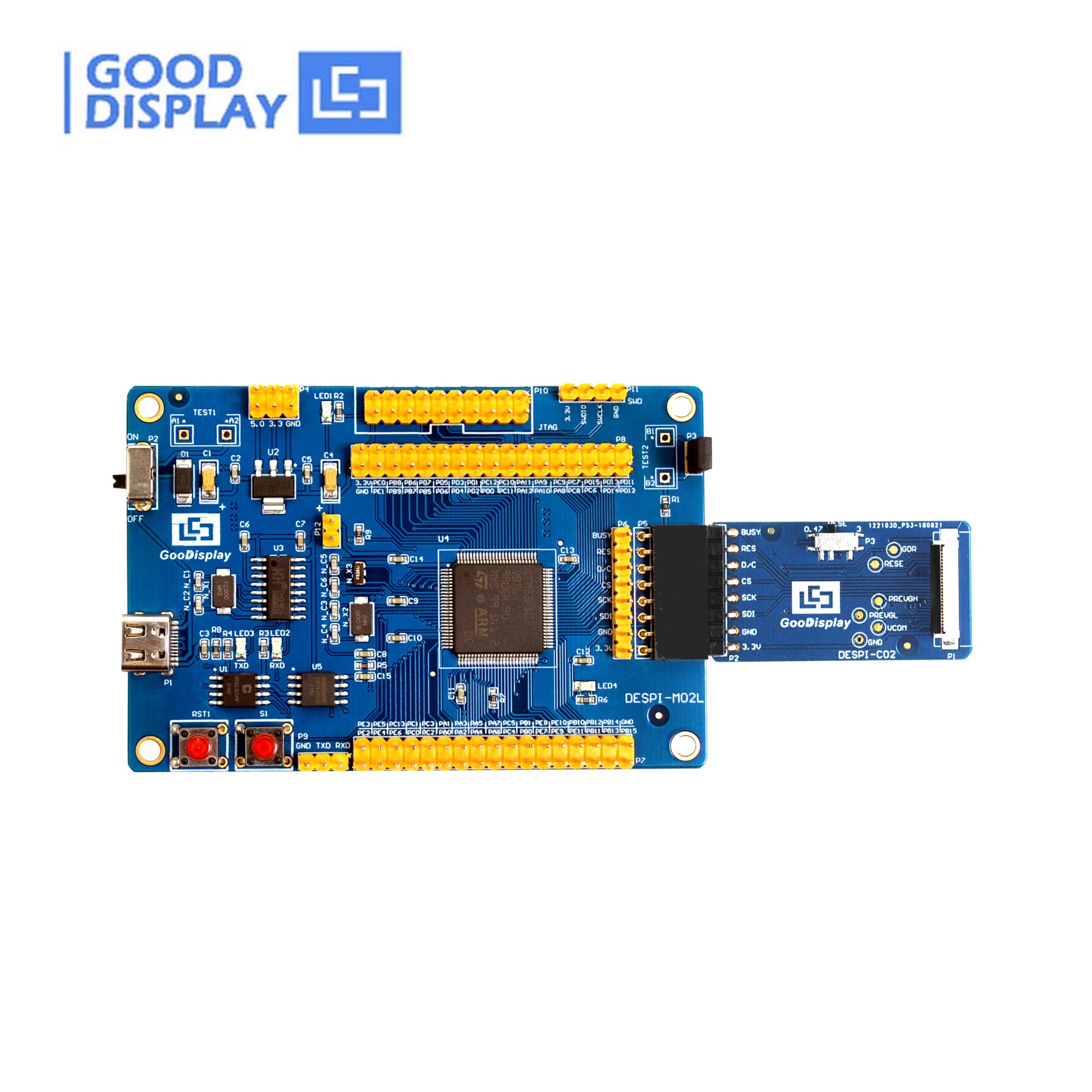

b. DESPI-L(C02) (STM32 Demo Kit)

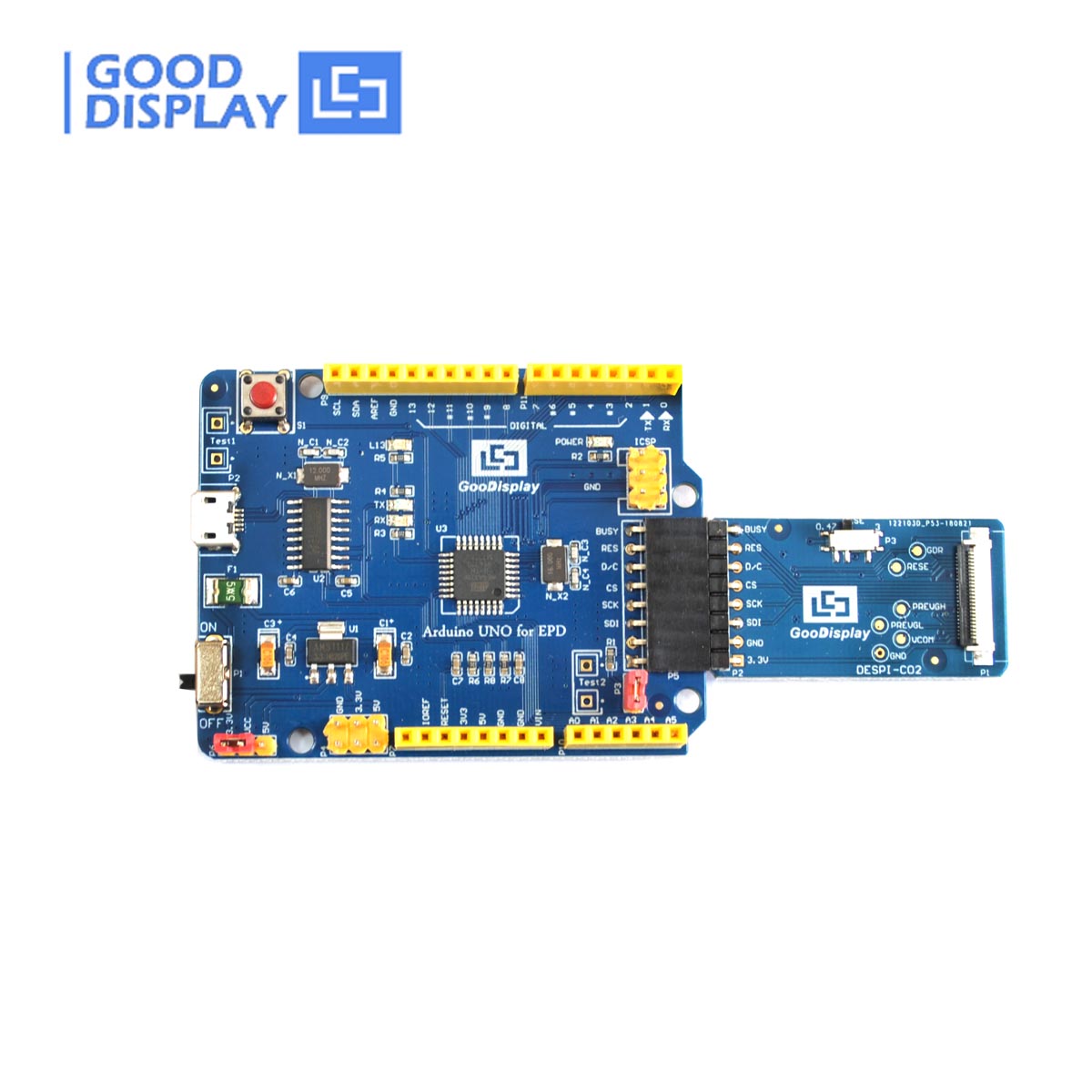

c. DEArduino-L(C02) (Arduino Platform Demo Kit)

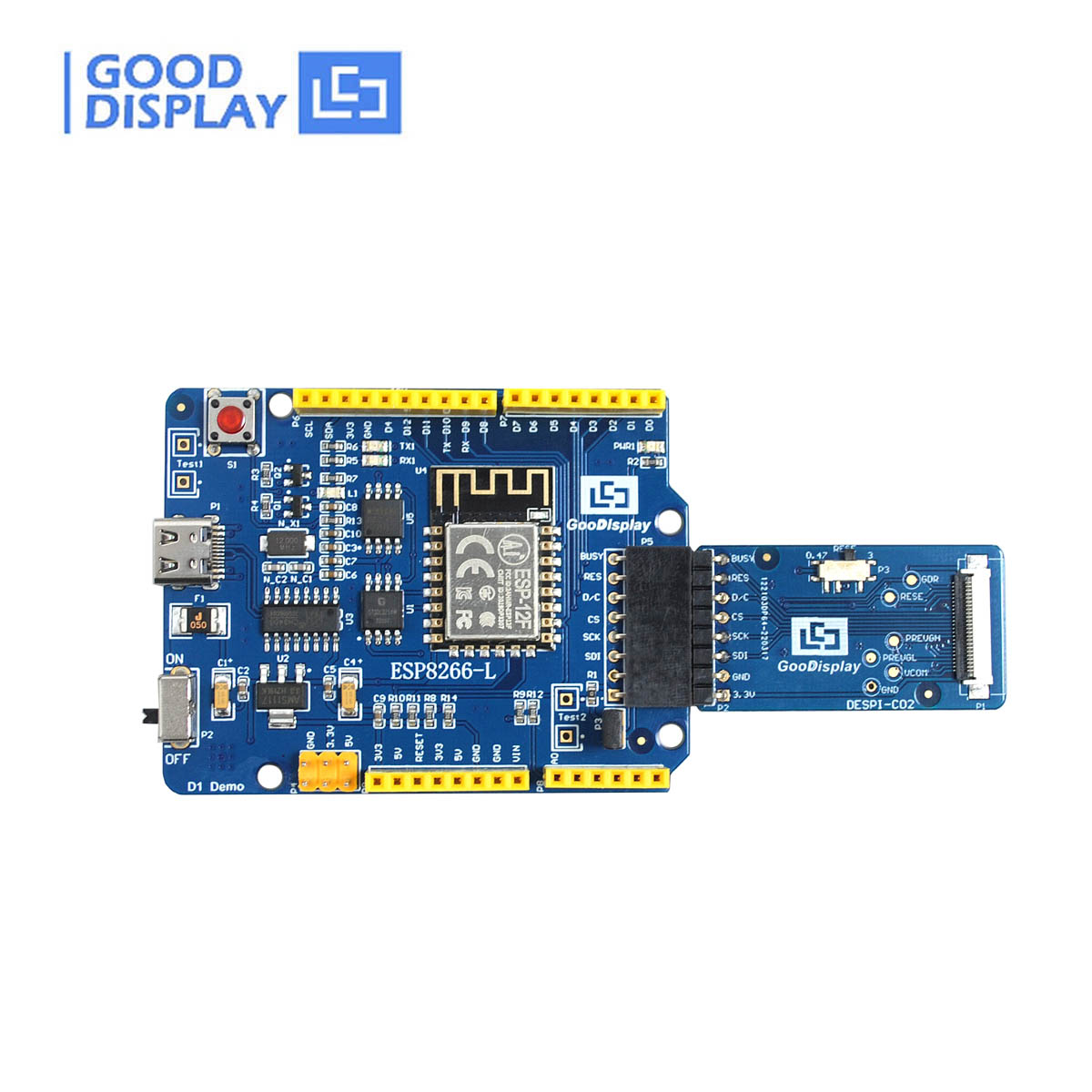

d. ESP8266-L(C02) (ESP8266 Demo Kit)

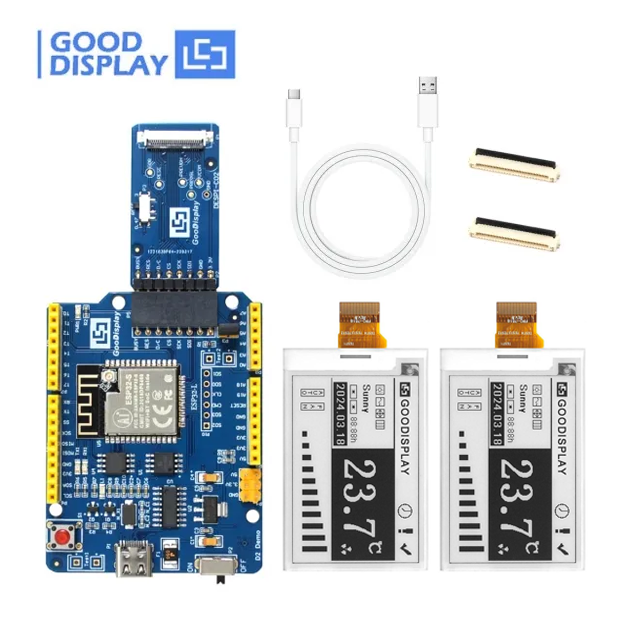

e. ESP32-L(C02) (ESP32 Demo Kit)

f. ESP32E6-E01 (24Pin SPI ePaper Display Demo Kit)








Files and Download

Click on the subheadings below to download








  ● GDEM027Q72 STM32 Sample Code ● GDEM027Q72 ESP8266 Sample Code



● GDEM027Q72 ESP32 Sample Code

● Why can't I download the files(updated)?





● Product Catalog

● The latest Catalog of ePaper display




















Product Application

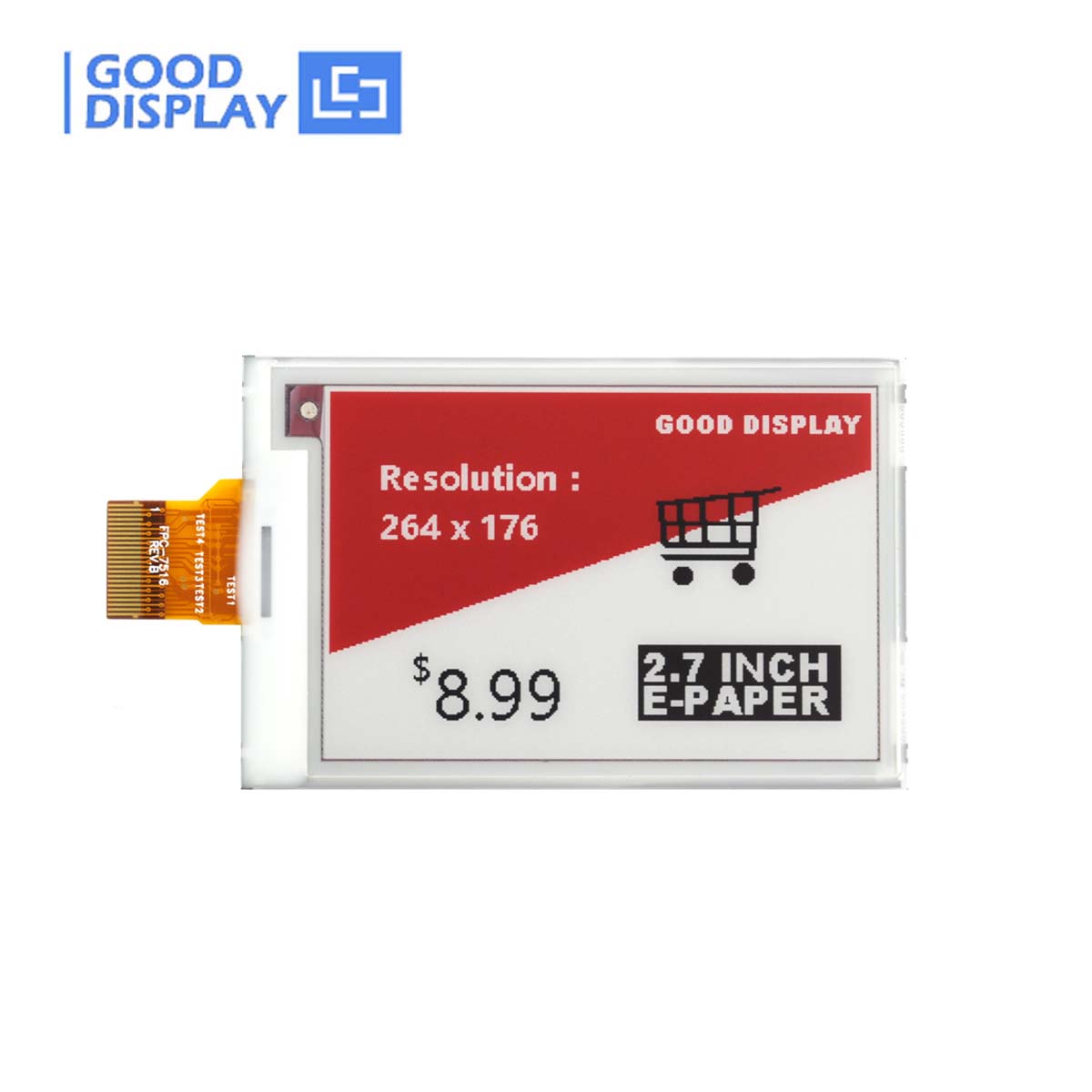

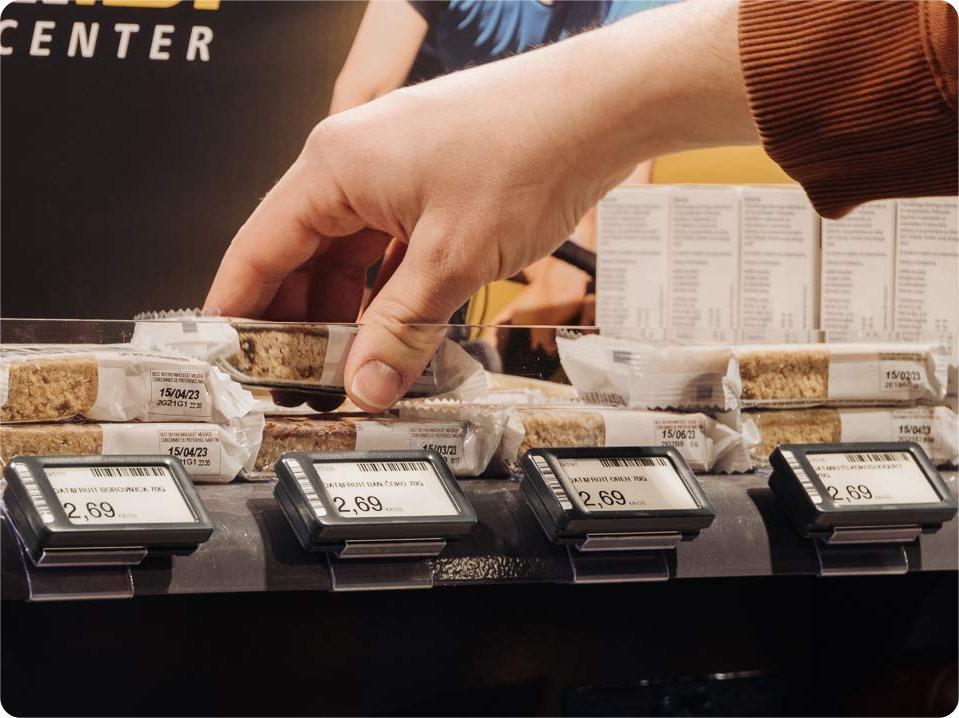

Shelf Tag

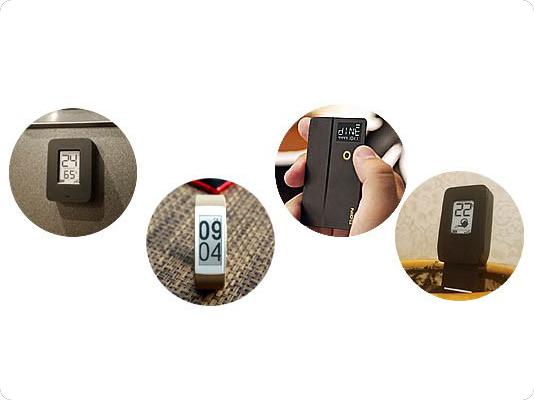

Smart Home Application

Smart Tag

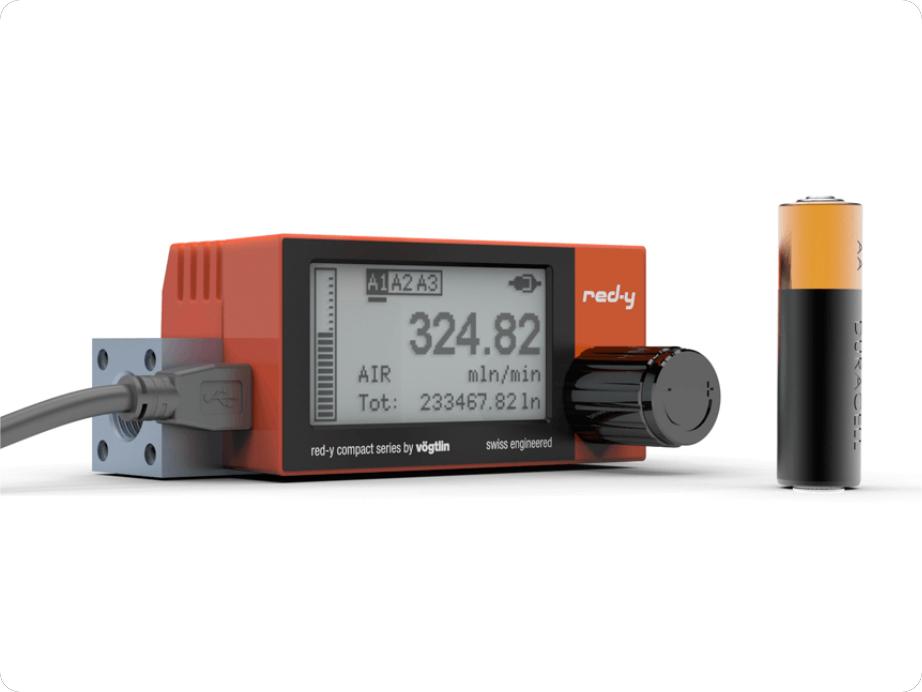

Industrial Instrument









Every day is Earth Day





You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.













Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.
