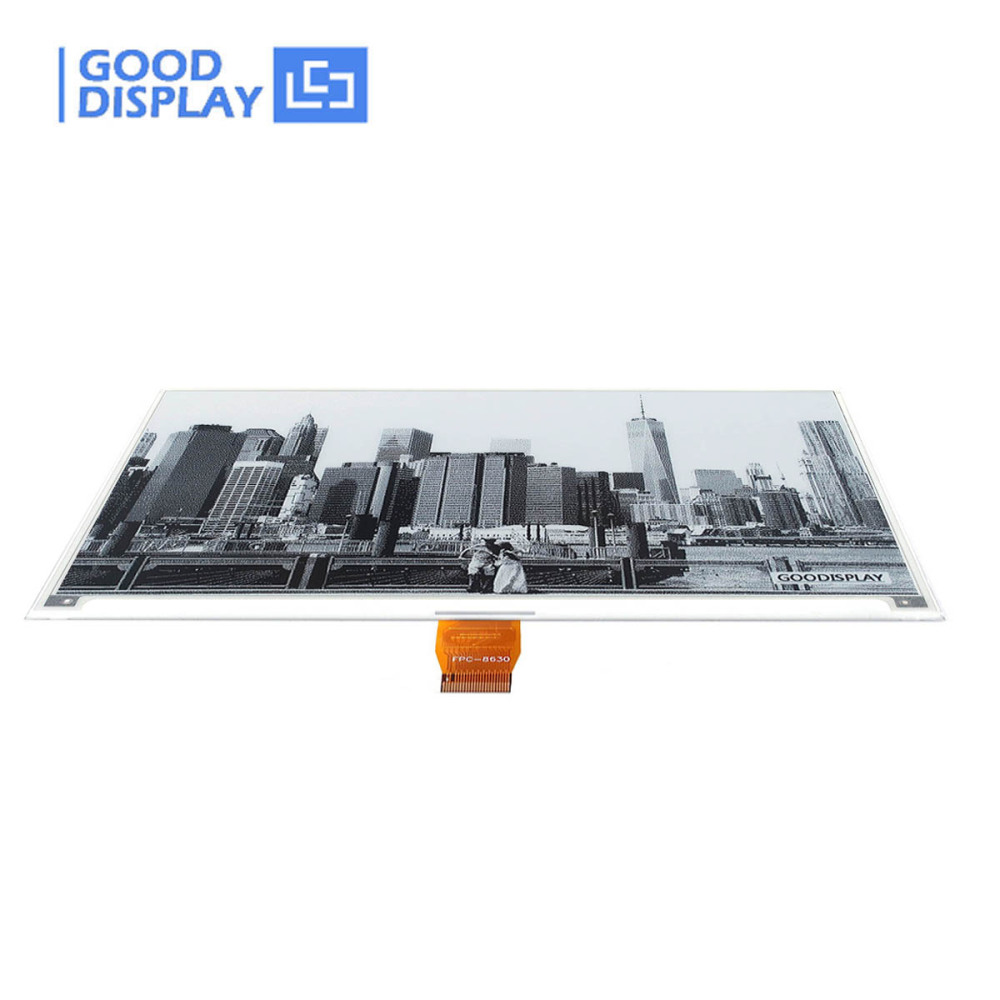

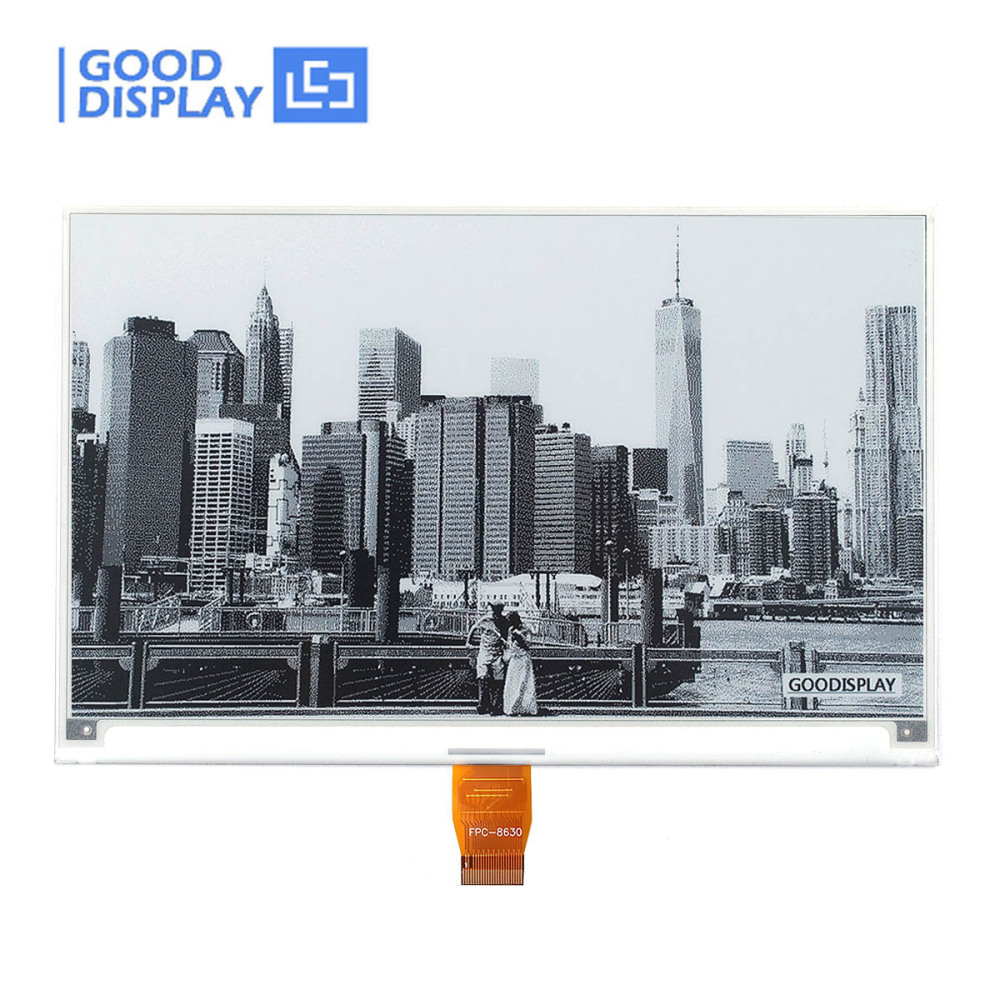

7.5-Inch ePaper Screen 800x480 Resolution Lightning-fast 0.3s E-ink Display

GDEM075T42
Experience the future of display technology with our 7.5-inch ePaper screen—offering ultra-fast refresh rates, stunning clarity, and eye-friendly, power-efficient performance that's perfect for smart signage and digital displays.
Price:
USD
$38.80
  • Product:

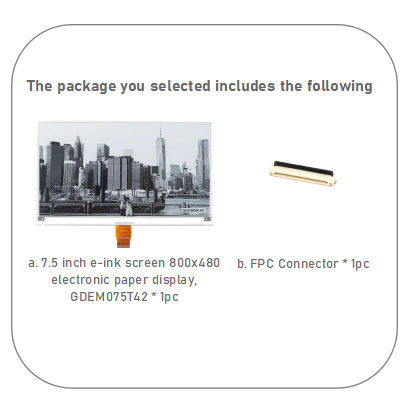

    EPD

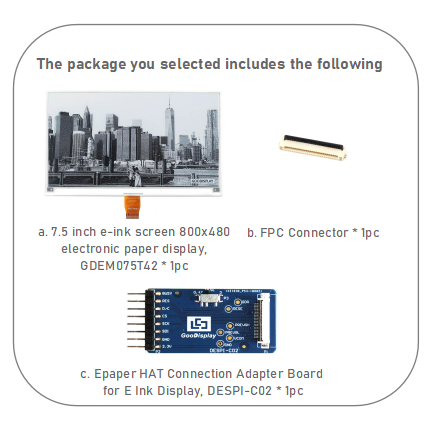

    EPD with adapter board DESPI-C02

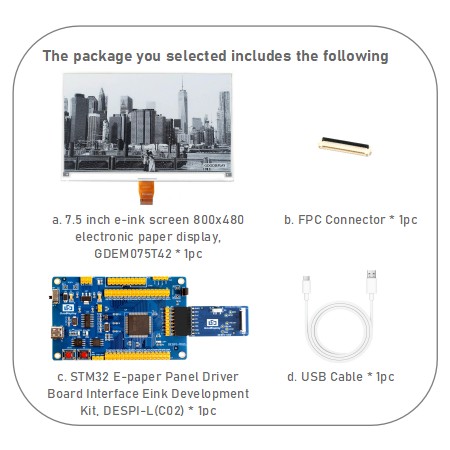

    EPD with demo kit DESPI-L(C02)

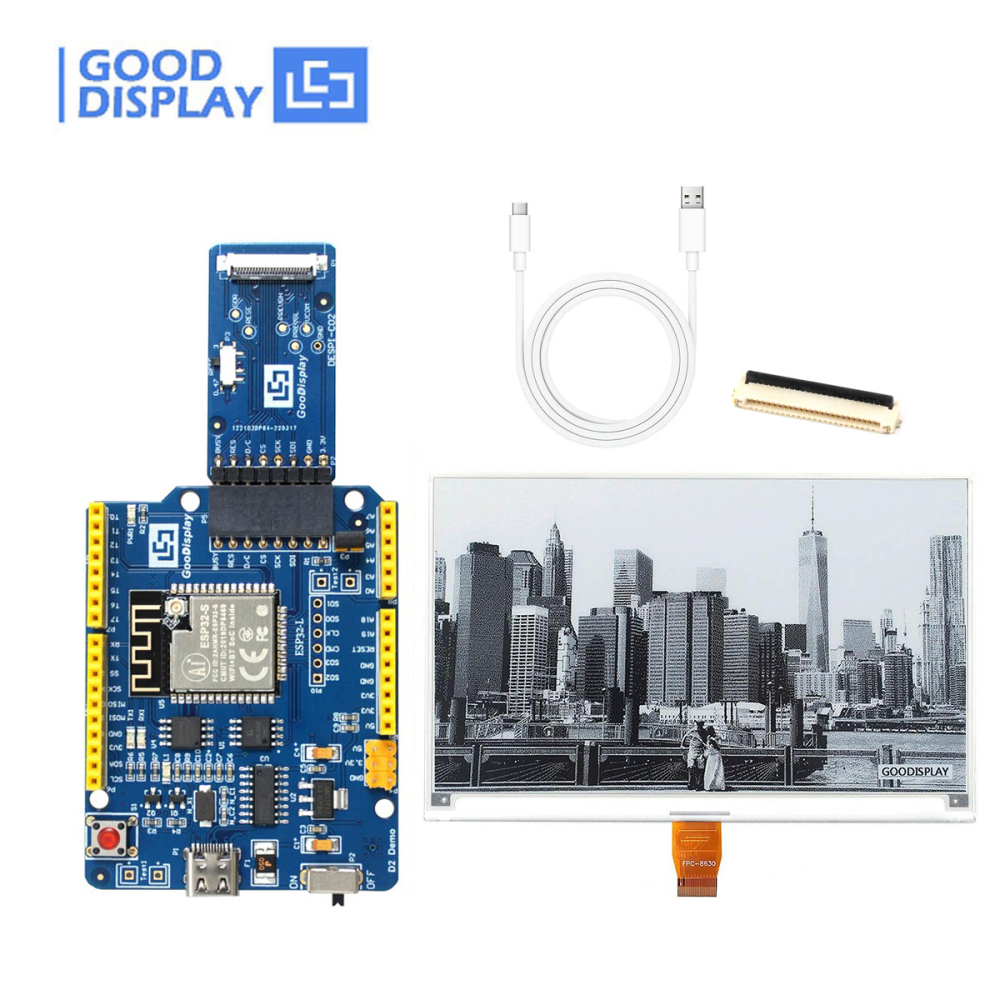

    EPD with ESP32 demo kit ESP32-L(C02)
Quantity:
-
+
(352 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • 7.5 Inch EPD Products List
  • Reviews(6)


7.5-Inch ePaper Screen with 0.3s Partial Refresh & 2.5s Fast Refresh





This is a 7.5-inch ePaper display with an 800x480 resolution, black-and-white imaging, and an SPI interface. Powered by the UC8179 driver IC and operating at 3.3V, it performs optimally within 0-50℃. With versatile refresh modes (full in 3s, fast in 2.5s, partial in 0.3s) and flexible orientation (horizontal or vertical), this bistable display retains content without power and offers a wide viewing angle over 170 degrees with an anti-glare surface. Eye-friendly with no blue light or radiation, it's perfect for smart signs, smart home applications, and industrial instruments. Customization options include a touch screen, plastic enclosure, and cover plate. Ideal for low-power devices, it's great for applications like digital price tags and electronic shelf labels where content remains visible indefinitely without power.









Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Ultra-Low Power, Persistent Display: Minimal energy consumption with content that remains visible even when powered off.
 ● Versatile Refresh Modes, Quick Response: Full refresh (3s), fast refresh (2.5s), and partial refresh (0.3s) to meet various application needs.
 ● Wide Viewing Angle, High Contrast: 170-degree wide viewing angle ensures clear readability from any perspective.
 ● Eye-Friendly Design, No Blue Light: Zero blue light and radiation-free, perfect for extended use without eye strain. Anti-Glare Surface: Hard-coated to maintain clear visibility even in bright light conditions.
 ● Flexible Installation, Custom Options: Easily switch between horizontal and vertical orientations, with customizable options like touch screen, enclosure, and cover plate.









Technical Details

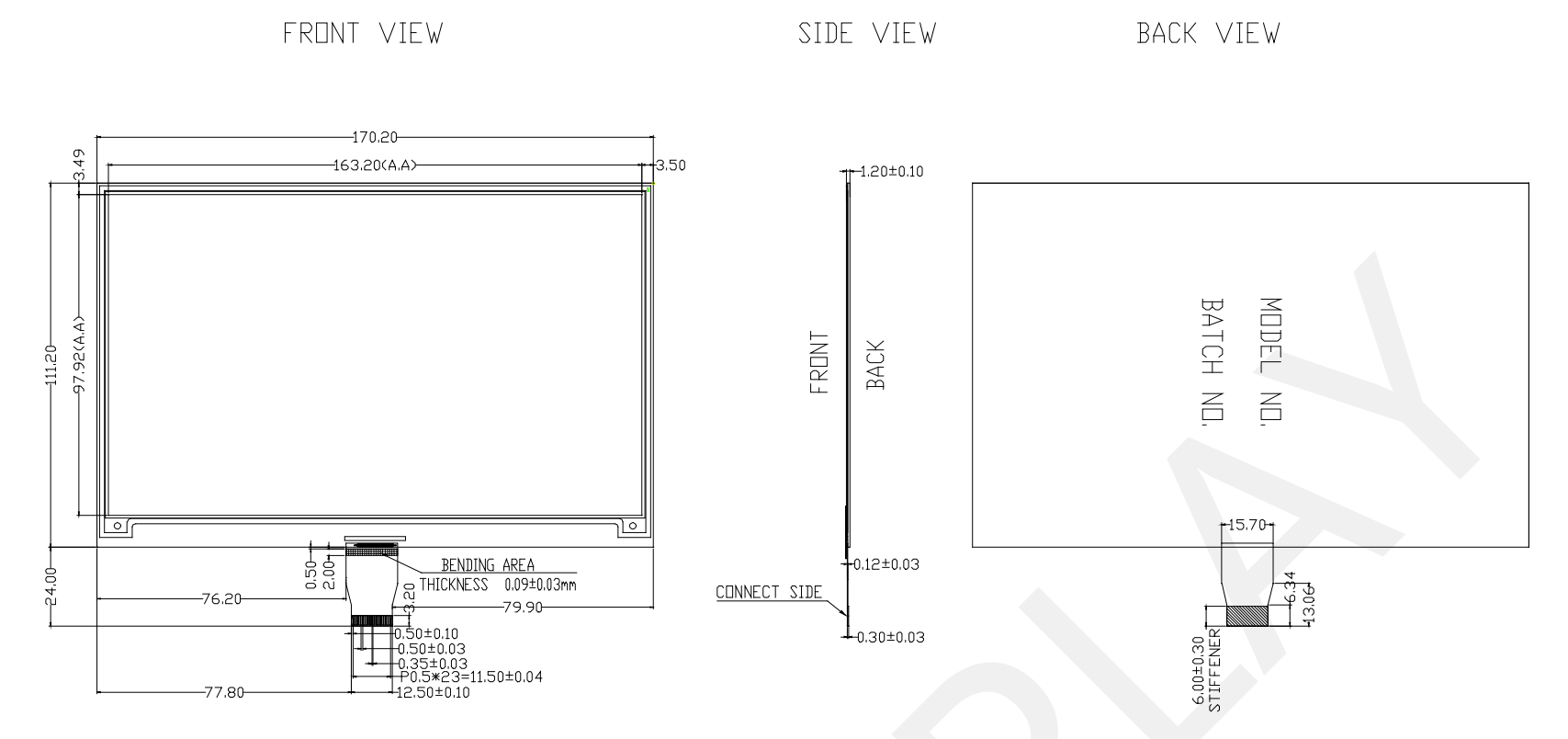

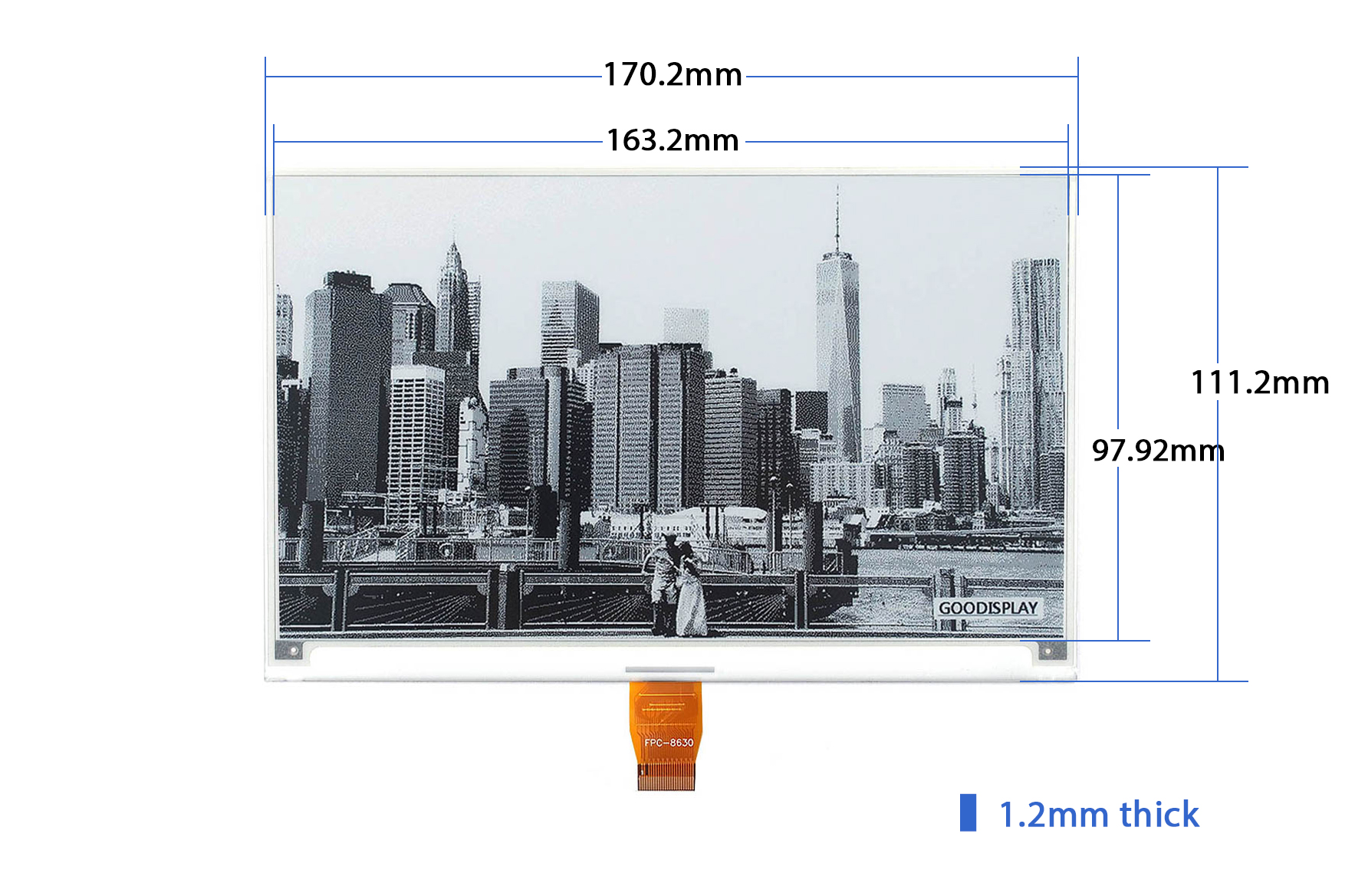

    Please refer to the product drawings for detailed dimensions









Product Specifications


    Please refer to the product specifications for more details

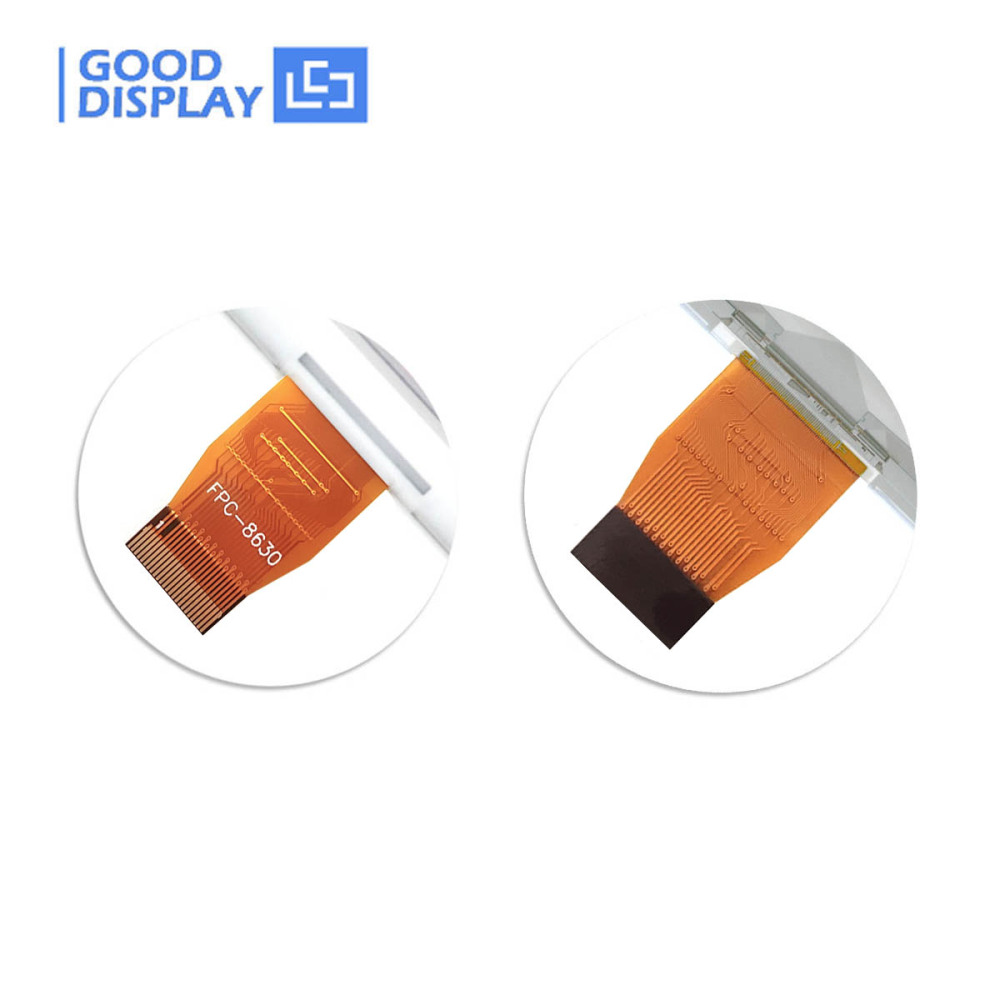

PART NUMBER GDEM075T42 CONNECTOR 24 Pin FPC
TYPE Dot Matrix MAX GRAYSCALE 4
SIZE 7.5 inch COLOR Black,White
IC UC8179 INTERFACE SPI
RESOLUTION 800x480 FULL REFRESH(s) 3
OUTLINE SIZE(mm) 170.2x111.2x1.20 FAST REFRESH(s) 2.5
ACTIVE SIZE(mm) 163.2x97.72 PARTIAL REFRESH TIME(s) 0.3
PIXEL PITCH(mm) 0.204x0.204 POWER CONSUMPTION OF THE REFRESH(mW) 24
OPERATING TEMP. 0℃~50℃ STANDBY POWER CONSUMPTION (mW) 0.003
STORAGE TEMP. -25℃~70℃









Matching Driver Board


To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

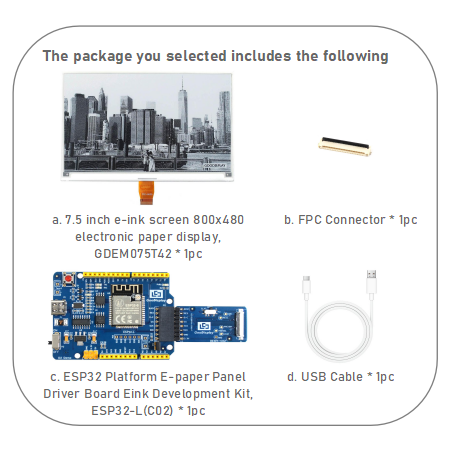

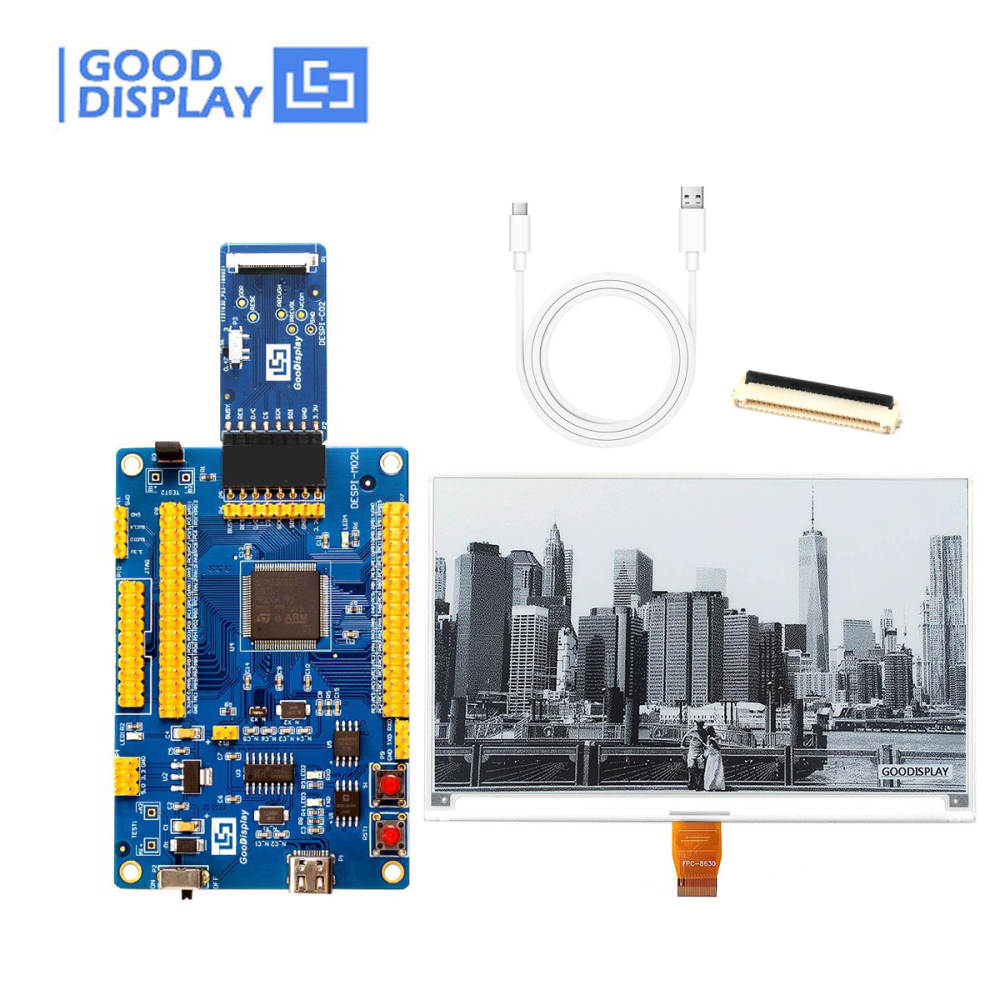

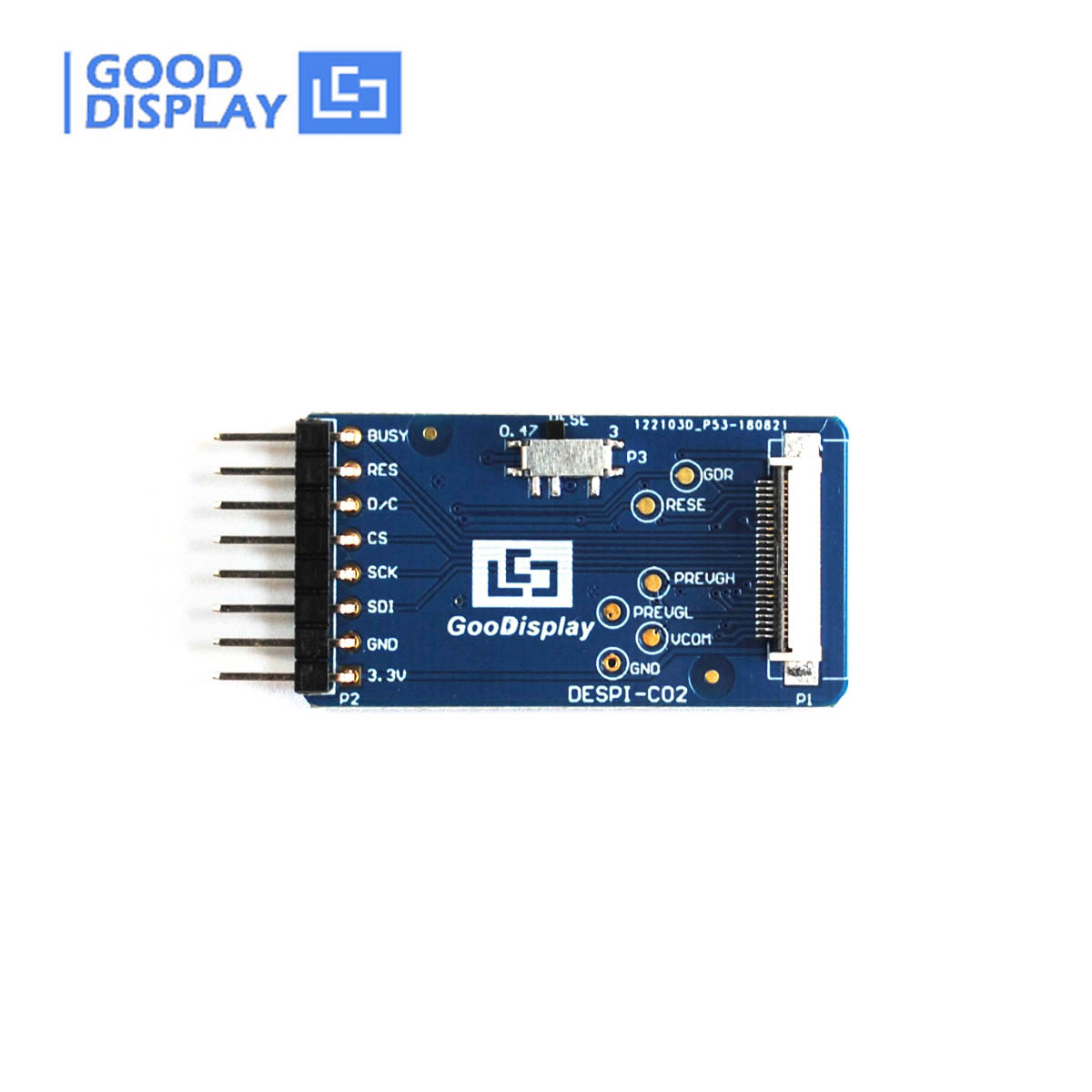

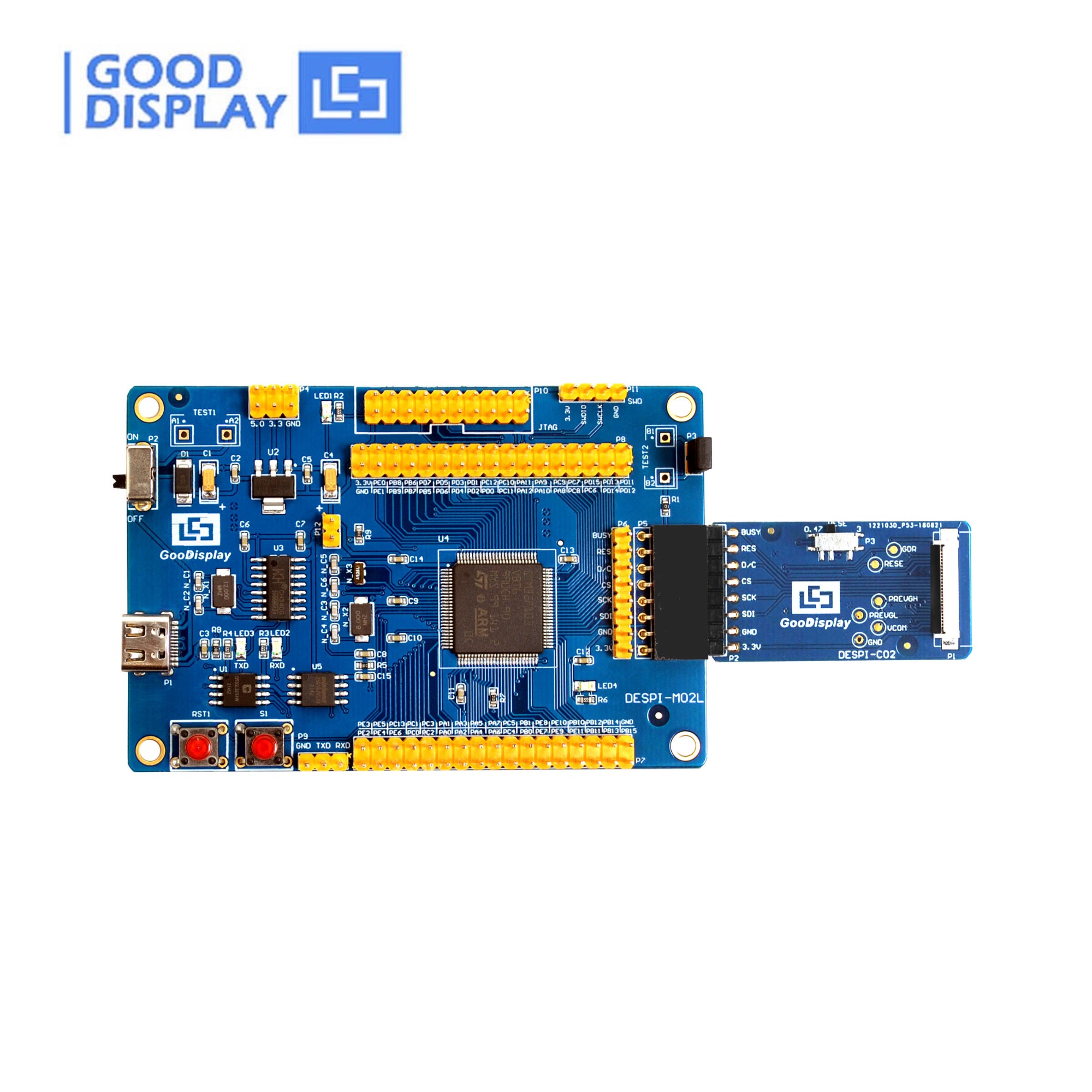

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.ESP32-L(C02) (ESP32 Demo Kit)








Every day is Earth Day


  You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.




Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.
Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.





WE ALSO SUGGEST

Click the image below to learn more about our products

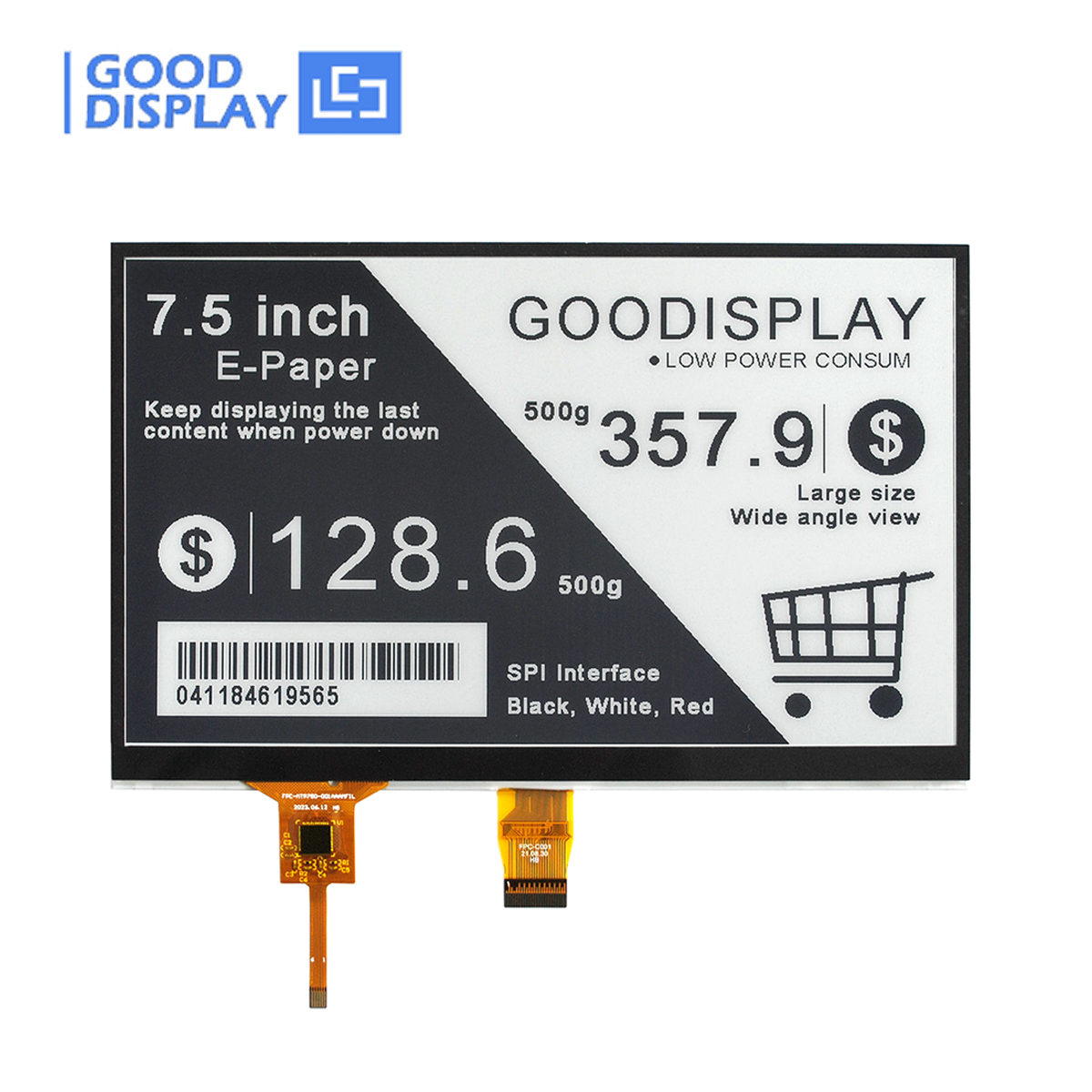

7.5 inch Touch Eink Display Black&White e paper display, GDEY075T7-T01

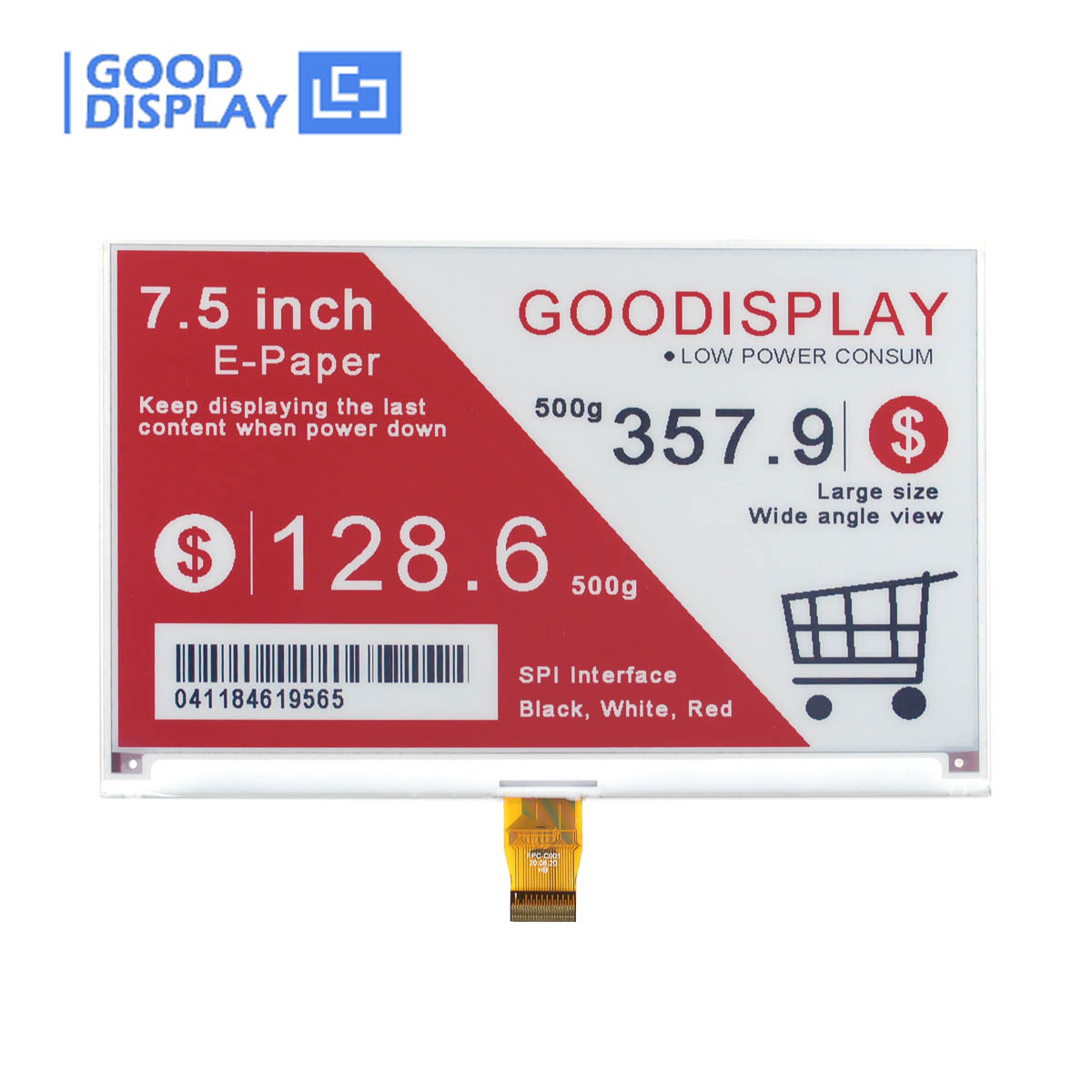

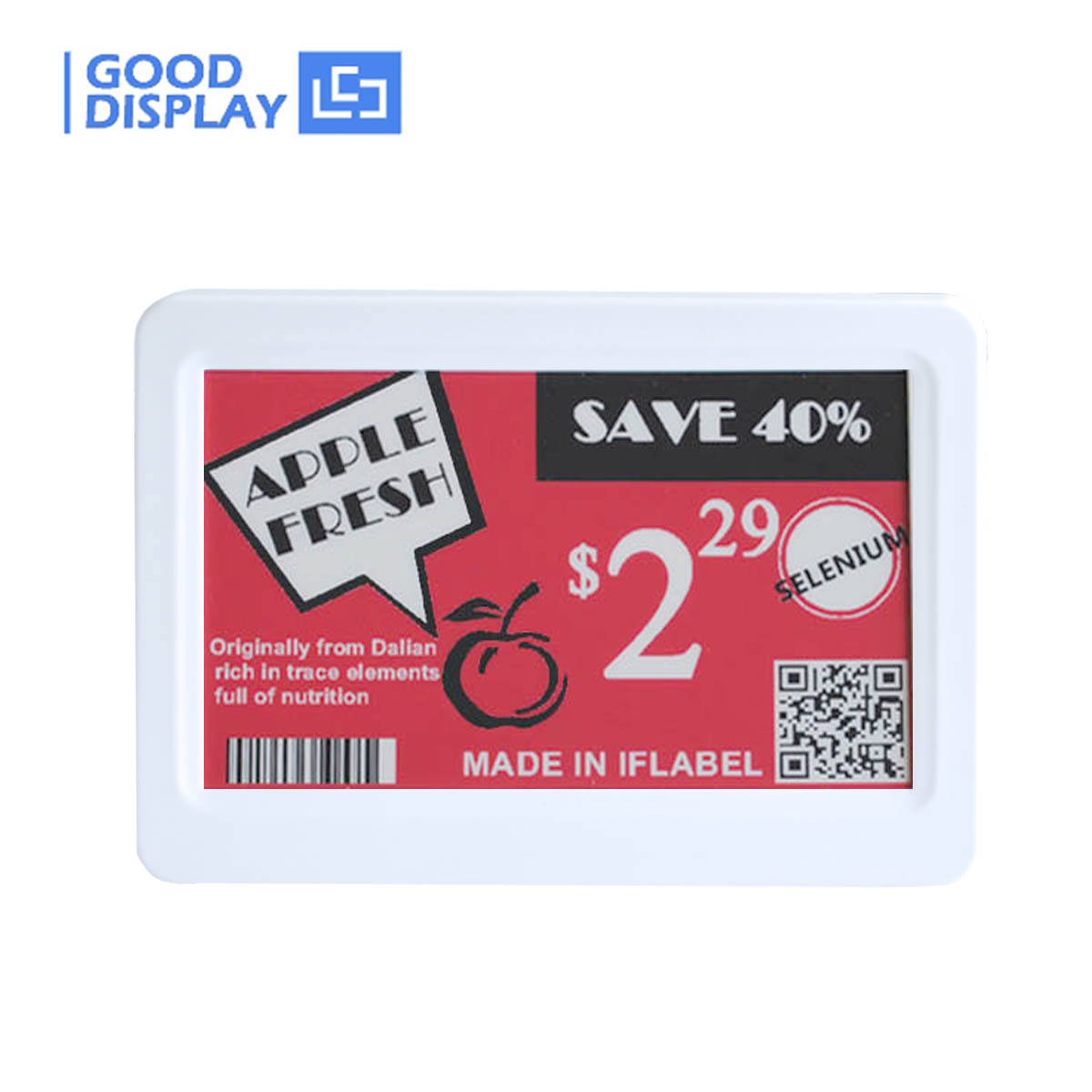

7.5 inch red tri-color electronic paper display partial update of black and white parts, GDEY075Z08 7.5 inch Price Label Esl Supermarket Electronic Price Label, No battery, GDU075BW1 7.5 Inch Electronic Shelf Label, Color E-ink Display Screen, For retail, Conference and Industrial Tag EPD Screen, GDU075R1





ABOUT US

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at
[buyepaper@good-display.com].

PART NUMBER

COLOR

IC

RESOLUTION

FULL REFRESH(s)

FAST REFRESH(s)

PARTIAL REFRESH TIME(s)

GDEY075T7

Black,white

UC8179

800x480

3.5

1.5

0.34

GDEM075T42

Black,white

UC8179

800x480

3

2.5

0.3

GDEY075Z08

Black, White, Red

UC8179

800x480

28

16

1.3

GDEM075F52

Black, White, Red,Yellow

JD79665AA

800x480

22





GDEY075T7-T01

Black,white

GT911 (Touch IC)

800x480

3.5

1.5

0.34

GDU075BW1

Black,white

E-Paper Signage

800x480







GDU075R1

Black, White, Red

E-Paper Signage

800x480







EW075F12



Plastic Enclosure









IL075U   Development Kit
