Home > Clearance Sale > [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
1/1
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
Share:
Limited Offer!
14 sold

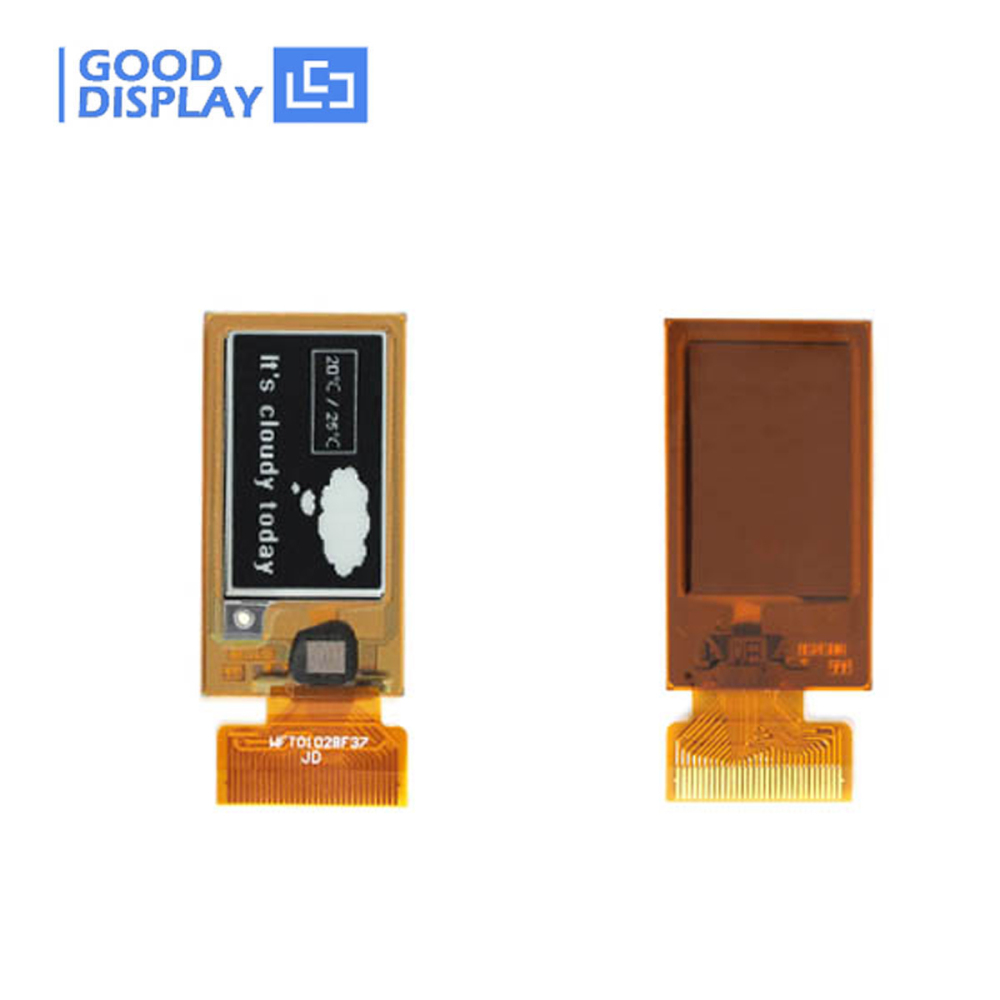

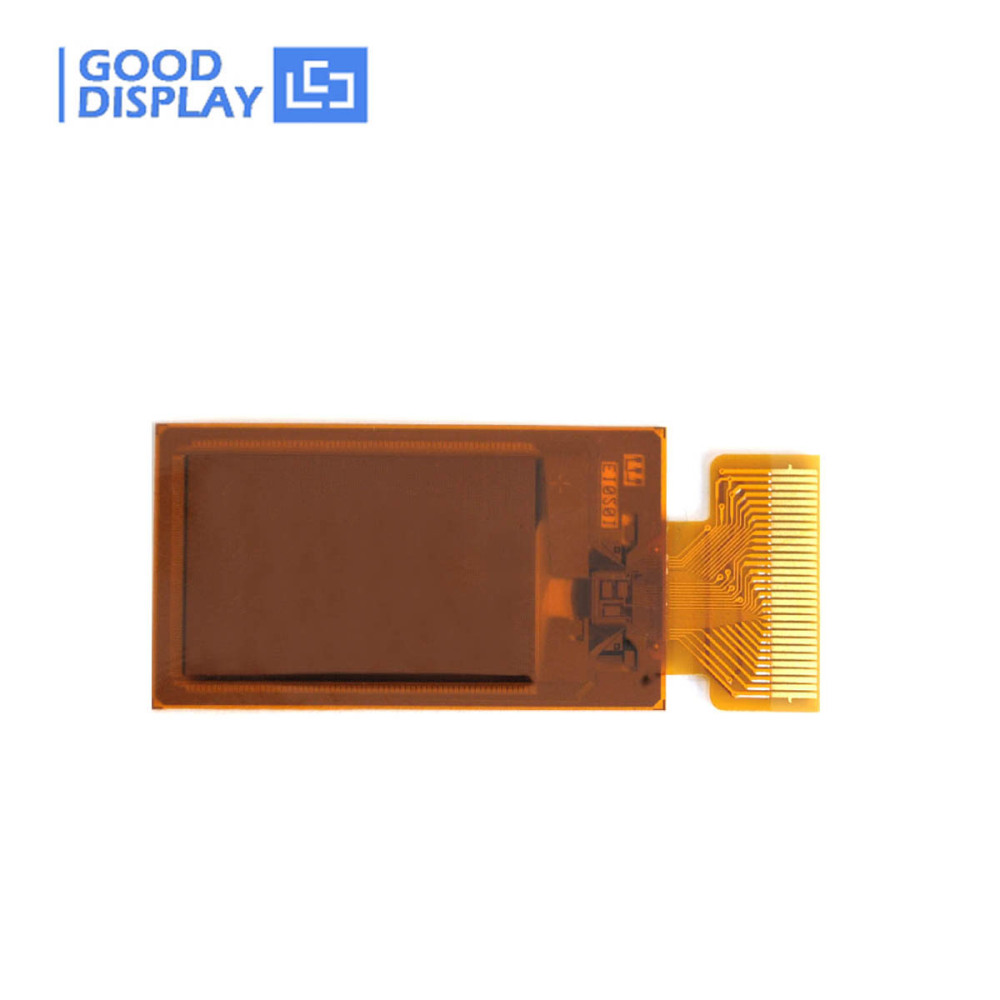

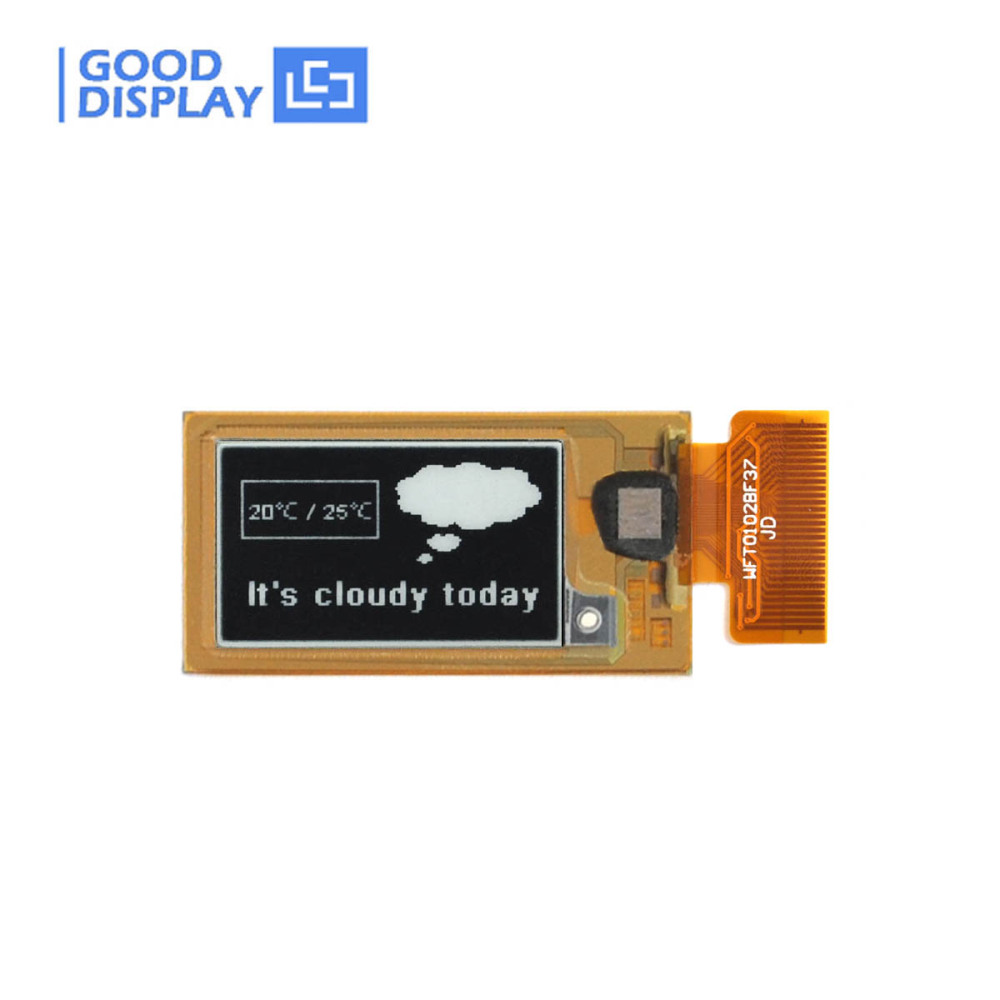

[EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN

SKU:
(4)
63 Sold
$4.95 $6.18
20% OFF

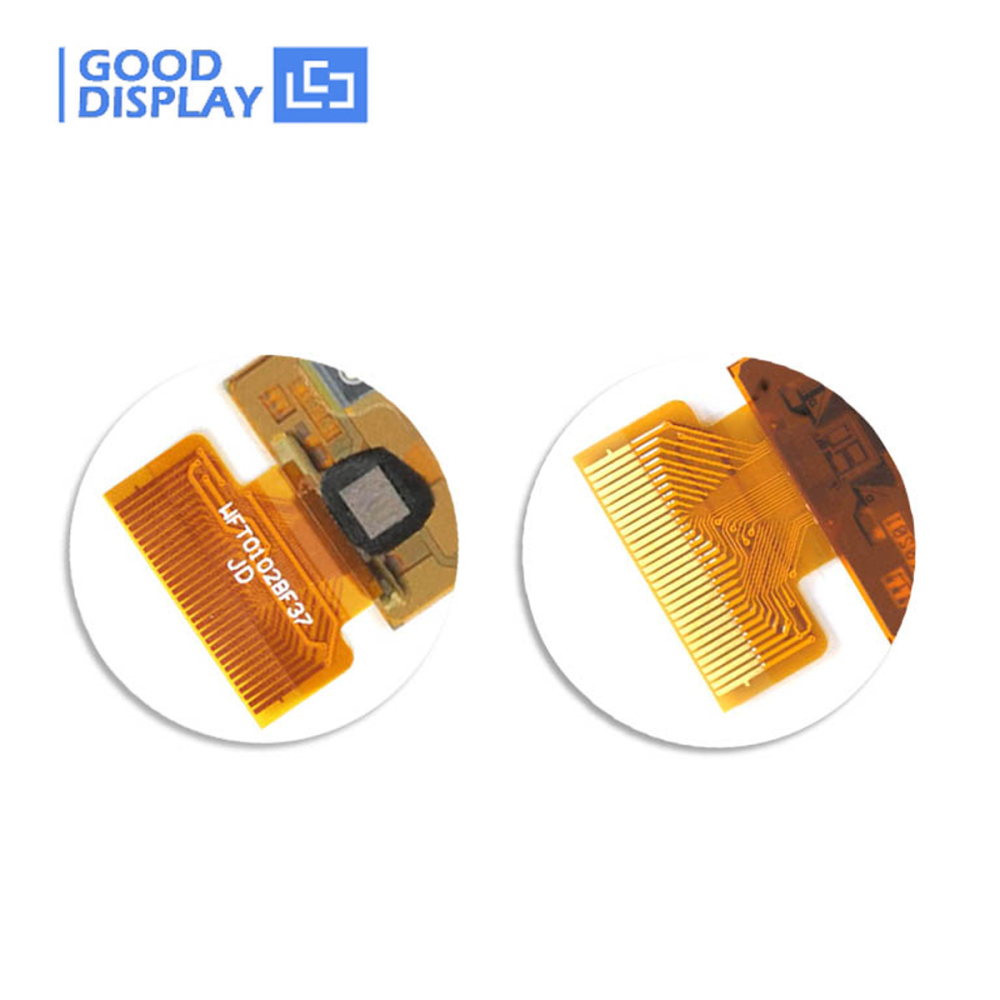

This 1.02 inch epd screen is a ACF Thermal Compression bonding method, and the gold finger of the FPC is facing down when the display side is facing up.
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • product:

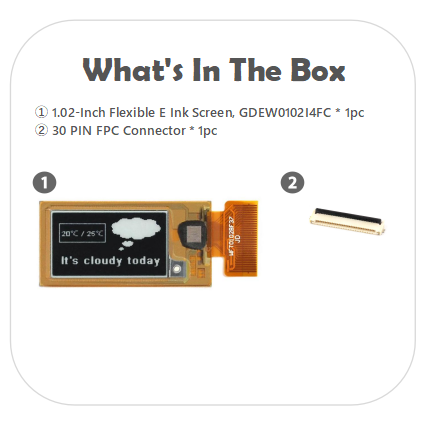

    GDEW0102I4FC
    GDEW0102I4FC

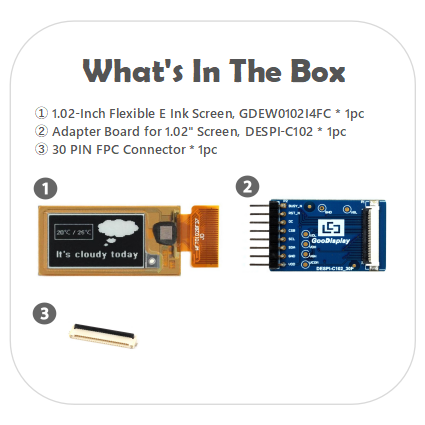

    with Adapter Board
    with Adapter Board

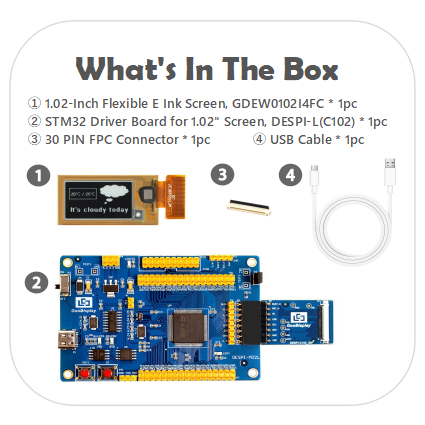

    with STM32 Demo Kit
    with STM32 Demo Kit

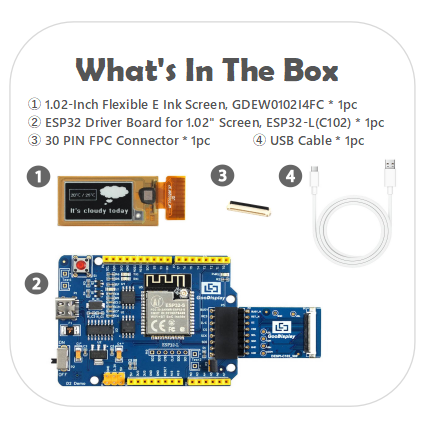

    with ESP32 Demo Kit
    with ESP32 Demo Kit
    Please select the information you wantX
Quantity:
0 in stock
Add to Favorites (2)
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
1/1
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
  • [EOL]Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen 30PIN
Frequently Bought Together
more
Frequently Bought Together
  • Description


1.02 inch Mini flexible e-paper display ACF Thermal Compression





Ultra-low power, never lose your display! This 1.02-inch flexible E-ink screen, with a 128x80 resolution and partial refresh capability, retains images even without power. Perfect for solar or battery-powered devices, featuring innovative ACF thermal compression bonding for easy integration and long-lasting, clear display!













Special Features


 ● Ultra-thin & Space-saving: ACF (Anisotropic Conductive Film) technology reduces thickness, ideal for space-constrained applications.
 ● Flexible & Durable: Can be bent and shaped, perfect for wearables and curved surfaces.
 ● Low Power Consumption: Consumes power only during refresh and retains images without power, ideal for battery-operated devices.
 ● Wide Viewing Angle: Over 170° viewing angle for clear visibility from almost any direction.
 ● Fast Refresh Rates: Full refresh in 3s, ensuring quick updates. Short
 ● Lead Time: Fast production and delivery, ideal for quick turnaround projects.










Technical Details









Product Specifications


PART NUMBER GDEW0102I4FC CONNECTOR 30 PIN FPC
SIZE 1.02 inch COLOR Black, White
TYPE Dot Matrix MAX GRAYSCALE 2
IC UC8175 FULL UPDATE TIME(s) 3
PPI 147.98 TYPICAL POWER(mW) 26.4
RESOLUTION 128x80 DEEP SLEEP POWER(mW) 0.0165

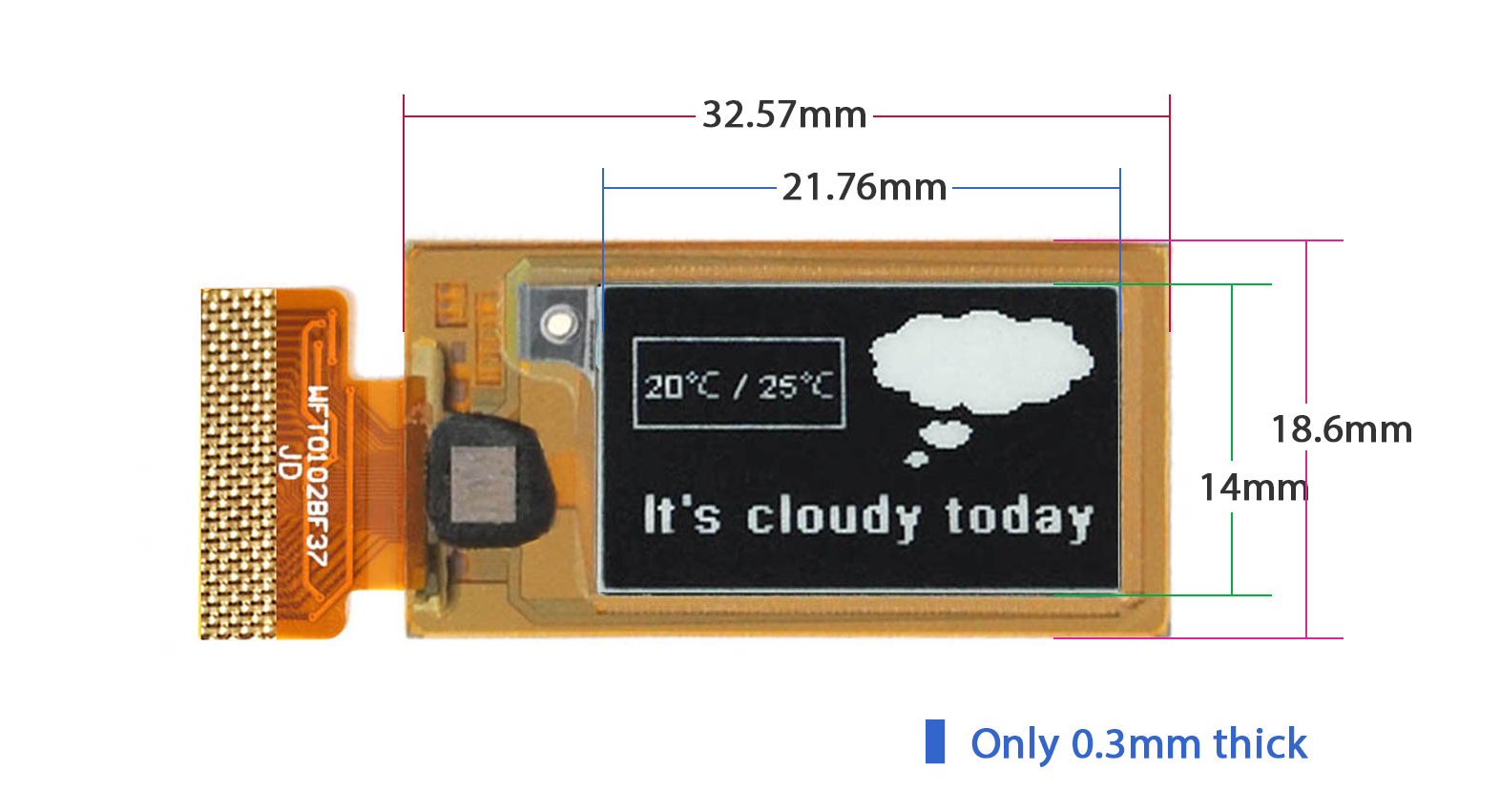

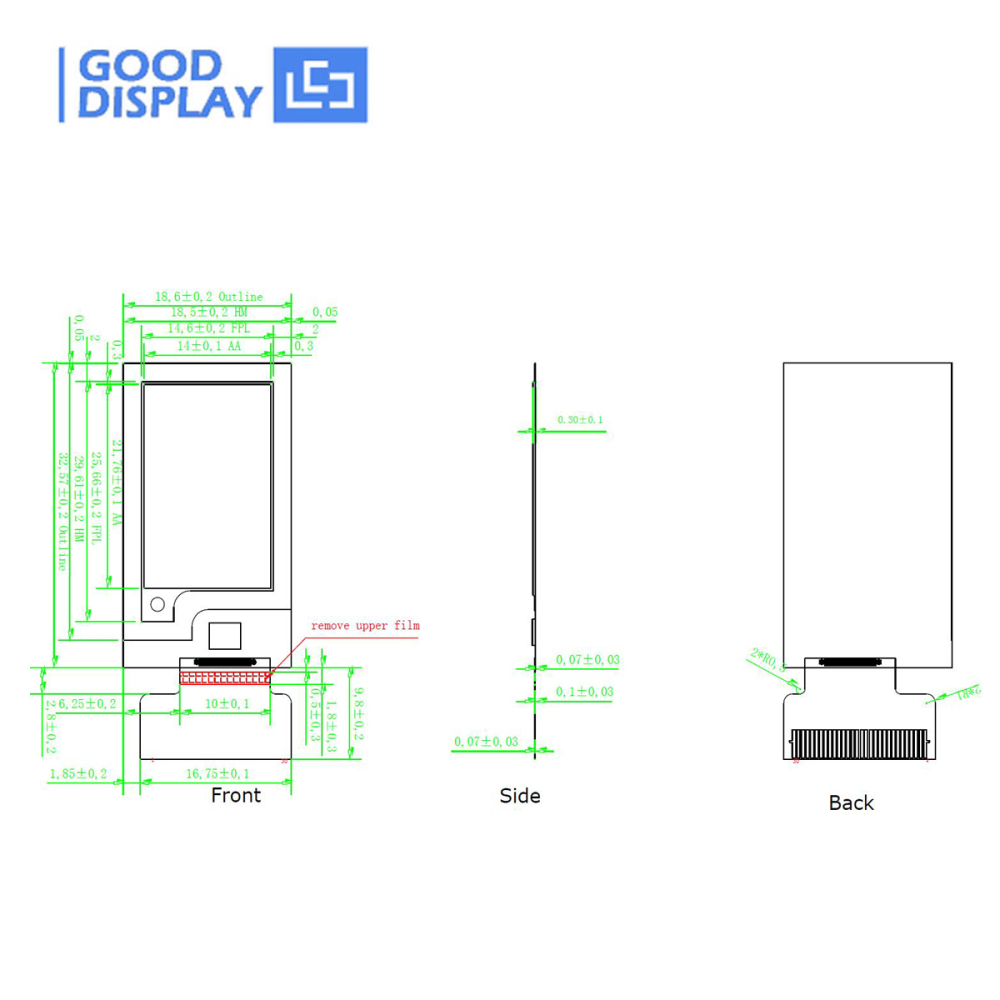

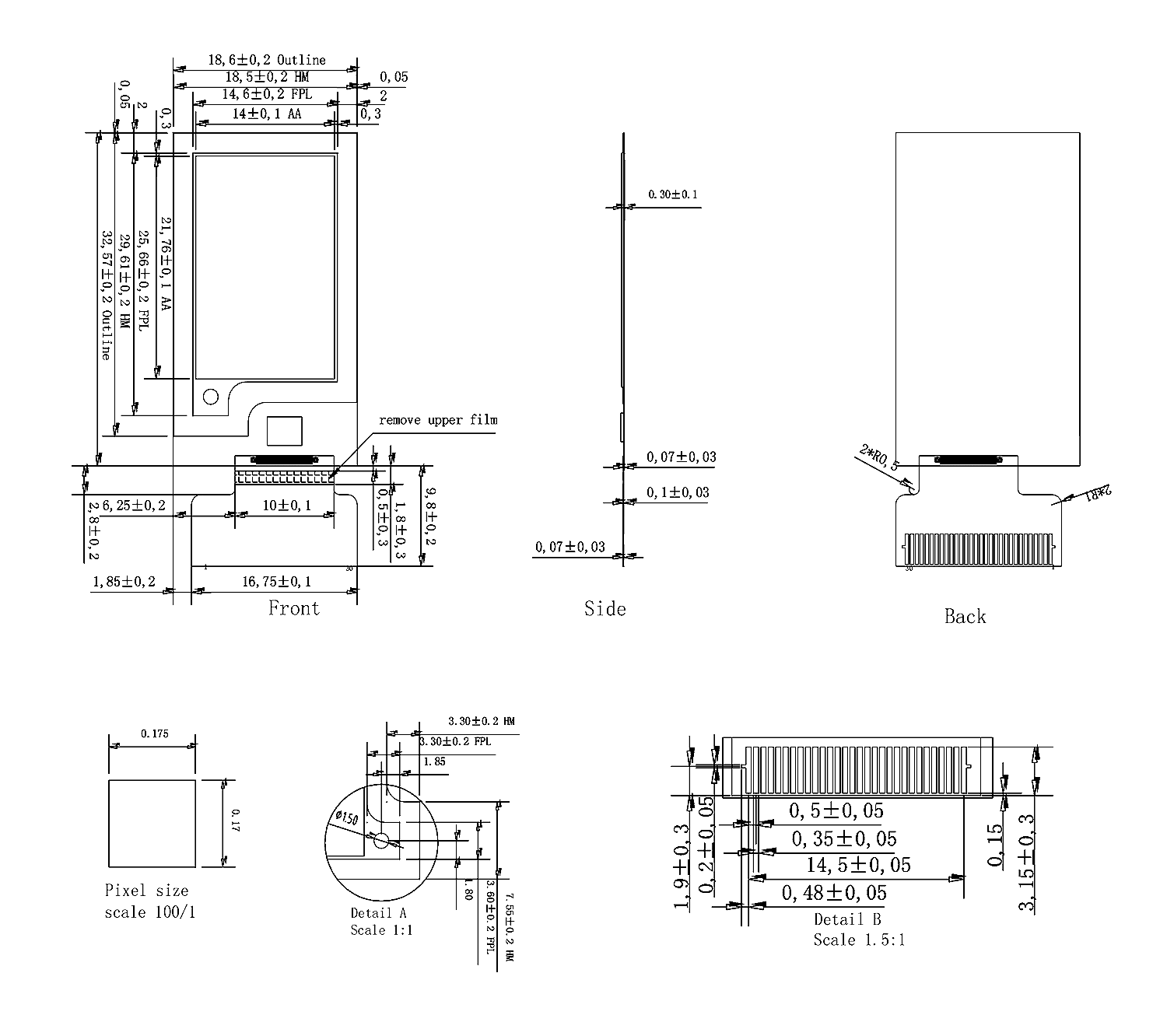

OUTLINE SIZE(mm) 32.57x18.6x0.3 OPERATING TEMP. 0℃~50℃
ACTIVE SIZE(mm) 21.76x14 STORAGE TEMP. 25℃~70℃
PIXEL PITCH(mm) 0.175x0.17









Files And Download


● GDEW0102I4FC_Specification ● ESP32epdx Official Library User Manual(github)
● IC Driver UC8175 ● Company Profile
● GDEW0102I4FC_ESP32 Sample Code ● The Latest Catalog of ePaper Display
● GDEW0102I4FC STM32 Sample Code ● Why can't I download the files(updated)?
● GDEW0102I4FC_ESP8266 Sample Code ● ePaper Display Usage Guidelines
● GDEW0102I4FC_Arduino Sample Code ● payment agreement






Flexible E Ink Display Solutions

Discover the perfect size for your application with our cutting-edge flexible E Ink technology

2.13-inch E Ink display 2.9-inch E Ink display 1.54-inch 4-color E Ink display



1.54" Display

GDEM0154I61





2.13" Display

GDEM0213I61

2.13" Display

GDEW0213I5FDC70

2.9" Display

GDEW029I6FD

1.54" 4-Color

GDEM0154I51F










Product Application



Wearable devices

Smart home applications

Industrial Applications

Smart card









Every Day is Earth Day




  You don't need to be an environmental scientist to make sustainable choices.
At GooDisplay, we passionately integrate sustainability into the production of e-paper.









Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.

Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.







We Also Recommend

0.97 inch Eink Screen Mini E-Paper Display, GDEM0097T61 (18PIN)

Mini E-paper Display 0.97 inch Red E Paper Screen, GDEM0097Z61 (18PIN)

0.97-Inch E Ink Display (Black/White/Yellow/Red), GDEM0097F51 (18PIN)

Ultra-Clear 1.02 Inch Mini E Ink Display 0.3s Partial Refresh for Fast Crisp Updates 30PIN, GDEW0102T4






About Us
Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
