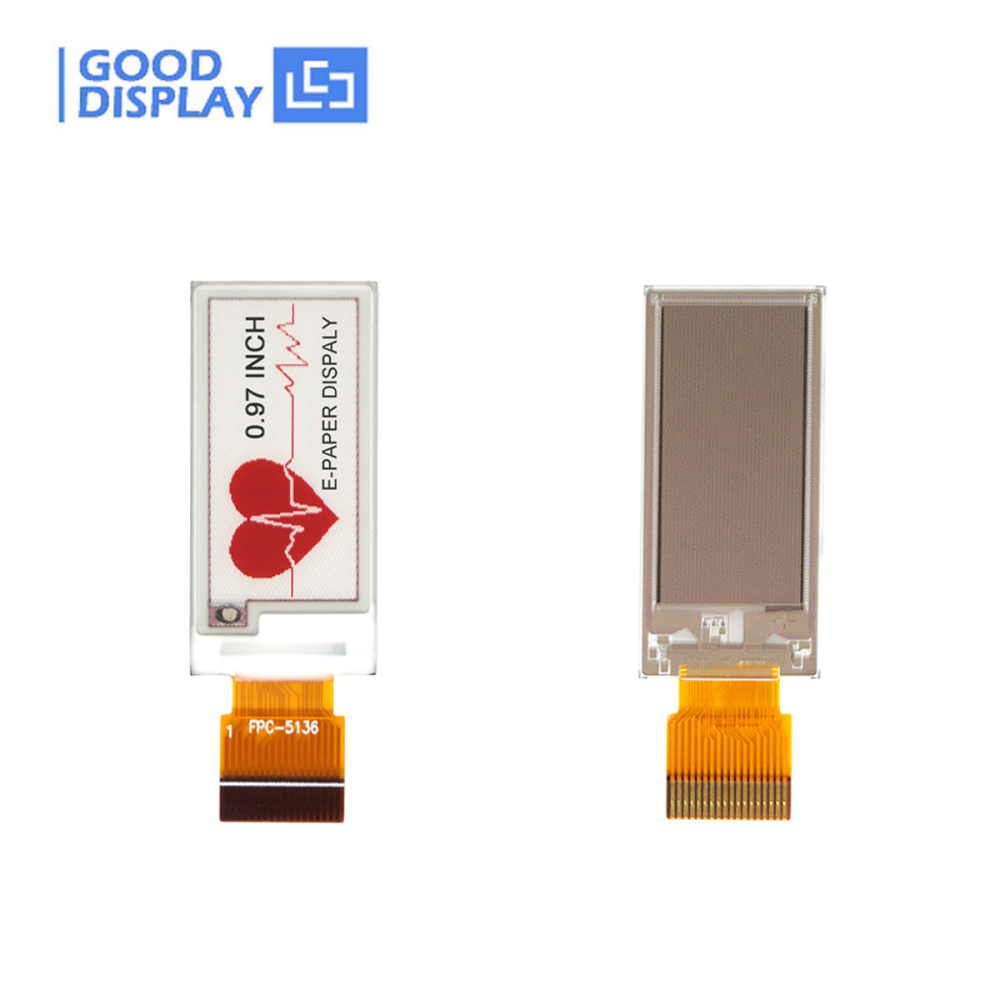

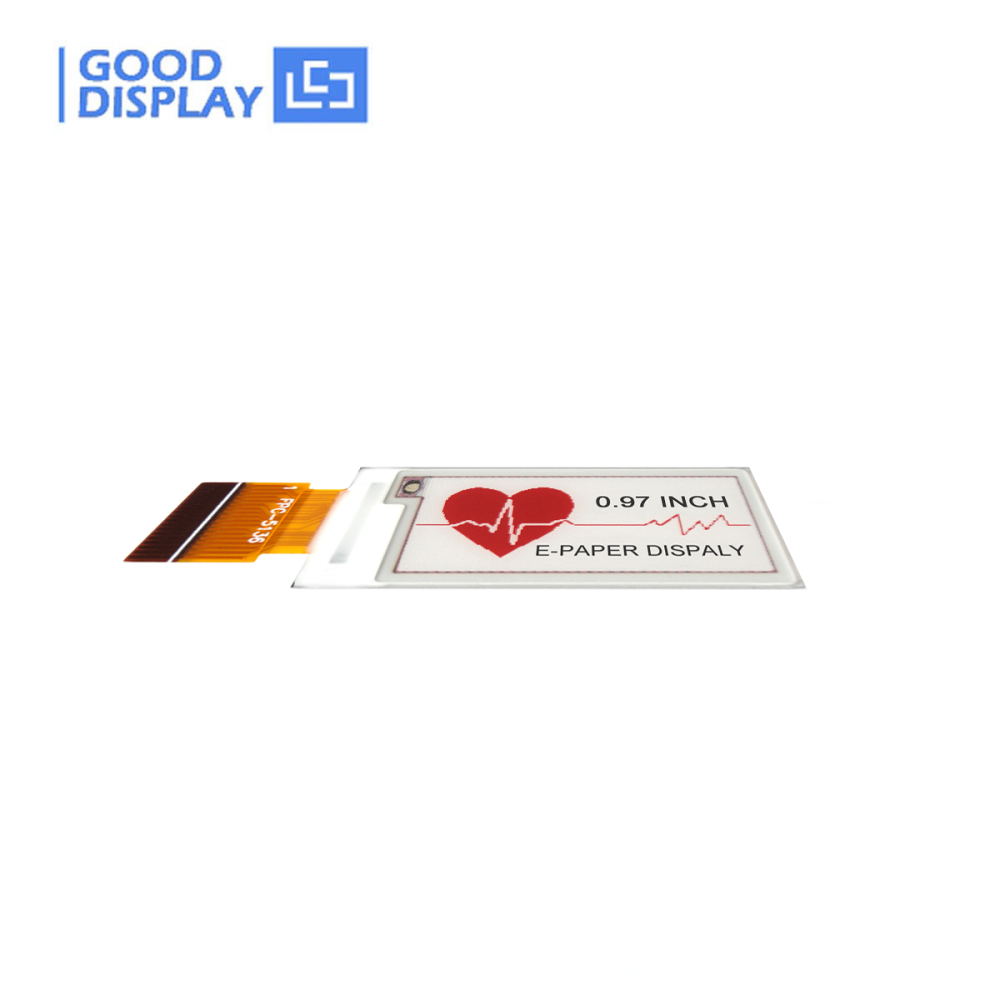

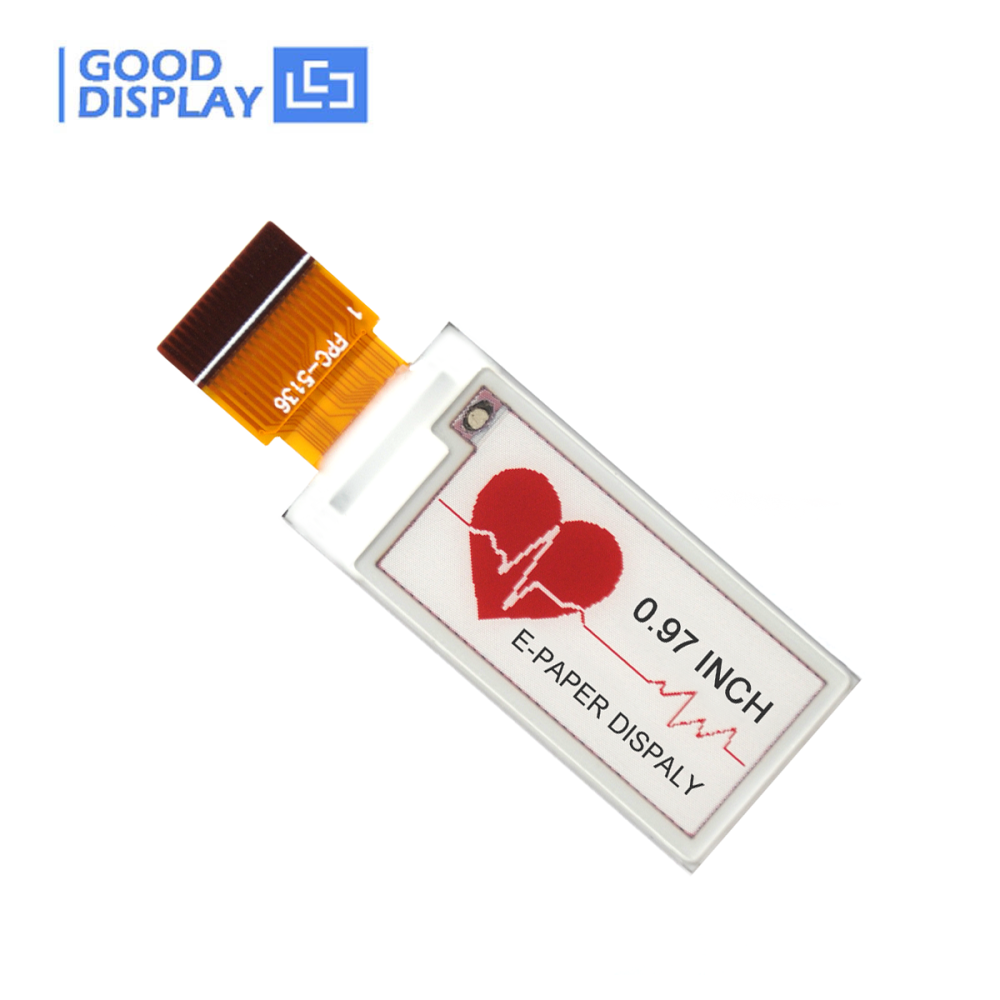

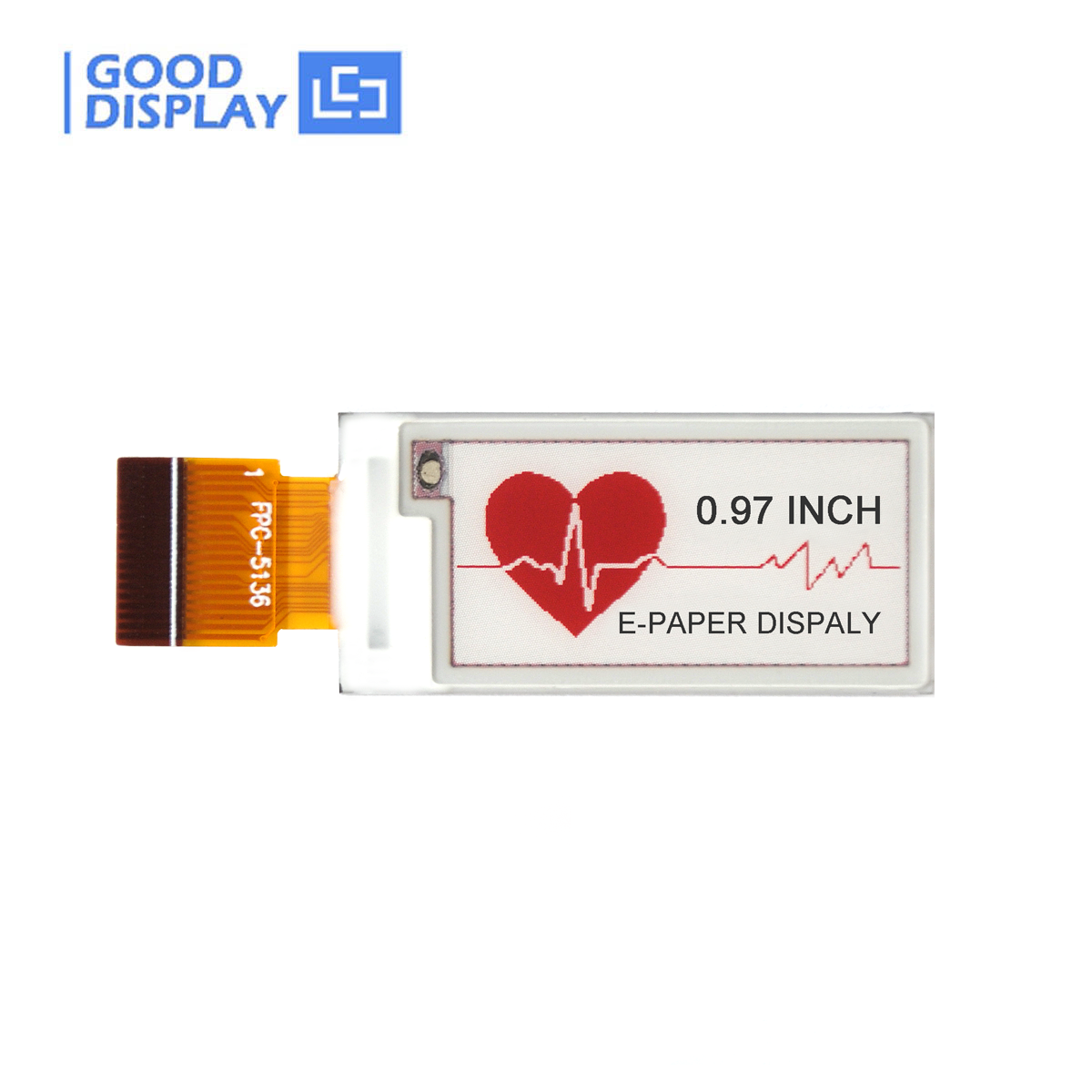

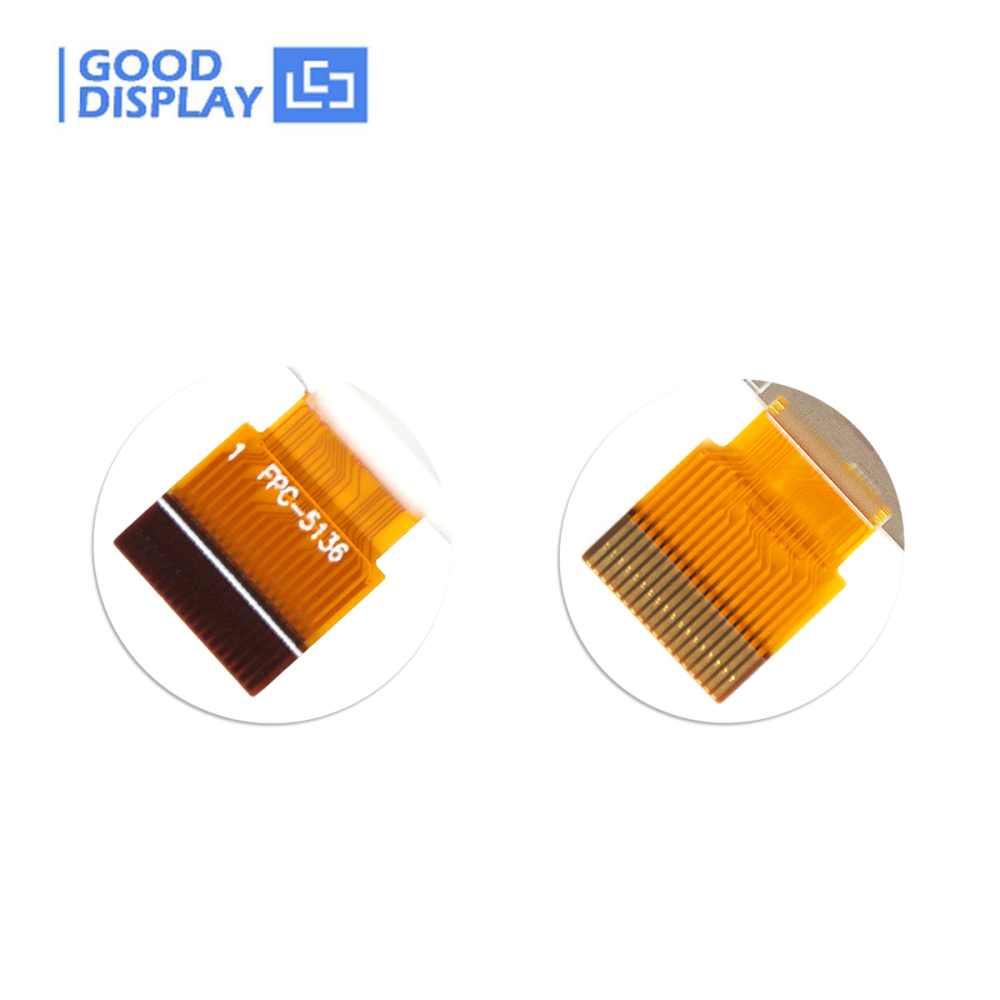

0.97 Inch Mini E-Paper Display Red E-Ink Screen with 18-Pin Connector Partial Update Capable

GDEM0097Z61
This is a 0.97-inch dot matrix electronic paper display screen with a resolution of 184x88, a black, white, and red three color display screen, FPC of 18Pin, SPI serial communication, and chip.
3 Review(s) Sold:45
Have a question?
Price:
USD
$3.50
$4.50
  • Product:
    EPD
    EPD with adapter board
    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
    adapter board
Quantity:
-
+
(175 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(3)


Mini E-paper Display 0.97 inch Partial Update Red E Paper Screen





This 0.97-inch tri-color e-paper display offers 184x88 high resolution and versatile applications, supporting partial updates in black and white and full updates for red. With its unique tri-color technology and wide viewing angle, it delivers clear and vibrant content. Featuring the SSD1680 driver IC and an 18-pin SPI interface, it operates at 3.3V within a temperature range of 0-40°C. The bistable display retains content even when powered off, ensuring energy efficiency with zero power consumption when not refreshing. Ideal for DIY electronics projects, this e-paper display is also gentle on the eyes, emitting no blue light and offering zero radiation.












Special Features


    Our product boasts distinctive features that set it apart from the competition
      ● Ultra-thin and lightweight: The ultra-small 0.97-inch e-ink screen is extremely thin and weighs only 1.1g, making it suitable for use in portable devices without adding significant weight or thickness.
 ● 3-color Display: Supports black, white, red.
 ● Crystal Clear and Quick Updates: Enjoy sharp, high-resolution images (184x88) and lightning-fast partial updates in just 0.26 seconds.  Perfect for dynamic, real-time information.
 ● Power-Saving Wonder: Thanks to its bistable display, this screen retains content even when powered off, making it incredibly energy-efficient.  Say goodbye to constant power consumption!
 ● Eye-Friendly Design: No more eye strain!  Our pure reflective display eliminates blue light and radiation, providing a comfortable viewing experience that's easy on your eyes.
 ● Wide Viewing Angle and Anti-Glare: With a viewing angle exceeding 170 degrees and anti-glare hard coating, you'll get a clear view from any direction, even in bright light.
 ● Versatile Applications: From smart home devices and industrial instruments to shelf tags and smart cards, this e-paper display fits seamlessly into various applications, making your life smarter and easier.









Technical Details

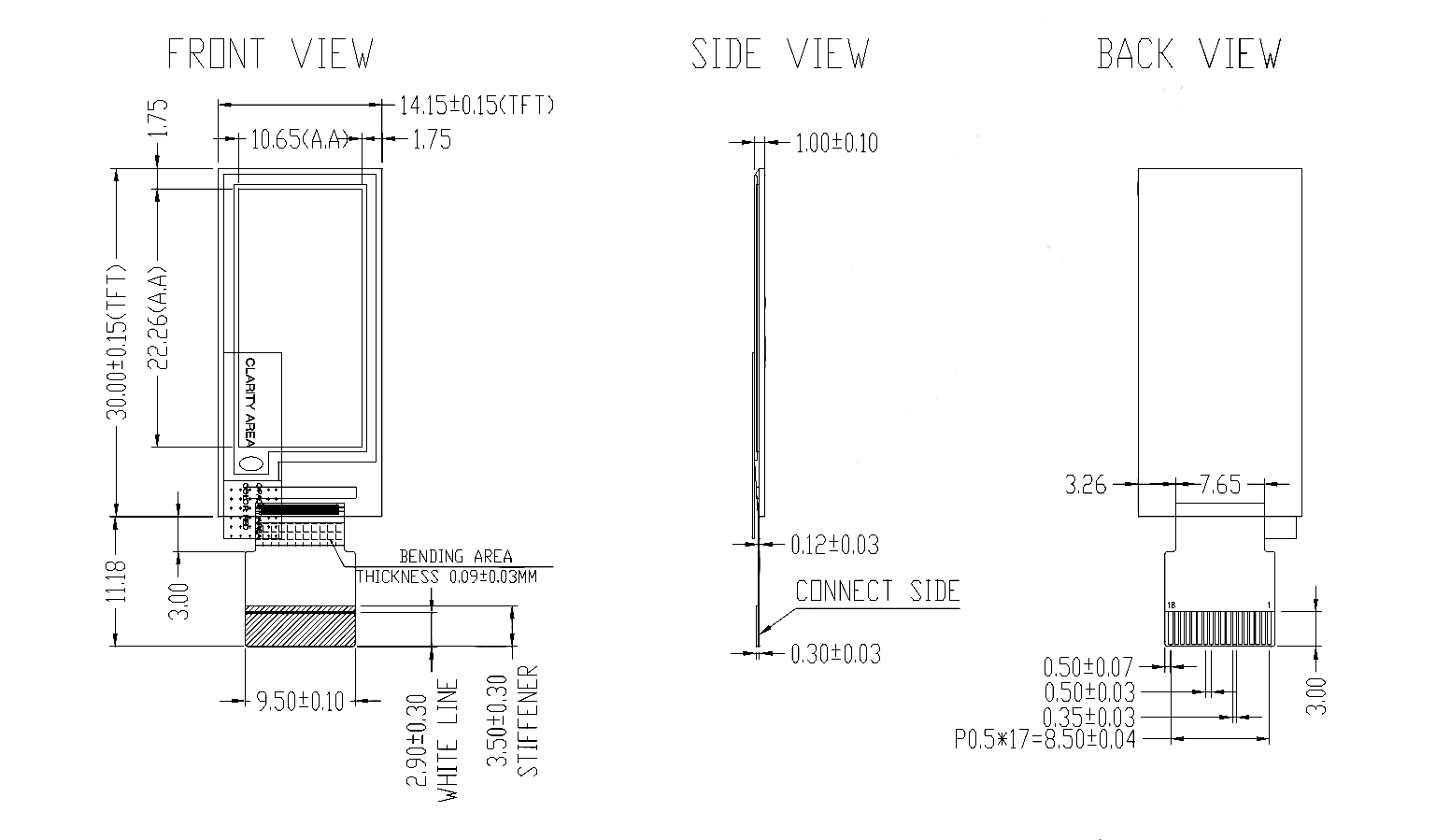

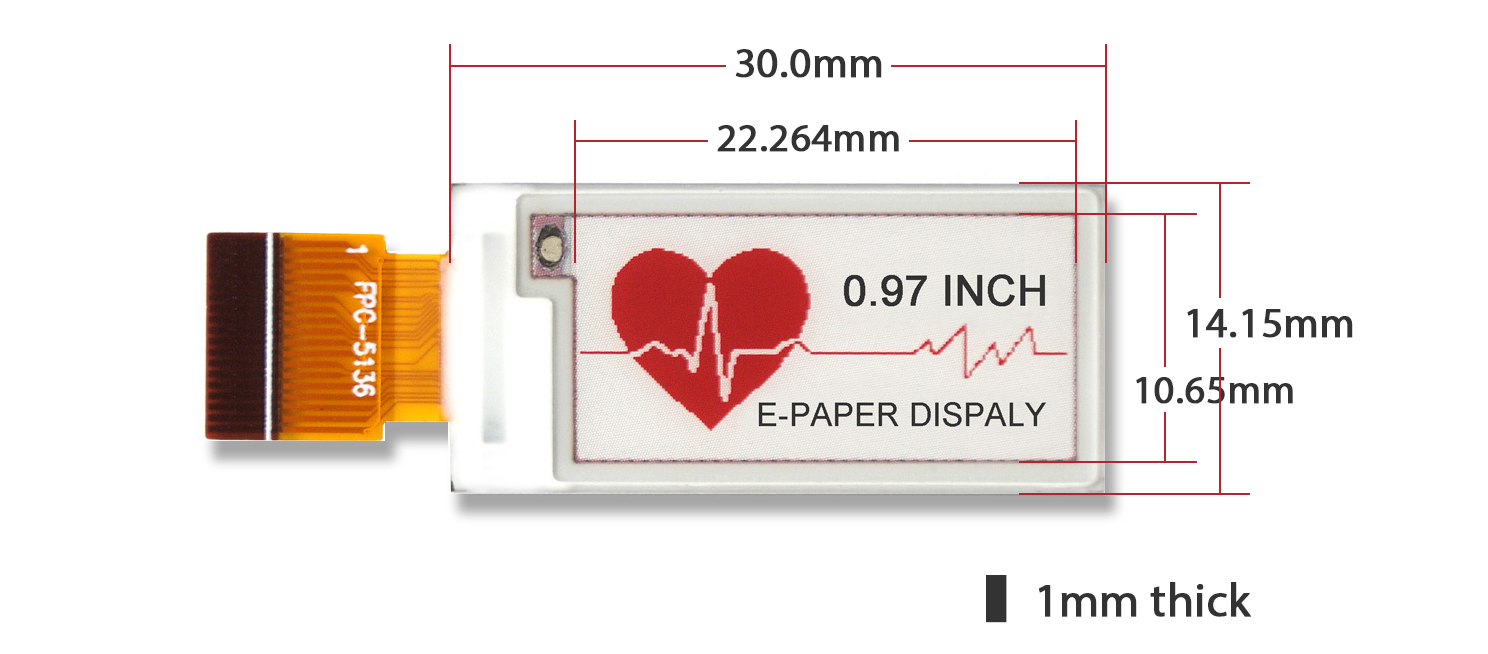

    Please refer to the product drawings for detailed dimensions







Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEM0097Z61 CONNECTOR 18 Pin FPC
SIZE 0.97 inch TYPE Dot Matrix
IC SSD1680 MAX GRAYSCALE 2
RESOLUTION 184x88 COLOR Black,White, Red
OUTLINE SIZE(mm) 30.0x14.15x1.0 INTERFACE SPI
ACTIVE SIZE(mm) 22.264x10.648 FULL UPDATE TIME(s) 20
PIXEL PITCH(mm) 0.121x0.121 PARTIAL UPDATE TIME(s) 0.26
OPERATING TEMP. 0℃~40℃ TYPICAL POWER(mW) 9
STORAGE TEMP. -25℃~70℃ DEEP SLEEP POWER(mW) 0.003

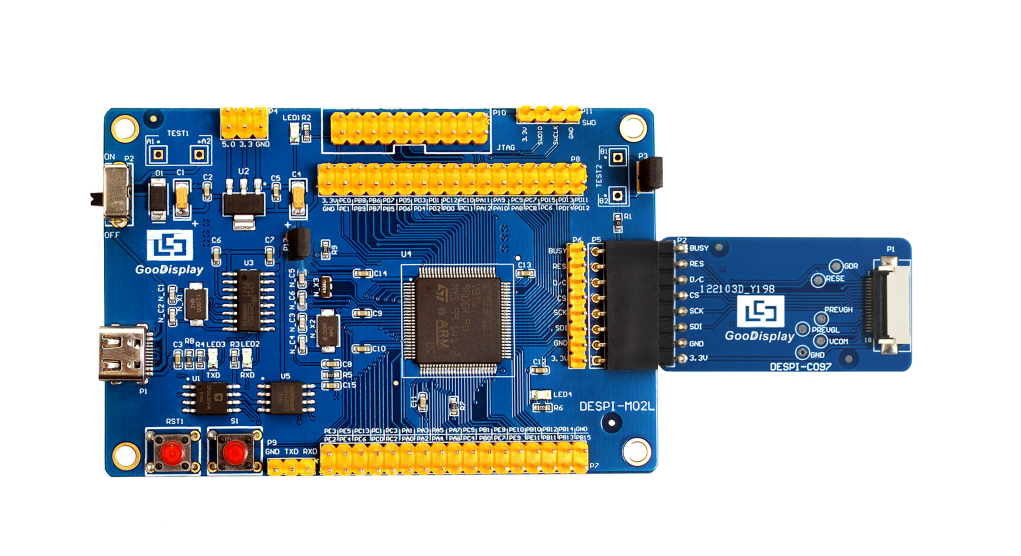

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

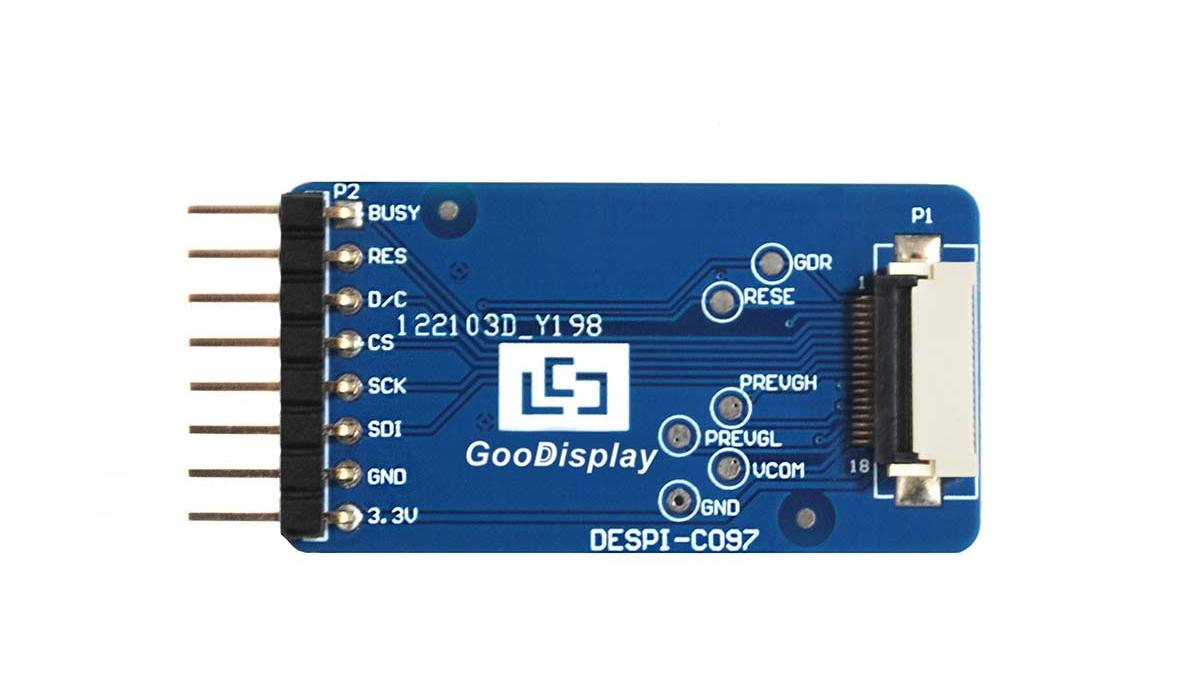

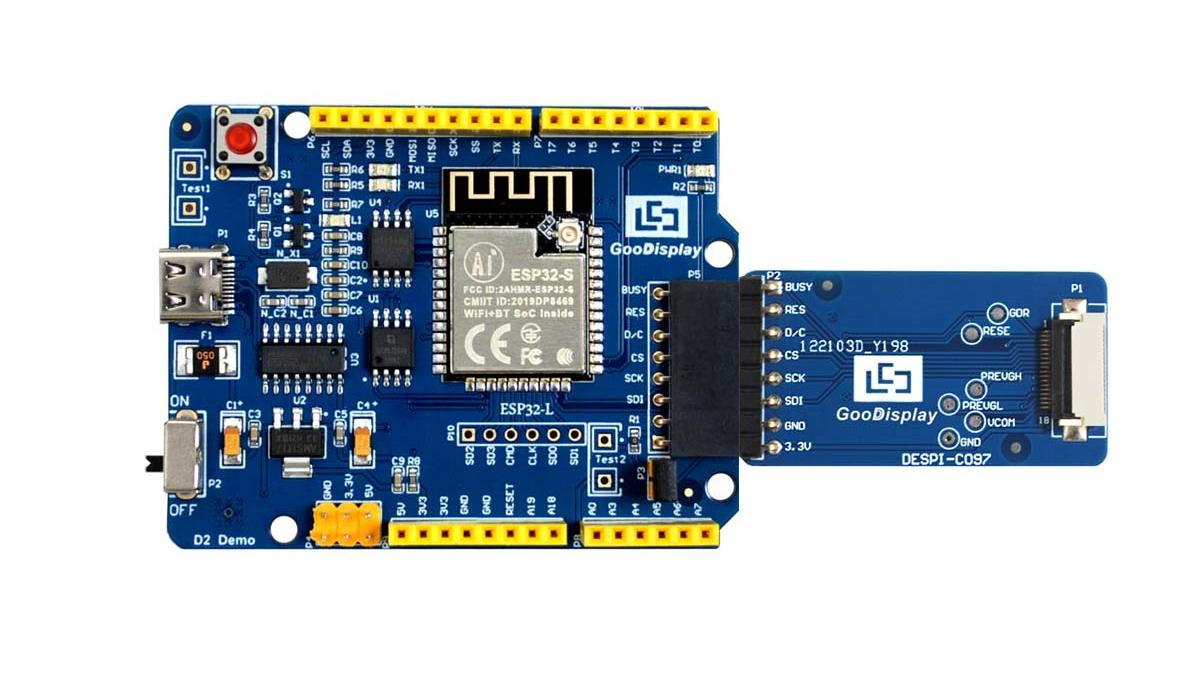

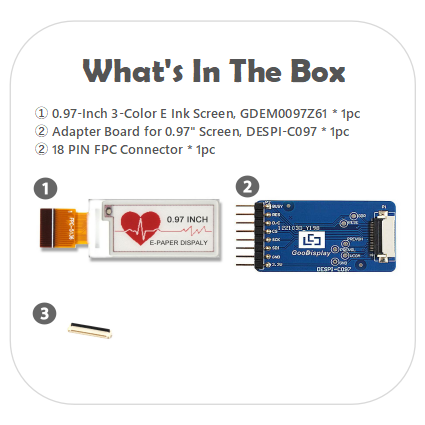

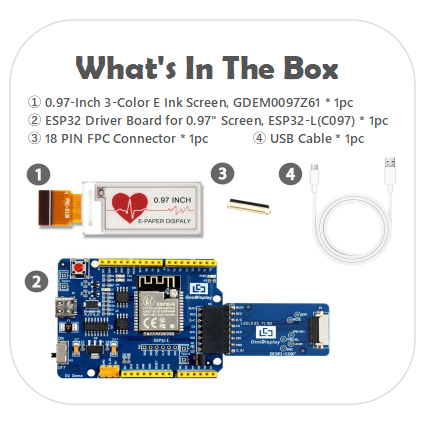

a.DESPI-C097 (E-ink Display adapter Board) b.DESPI-L(C097) (STM32 Demo Kit) c. ESP32-L(C097) (ESP32 Demo Kit)







Related Information Download

Click on the subheadings below to download

  ● GDEM0097Z61- Specification ● GDEM0097Z61-ESP8266 Sample Code
  ● SSD1680 Driver IC Datasheet ● GDEM0097Z61-Arduino Sample Code
  ● Picture Production and Bitmap Convert for GDEM0097Z61 ● The latest Catalog of ePaper display
  ● GDEM0097Z61-STM32 Sample Code ● The latest Catalog of ePaper display
  ● GDEM0097Z61-ESP32 Sample Code ● Disabling-Pop-Up-Blockers









Product Application





Wearable Devices

Electronic Shelf Labels (ESL)

Access Control and ID Badges

Smart Home Control Panels

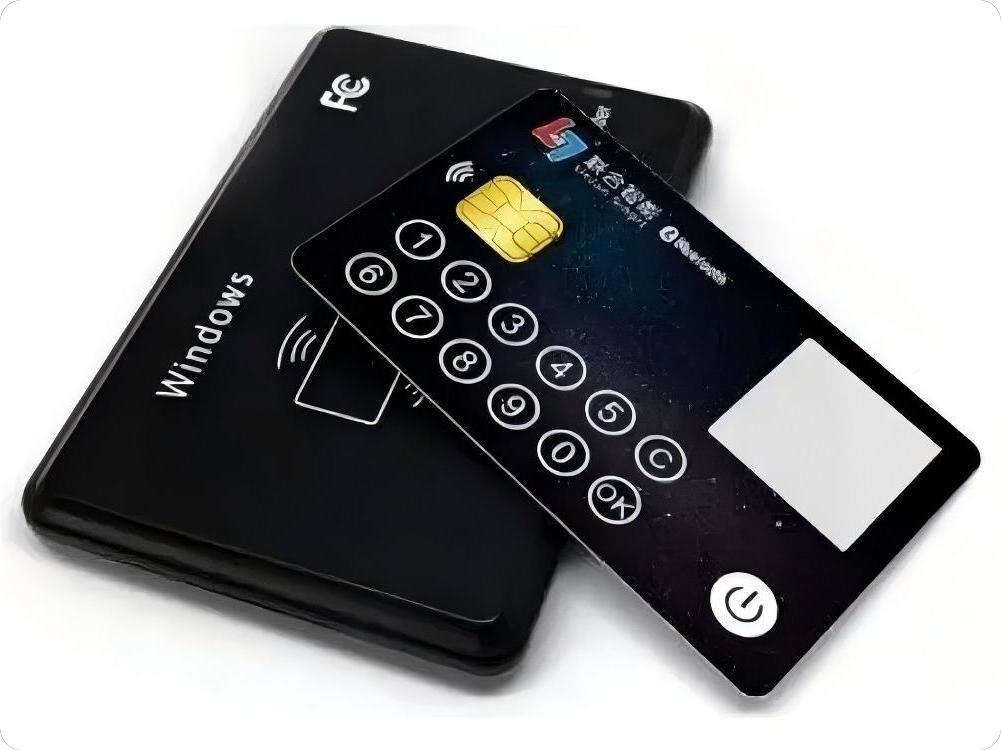

Information Cards







Every day is Earth Day


  You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.



Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

 Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.		 Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.






WE ALSO SUGGEST
Click the image below to learn more about our products

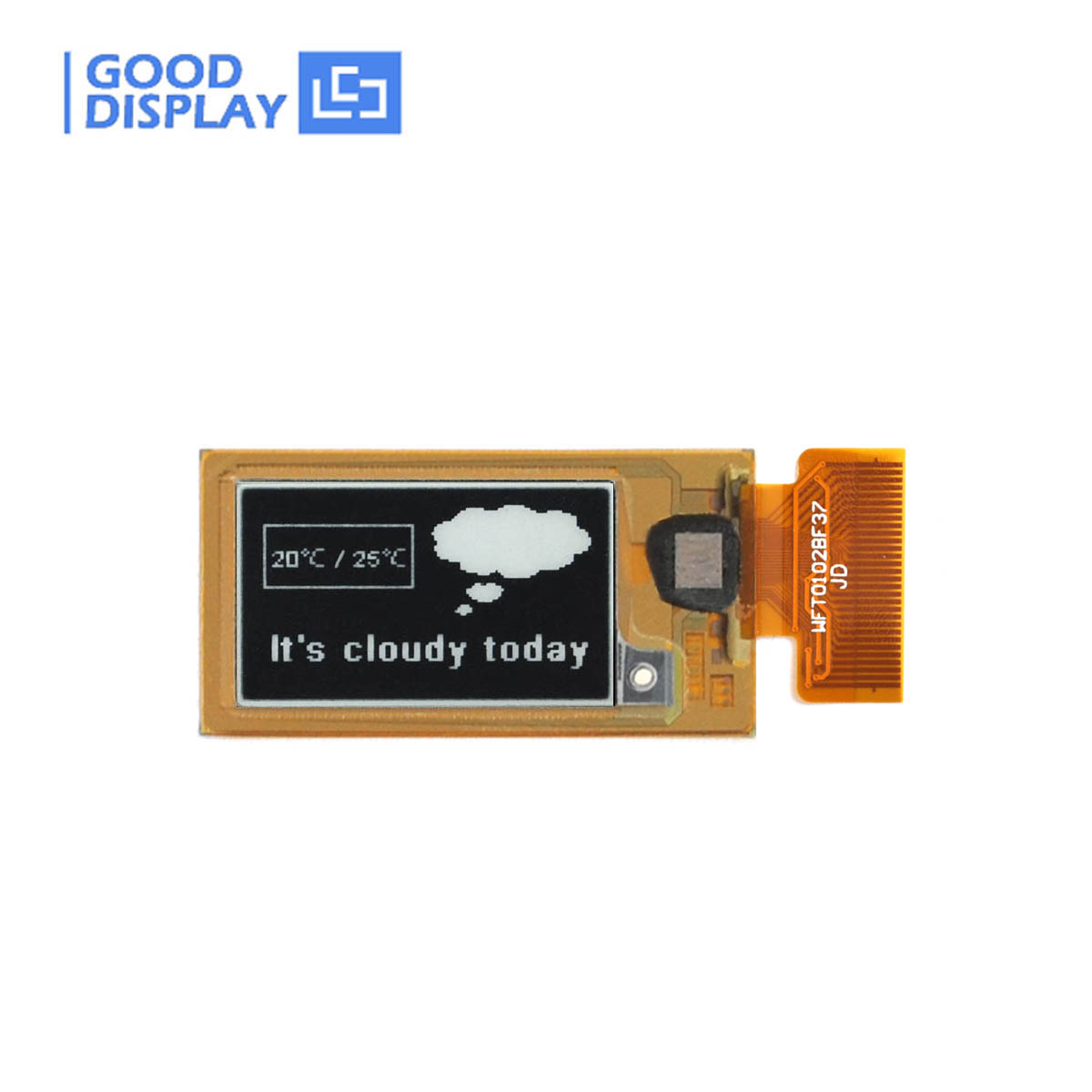

0.97 inch Eink Screen Mini E-Paper Display, GDEM0097T61 (18PIN)

0.97-inch Mini Black, White, Yellow and Red E Ink Display, GDEM0097F51 (18PIN)

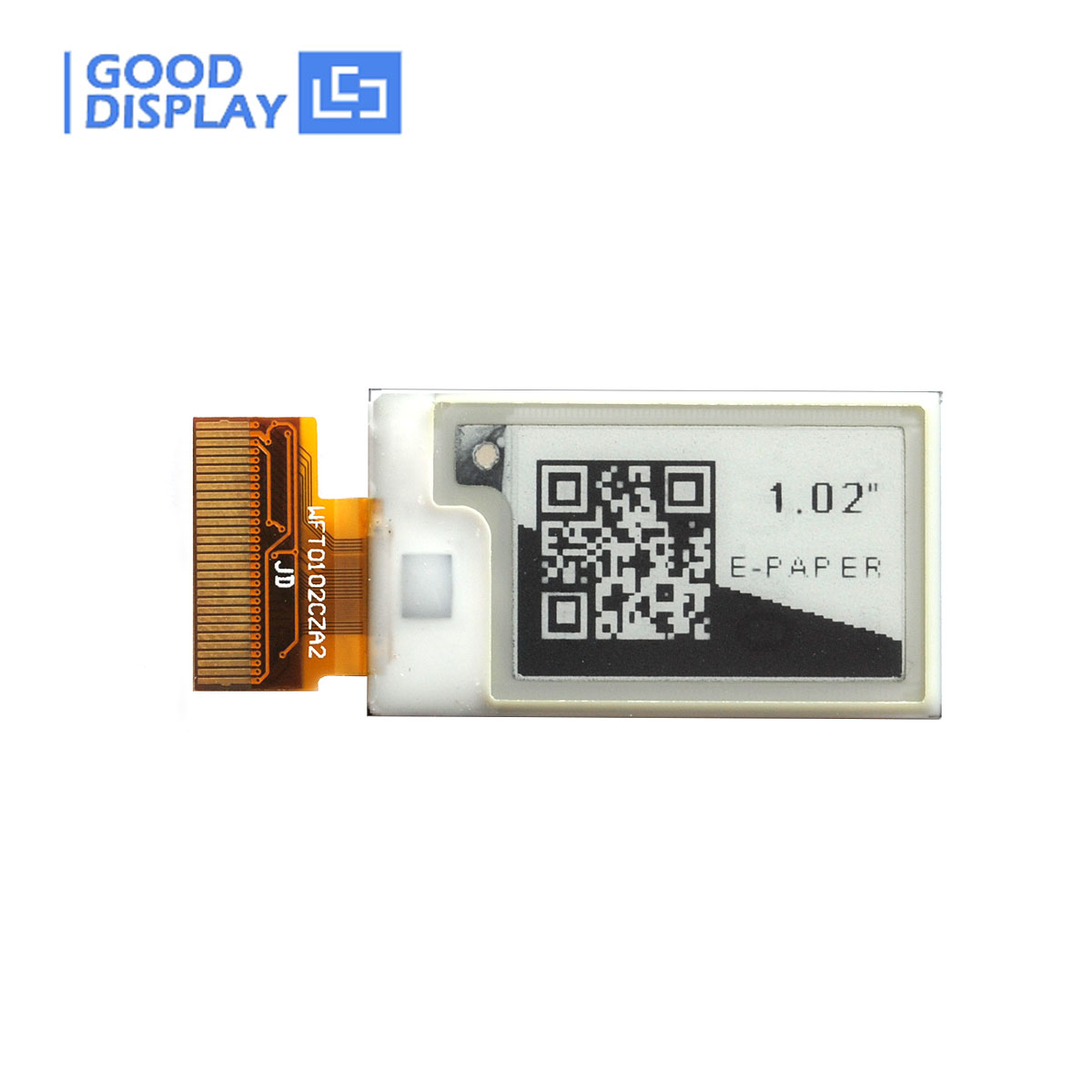

Mini E-ink Display 1.02 inch Flexible 128x80 Electronic Paper Screen, GDEW0102I4FC(30PIN)
