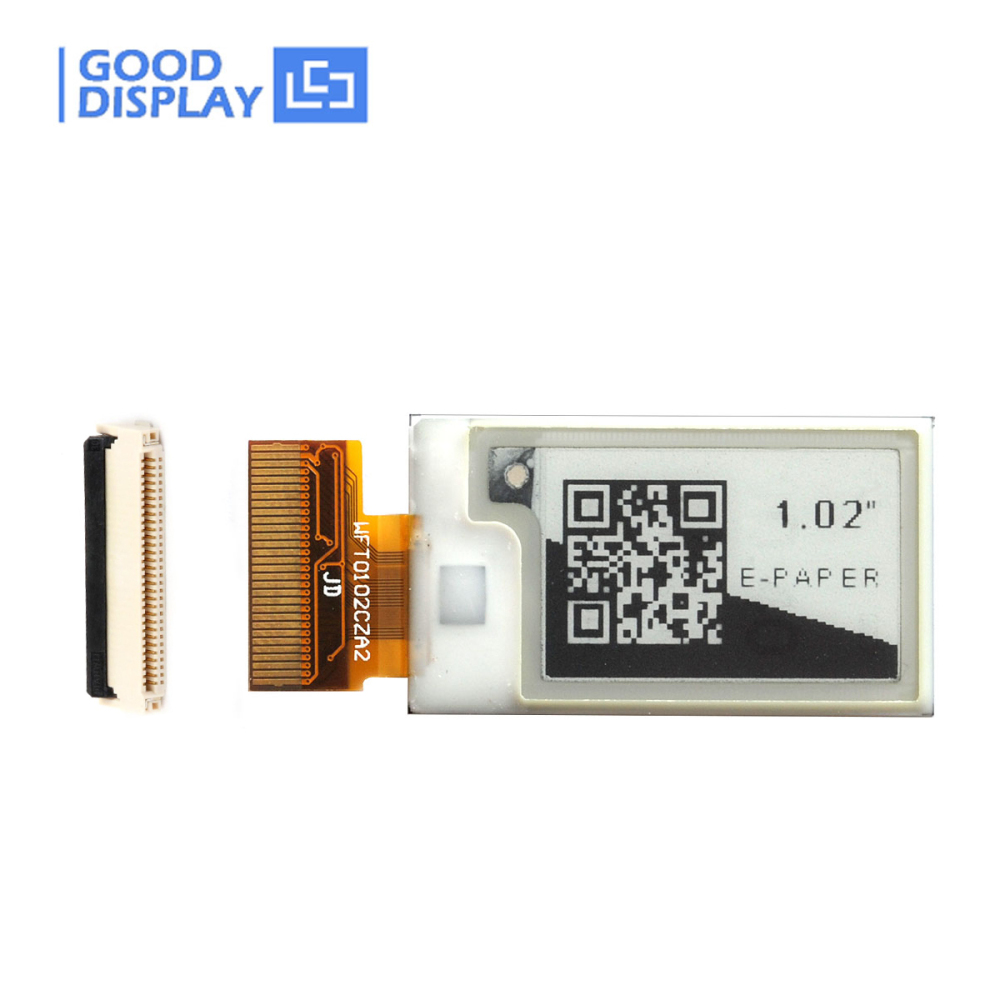

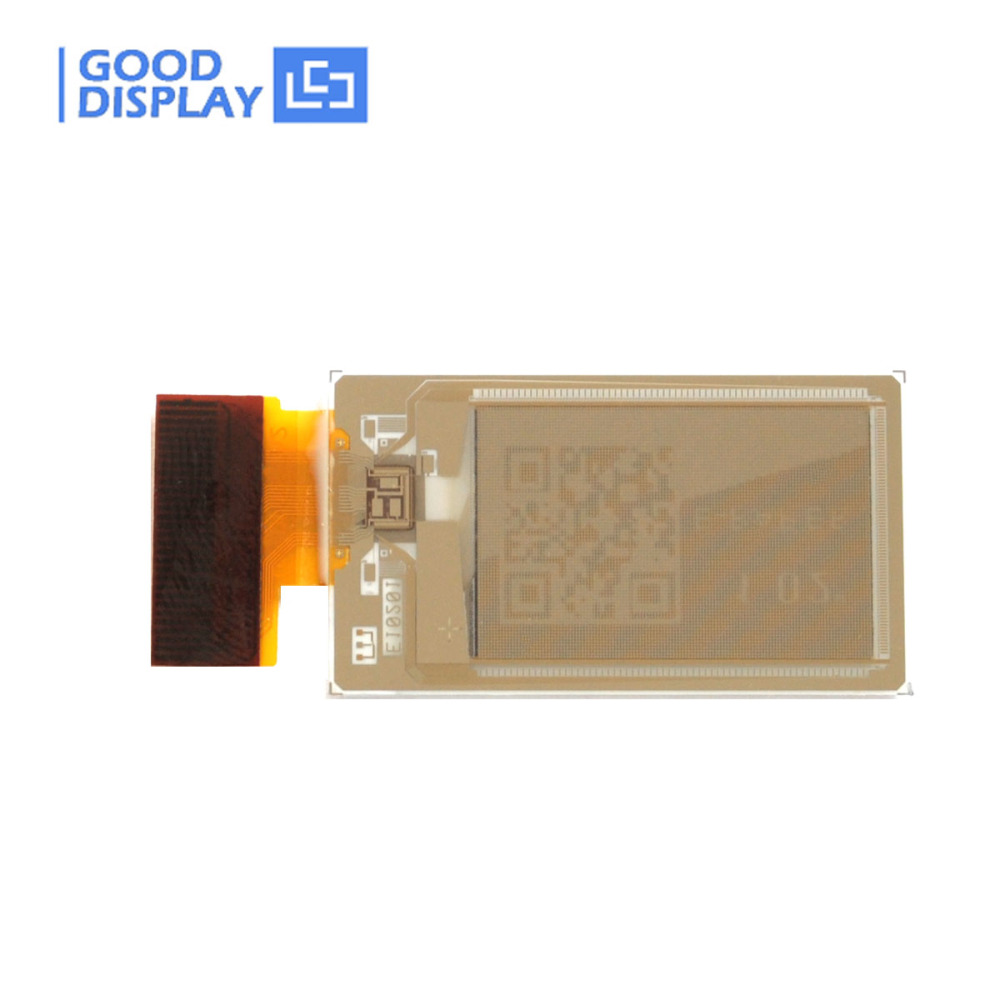

1.02 inch mini partial refresh e-paper display panel, GDEW0102T4(30PIN)

GDEW0102T4
1.02 inch e-paper display, 128x80 resolution, 30 pins FPC, SPI interface and support partial refresh. low power consumption, wide viewing angle, for applications like smart tags, smart watch and other products.
6 Review(s) Sold:179
Have a question?
Price:
USD
$6.18

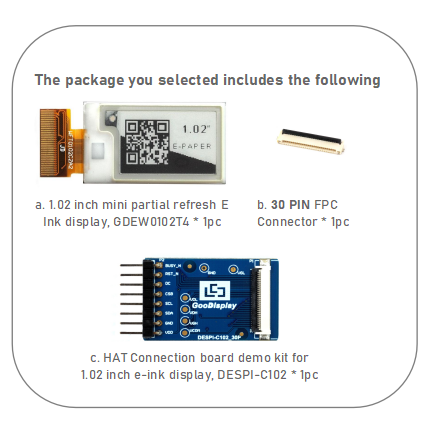

  • Product:
    EPD

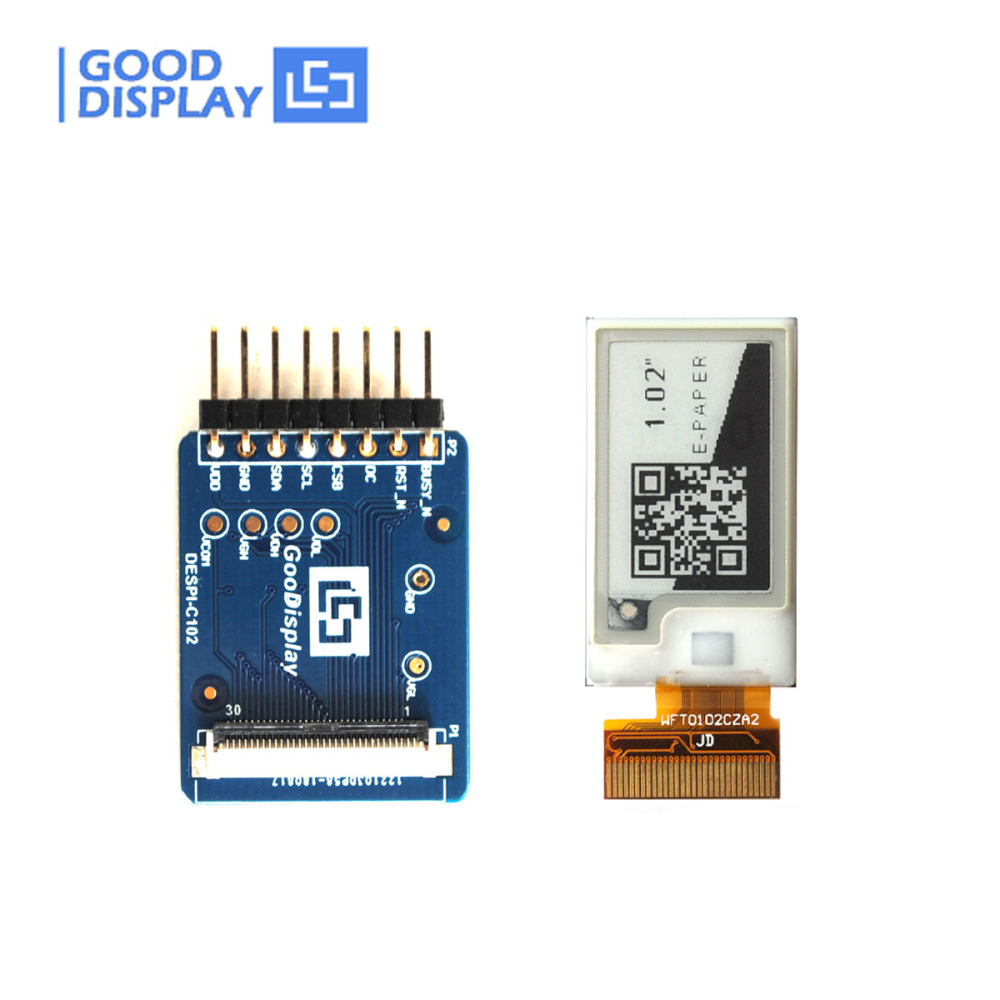

    EPD with adapter board

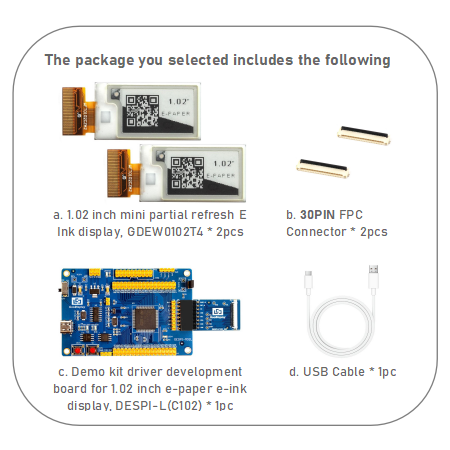

    EPD with STM32 Demo Kit

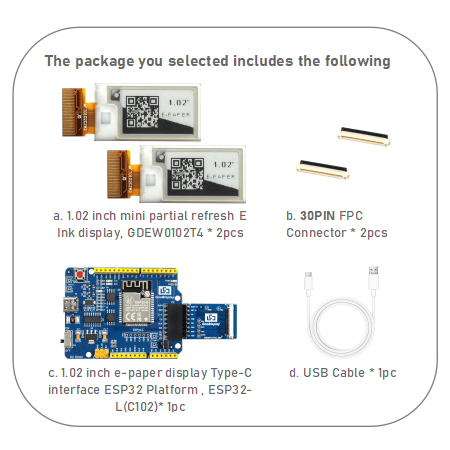

    EPD with ESP32 demo kit
    adapter board
Quantity:
-
+
(300 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(6)


Compact Powerhouse: 1.02-Inch E Ink Display





The 1.02 inch mini partial refresh E Ink display, model GDEW0102T4, is a cutting-edge electronic paper screen designed for a variety of smart applications. Featuring a resolution of 128x80 and powered by the UC8175 driver IC, this ePaper display offers efficient performance through its SPI interface. This versatile ePaper display is perfect for integrating into a wide range of modern electronic devices, offering clear, energy-efficient performance in a compact form factor.

Experience the next generation of ePaper technology with our 1.02-inch display, combining efficiency, clarity, and versatility for all your smart device needs.








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Energy Efficient "Go Green with Zero Power Consumption"
     - Our ePaper display only uses power during refreshes, making it the perfect eco-friendly solution for sustainable tech.
  ●  Quick Refresh "Instant Updates with Partial Refresh in Just 0.3 Seconds"
    - Experience seamless information changes without the wait, ideal for dynamic content needs.
  ●  Wide Viewing Angle "Crystal Clear from Every Angle"
    - Enjoy over 170 degrees of visibility, ensuring your content is readable from any perspective.
  ●  Eye-Friendly "Safe Viewing with No Blue Light and Zero Radiation"
    - Protect your eyes with a display that eliminates harmful blue light and radiation, perfect for long-term use.
  ●  Bistable Display "Retains Content Even When Powered Off"
    - Our display keeps your content visible even without power, offering reliability and convenience for critical information.
  ●  Versatile Applications "From Smart Tags to Wearables – Your Versatile Display Solution"
   - Perfect for shelf tags, smart home devices, industrial instruments, and more – a small screen with big possibilities. Experience the next generation of ePaper technology with our 1.02-inch display, combining efficiency, clarity, and versatility for all your smart device needs.







Product Specifications


    Please refer to the product specifications for more details

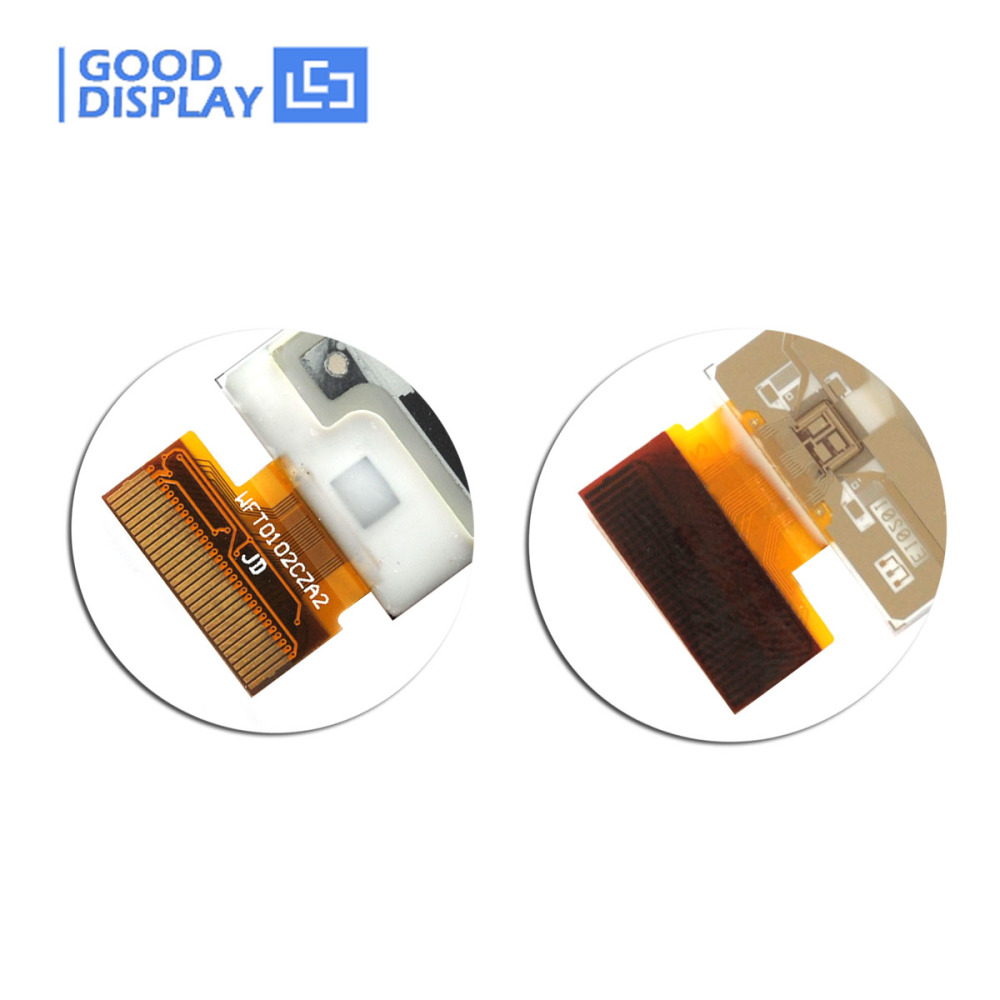

PART NUMBER GDEW0102T4 CONNECTOR 30 PIN
SIZE 1.02 inch TYPE Dot Matrix
IC UC8175 MAX GRAYSCALE 2
RESOLUTION 128x80 COLOR Black,White
OUTLINE SIZE(mm) 32.57x18.6x0.98 INTERFACE SPI
ACTIVE SIZE(mm) 21.76x14 FULL REFRESH(s) 3
PIXEL PITCH(mm) 0.175x0.17 PARTIAL REFRESH TIME(s) 0.3
OPERATING TEMP. 0℃~50℃ POWER CONSUMPTION OF THE REFRESH(mW) 26.4
STORAGE TEMP. -25℃~70℃ STANDBY POWER CONSUMPTION (mW) 0.0165

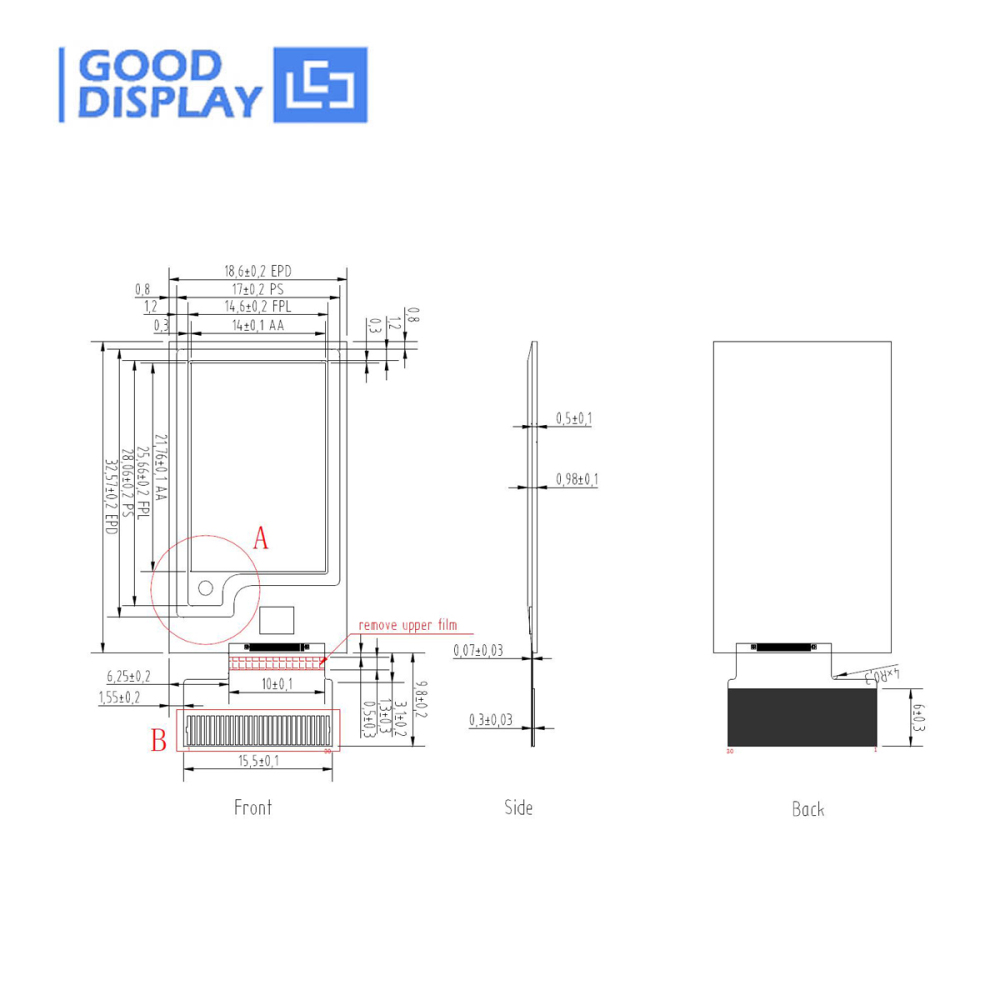

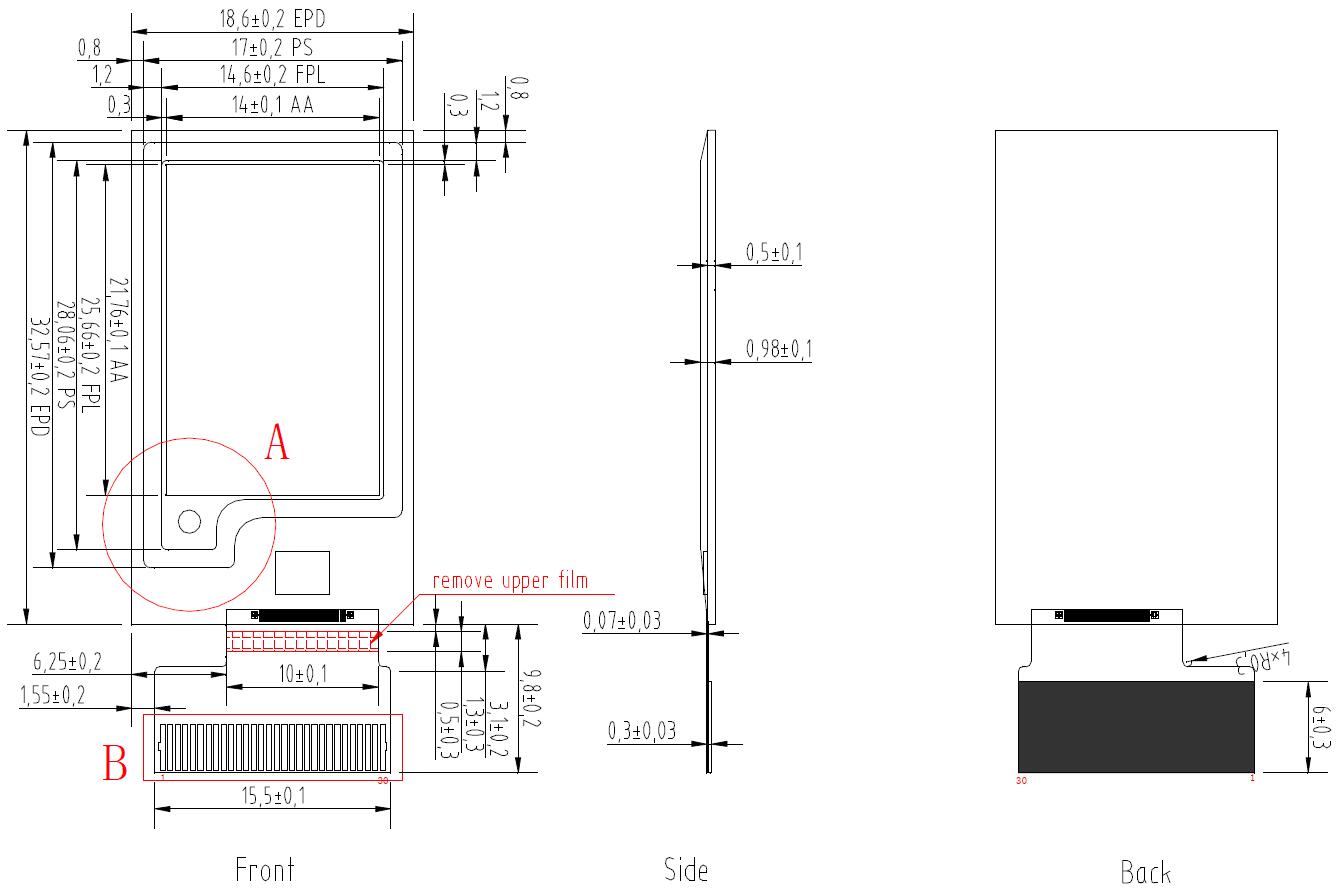

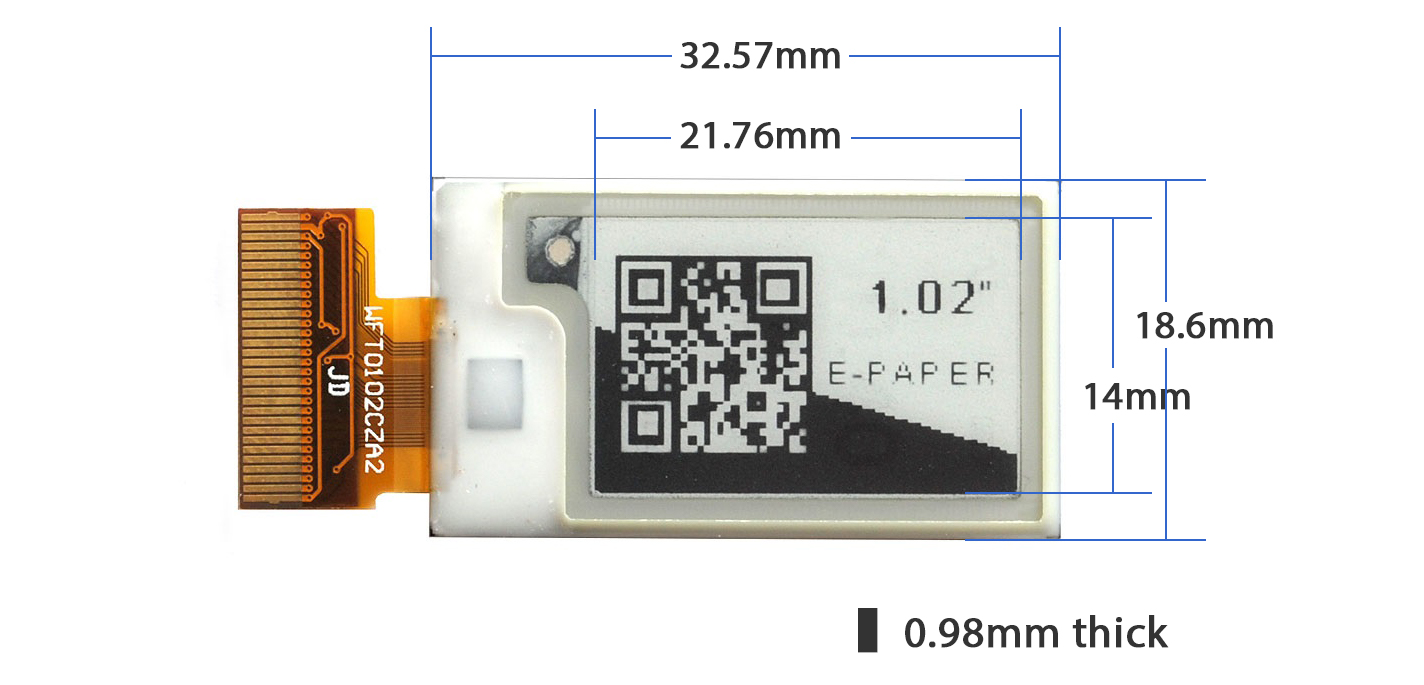

Product Drawings


    Please refer to the product drawings for detailed dimensions





Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.
Click image to buy

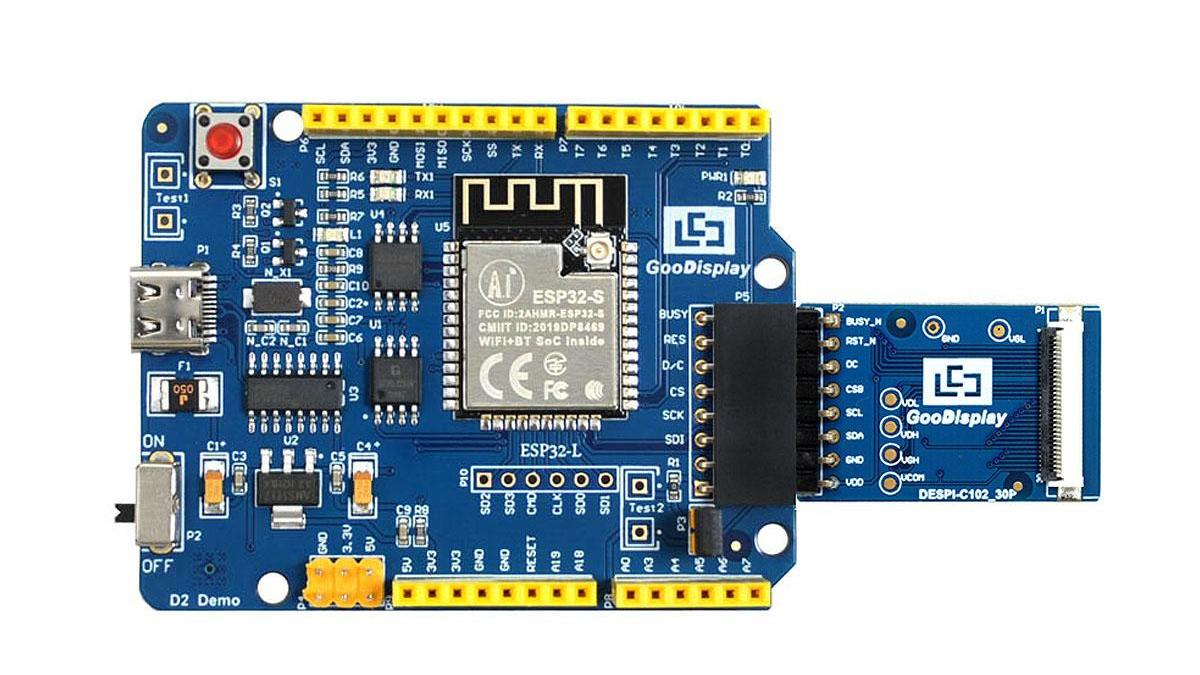

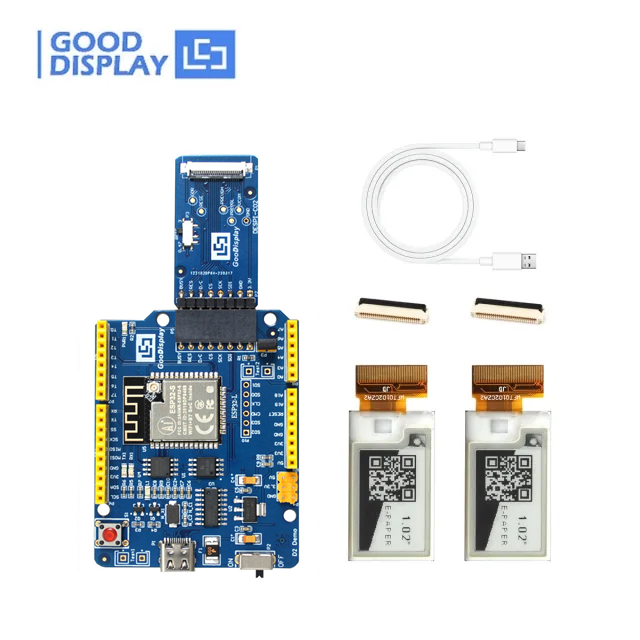

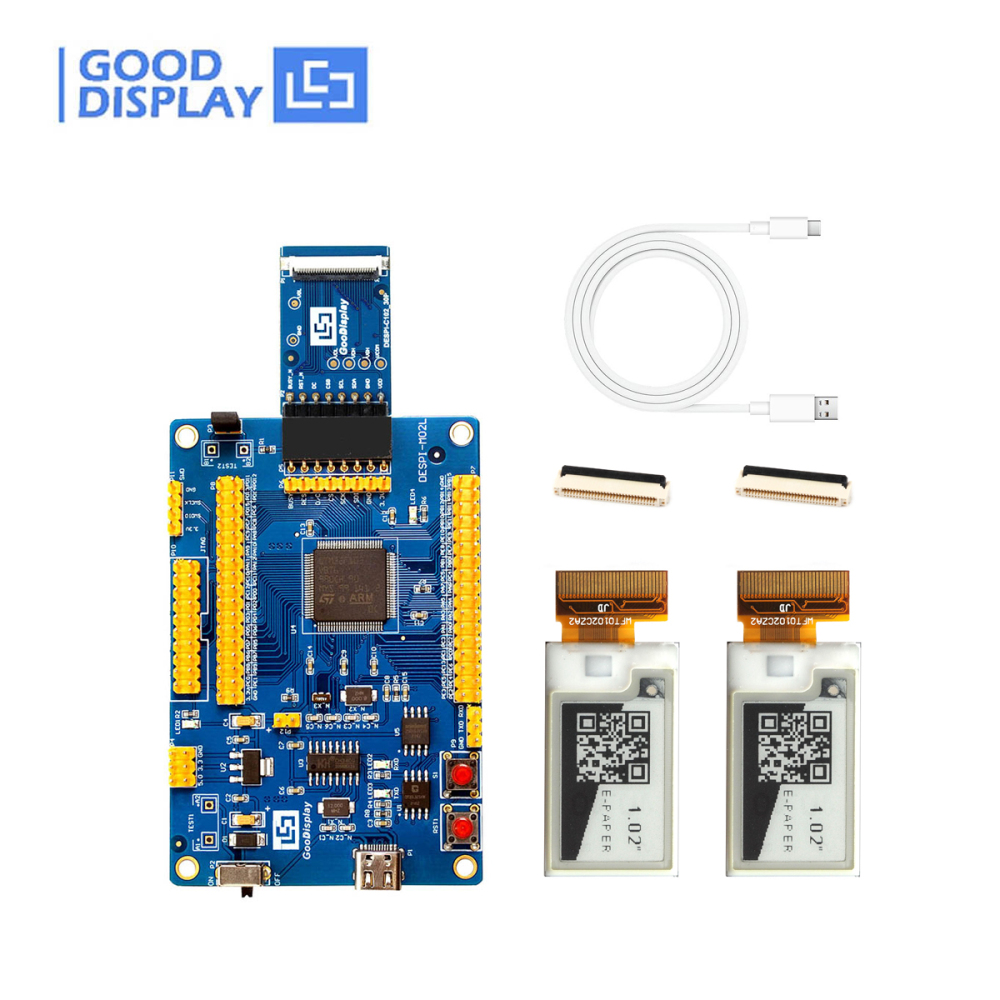

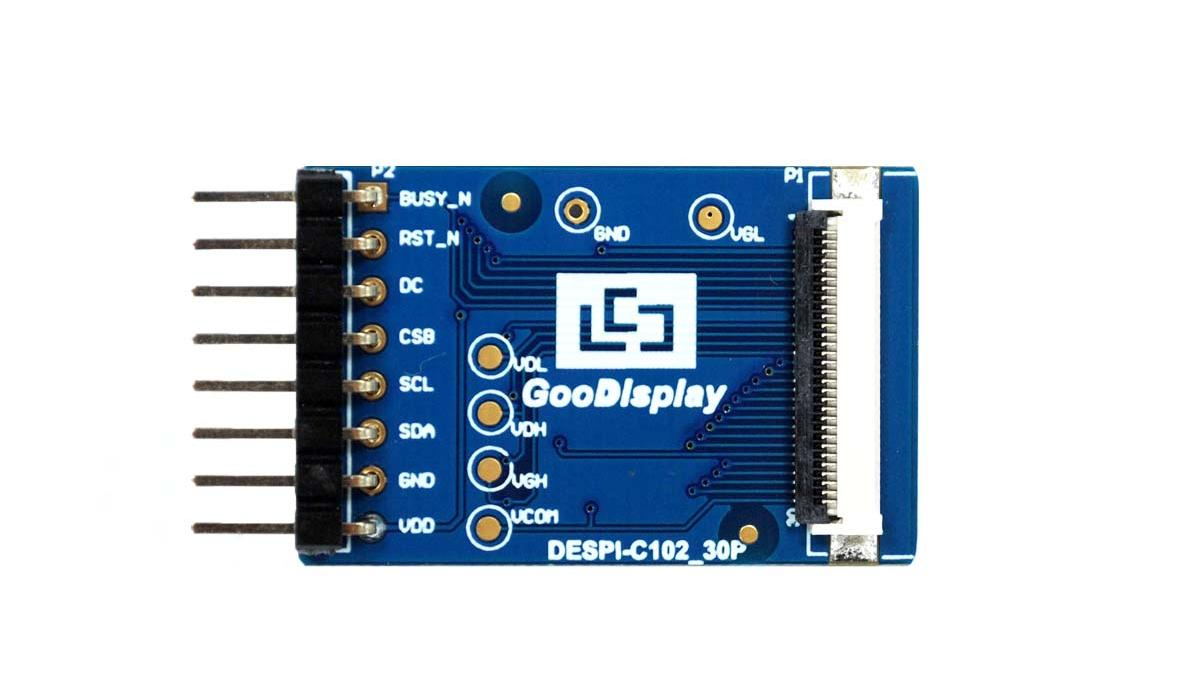

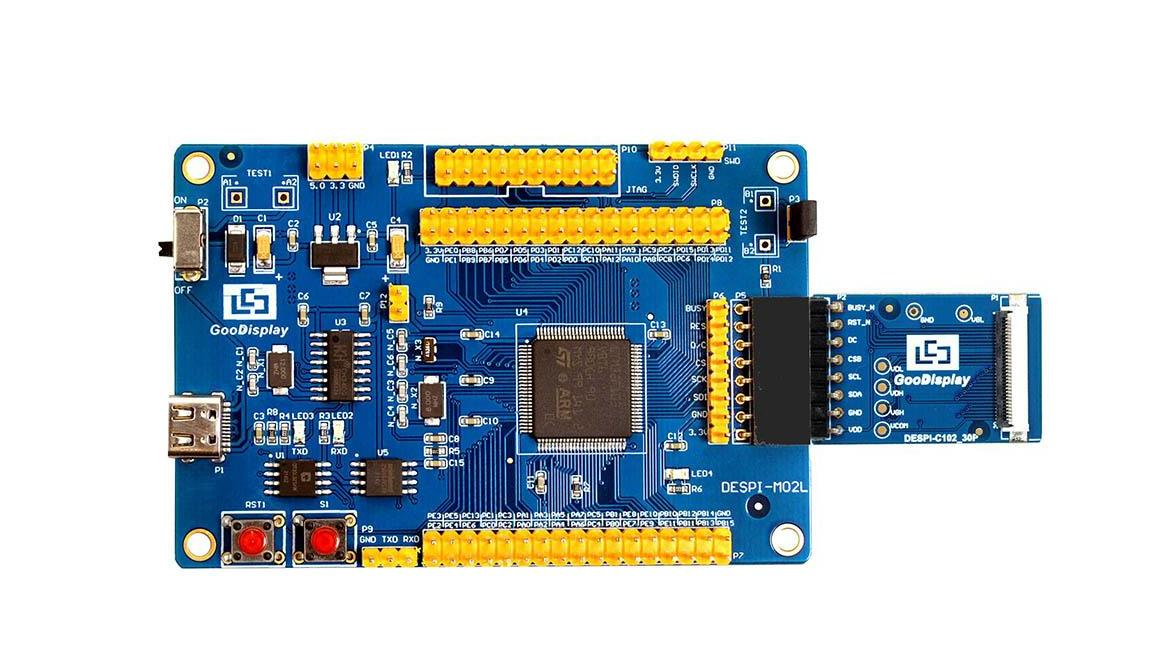

a.DESPI-C102 (E-ink Display adapter Board) b.DESPI-L(C102) (STM32 Demo Kit) c. ESP32-L(C102) (ESP32 Demo Kit)






Related Information Download

Click on the subheadings below to download

  ● GDEW0102T4 Specification ● GDEW0102T4 Arduino Sample Code
  ● UC8175 Driver IC Datasheet ● GDEW0102T4 ESP8266 Sample Code
  ● GDEW0102T4 Bitmap Conversion ● GDEW0102T4 Raspberry Pi Pico Sample Code
  ● GDEW0102T4 STM32 Sample Code ● Disabling-Pop-Up-Blockers
  ● GDEW0102T4 ESP32 Sample Code ● The latest Catalog of ePaper display
  ● GDEW0102T4 ESP8266 Sample Code
