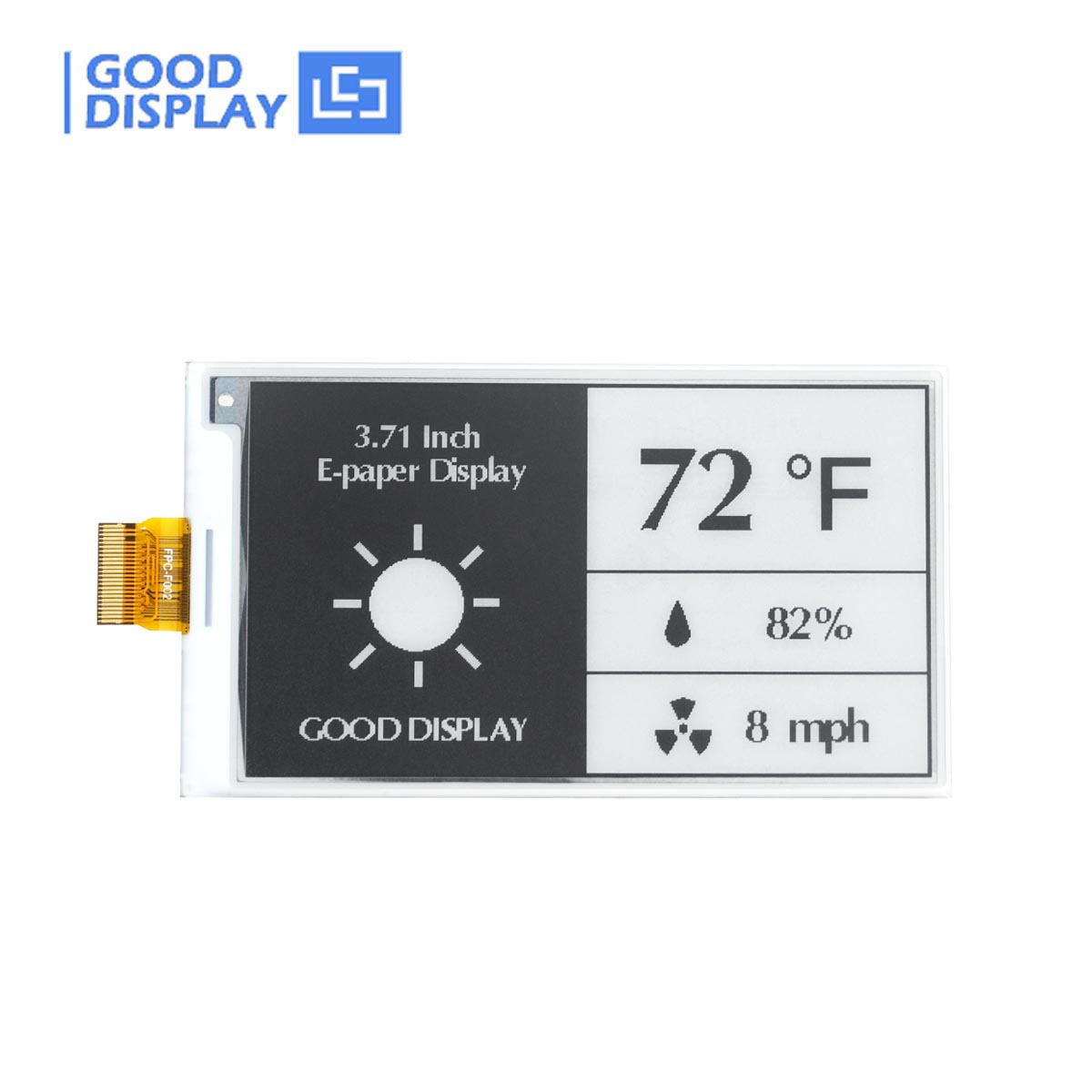

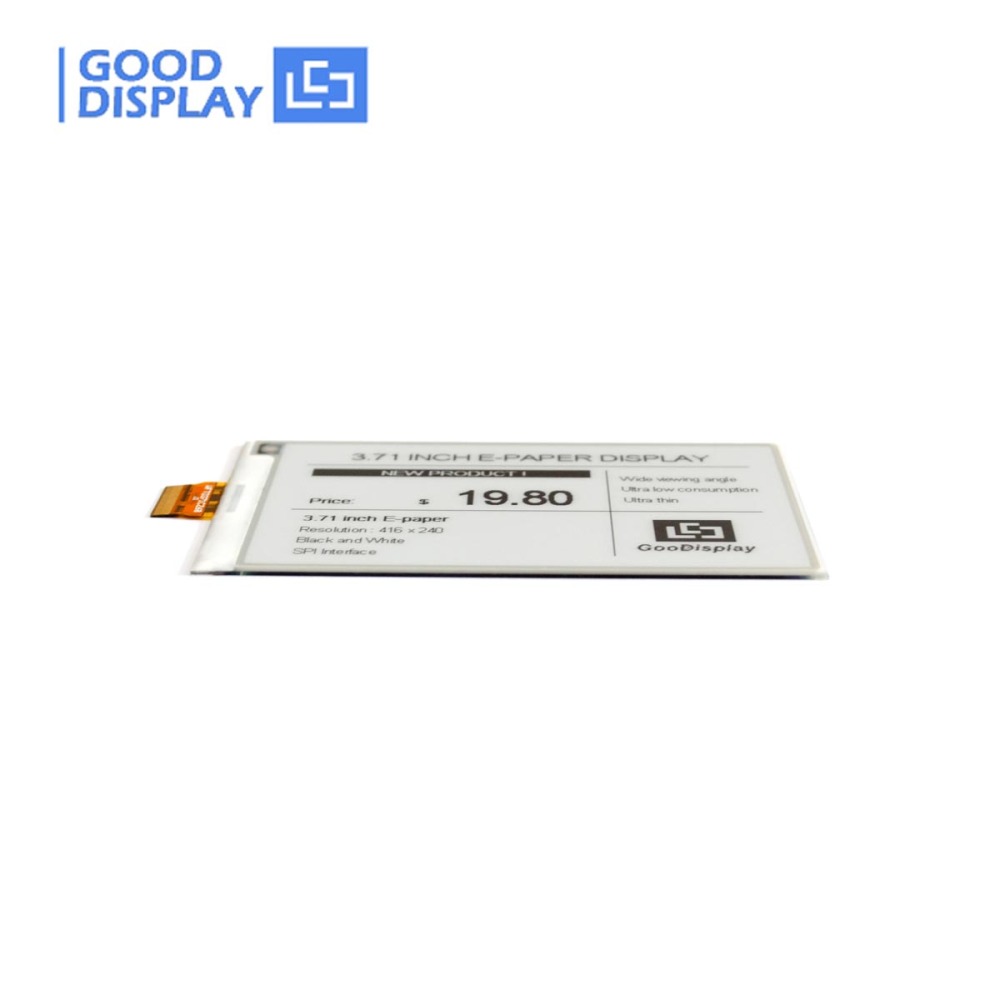

This is a e-paper display e-ink screen, 3.71 inch, with 416x240 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0371W7 is perfect for low power devices powered by solar or batteries.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
* This e-ink display module DOES NOT support partial updates.
Package A | + | ||||||||

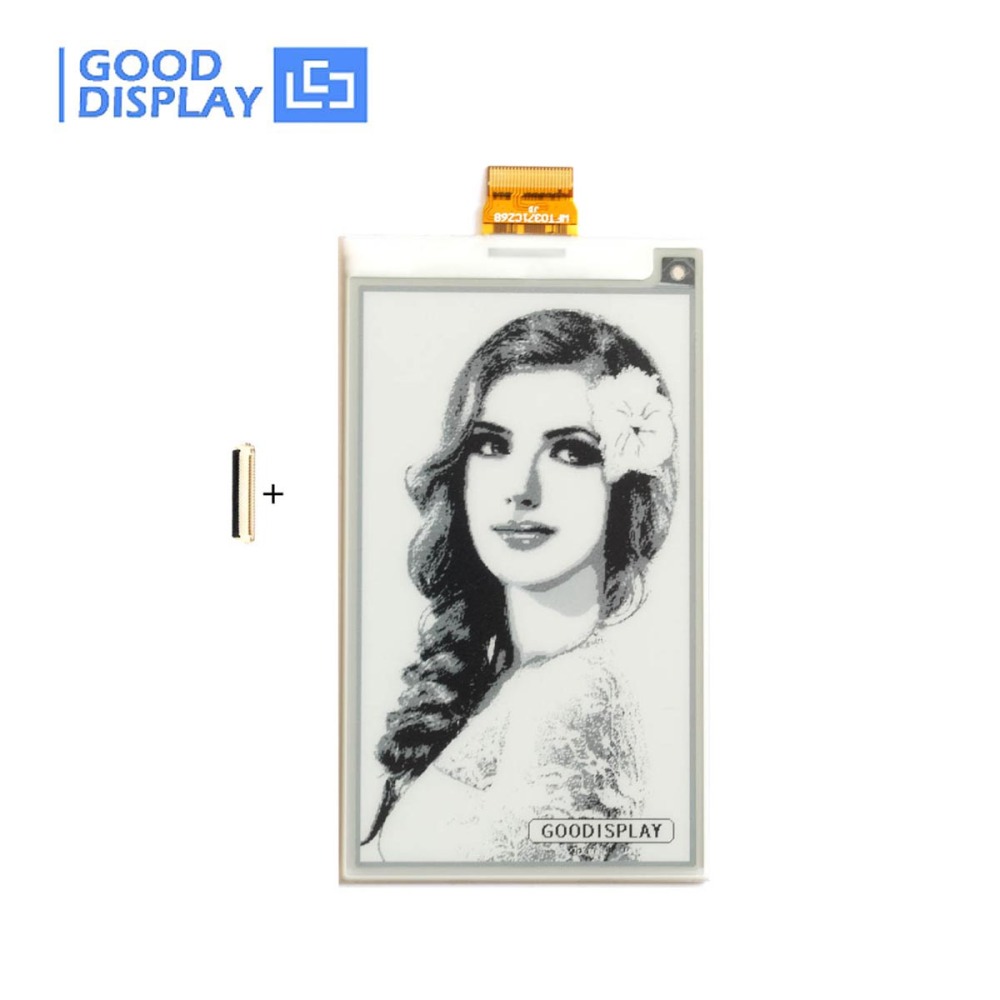

a. 3.71 inch e-paper display black and white 4 Grayscale e-ink screen module, GDEW0371W7 * 1pc | b. FPC Connector * 1pc | ||||||||
|
|||||||||
Package B | + | + | |||||||
a. 3.71 inch e-paper display black and white 4 Grayscale e-ink screen module, GDEW0371W7 * 1pc | b. FPC Connector * 1pc | c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc | |||||||
|
|||||||||
Package C | + | + | + | ||||||
a. 3.71 inch e-paper display black and white 4 Grayscale e-ink screen module, GDEW0371W7 *2pcs | b. FPC Connector * 2pcs | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) * 1pc | d. USB Cable * 1pc | ||||||
|

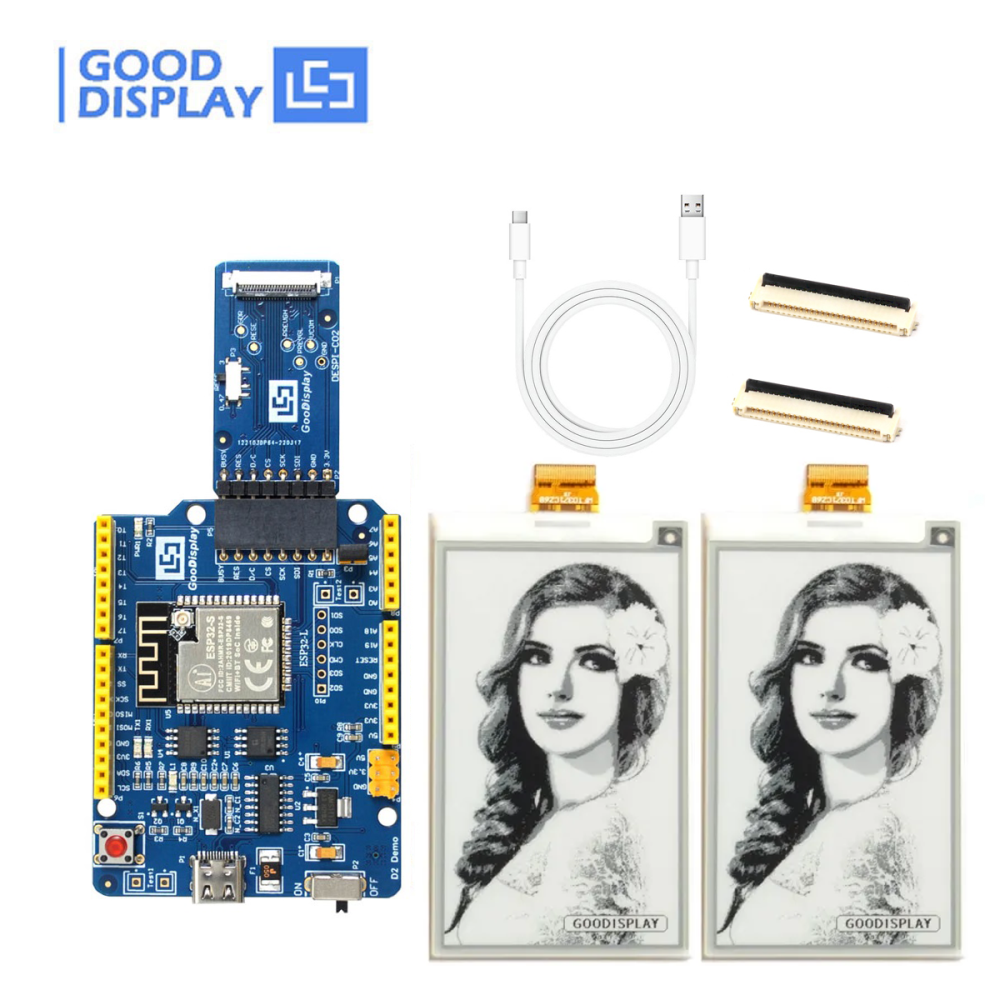

Package D | + | + | + | ||||
a. 3.71 inch e-paper display black and white 4 Grayscale e-ink screen module, GDEW0371W7 *2pcs | b. FPC Connector * 2pcs | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) * 1pc | d. USB Cable * 1pc |
PART NUMBER | GDEW0371W7 | ||
SIZE | 3.71 inch | STORAGE TEMP. | -25℃~70℃ |
TYPE | Dot Matrix | CONNECTOR | 24 Pin FPC |
IC | UC8171 | MAX GRAYSCALE | 4 |
RESOLUTION | 416x240 | COLOR | Black,White |

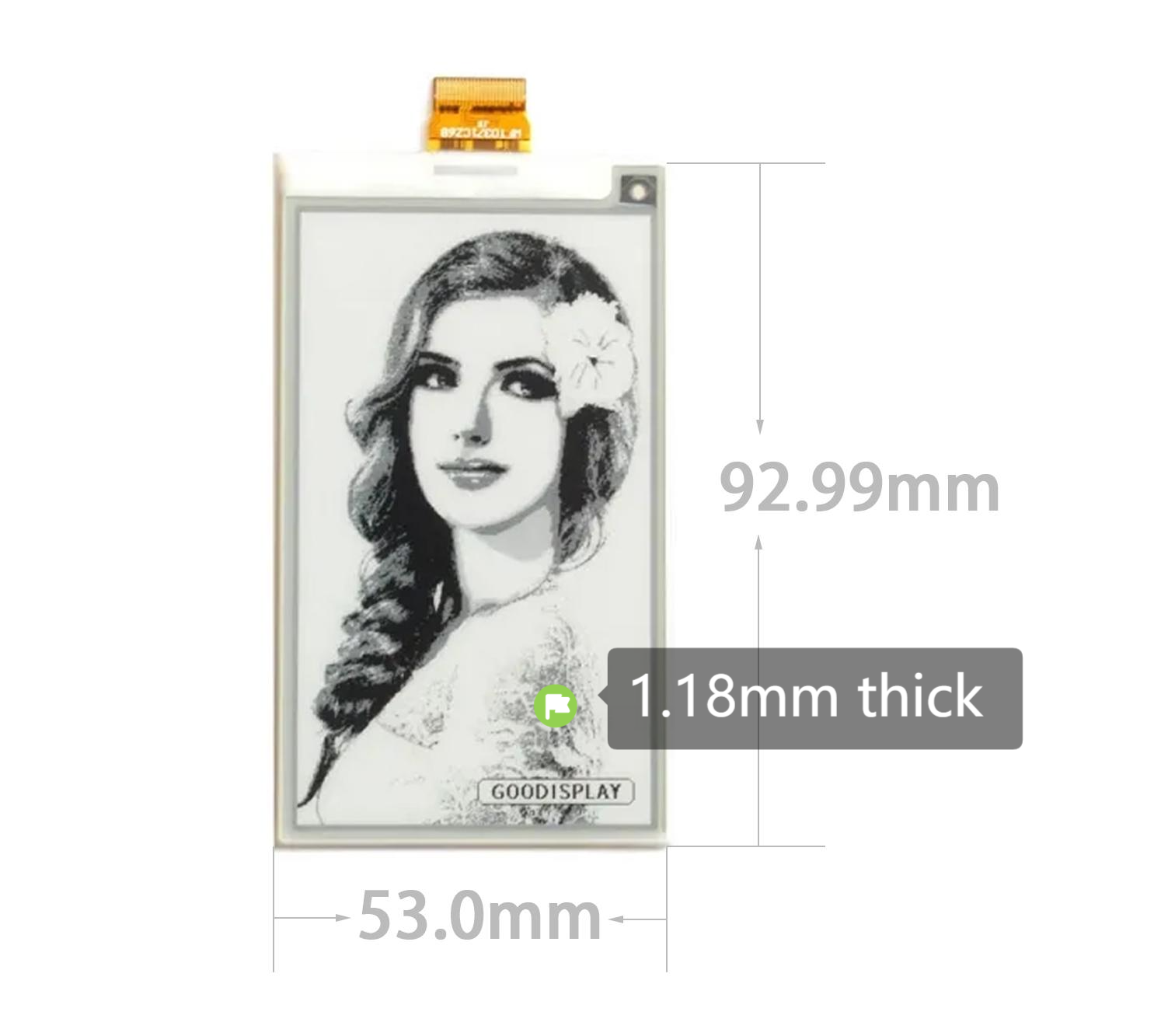

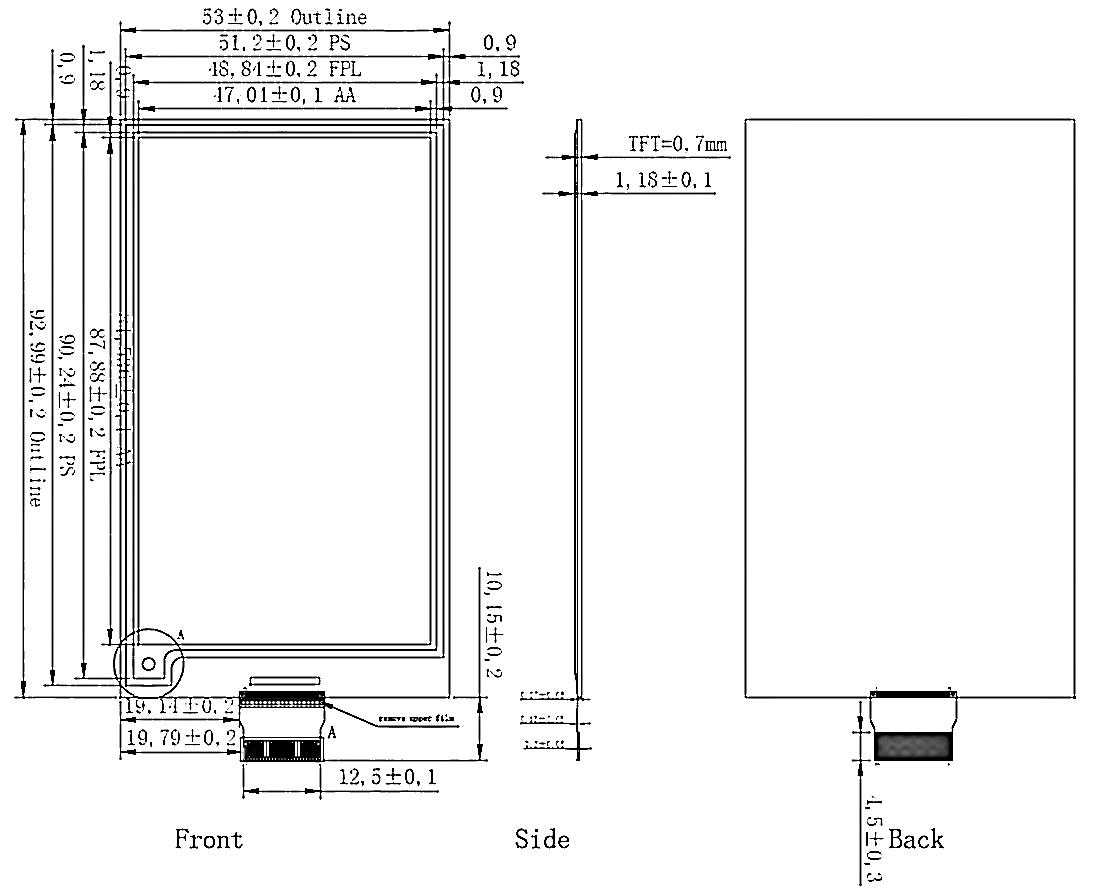

OUTLINE SIZE(mm) | 92.99x53x1.18 | INTERFACE | SPI |
ACTIVE SIZE(mm) | 81.536x47.04 | FULL REFRESH(s) | 4 |
PIXEL PITCH(mm) | 0.196x0.196 | POWER CONSUMPTION OF THE REFRESH(mW) | 26.4 |
OPERATING TEMP. | 0℃~50℃ | STANDBY POWER CONSUMPTION (mW) | 0.09 |
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Development platform available STM32 / Arduino / ESP8266 / ESP32 / Raspberry Pi

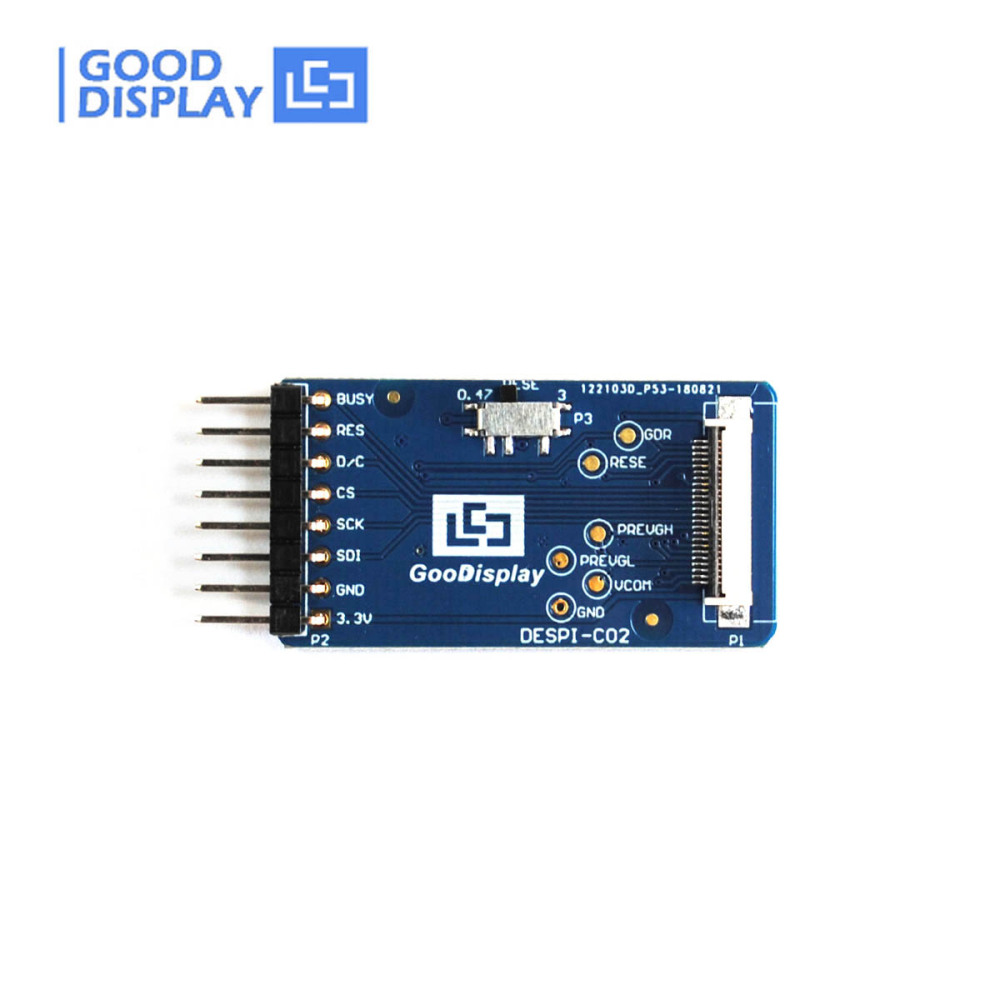

● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP32-L(C02) (WiFi / Bluetooth)

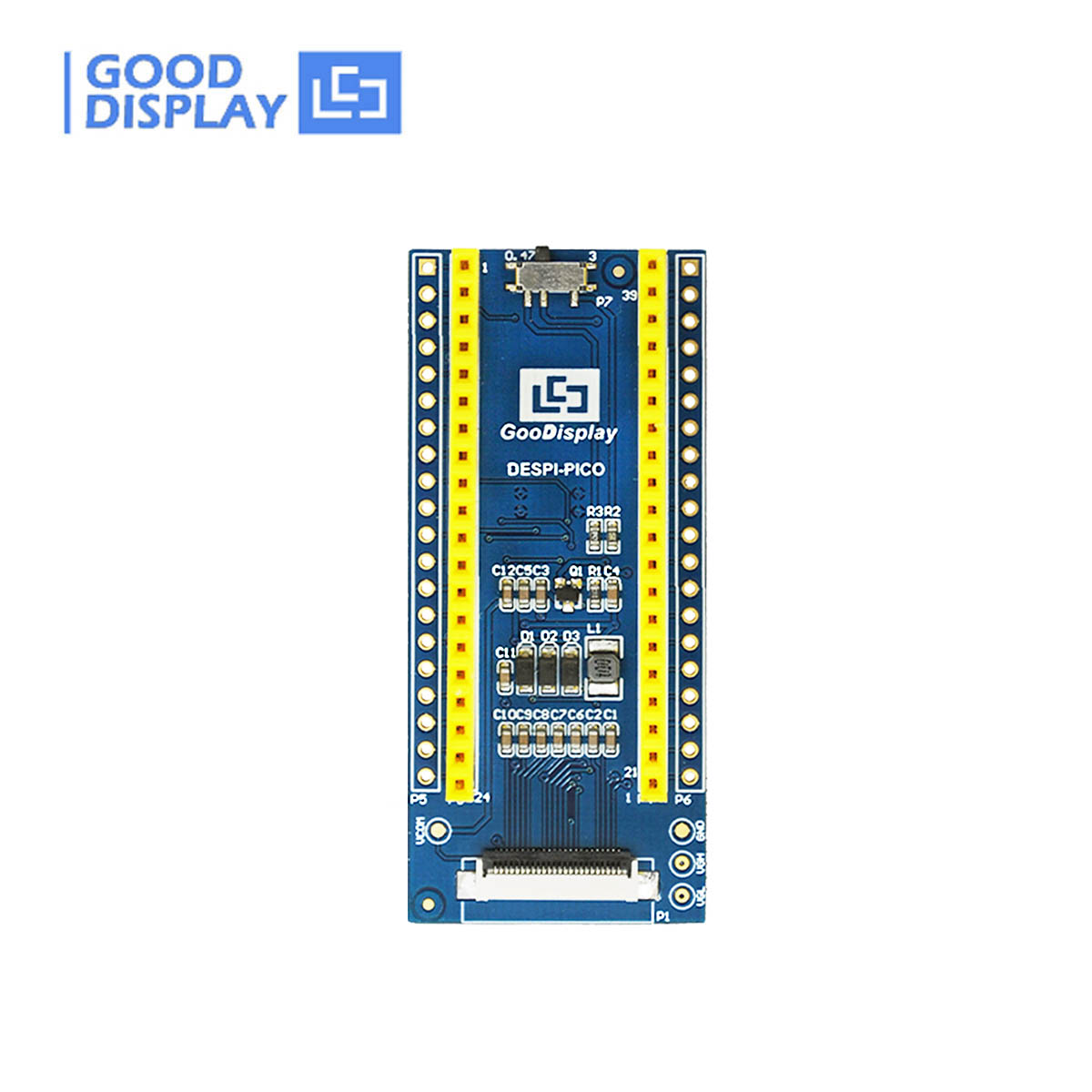

● DESPI-PICO (Rasberry Pi Epaper HAT)
