☆ INTRODUCTION
ESP8266-L(C02) evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 0.97'', 1.54'', 2.13'', 2.66'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''. And it is added the functions of USB serial port and LED indicator light, Reset button, font chip, Flash chip and etc. It is only for users to develop and drive electronic paper display screens. The application of WiFi and other functions requires users to develop on their own according to the project.

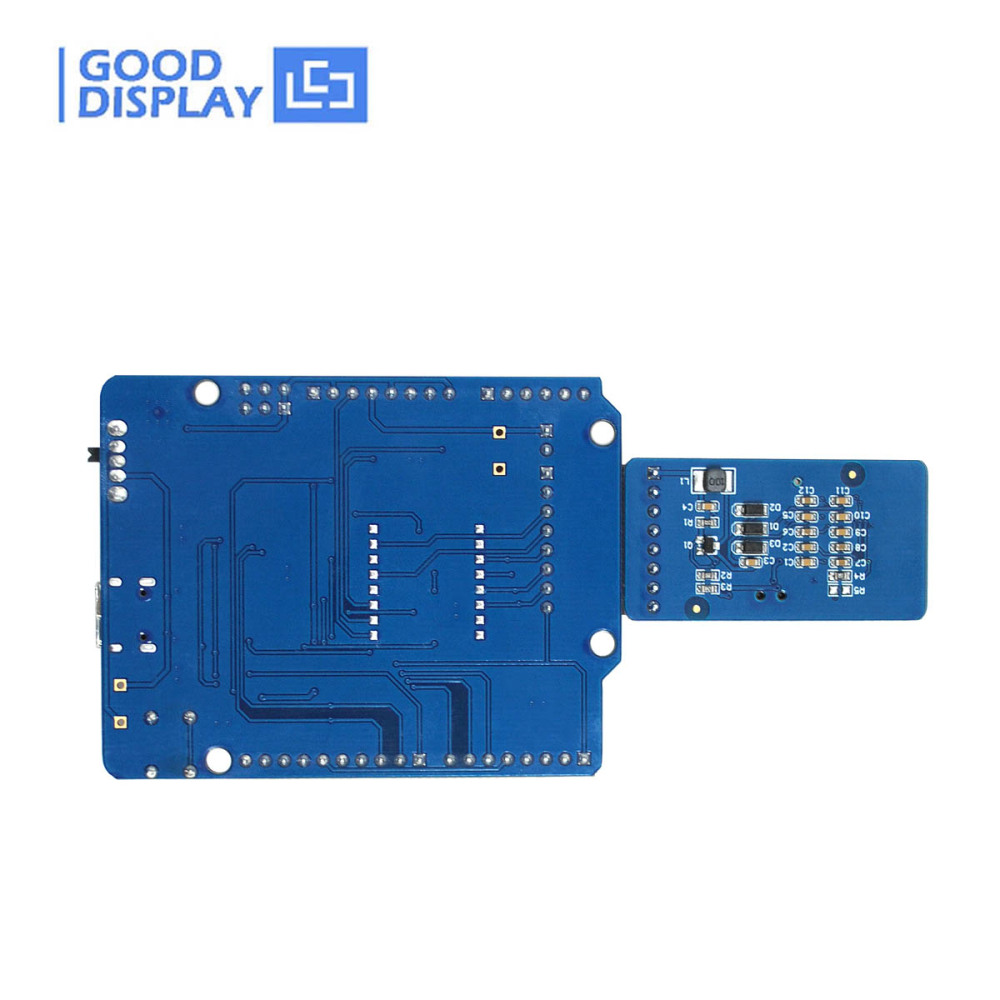

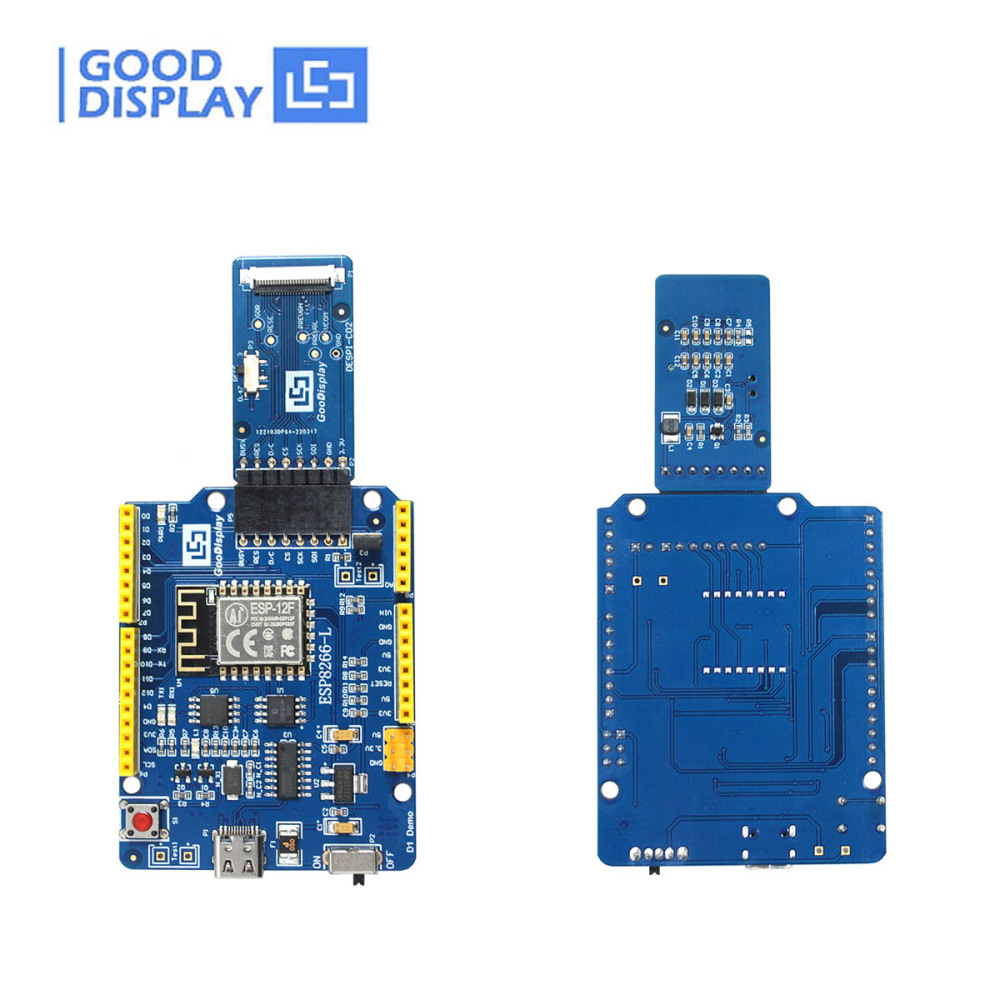

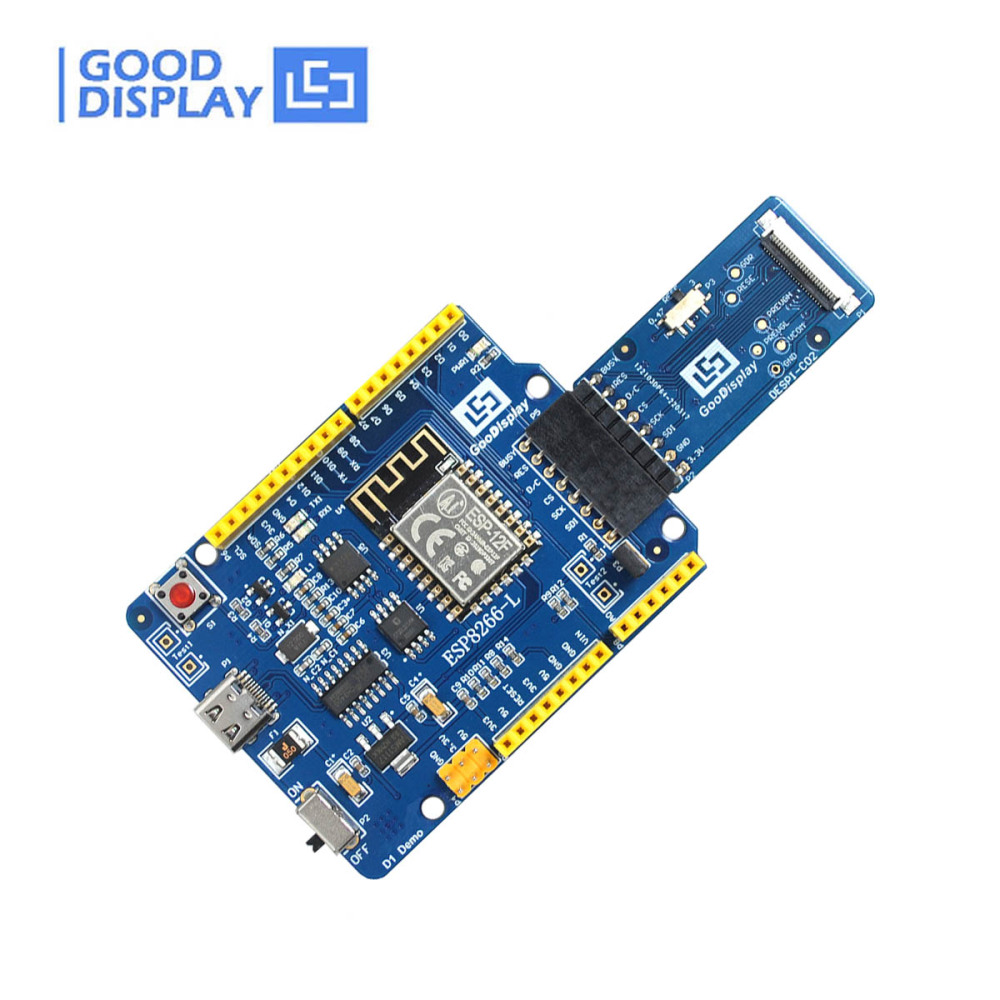

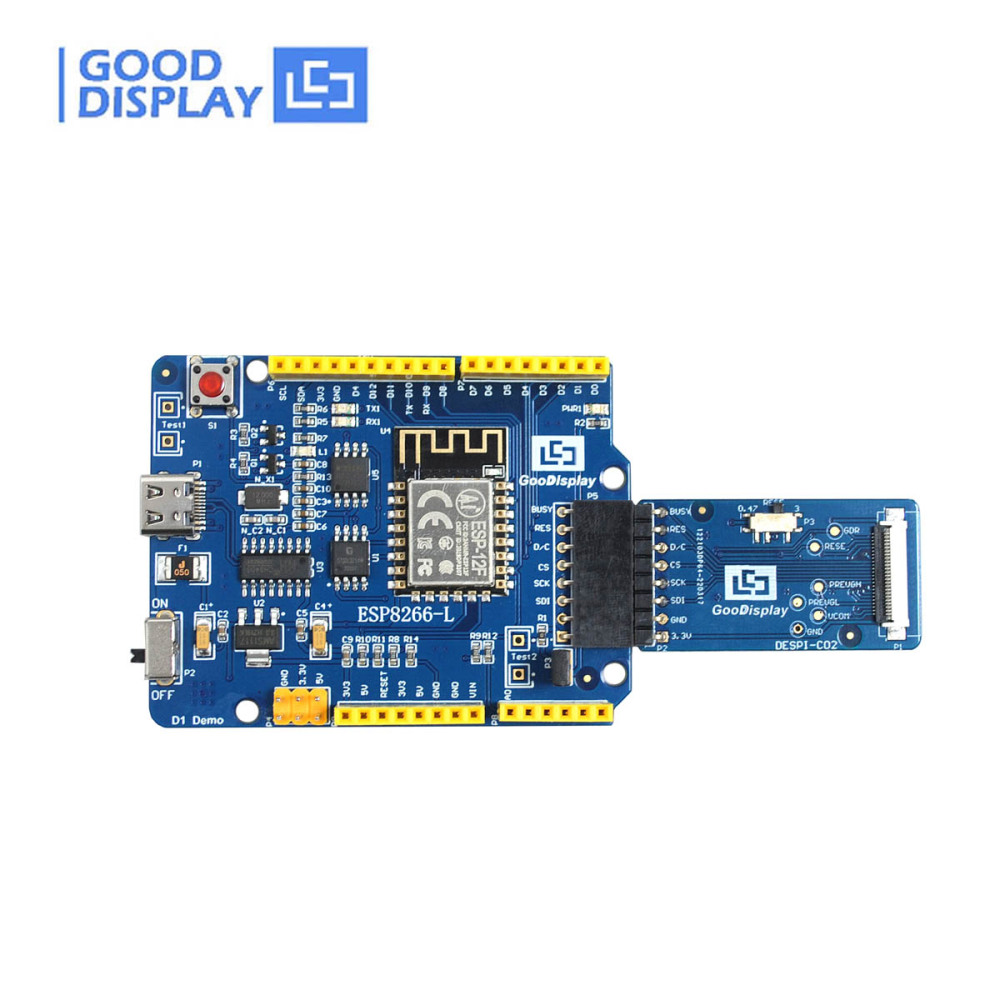

ESP8266-L(C02) development kit consists of motherboard ESP8266-L for EPD and connector board DESPI-C02.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) Driving board ESP8266-L * 1pc
2) Connector board DESPI-C02 * 1pc
3) USB port cable * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
ESP8266-L(C02) |
| PLATFORM |
Arduino |
OUTSIDE DIMENSION |
70mm x 54mm (ESP8266-L)
41mm x 22mm (DESPI-C02) |
| POWER INTERFACE |
Type-C |
OPERATING TEMP. |
-20~70℃ |
| SAMPLE CODE |
Available (please contact sales) |
| MAIN FUNCTION |
Learn to drive e-paper display;
Test and evaluate e-paper display;
Support secondary development |
| Additional Funtion |
Type-C interface; Indicator light; Reset button; Font chip; Flash chip; Current detection; Touch screen driving. |
☆ DETAILS
☆ RELATED INFORMATION DOWNLOAD
● ESP8266-L(C02) Specification
● DESPI-C02 Specification
● ESP8266-L_SCH
● DESPI-C02-SCH
