2.9 inch Small ePaper Display Tri-color 1.5s Partial Update 296x128 GDEY029Z95

Name: 2.9 inch Small ePaper Display Tri-color 1.5s Partial Update 296x128 GDEY029Z95
Brand: GOOD DISPLAY
SKU: GDEY029Z95
Price: 6.08 USD
Availability: InStock
Rating: 5 (2 reviews)

(2)

21 Sold

$6.08 ~~$7.60~~

20% OFF

2.9 inch e-paper display with 296x128 resolution, 24 pins FPC connection, SPI interface, supports black, white and red. Its IC is SSD1680.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

1/1

Product Specifications

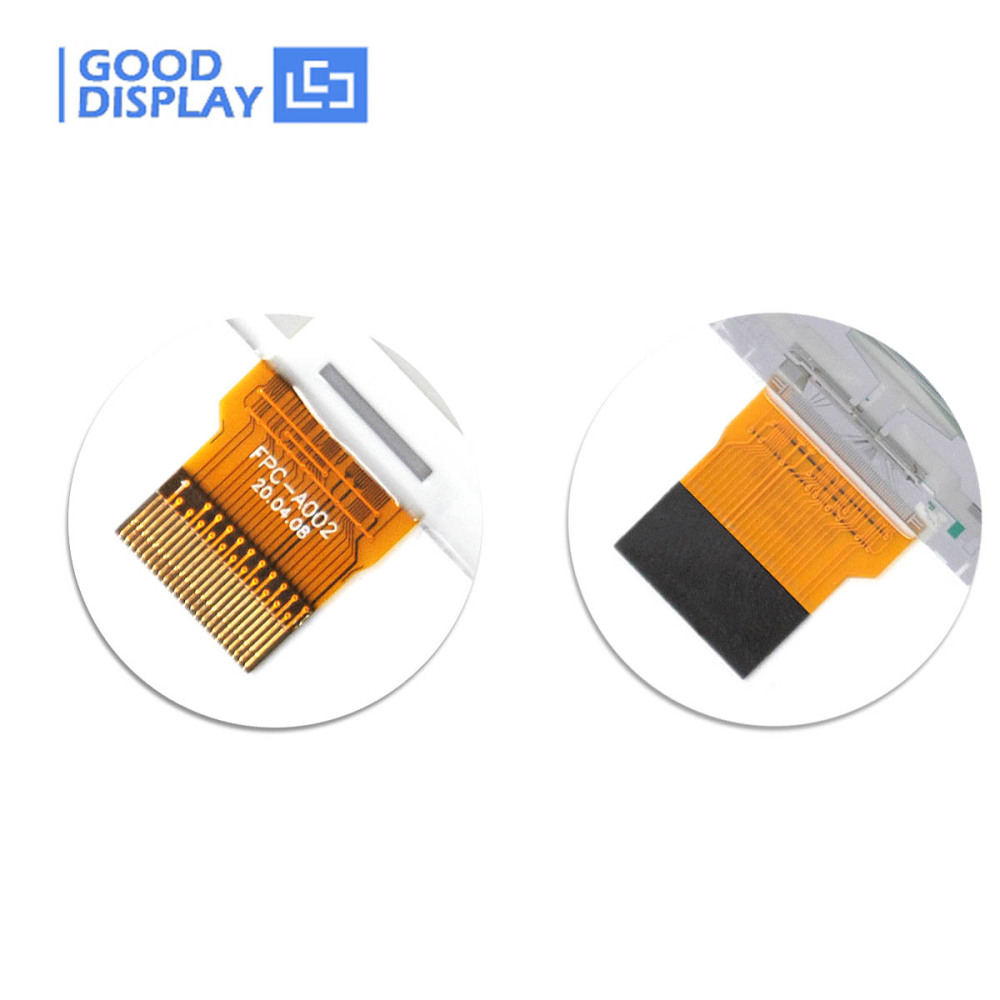

PART NUMBER	GDEY029Z95	CONNECTOR	24 PIN 0.5mm
TYPE	Dot Matrix	COLOR	Black, White, Red
SIZE	2.9 inch	INTERFACE	SPI
IC	SSD1680	MAX GRAYSCALE	2
RESOLUTION	296x128	FULL UPDATE TIME(s)	16
PPI	111.2	FAST UPDATE(s)	11

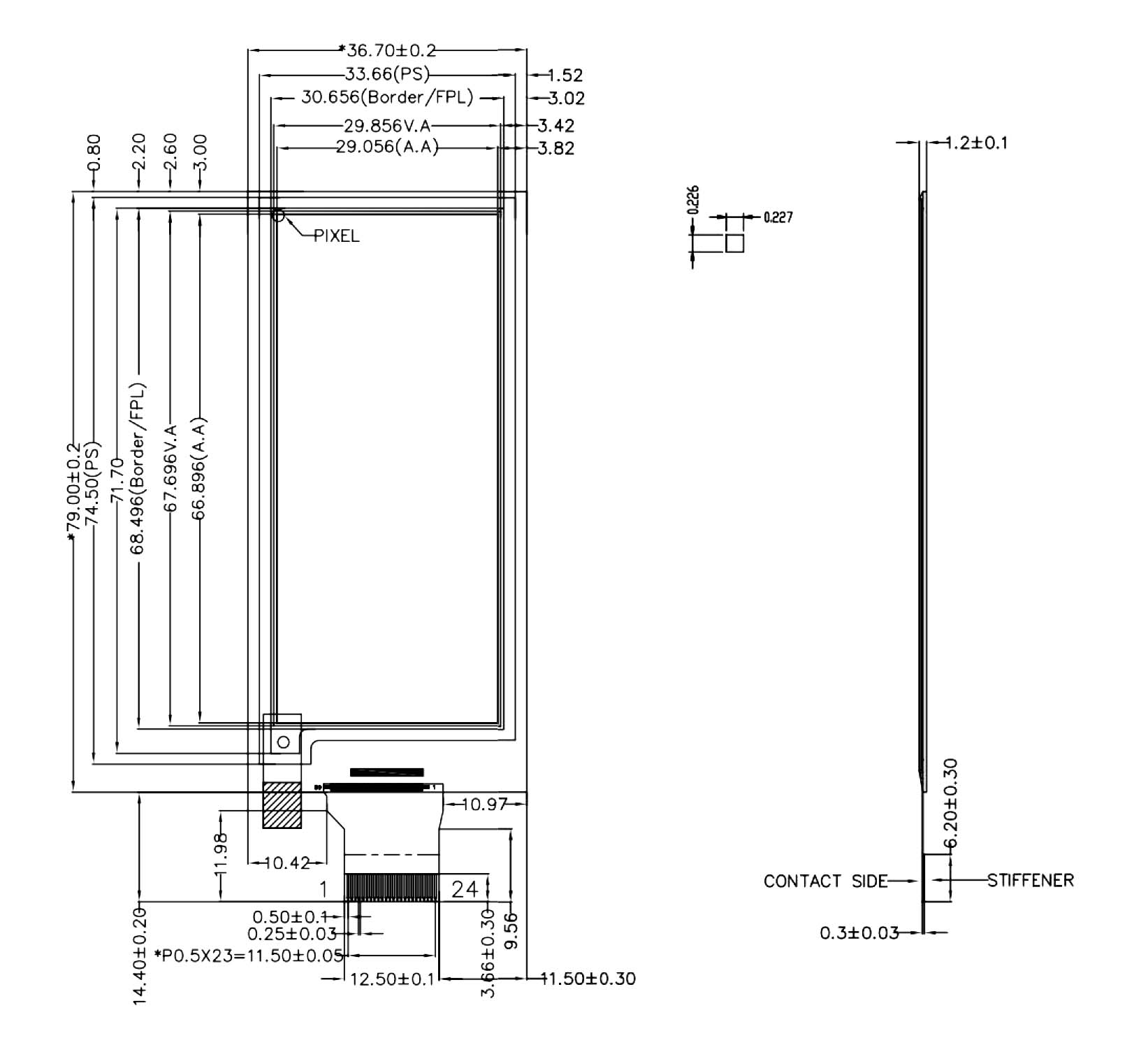

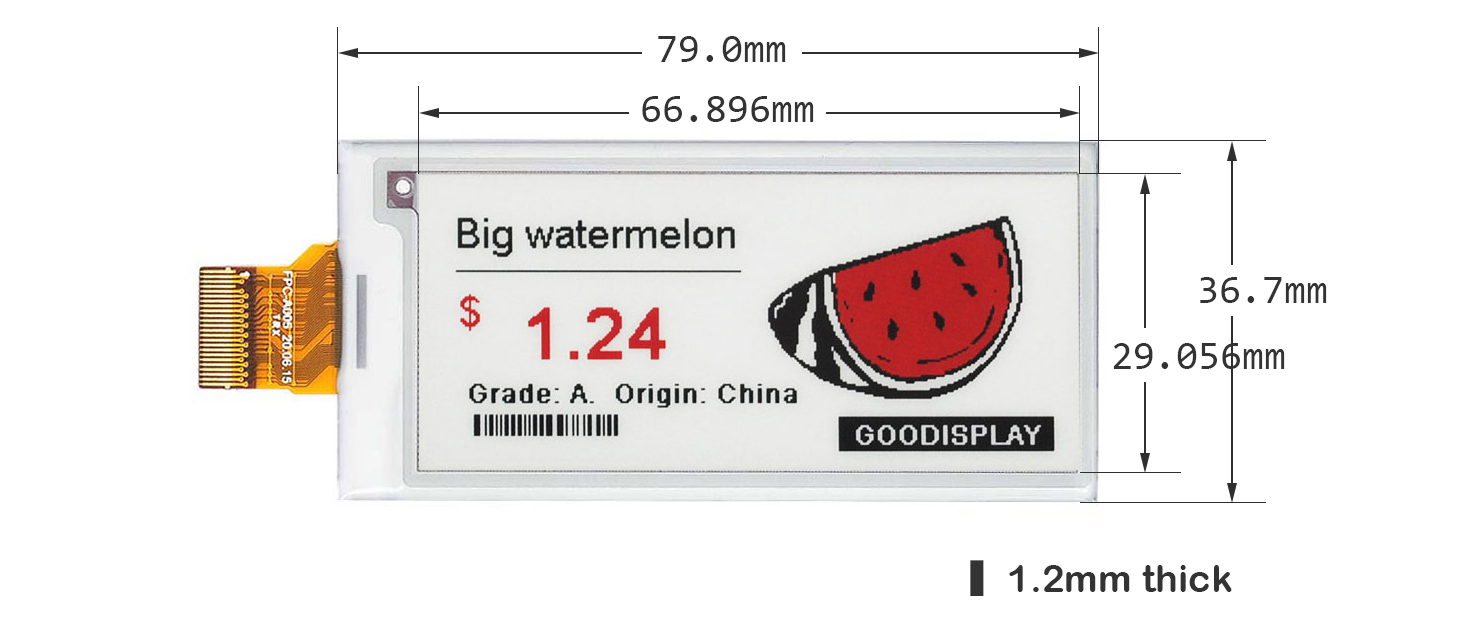

OUTLINE SIZE(mm)	79.0×36.7×1.2	PARTIAL UPDATE(s)	1.5
ACTIVE SIZE(mm)	66.896×29.056	POWER CONSUMPTION OF THE REFRESH(mW)	9
PIXEL PITCH(mm)	0.227x0.226	STANDBY POWER CONSUMPTION (mW)	0.006
OPERATING TEMP.	0℃~40℃	STORAGE TEMP.	-25℃~70℃

	Files And Download
	● GDEY029Z95 Specification	● GDEY029Z95 ESP8266 Sample Code
	● SSD1680 Driver IC Datasheet	● GDEY029Z95 Arduino Sample Code
	● Image2LCD Software Bitmap Conversion Instructions V1.0	● The Latest Catalog of ePaper Display
	● GDEY029Z95 STM32 Sample Code	● Why can't I download the files(updated)?
	● GDEY029Z95 ESP32 Sample Code

Product Application

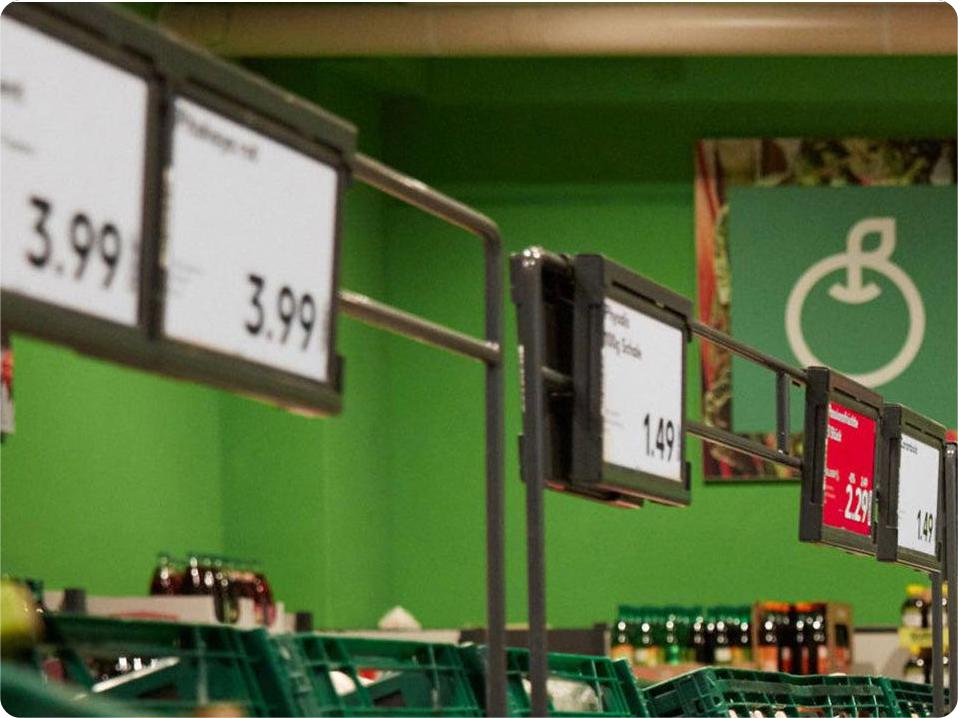

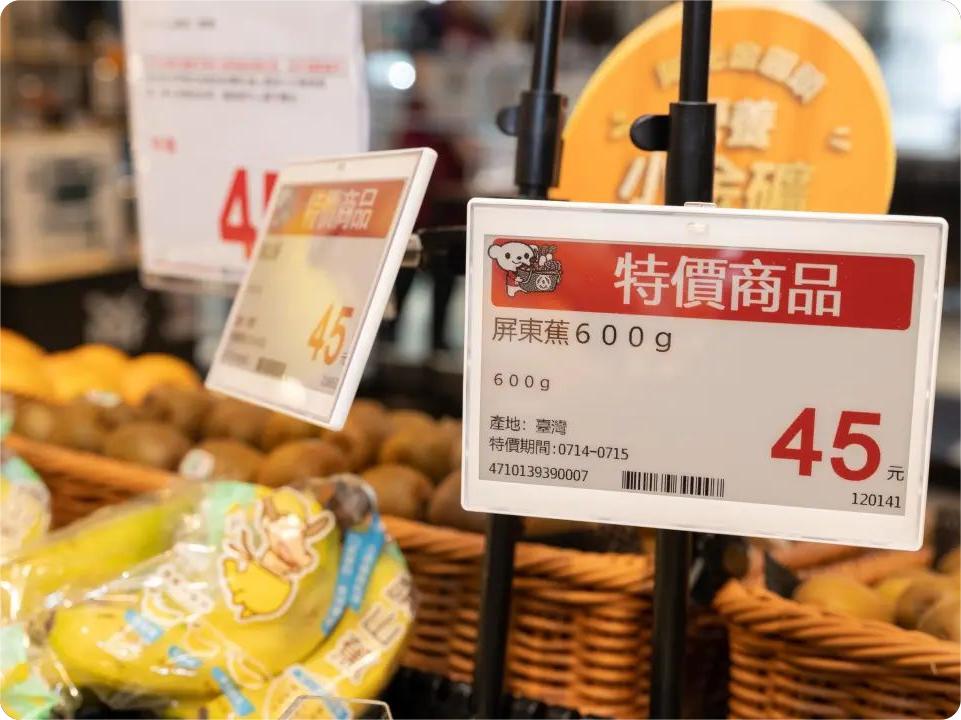

Shelf tag	Smart tag	Bag tag	Shelf tag

Every Day is Earth Day
You don't need to be an environmental scientist to make sustainable choices. At GooDisplay, we passionately integrate sustainability into the production of e-paper.

Substitute for Paper Usage Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.	Device Packaging 95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.	Energy Efficiency Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.


2.9 inch e-paper screen 296x128 customizable 1.5s fast refresh Raspberry pi SPI display, GDEY029T94	2.9 inch fast refresh partial refresh e-ink display with frontlight, GDEY029T94-FL03	2.9 inch fast refresh partial refresh e-ink display with frontlight, GDEY029T94-FL03	2.9 inch Touch & Frontlight ePaper Display, GDEY029T94-FT01

2.9 inch e ink flexible ultra-thin 4 grayscale e-paper display GDEW029I6FD	2.9 inch black white, yellow red four-color Eink screen 296x128 GDEY029F51	2.9 inch e-paper display screen low temperature 296x128, GDEY029D57LT	2.9 inch Black and white partial refresh e-paper display module, GDEM029E97

2.9 inch Small ePaper Display Tri-color 1.5s Partial Update 296x128 GDEY029Z95

Quantity:

2.9 inch Red E Ink Display 1.5s Partial Refresh

Special Features

Technical Details

Product Specifications

Product Application

Shelf tag

Smart tag

Shelf tag

Every Day is Earth Day

WE ALSO SUGGEST

ABOUT US

CUSTOMER REVIEWS

You May Like

2.13-Inch e-Paper Electronic Ink Screen 250x122 Red, Yellow, Black, White Four Color Screen, GDEY0213F52

E Ink display phone case 3.97-inch black, white, yellow, and red four-color e-paper, high resolution 800x480 GDEM0397F81

4.2-Inch Tri-Color E-Paper Display 1.3s Partial Refresh 400x300 Resolution GDEY042Z98

5inch Advanced Epaper Eink Screen Expansion HAT Colors E-Ink Display HAS Starter Kit GDEY0579Z93

		2.9 inch Red E Ink Display 1.5s Partial Refresh

		This 2.9-inch tri-color e-ink display retains images indefinitely without power, perfect for solar or battery-powered devices. Ideal for smart tags, IoT, and outdoor displays, it features low power consumption and easy SPI integration.

	Special Features
	● Portable Perfection: Experience portability at its finest with our compact 2.9-inch display. Featuring a crystal-clear 296x128 resolution, it delivers stunning visuals wherever you go. ● Vivid Tri-Color Display: Stand out with vibrant red accents that highlight crucial information effortlessly. This tri-color innovation enhances readability and grabs attention. ● Efficiency Redefined: Say goodbye to power woes! Our display consumes minimal energy when static and retains content even when unplugged, ensuring uninterrupted performance. ● Eye-Safe Technology: Protect your eyes with zero blue light and radiation-free operation. Perfect for frequent use in smart cards and tags without compromising on safety. ● Built Tough: Designed to withstand the rigors of any environment, our display boasts a robust, scratch-resistant surface. It’s your reliable choice for durability and longevity.

ABOUT US
Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com]. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
