☆ INTRODUCTION

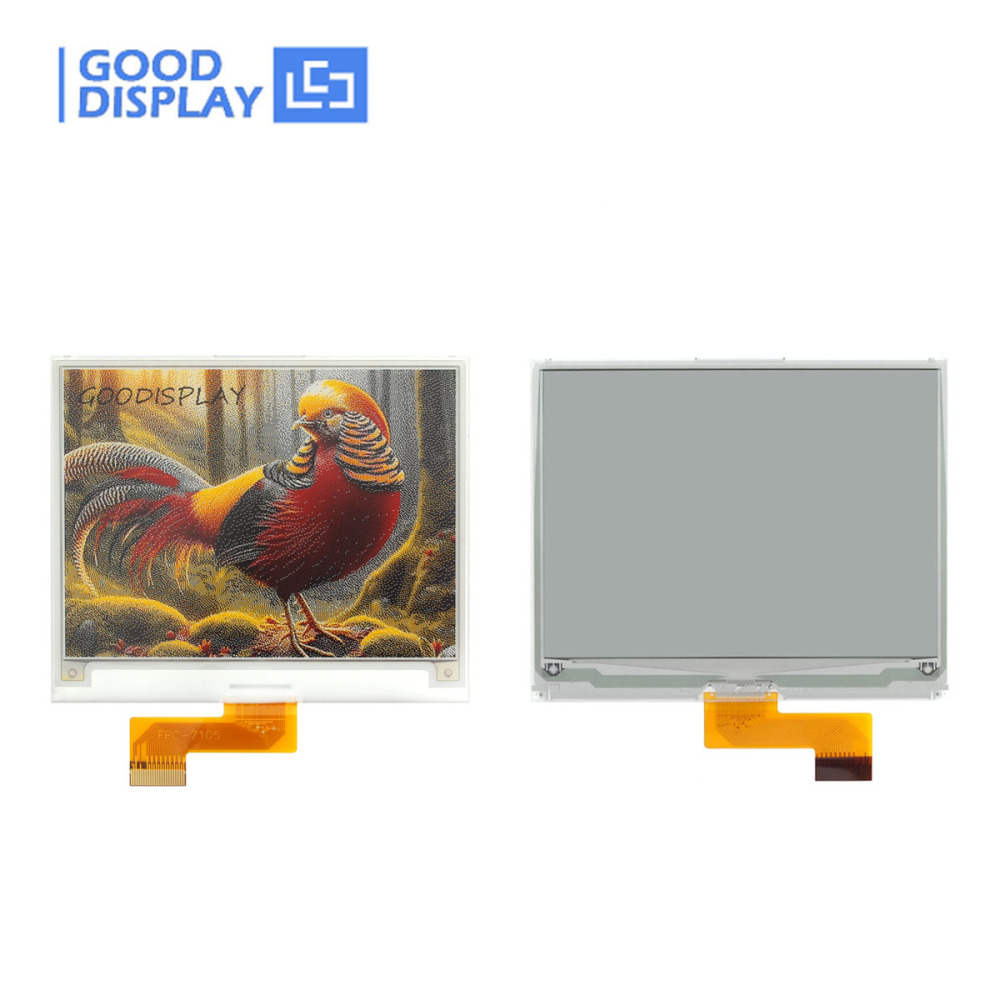

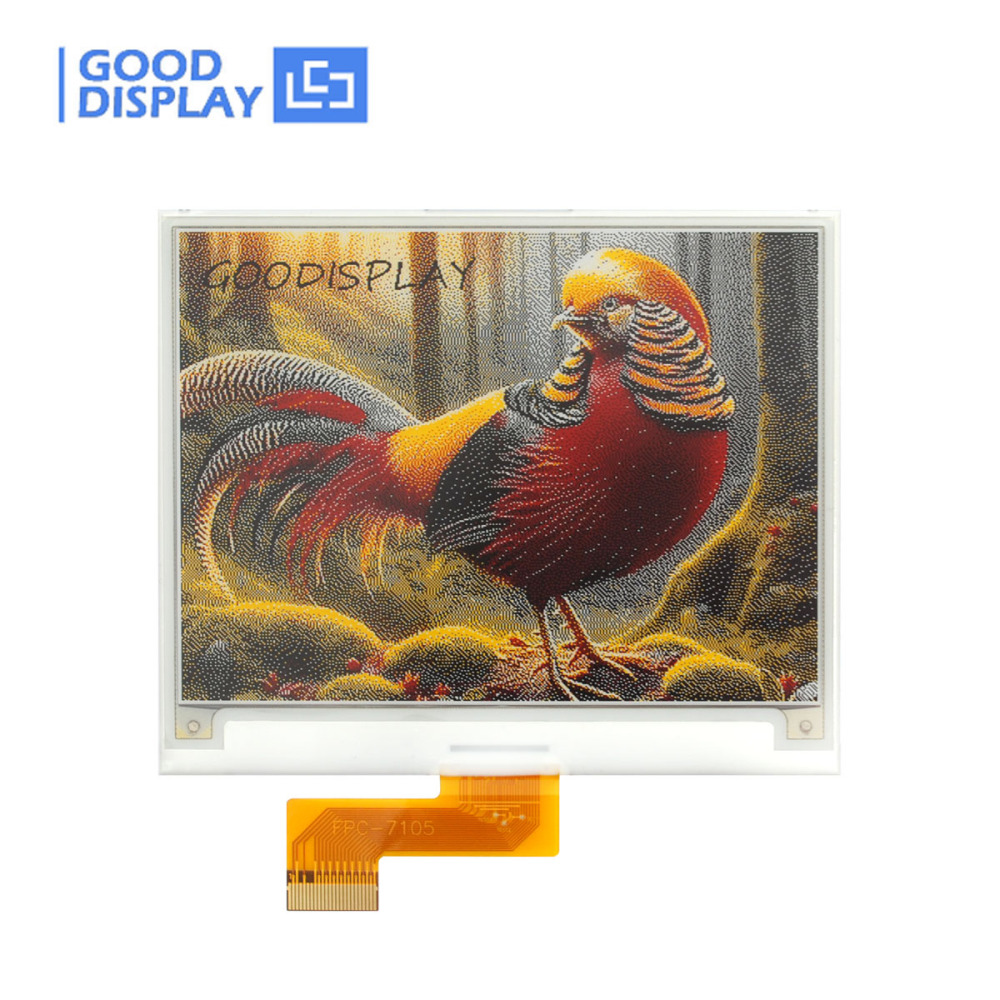

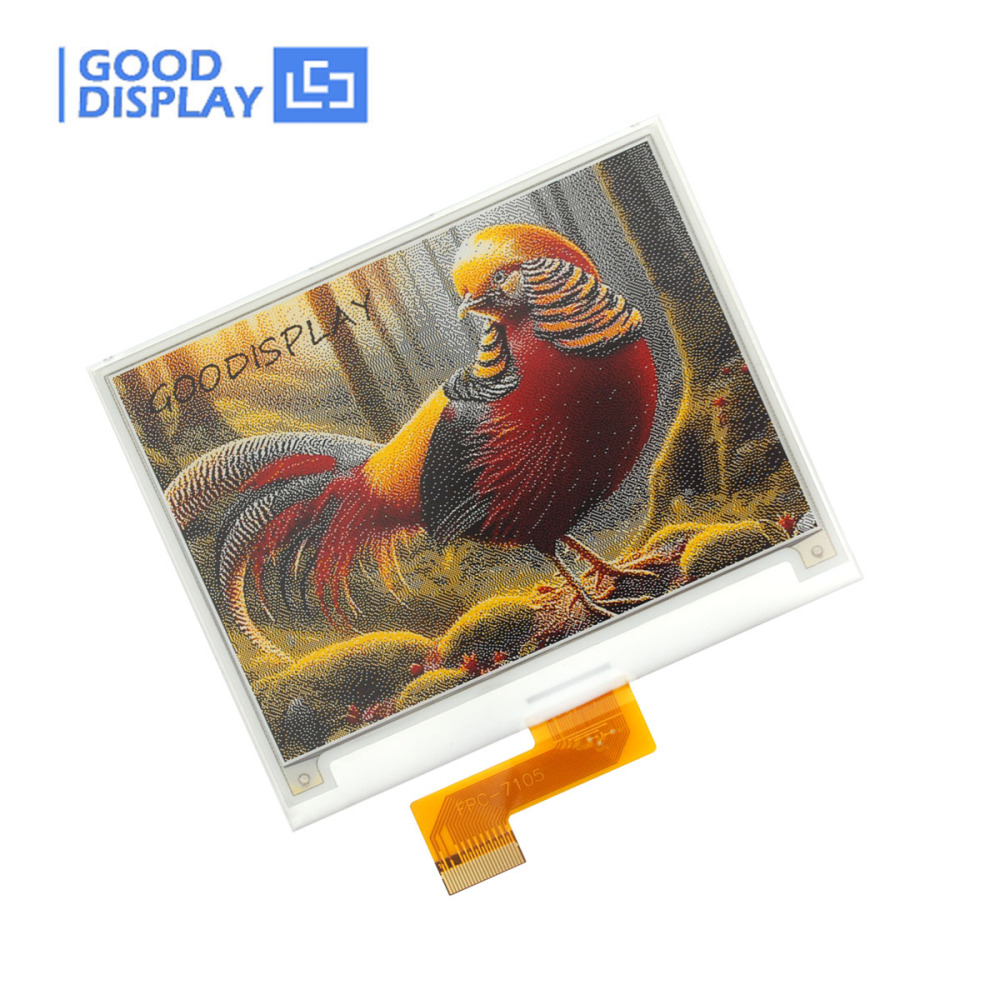

This is a  4.2 inch e-ink display, 300x400 resolution, SPI interface, and the display is capable to display images with multi-color EPD. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY042F51 is perfect for low power devices powered by solar or batteries.

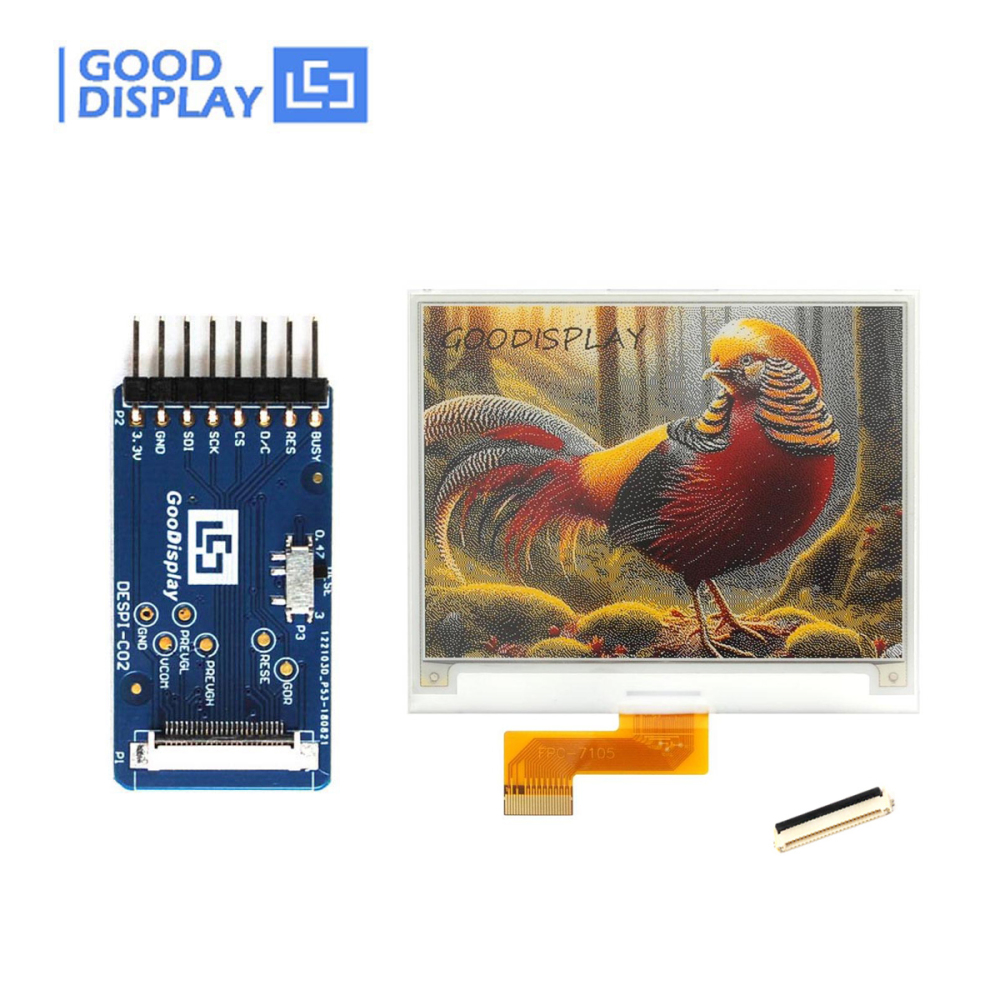

We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array

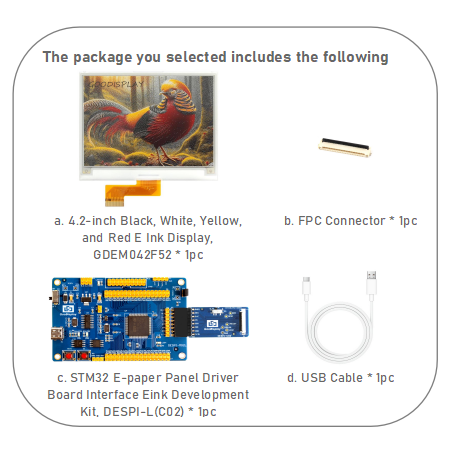

☆ THE ABOVE PRICE INCLUDE

☆ MAIN PARAMETERS

☆ FEATURE

●   Versatile. Use in portrait or landscape format

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays

●  Development platform available STM32  / ESP8266 / ESP32



☆ DETAILS

☆ MATCHED DEVELOPMENT KIT

● DESPI-C02 (E-ink Display HAT)

● DESPI-L(C02) (STM32 Platform/Universal)


● ESP8266-L(C02) (WiFi)


● ESP32-L(C02) (WiFi / Bluetooth)


☆ RELATED INFORMATION DOWNLOAD

● GDEY042F51_Specification

● HX8717 Driver IC Datasheet

● GDEY042F51-ESP32 Sample Code

● GDEY042F51-ESP8266 Sample Code

● GDEY042F51-STM32 Sample Code
