☆ INTRODUCTION

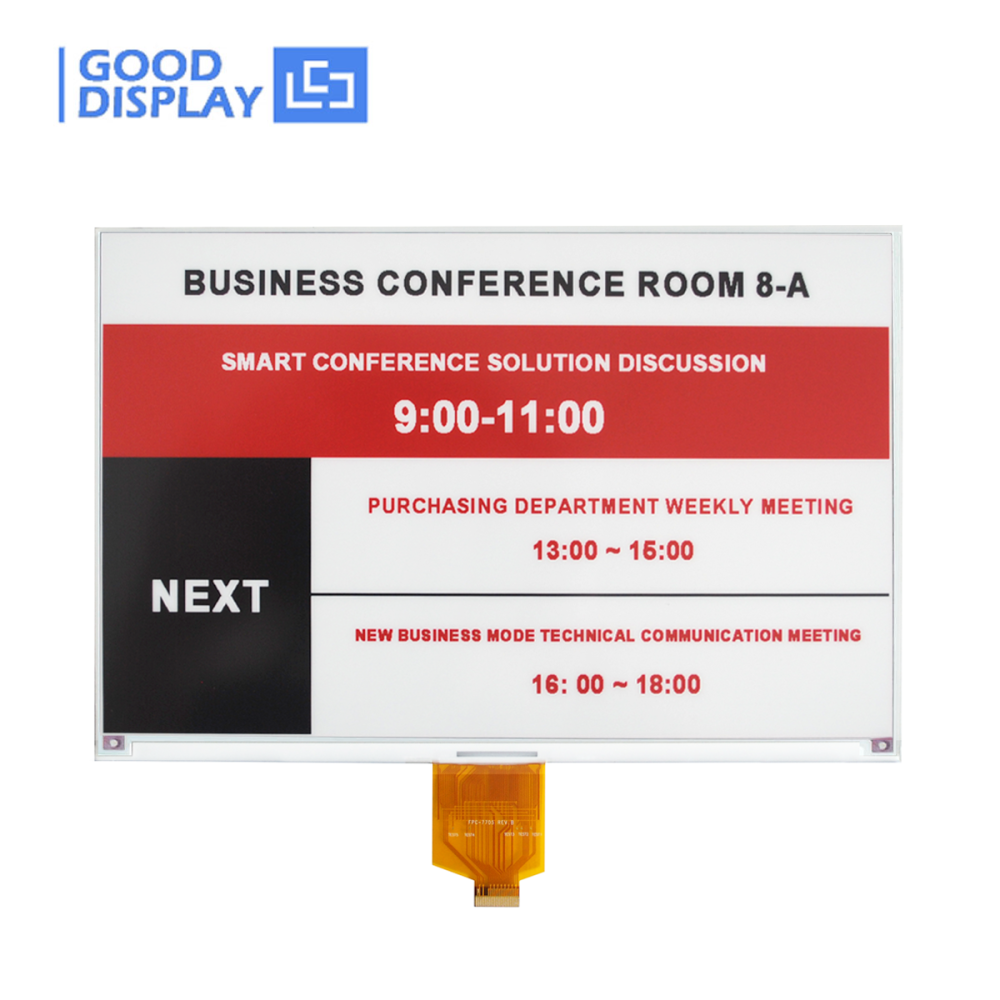

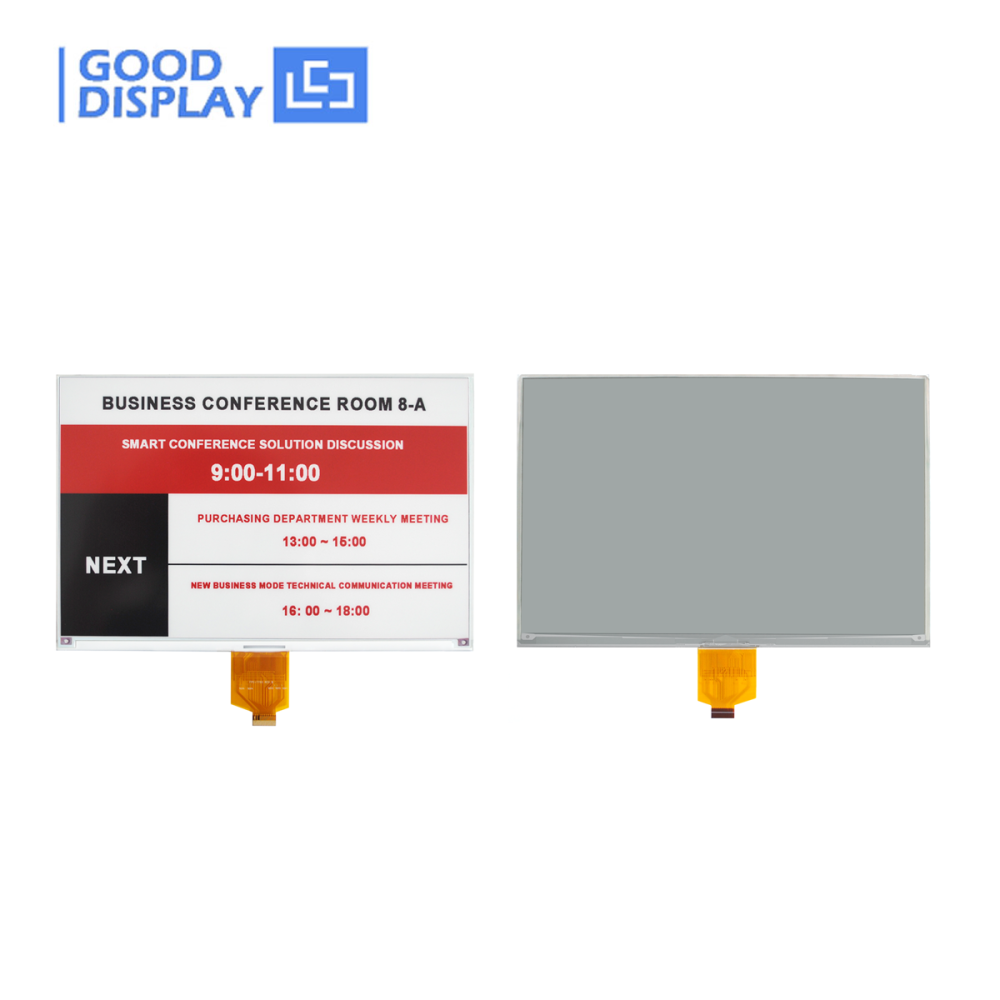

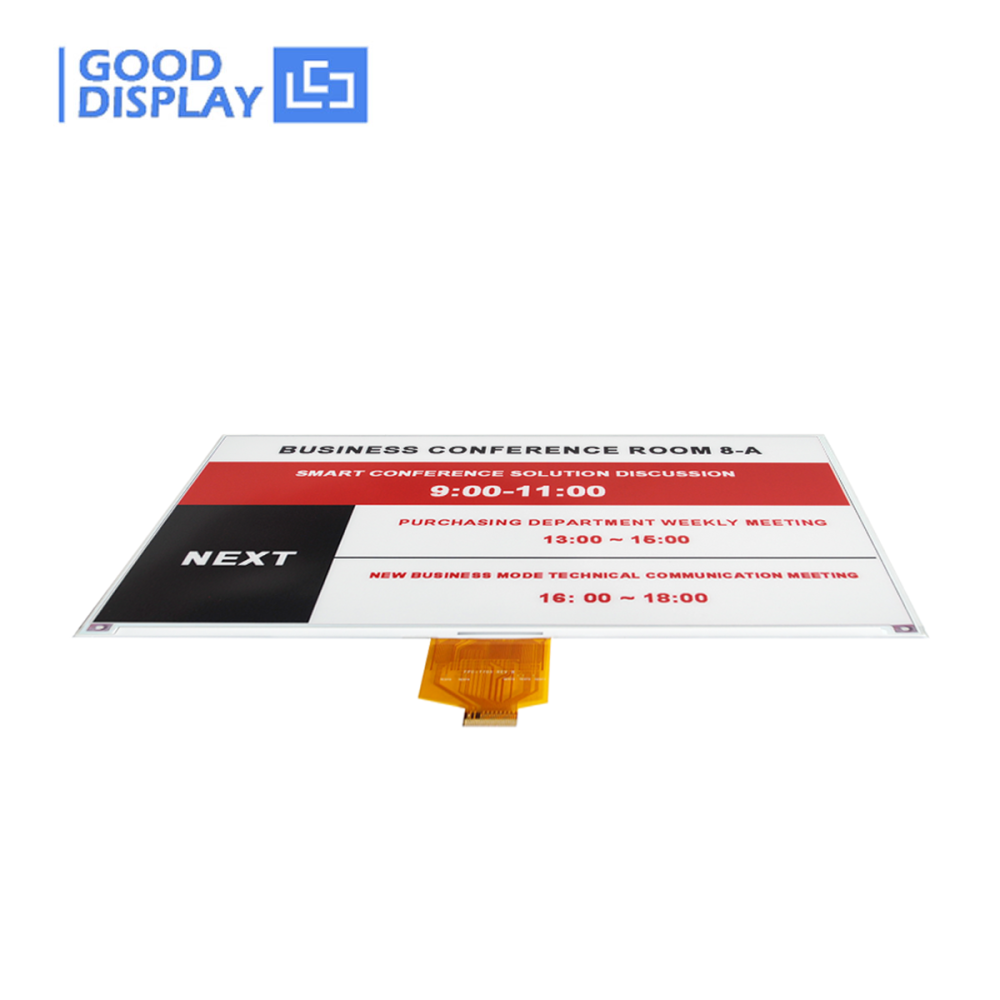

This is a large epaper e-ink display, 10.2 inch, with 960x640 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e paper display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This epaper display GDEM102Z91 is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

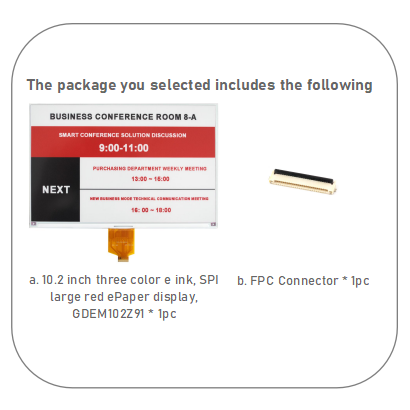

☆ THE ABOVE PRICE INCLUDE
☆ MAIN PARAMETERS
| PART NUMBER |
GDEM102Z91 |
| TYPE |
Dot Matrix |
STORAGE TEMP. |
-25℃~40℃ |
| SIZE |
10.2 inch |

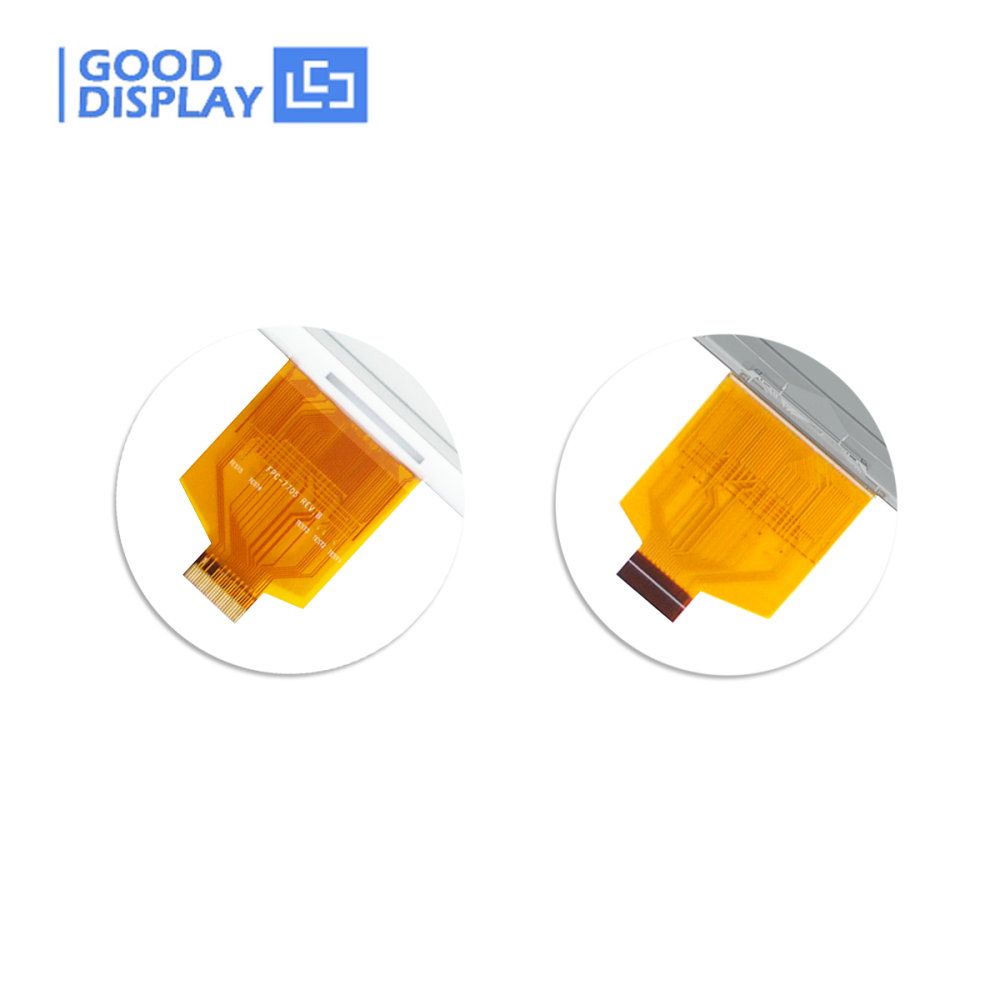

CONNECTOR |
24 Pin FPC |
| IC |
SSD1677 |
MAX GRAYSCALE |
2 |
| RESOLUTION |
960x640 |
COLOR |
Black, White, Red |
| OUTLINE SIZE(mm) |
224x157x0.9 |
INTERFACE |
SPI |
| ACTIVE SIZE(mm) |
215.52x143.68 |
FULL REFRESH(s) |
20 |
| PIXEL PITCH(mm) |
0.2245x0.2245 |
POWER CONSUMPTION OF THE REFRESH(mW) |
39 |
| OPERATING TEMP. |
0℃~40℃ |
STANDBY POWER CONSUMPTION (mW) |
0.003 |
☆ FEATURE

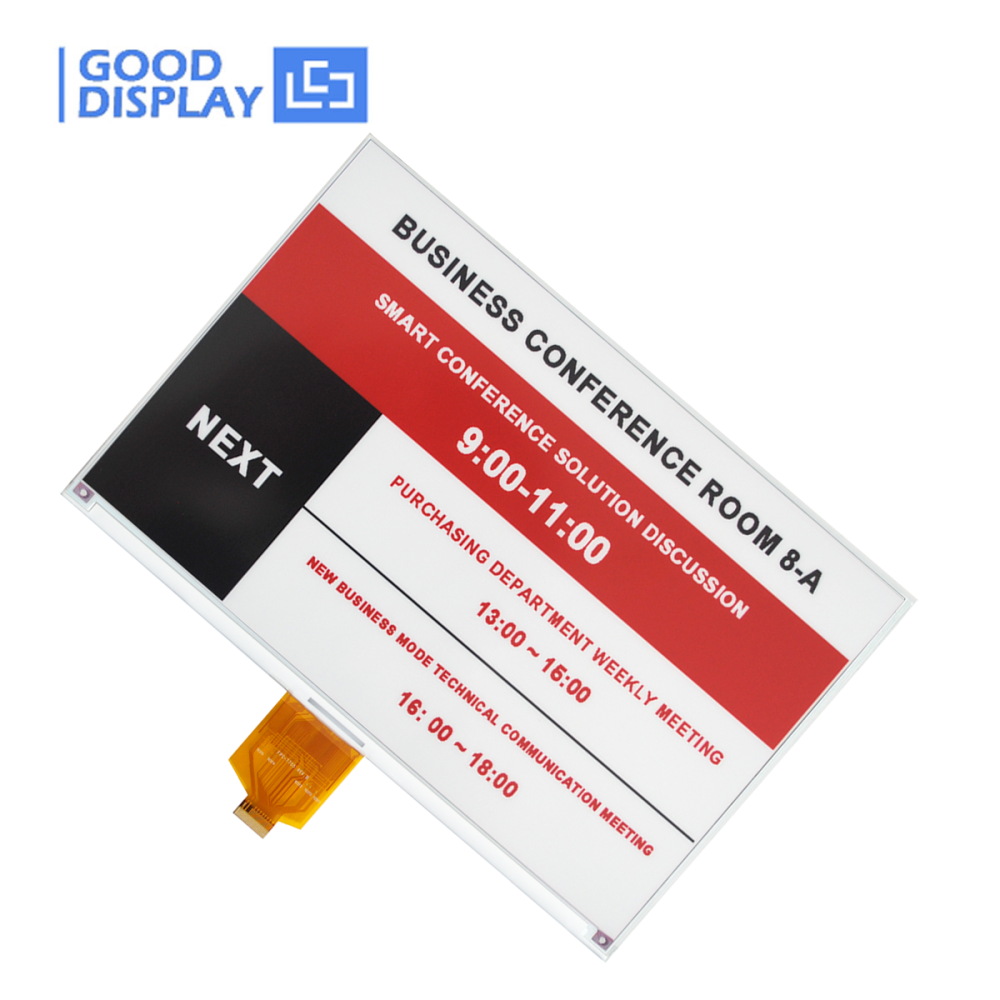

● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / ESP8266 / ESP32

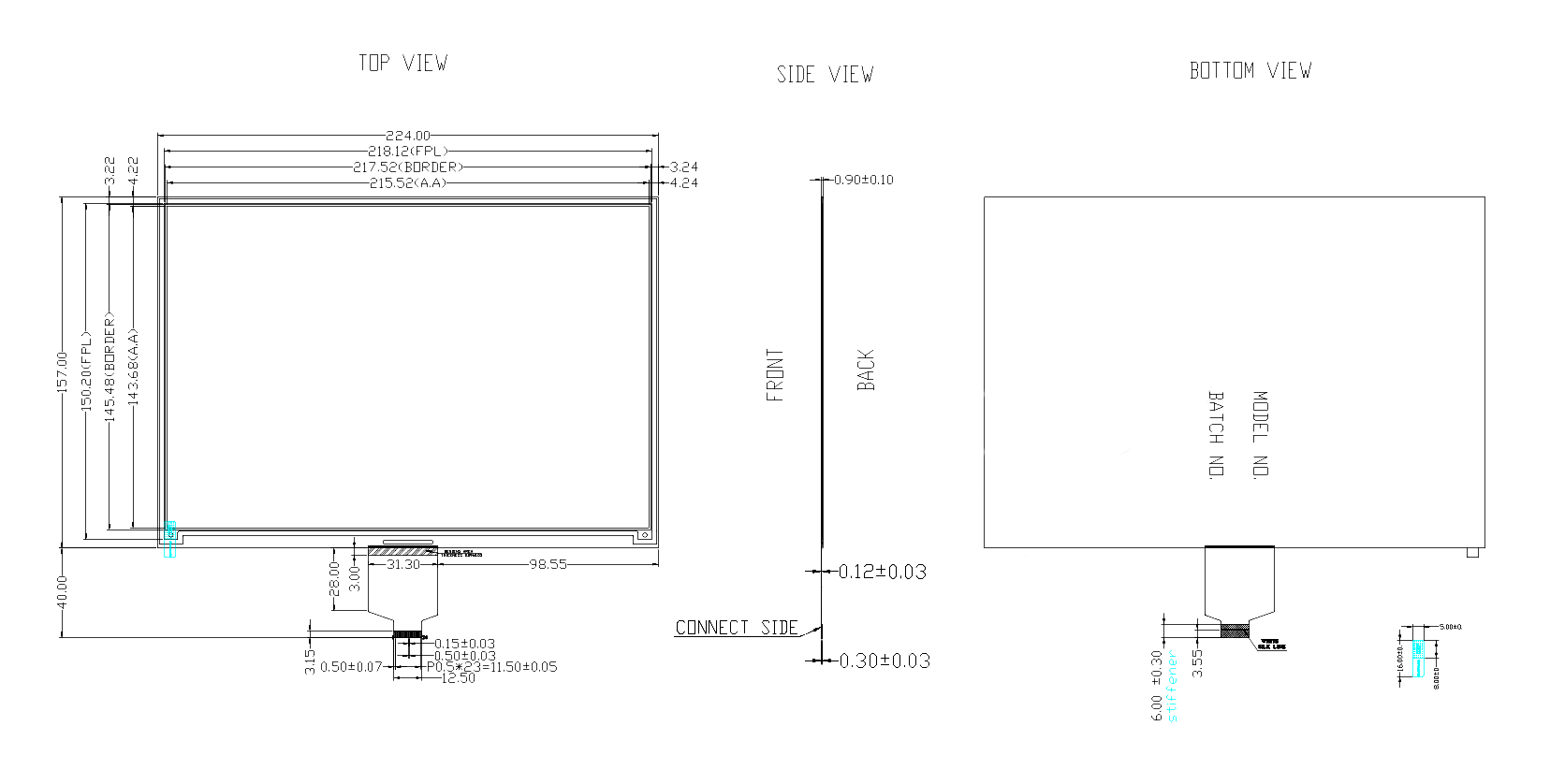

☆ DRAWING
☆ MATCHED DEVELOPMENT KIT

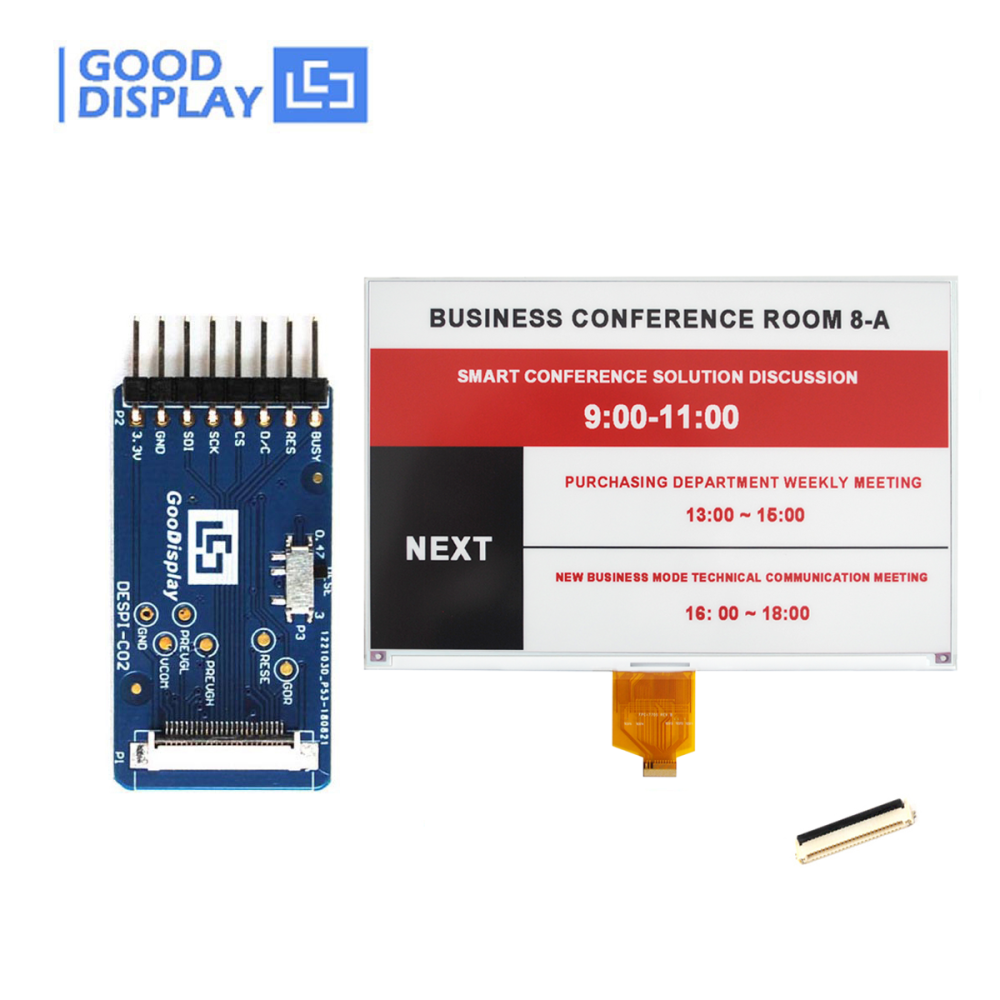

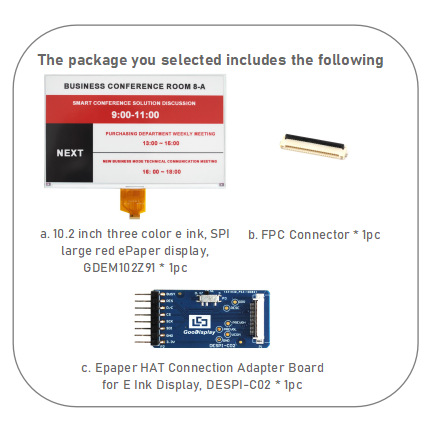

● DESPI-C02 (E-ink Display HAT)

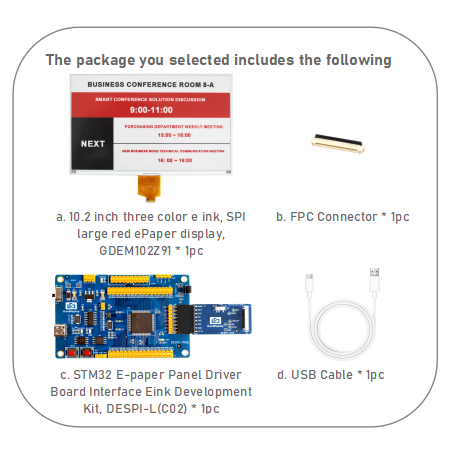

● DESPI-L(C02) (STM32 Platform/Universal)
● ESP8266-L(C02) (WiFi)

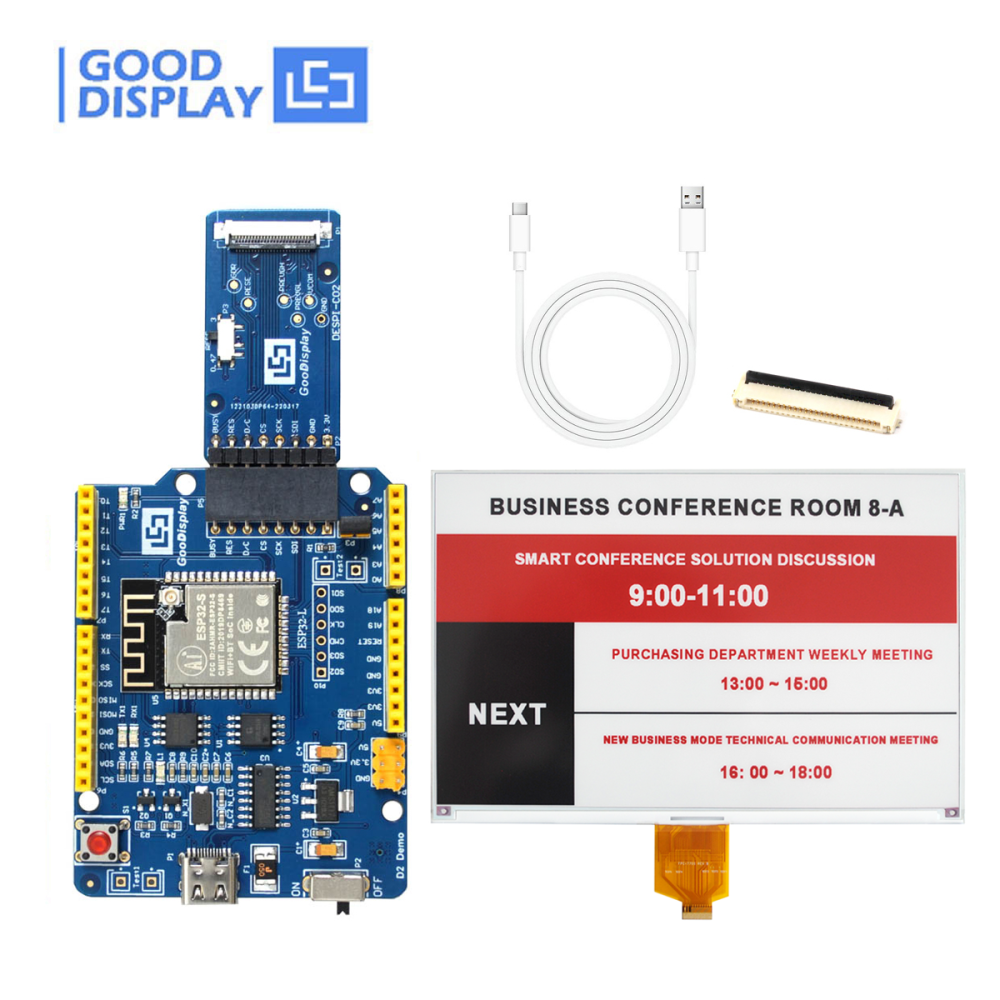

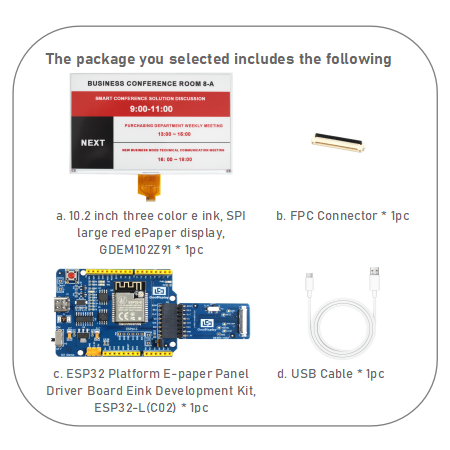

● ESP32-L(C02) (WiFi / Bluetooth)
☆ RELATED INFORMATION DOWNLOAD
● GDEM102Z91_Specification
● IC Driver SSD1677
● Picture Production and Bitmap Convert for GDEM102Z91
● GDEM102Z91 STM32 Sample Code
● GDEM102Z91 ESP8266 Sample Code
● GDEM102Z91 ESP32 Sample Code

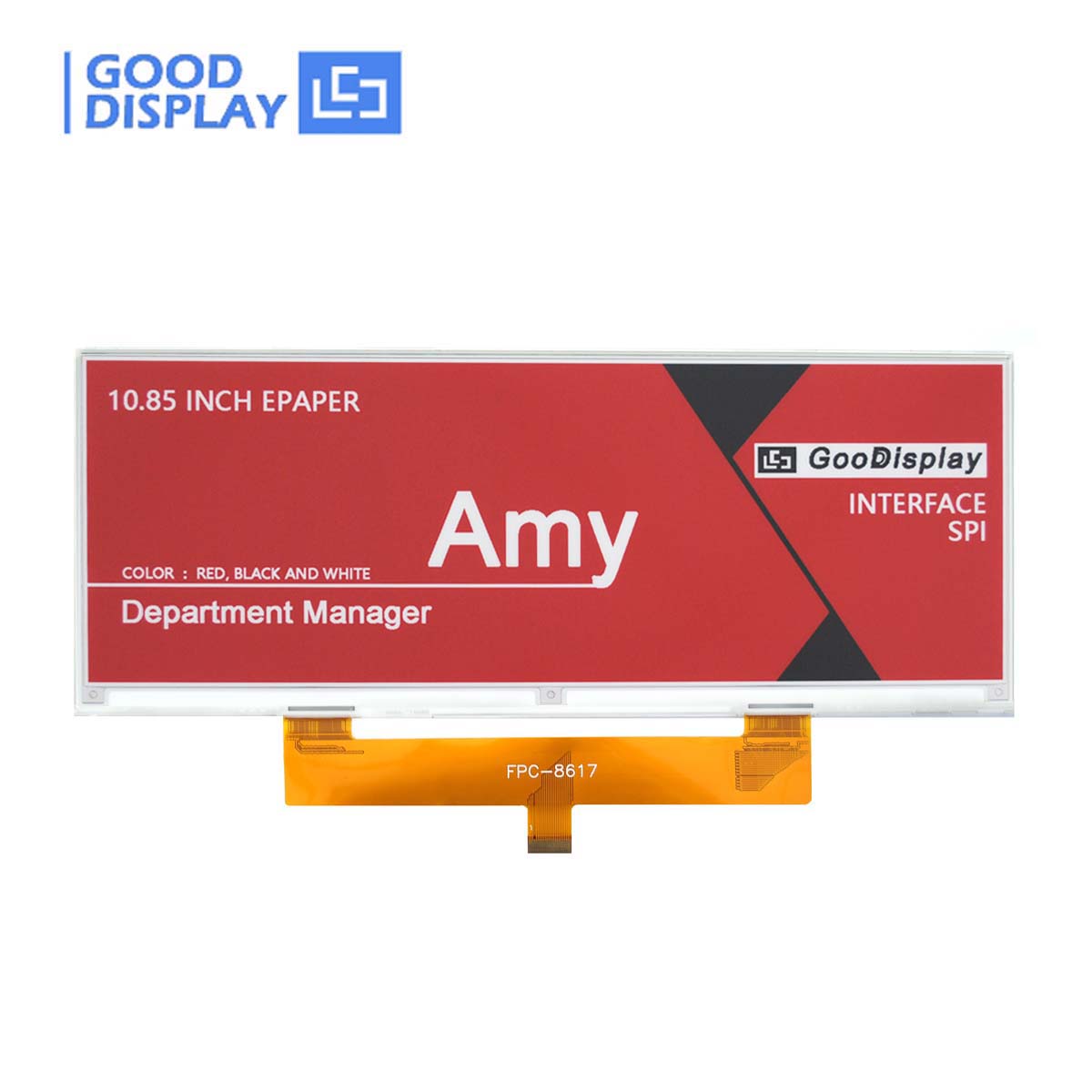

☆ WE ALSO SUGGEST...
