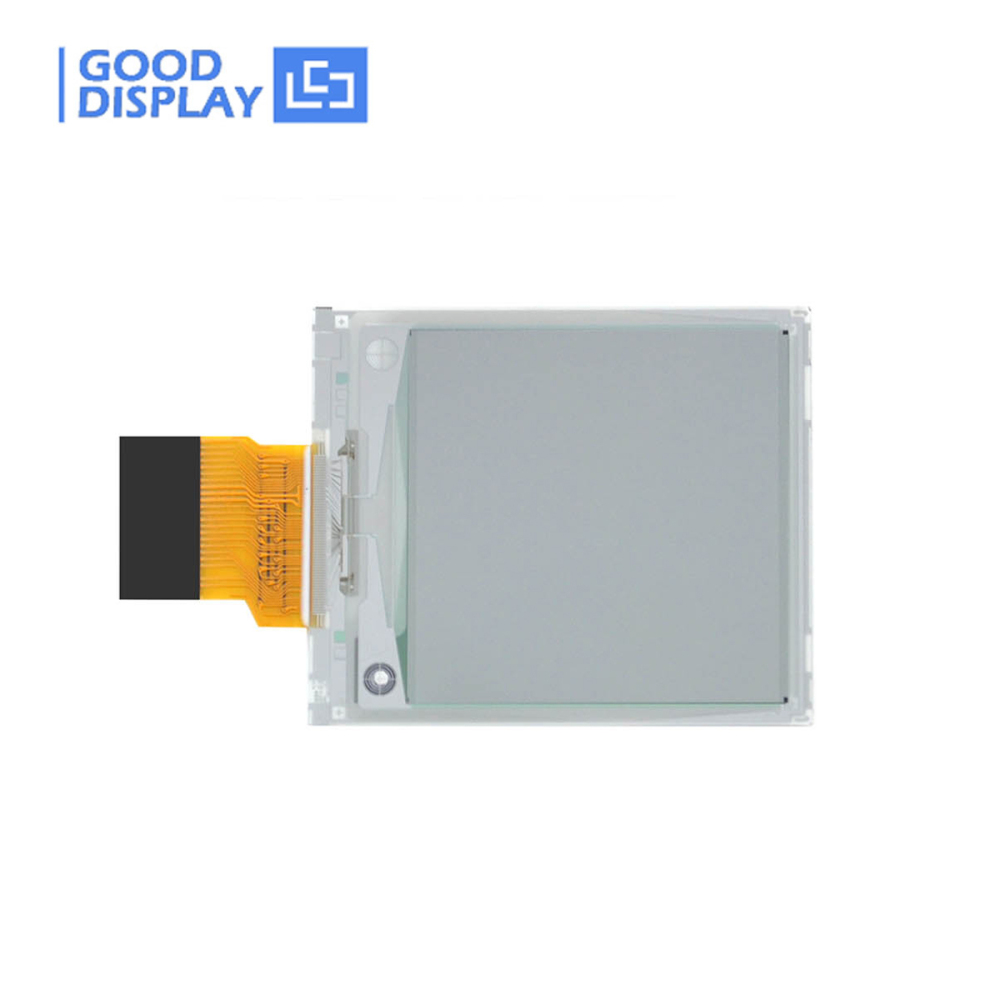

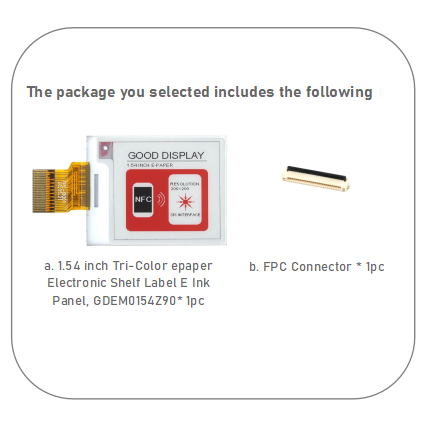

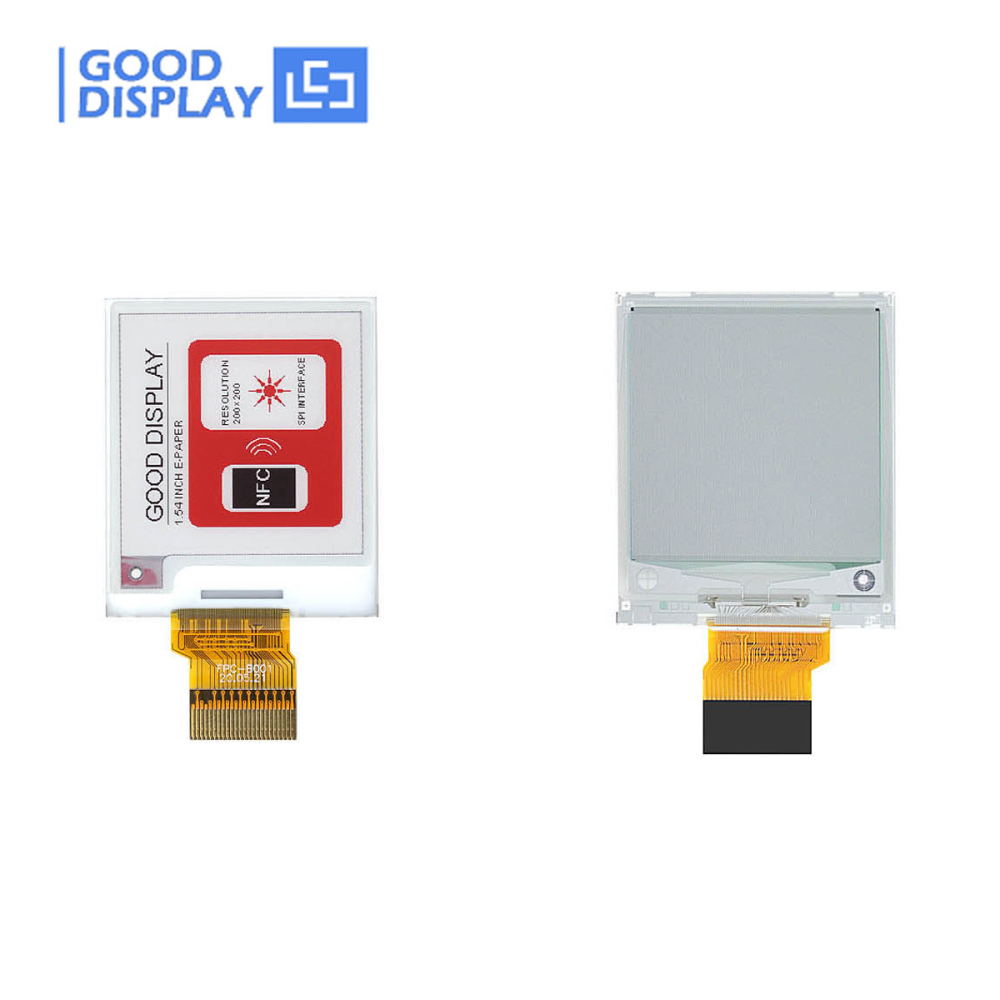

		Compact 1.54" Tri-Color E-Ink Display - Red/Black/White Electronic Shelf Label

		The 1.54-inch Tri-Color ePaper Display (model GDEM0154Z90) is a compact e-ink screen featuring a resolution of 200x200 pixels and displaying in red, black, and white. It utilizes the SSD1681 driver IC and interfaces via SPI with an operating voltage of 3.3V. Key attributes include a full refresh time of 16 seconds, wide viewing angles over 170 degrees, and bistable display technology that retains content even without power. Designed for energy efficiency, it consumes no power when the screen is not refreshing and emits no blue light, ensuring eye protection. Ideal applications include shelf tags, smart tags, smart home devices, industrial instruments, and smart cards.

Our product boasts distinctive features that set it apart from the competition

●  Low Power Consumption: Once the display content is updated, it can hold the image without power, making it perfect for solar or battery-powered devices. This feature significantly reduces energy usage.
●  High Visibility: Displays in black, white, and red, ensuring your information stands out with high contrast, ideal for any scenario where readability is key.
●  Power-Free Retention: After updating the display, the image remains indefinitely, even without power, eliminating the need for constant power supply.
●  Versatile Applications: Perfect for smart home displays, e-readers, retail shelf labels, public transit signs, and digital photo frames, this e-paper display fits a wide range of uses.
●  Eco-Friendly: With its ultra-low power consumption and long-lasting display capabilities, it’s an ideal choice for sustainable, energy-efficient applications.

		Technical Details

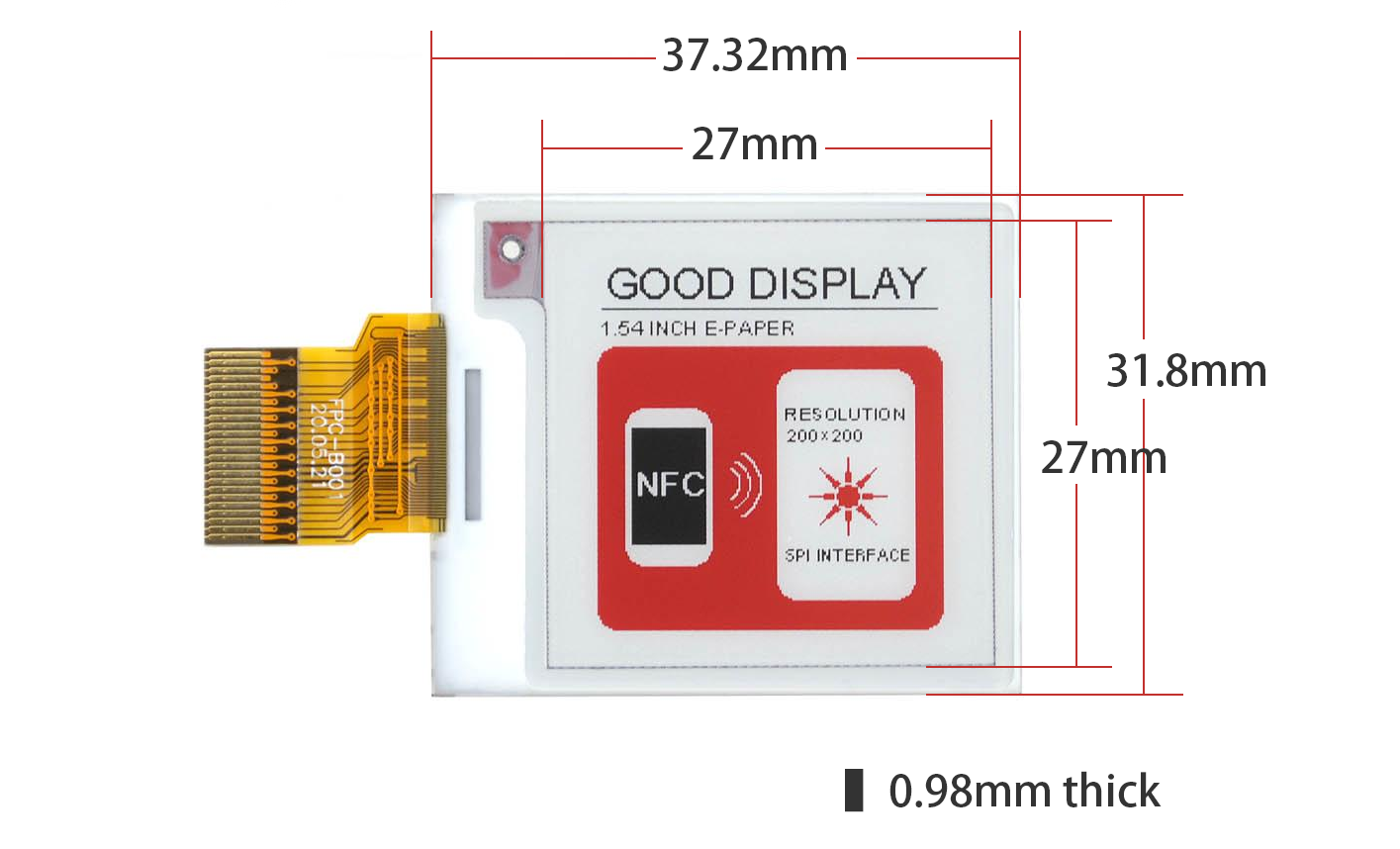

		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

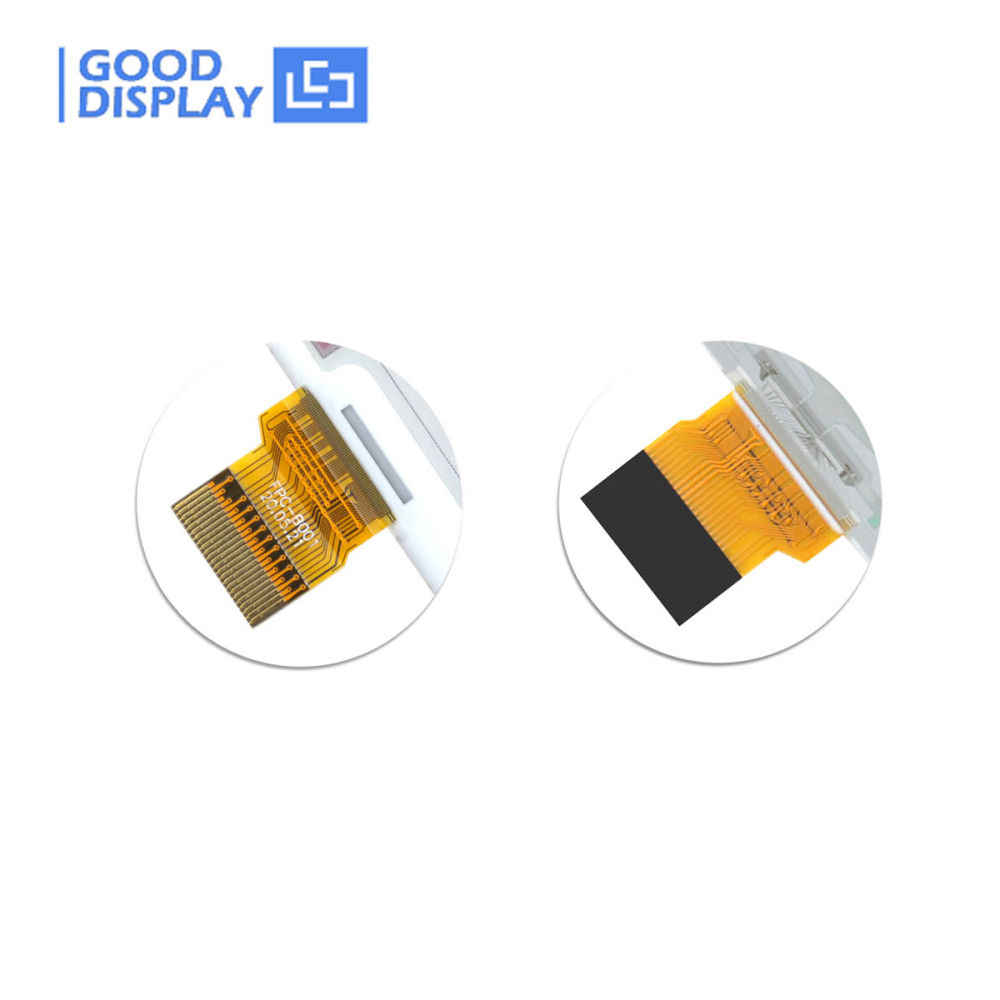

PART NUMBER	GDEM0154Z90	CONNECTOR	24 Pin FPC
SIZE	1.54 inch	TYPE	Dot Matrix
IC	SSD1681	MAX GRAYSCALE	2
RESOLUTION	200x200	COLOR	Black, White, Red
OUTLINE SIZE(mm)	31.8x37.32x0.98	INTERFACE	SPI
ACTIVE SIZE(mm)	27x27	FULL REFRESH(s)	16
PIXEL PITCH(mm)	0.14x0.14	POWER CONSUMPTION OF THE REFRESH(mW)	7.5
OPERATING TEMP.	0℃~40℃	STANDBY POWER CONSUMPTION (mW)	0.003
STORAGE TEMP.	-25℃~70℃

Files and Download Click on the subheadings below to download

	● GDEM0154Z90 Specification	● GDEM0154Z90 ESP8266 Sample Code
	● SSD1681 Driver IC Datasheet	● GDEM0154Z90 ESP32 Sample Code
	● GDEM0154Z90 STM32 Sample Code	● The latest Catalog of ePaper display
	● GDEM0154Z90 Arduino Sample Code	● Why can't I download the files?

Product Application

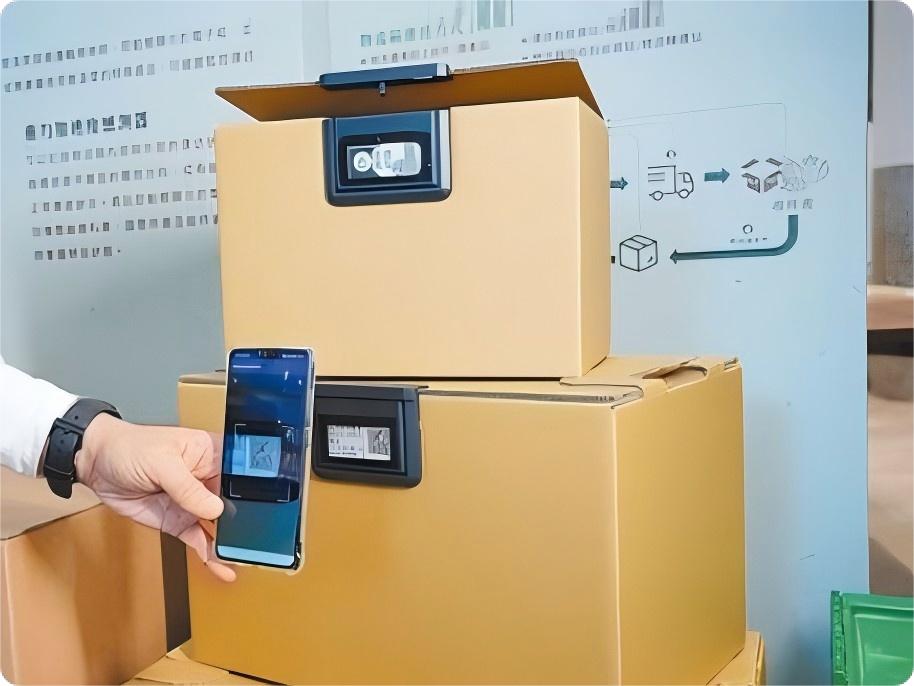

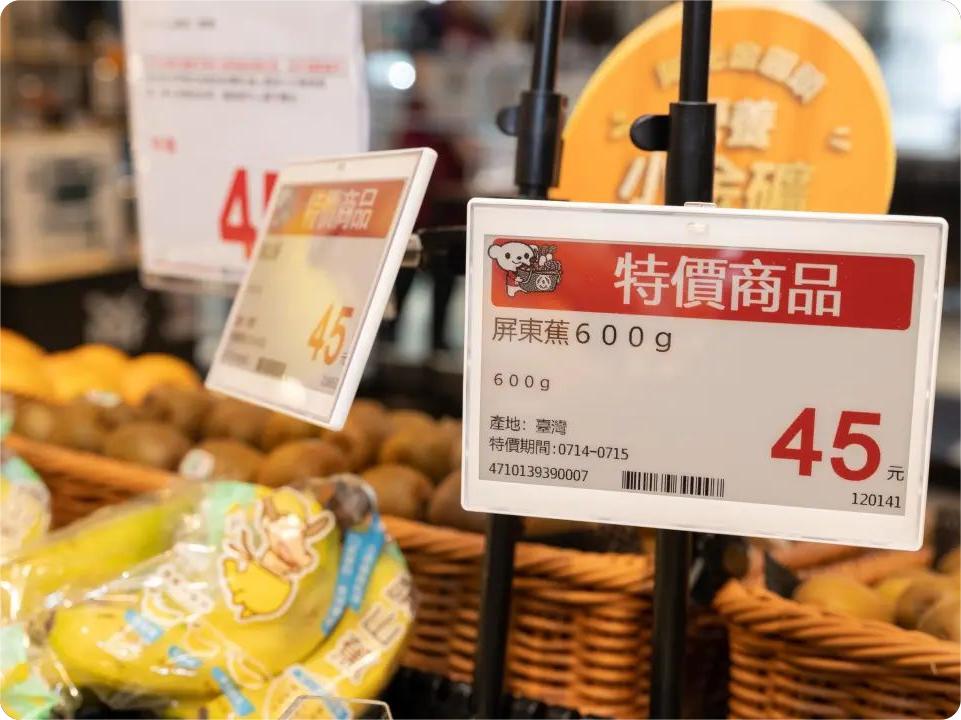

Smart Tags and Shelf Labels	Conference Nameplates and Visitor Badges	Logistics Management	Medical Devices	Personalized Accessories

WE ALSO SUGGEST
Click the image below to learn more about our products

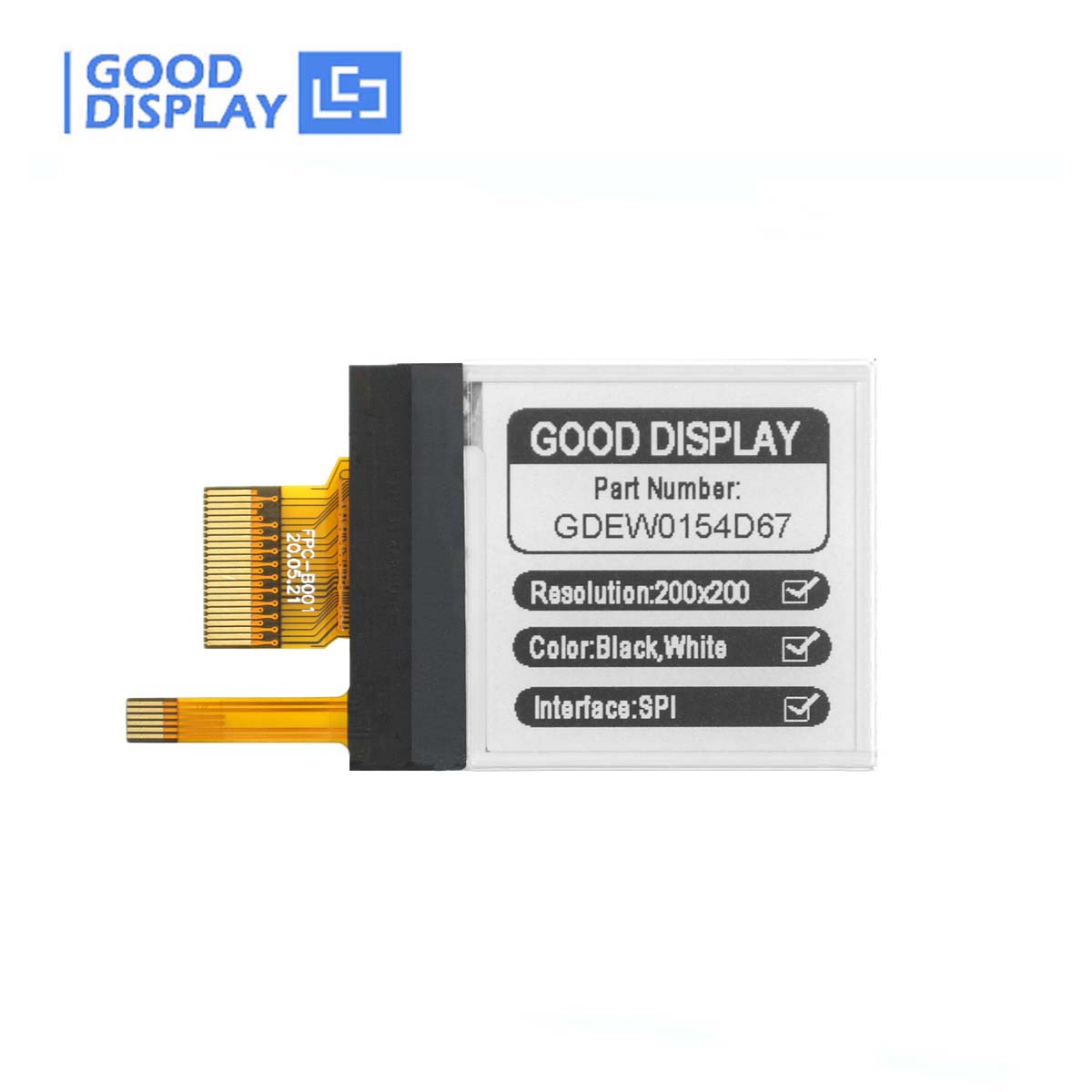

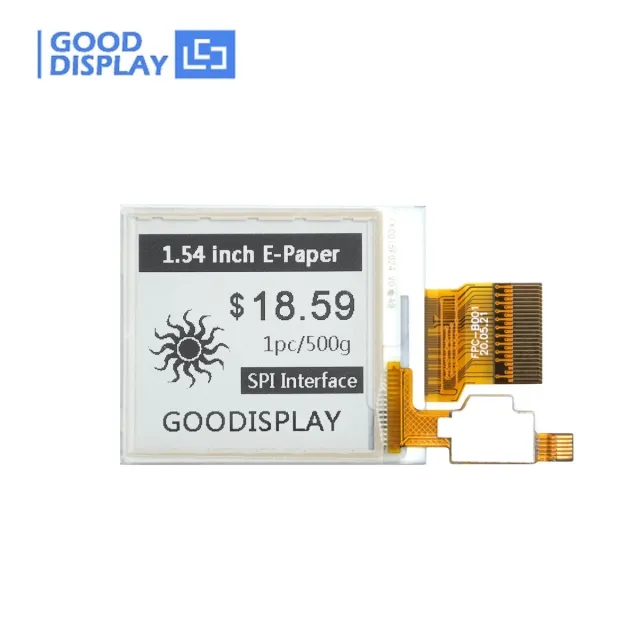

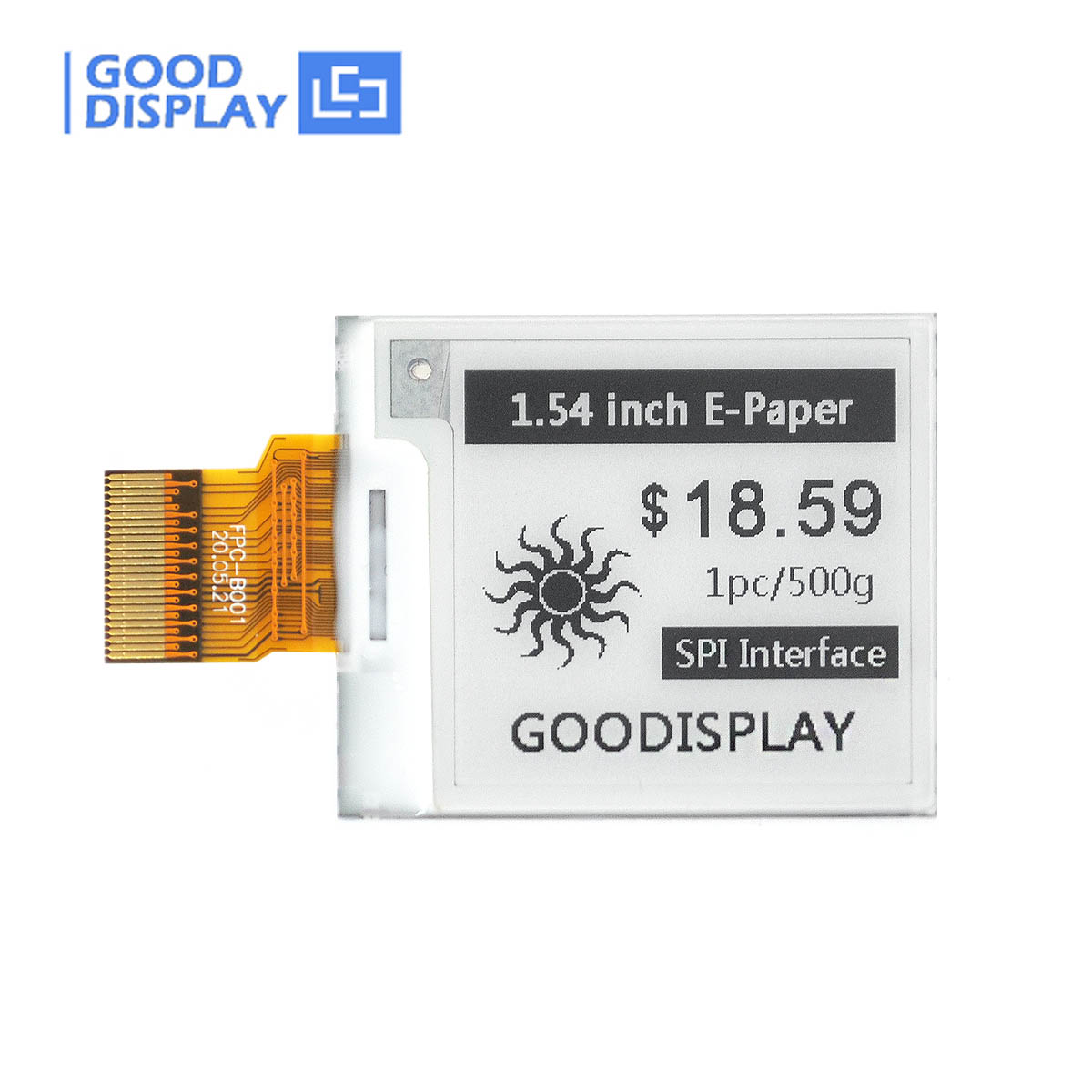

1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67	1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display, GDEY0154D67-T03	1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEY0154D67-FL04	1.54 inch electronic paper display Customizable digital price tags screen, GDEY0154D67-FT01

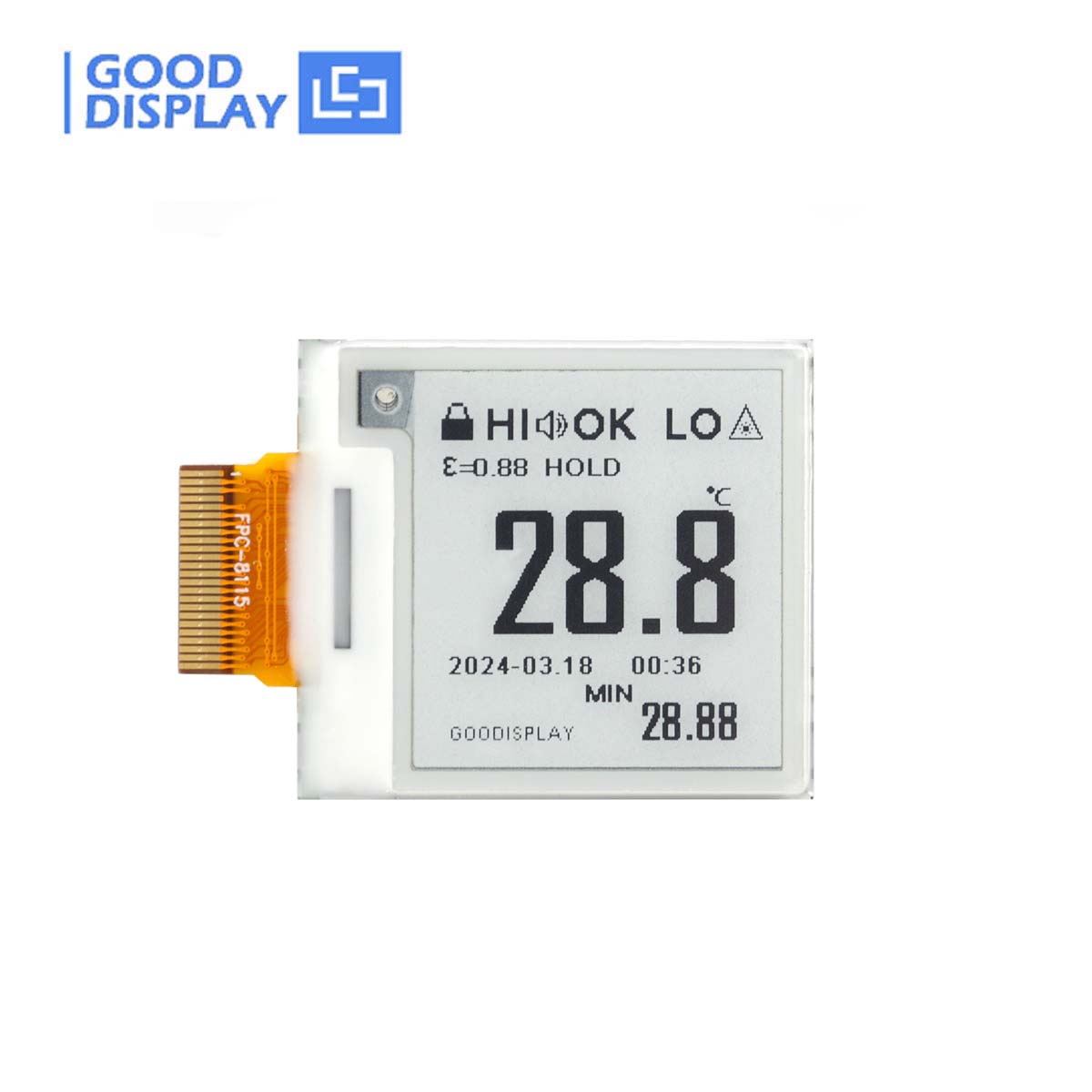

1.54 inch e-paper display high resolution 200x200 partial refresh fast speed GDEW0154M09	1.54 inch E-paper black, white, yellow and red Eink 152x152,GDEY0154F51	1.54-inch E-paper Display Module Wide Temperature(-25°C~50°C) Resolution 200x200, GDEM0154D67WT	1.22 inch high-frequency update E Ink screen with 2s fast refresh 176x192, GDEM0122T61

Matching Driver Board

To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

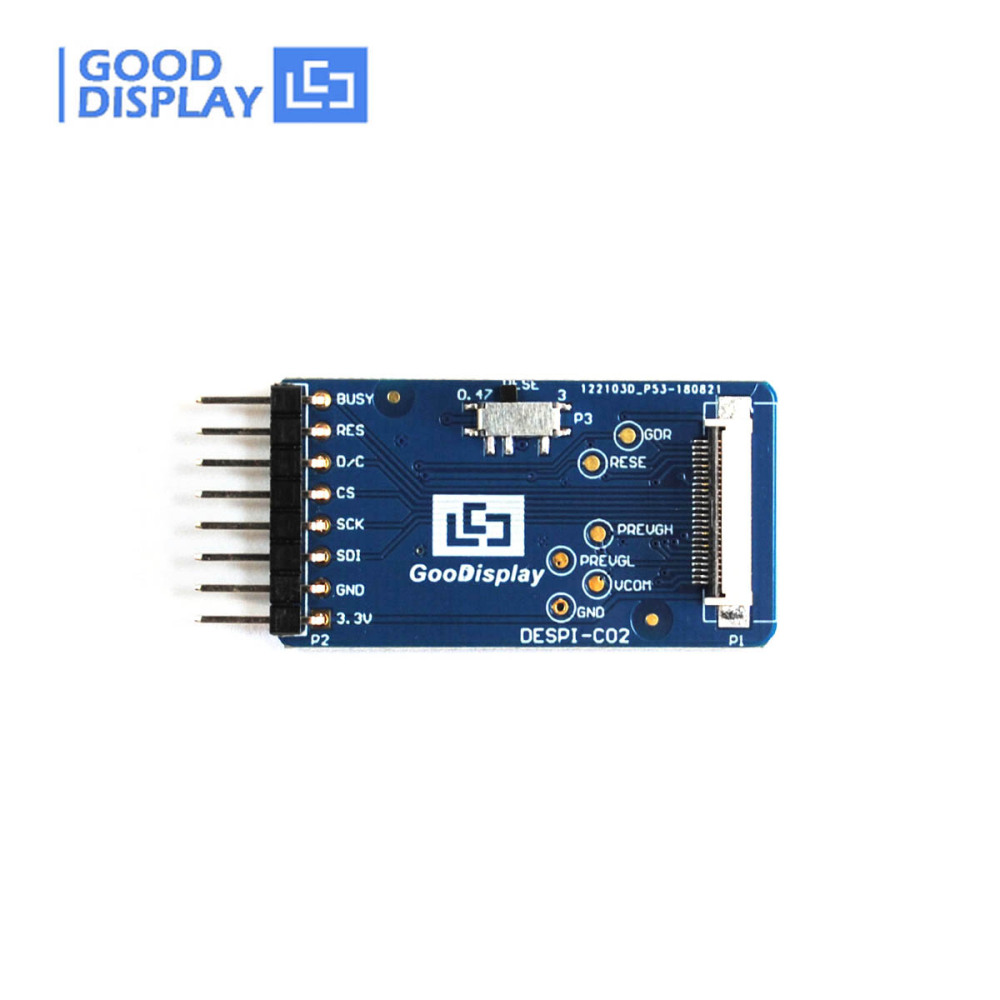

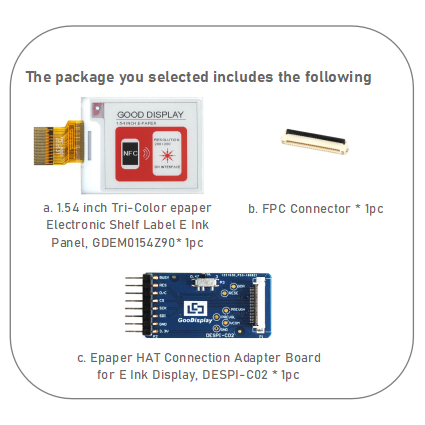

a. DESPI-C02 (E-ink Display adapter Board)

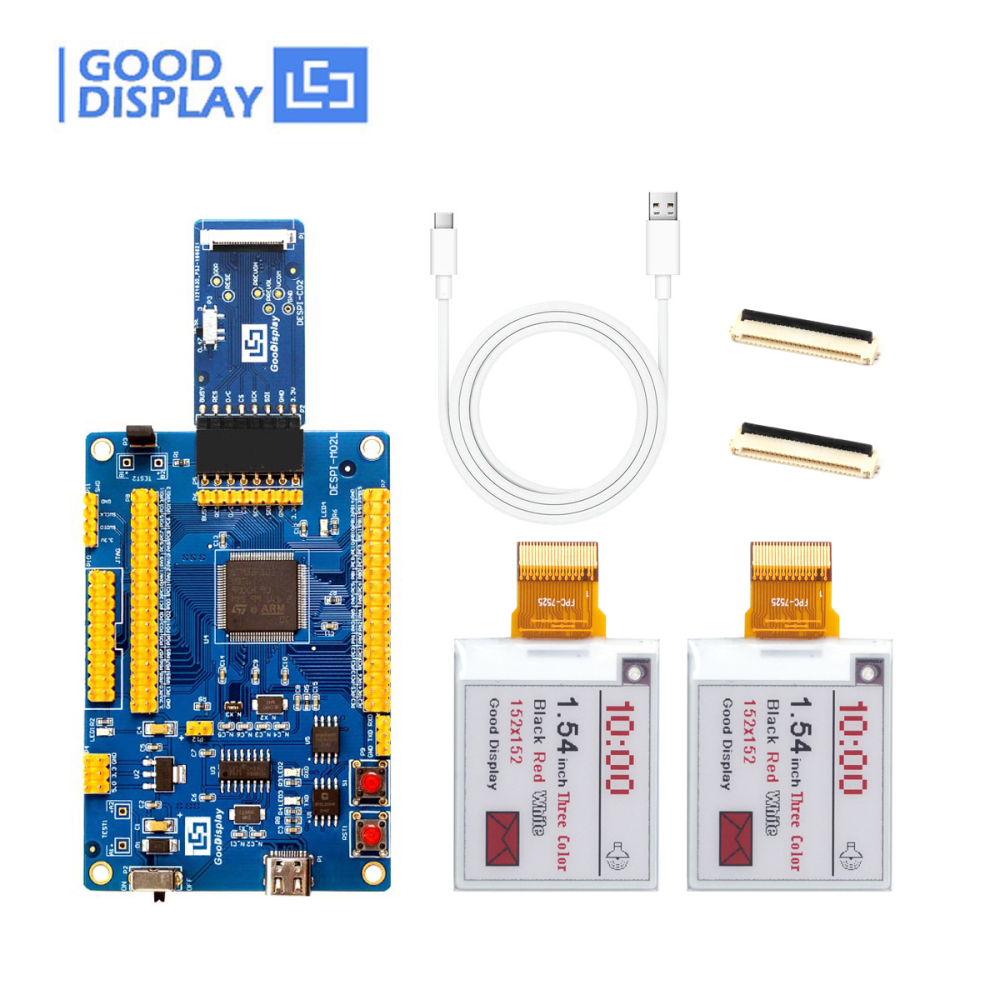

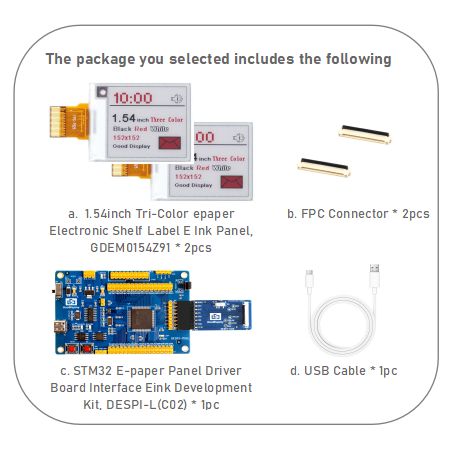

b. DESPI-L(C02) (STM32 Demo Kit)

c. DEArduino-L(C02) (Arduino Platform Demo Kit)

d. ESP8266-L(C02) (ESP8266 Demo Kit)

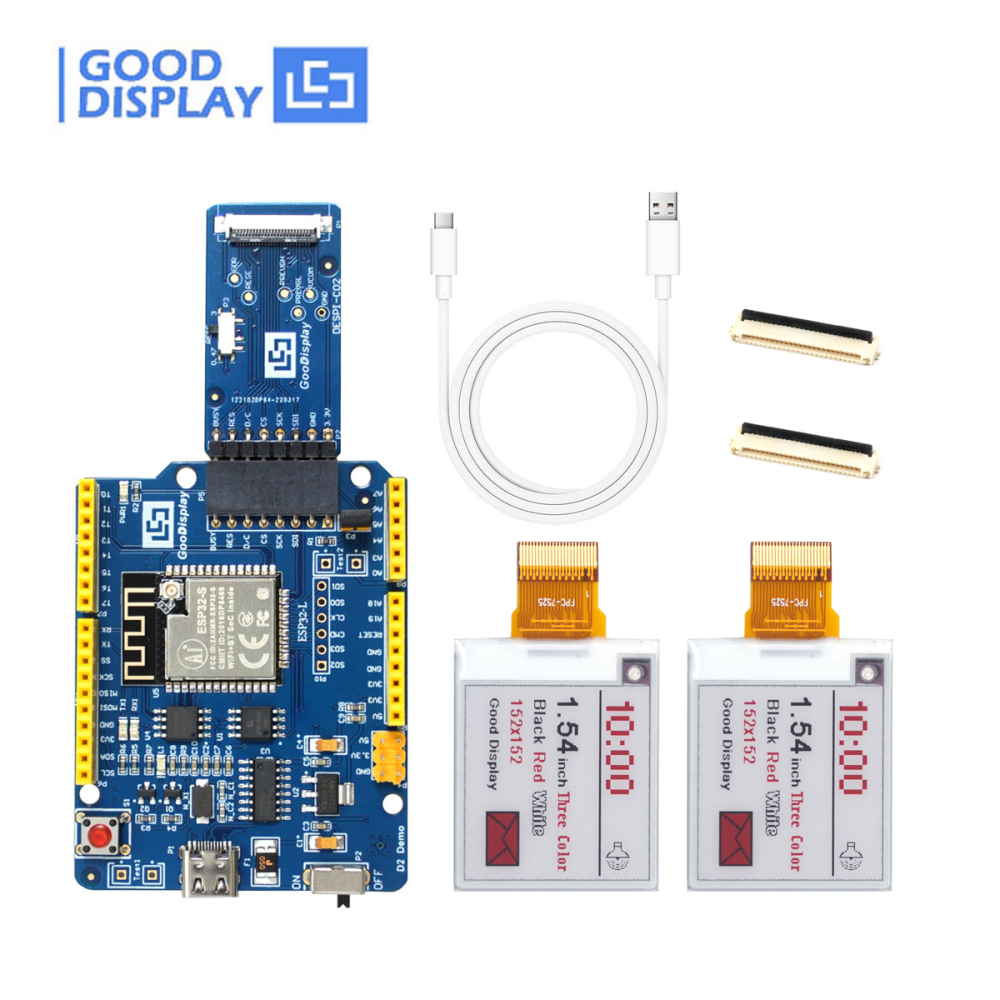

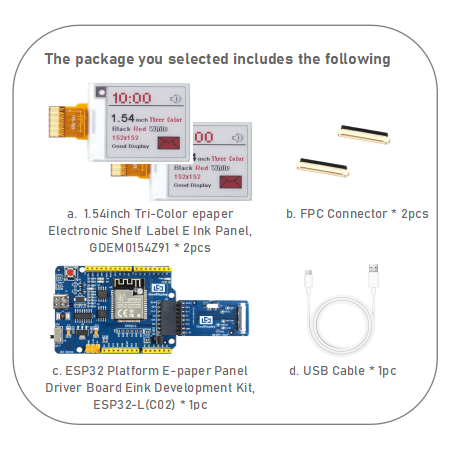

e. ESP32-L(C02) (ESP32 Demo Kit)

f. ESP32E6-E01 (24Pin SPI ePaper Display Demo Kit)
