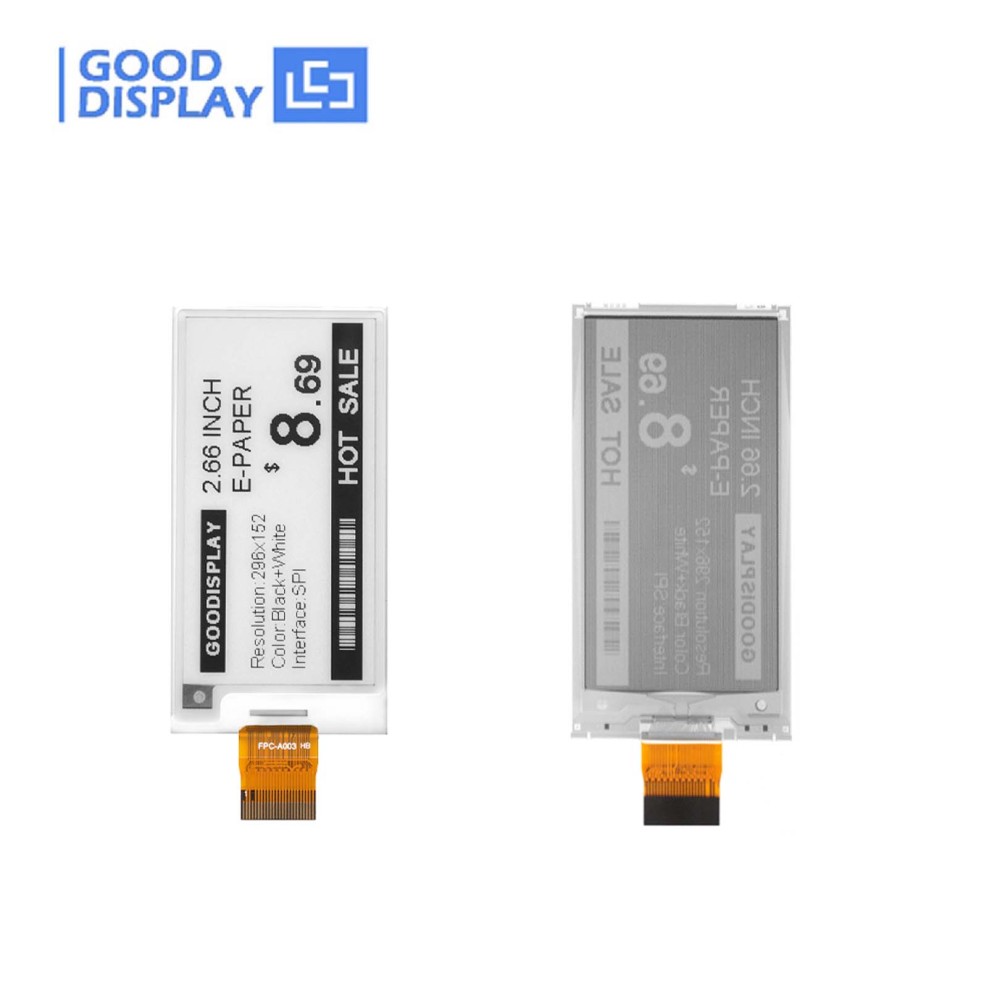

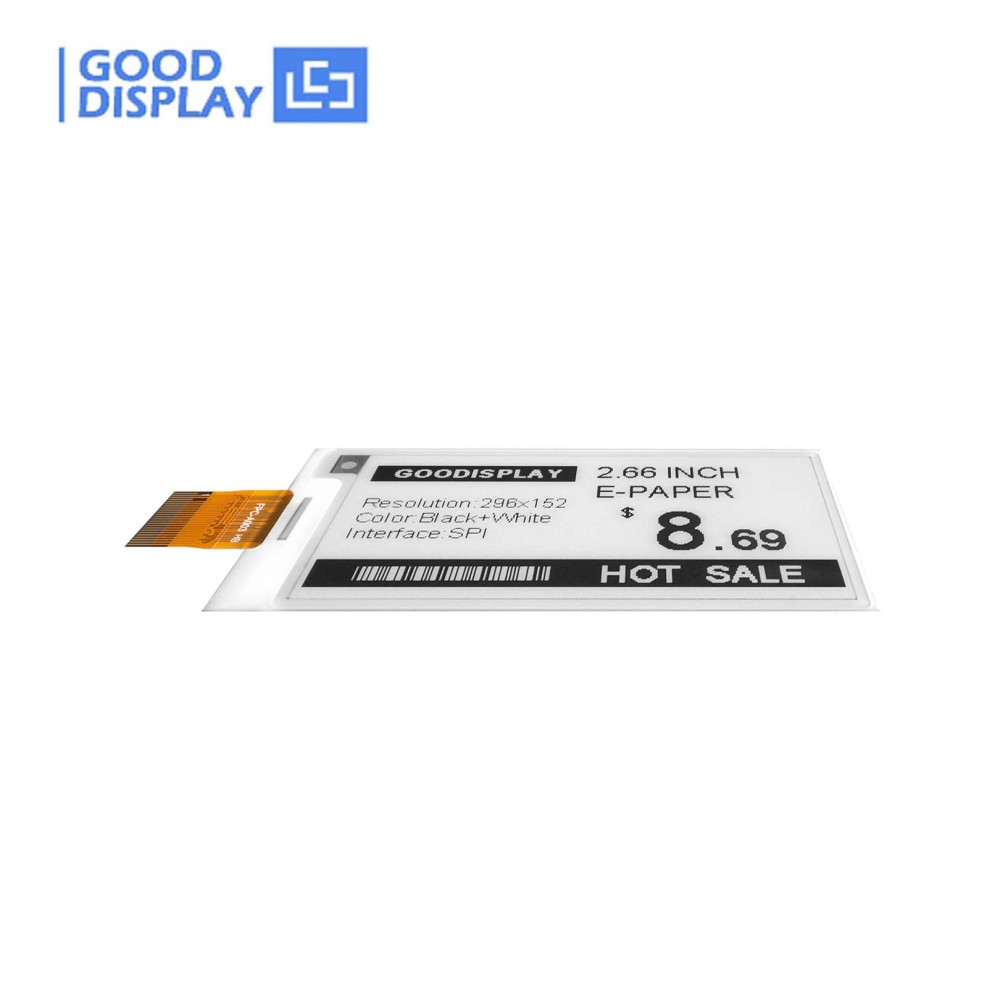

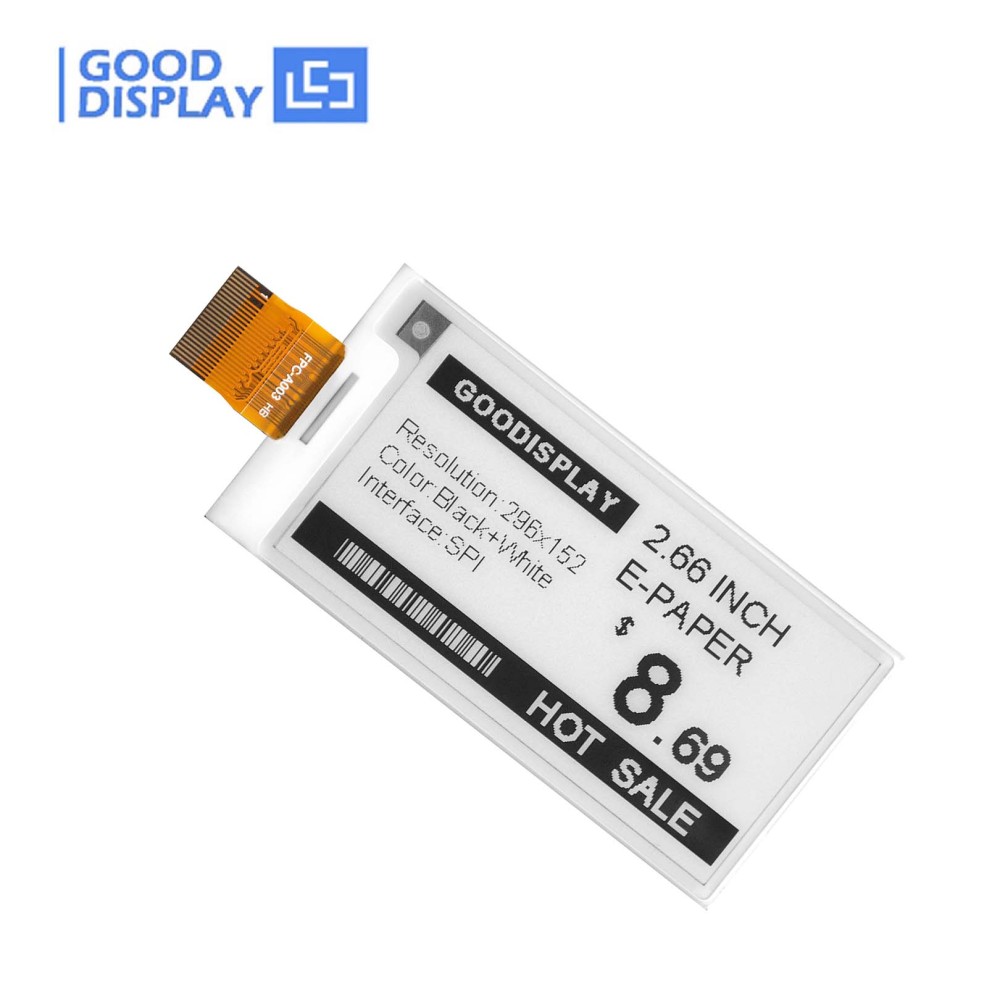

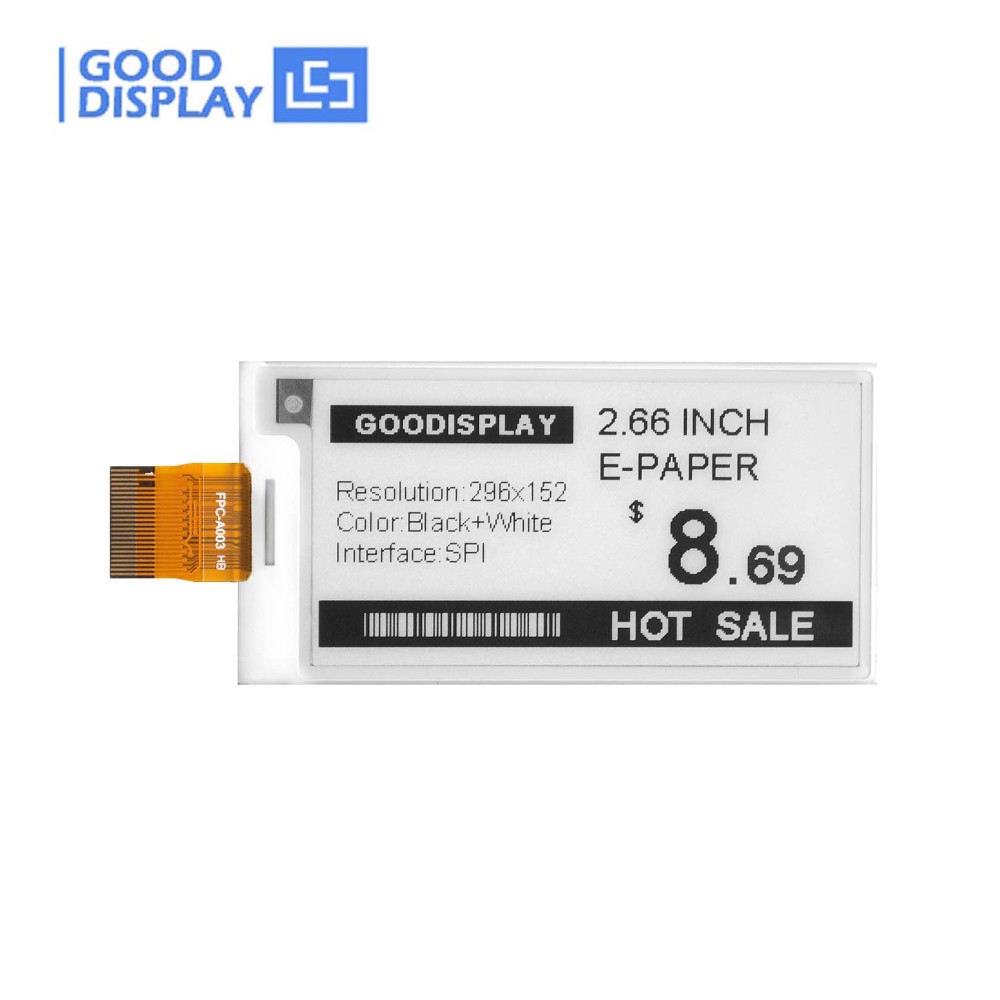

2.66 inch Low Temperature -25~10℃ E-Ink Resolution 296x152 E-Paper

GDEY0266D91LT
This product has 2.66 inch screen, and it can be used within a low temperature environment.
Sold:5
Have a question?
Price:
USD
$8.40
  • Product:
    EPD
    EPD with adapter board
    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
    adapter board
Quantity:
-
+
(33 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews


2.66 Inch E-Ink Display Low Power & Low Temperature E-Paper Screen




The 2.66-inch wide-temperature e-paper display (model GDEY0266D91LT) offers a high resolution of 296x152 and an SPI interface, providing clear black-and-white images. Its ultra-low power consumption allows images to remain indefinitely without power, making it ideal for solar or battery-powered devices. This display is perfect for various applications, including smart home devices, outdoor equipment, portable electronics, and retail and logistics, offering reliability and energy efficiency in diverse environments. Choose GDEY0266D91LT for a smarter, greener, and more dependable display solution.
Experience Unmatched Performance with the 2.66 Inch Low Temp E-Ink Display – Clarity, Efficiency, and Durability for Every Environment.








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Extreme Temperature Resilience: Operates flawlessly from -25°C to 10°C, perfect for harsh environments.
  ●  Ultra-Low Power Consumption: Bistable technology retains images without power, ideal for solar and battery-powered devices.
  ●  High Resolution Clarity: Crystal clear 296x152 resolution for sharp text and images on a compact 2.66-inch screen.
  ●  Wide Viewing Angle: Enjoy clear visibility from over 170 degrees, ensuring readability from any angle.
  ●  Eye-Friendly Display: Pure reflective mode with no blue light emission, perfect for prolonged viewing with zero eye strain.
  ●  Customizable Options: Enhance functionality with optional touch screen, front light, cover plate, and protective shell to meet your specific needs.






Technical Details

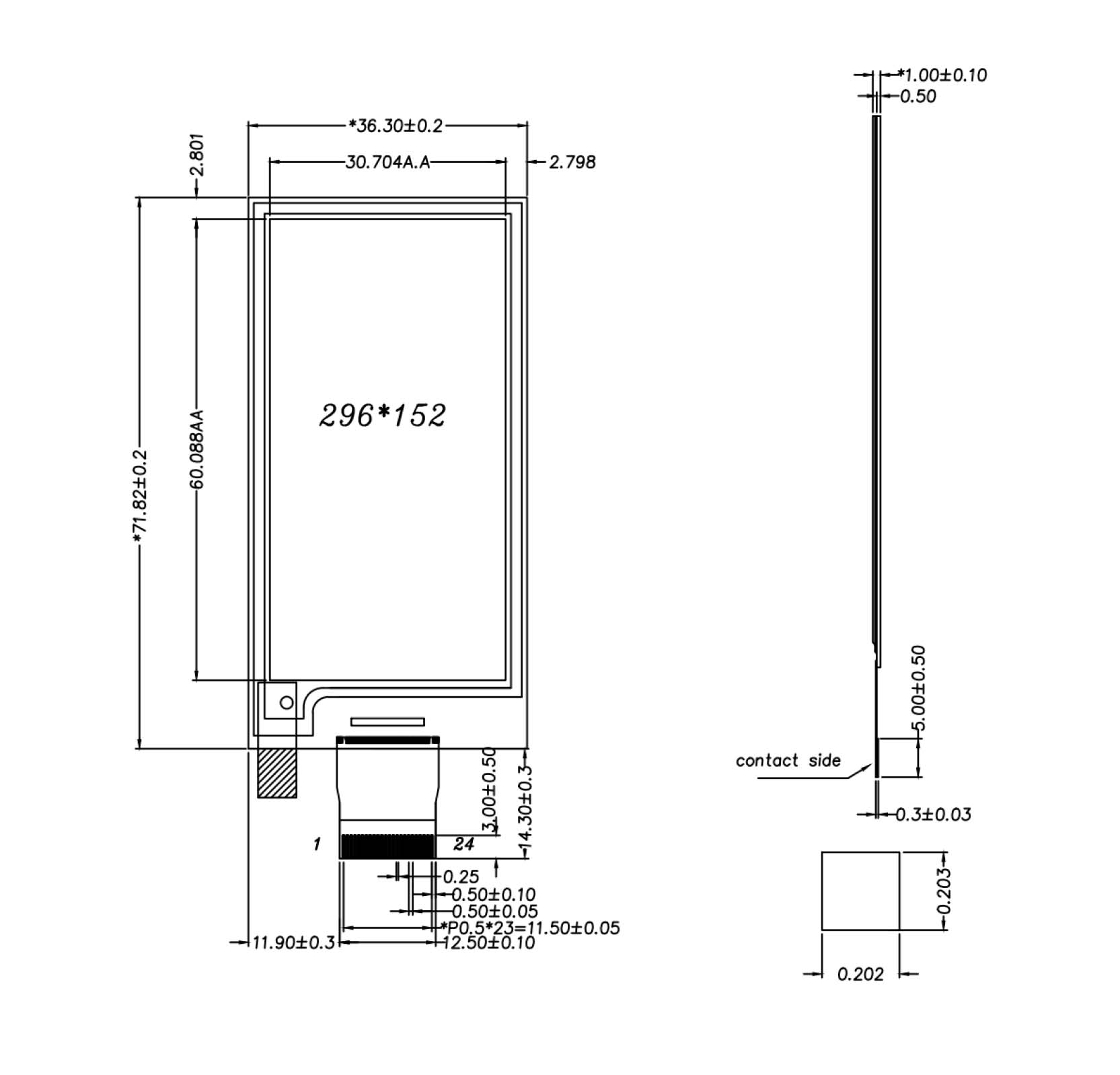

    Please refer to the product drawings for detailed dimensions







Product Specifications


    Please refer to the product specifications for more details

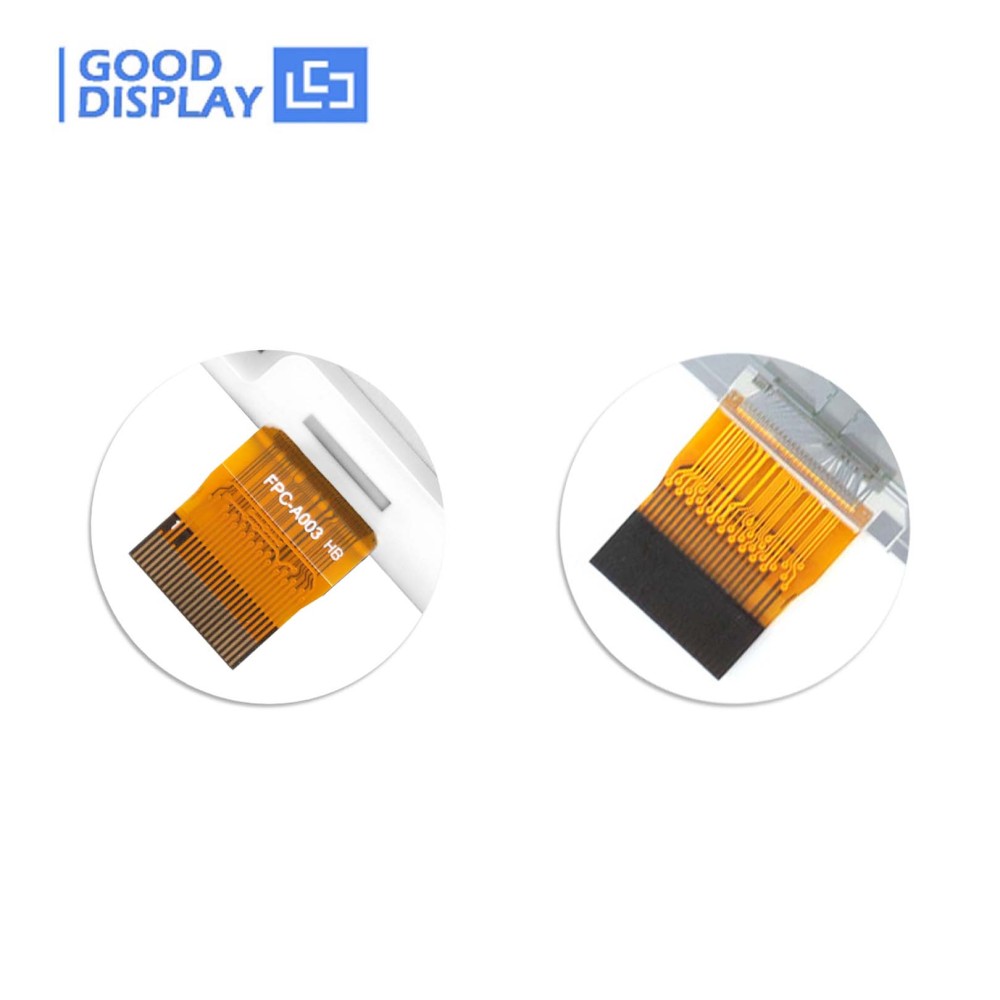

PART NUMBER GDEY0266D91LT CONNECTOR 24 Pin FPC
TYPE Dot Matrix MAX GRAYSCALE 4
SIZE 2.66 inch COLOR Black,White
IC SSD1680 INTERFACE SPI
RESOLUTION 296X152 FULL REFRESH(s) 7
OUTLINE SIZE(mm) 71.82X36.3X1.0 POWER CONSUMPTION OF THE REFRESH(mW) 6
ACTIVE SIZE(mm) 60.088x30.704 STANDBY POWER CONSUMPTION (mW) 0.003
PIXEL PITCH(mm) 0.203x0.202 STORAGE TEMP. -25℃~70℃
OPERATING TEMP. -25℃~10℃






  Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit)









Related Information Download

Click on the subheadings below to download

  ● GDEY0266D91LT Specification ● GDEY0266D91LT Arduino Sample Code
  ● SSD1680 Driver IC Datasheet ● GDEY0266D91LT ESP8266 Sample Code
  ● Picture Production and Bitmap Convert for GDEY0266D91LT ● The Acceptance Criteria for 2.6 inch EPD
  ● GDEY0266D91LT STM32 Sample Code ● The latest Catalog of ePaper display
  ● GDEY0266D91LT ESP32 Sample Code ● Why can't I download the files(updated)?








  Every day is Earth Day
  You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.



Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

 Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.		 Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.



WE ALSO SUGGEST
Click the image below to learn more about our products

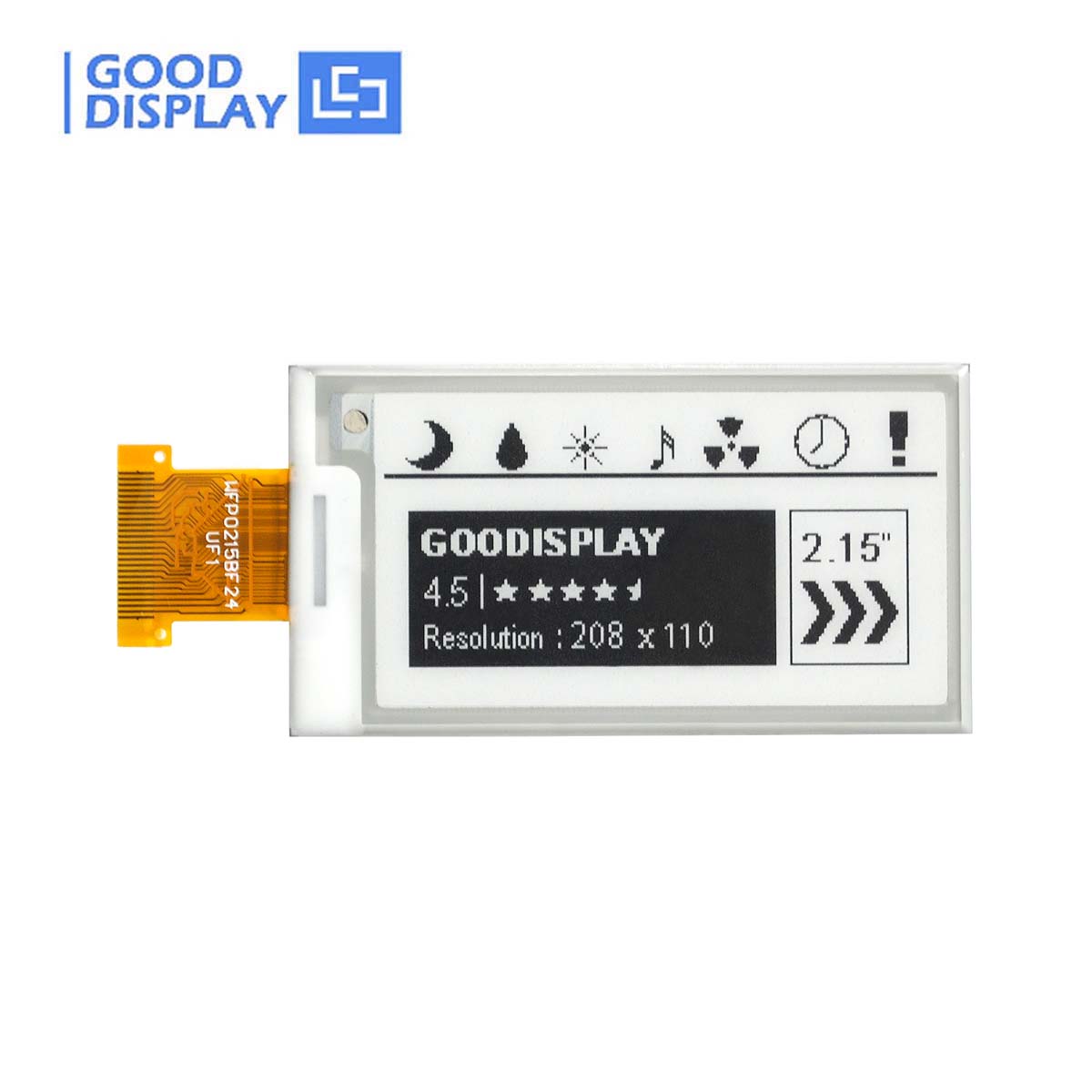

2.15 inch eink display screen low cost cheap 208x112 , GDEW0215T11
