2.7 inch E-Paper 264x176 Resolution Eink Display Communicating via SPI Interface

GDEY027T91
This is a electronic paper screen , 2.7 inch, 264x176 resolution, SPI interface, and the display is capable to display images with black and white content.
7 Review(s) Sold:47
Have a question?
Price:
USD
$8.37
  • Product:
    EPD

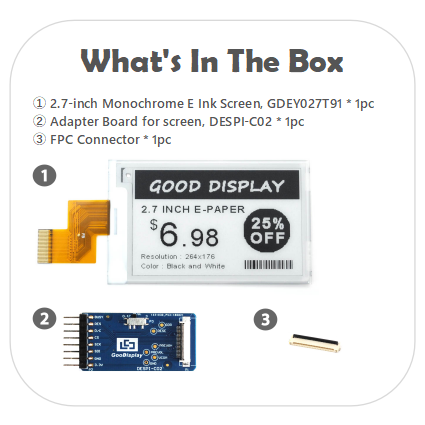

    With adapter board DESPI-C02
    EPD with NFC Board
    With demo kit DESPI-L(C02)
    EPD with demo kit ESP32-L(C02)
Quantity:
-
+
(179 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(7)


2.7 Inch E-Ink Display 264x176 High-Resolution SPI ePaper Screen for Low Power Applications





The GDEY027T91 is a 2.7-inch E Ink display featuring a resolution of 264x176 pixels and an SPI interface, designed for displaying black and white content. It supports three refresh modes: full refresh in 3s, fast refresh in 1.5s, and partial refresh in 0.42s. Its bistable display technology ensures that images persist even when power is disconnected, making it ideal for low-power devices powered by solar or batteries. With wide viewing angles, anti-glare surface treatment, and no blue light or radiation emissions, it suits applications in smart home devices, wearables, electronic tags, and e-readers.









Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Forever Display, Zero Power Consumption: The GDEY027T91 features bistable display technology, ensuring images are preserved indefinitely even without power. Ideal for solar-powered devices or those requiring long battery life.
 ● Crystal Clear, Immersive Viewing: With a remarkable 264x176 pixel resolution and a wide viewing angle exceeding 170 degrees, every detail on the GDEY027T91 is rendered with vivid realism, whether in landscape or portrait orientation.
 ● Efficiency in Action, Real-Time Updates: Supporting multiple refresh modes—from rapid (1.5s) to selective (0.42s)—this display ensures information updates swiftly and responsively, setting a new standard for efficiency.
 ● Green Technology, Eye-Care Comfort: Operating without constant refresh needs and power support, the GDEY027T91 is environmentally friendly and energy-efficient. It emits no blue light or radiation, prioritizing both ecological responsibility and eye protection.
 ● Customizable Options, Smart Applications: Offering optional touch capabilities and front-lighting, it’s tailored to meet diverse needs perfectly, whether in smart homes, industrial settings, or beyond. Versatility at its finest.
 ● Reliable Performance, Leading Choice: Equipped with the SSD1680 driver chip and SPI interface, the GDEY027T91 delivers consistent and dependable performance, making it the forefront choice for advanced display solutions.







Technical Details

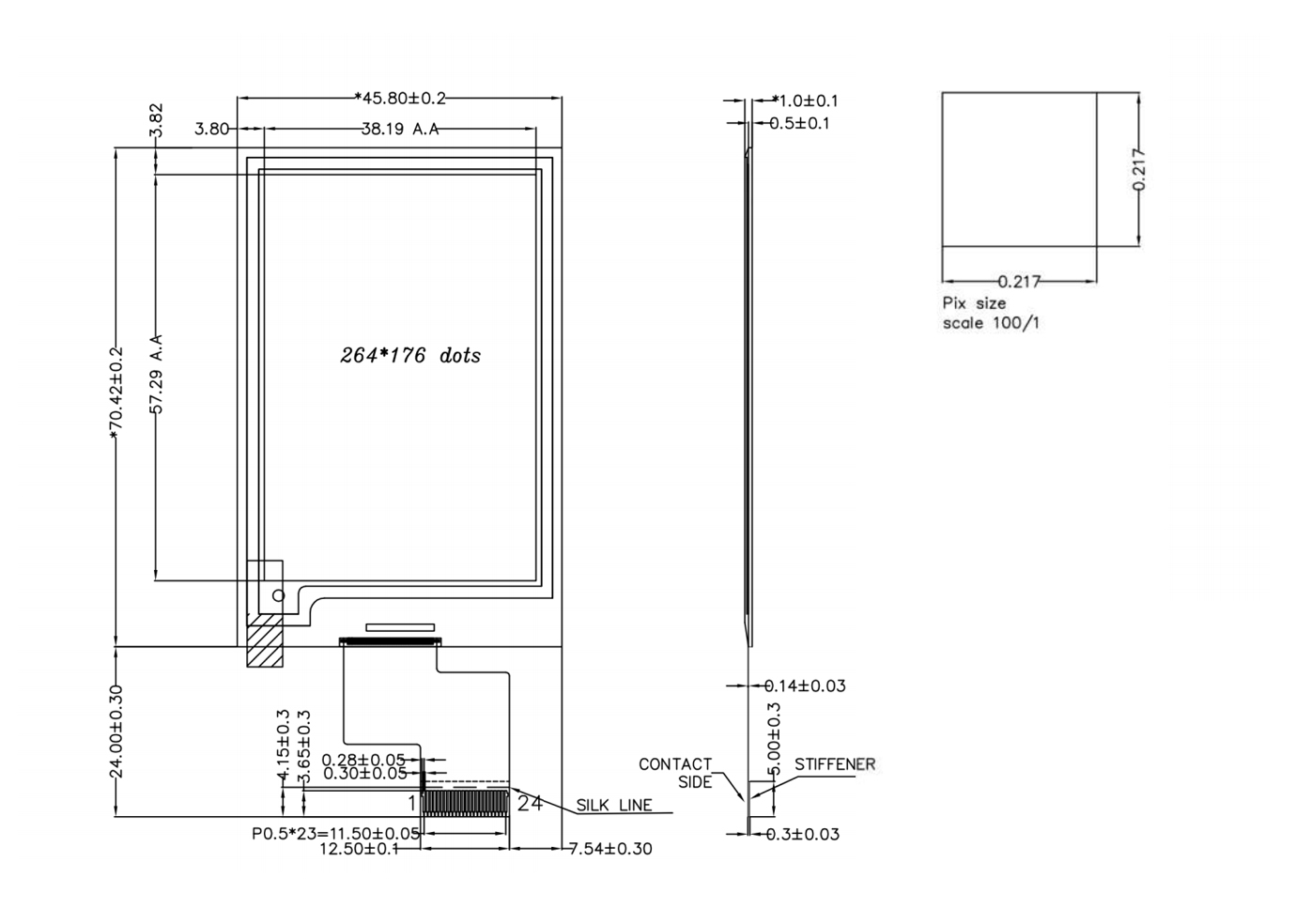

    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEY027T91 CONNECTOR 24 Pin FPC
TYPE Dot Matrix MAX GRAYSCALE 4
SIZE 2.7 inch COLOR Black,White
IC SSD1680 INTERFACE SPI
RESOLUTION 264x176 FULL REFRESH(s) 3
OUTLINE SIZE(mm) 70.42x45.8x1.0 PARTIAL REFRESH TIME(s) 0.42
ACTIVE SIZE(mm) 57.29x38.19 FAST REFRESH TIME(s) 1.5
PIXEL PITCH(mm) 0.217x0.217 POWER CONSUMPTION OF THE REFRESH(mW) 9
OPERATING TEMP. 0℃~50℃ STANDBY POWER CONSUMPTION (mW) 0.003
STORAGE TEMP. -25℃~70℃









Matching Driver Board


To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.DEArduino-L(C02) (Arduino Platform Demo Kit)
d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit) f. NFC-D3-029 (NFC Driver Board







Related Information Download

Click on the subheadings below to download

  ● GDEY027T91 Specification ● GDEY027T91 Arduino Sample Code
  ● SSD1680 Driver IC Datasheet ● GDEY027T91 ESP8266 Sample Code
  ● Picture Production and Bitmap Convert for GDEY027T91 ● The latest Catalog of ePaper display
  ● GDEY027T91 STM32 Sample Code ● Why can't I download the files?
  ● GDEY027T91 ESP32 Sample Code
