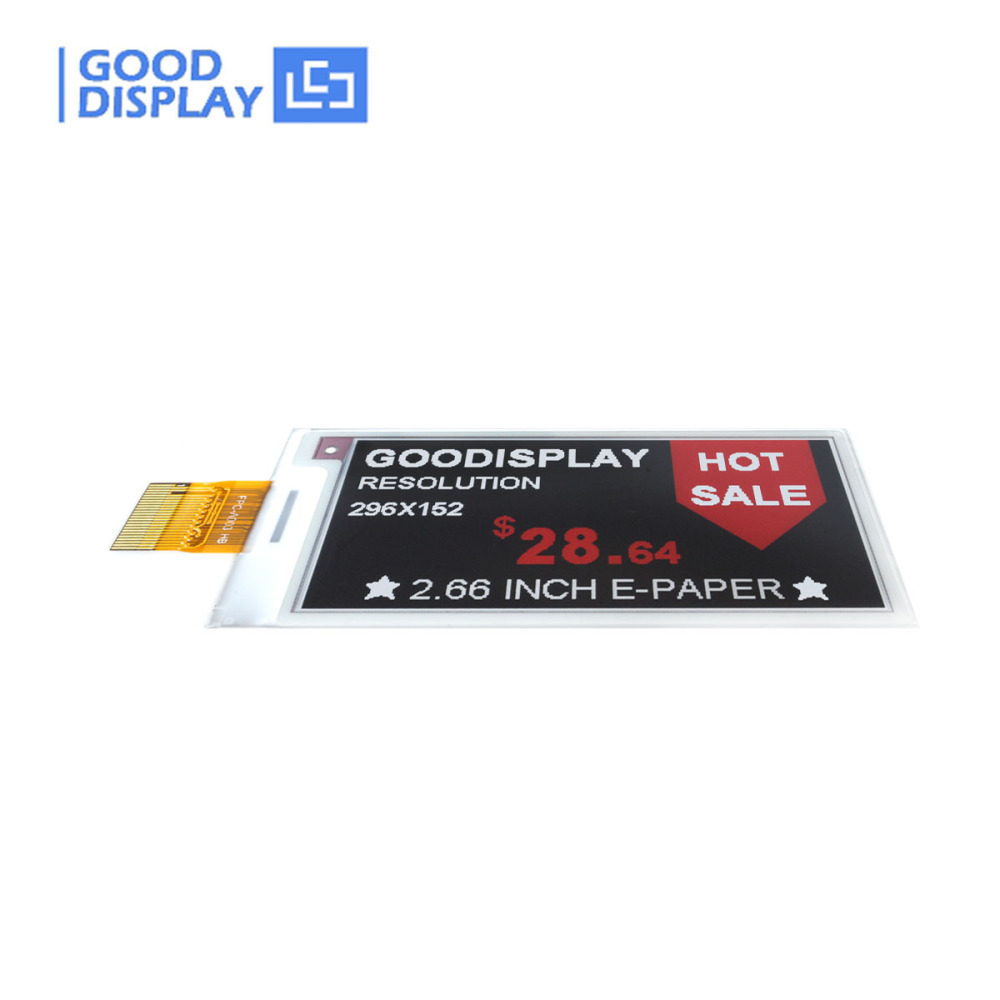

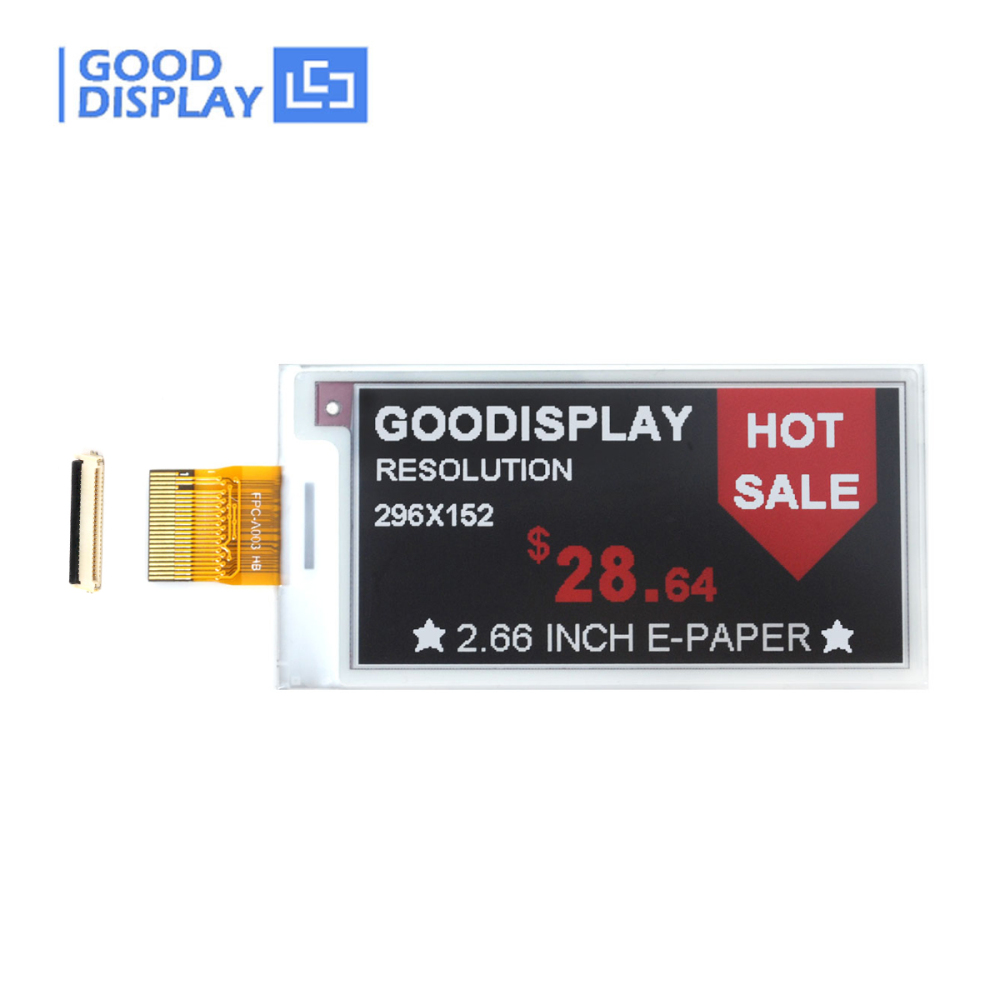

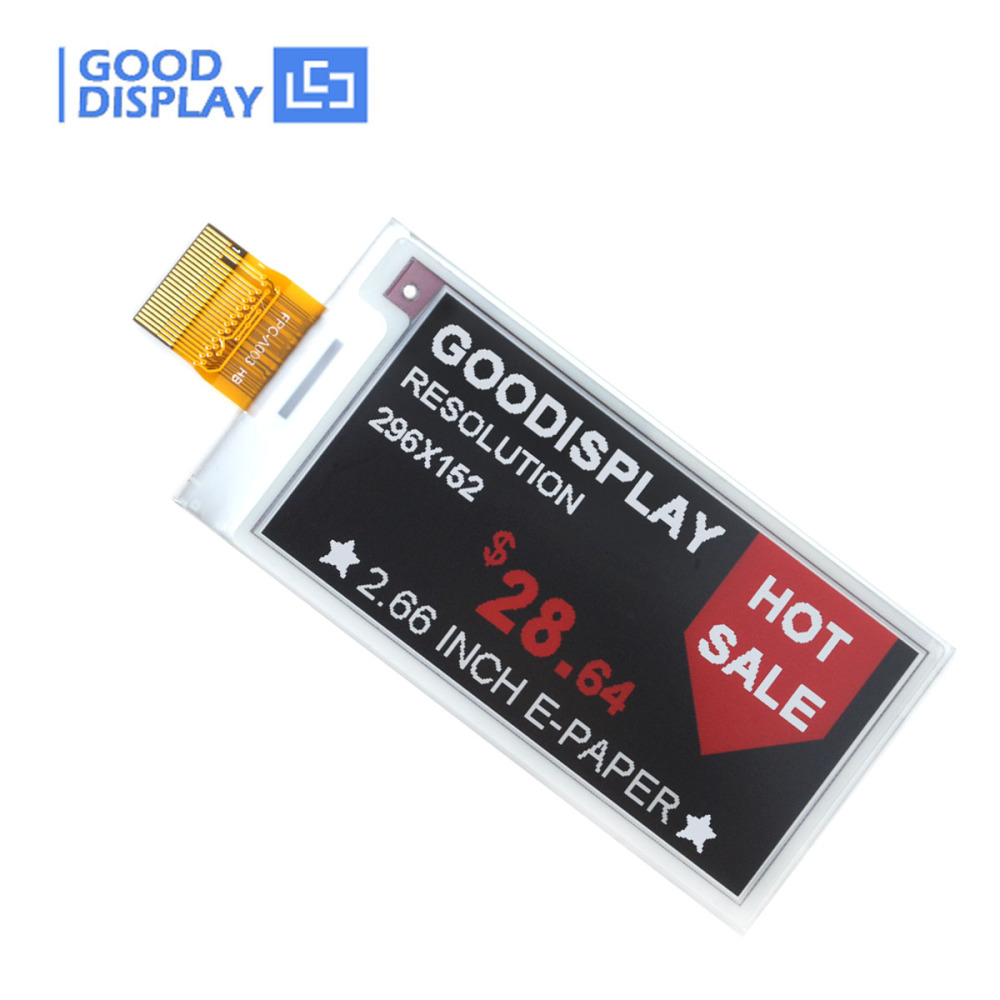

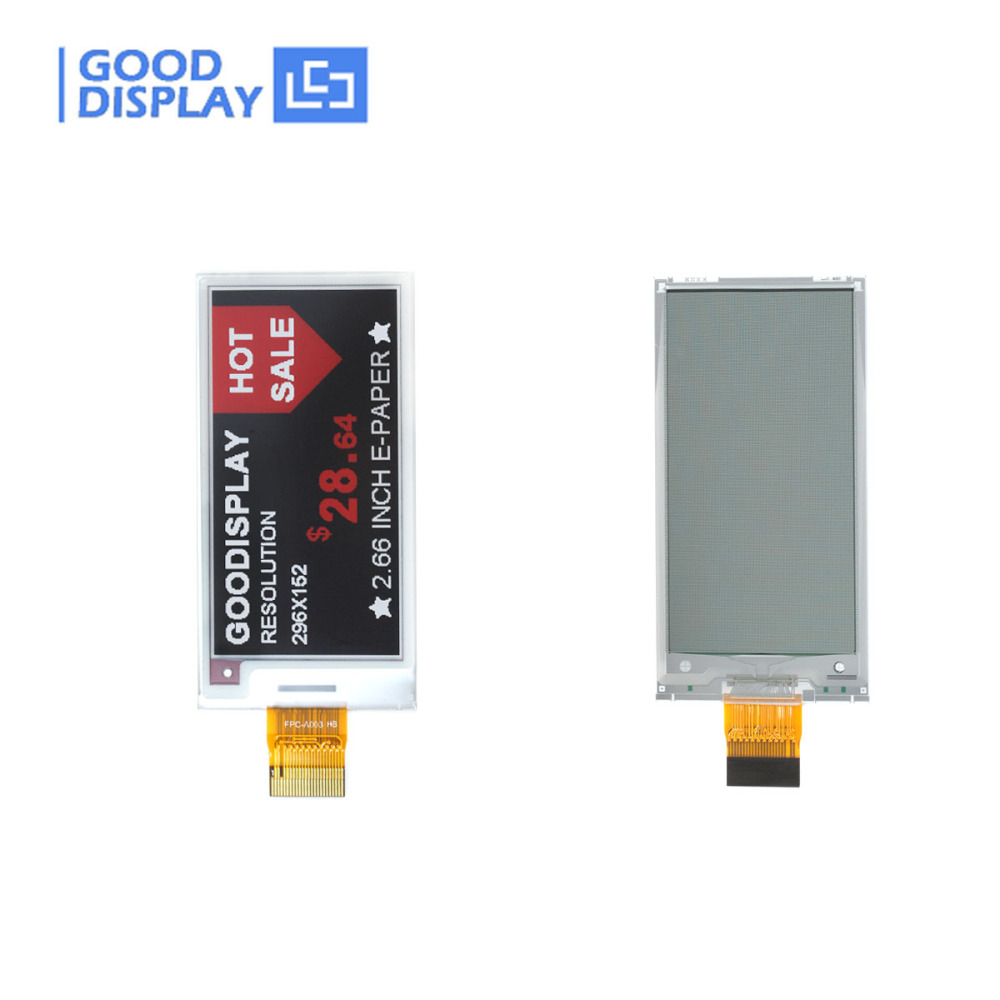

2.66 inch E-paper E-ink Display 296x152 Color SPI Screen, GDEY0266Z90

2.66 inch e-paper color e-ink display, 296x152 resolution, SPI interface, and the display is capable to display images with black, white and red content.
Have a question?
Price:
USD
$8.20
  • Product:
    EPD
    EPD with adapter board
    EPD with STM32 Demo Kit
    EPD with ESP32 Demo Kit
Quantity:
-
+
(40 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews


2.66 Inch Tri-Color E-Paper Display (Black/White/Red) – High-Resolution (296x152) SSD1680, Perfect for Smart Home and DIY Projects



    Introducing the 2.66 Inch Tri-Color E-Paper Display, featuring a 296x152 resolution and SPI interface. This display showcases vibrant images in black, white, and red, holding your content indefinitely without power. Simply update your image, disconnect the power, and enjoy the low-power benefits of e-paper technology. Ideal for smart home projects, solar-powered devices, and battery-operated gadgets, the GDEY0266Z90 display is your go-to solution for sustainable and energy-efficient applications.






Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Power-Free Display: Once updated, our e-paper display holds your image indefinitely without power. Perfect for eco-friendly projects powered by solar or batteries.
  ●  Vibrant Tri-Color Display: Show off your content in stunning red, black, and white. Make every image and message pop with this dynamic e-paper technology.
  ●  Ultra-Wide Viewing Angle: Enjoy crystal-clear readability from any angle with a wide 170-degree viewing range. Ideal for smart tags and shelf displays.
  ●  Anti-Glare, Easy on the Eyes: Read comfortably in any light with our hard-coated, anti-glare screen. Plus, no blue light means zero eye strain.
  ●  High Resolution, High Impact: With a 296x152 resolution, every detail is sharp and clear. Perfect for intricate designs and important information.
  ●  Energy Efficient Magic: Bistable technology means no power is needed to maintain the display. Update it, then forget it – your message stays put, saving you energy and hassle.







Product Specifications


    Please refer to the product specifications for more details

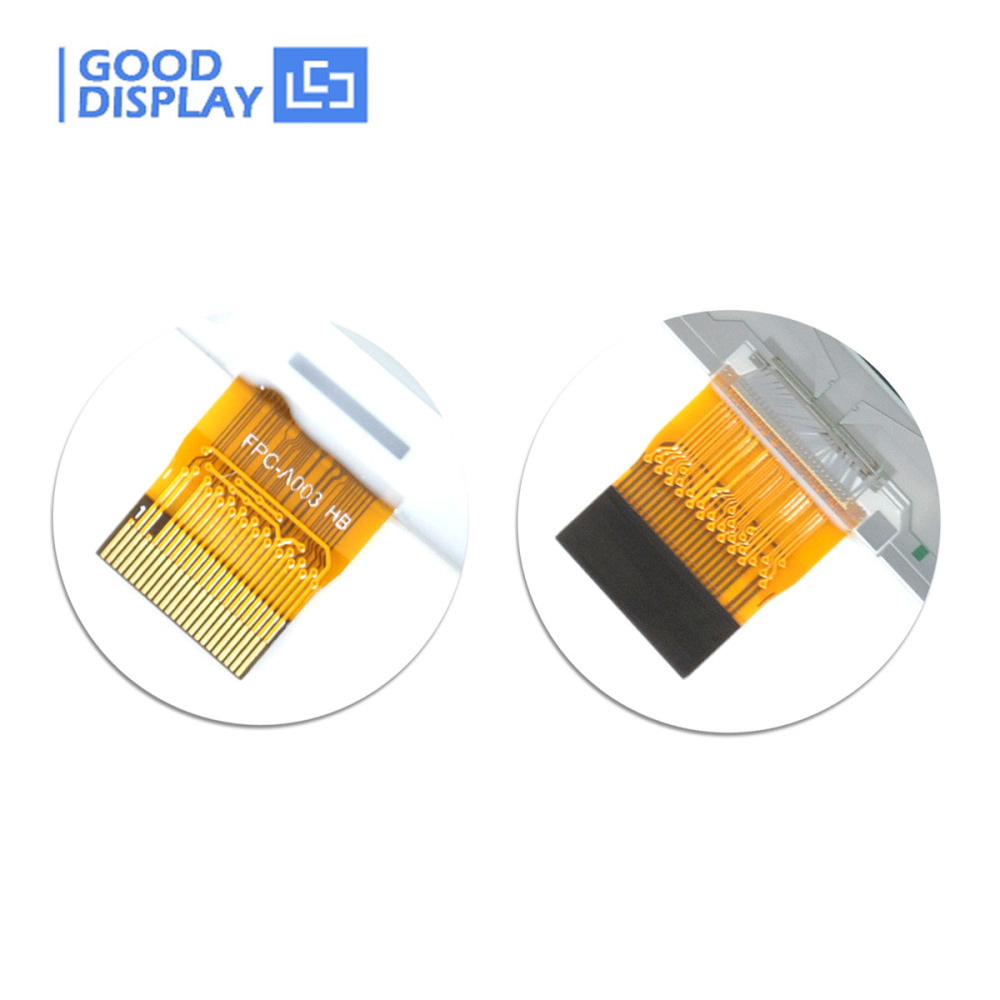

PART NUMBER GDEY0266Z90 CONNECTOR 24 Pin FPC
SIZE 2.66 inch TYPE Dot Matrix
IC SSD1680 MAX GRAYSCALE 4
RESOLUTION 296x152 COLOR Black, White, Red
OUTLINE SIZE(mm) 71.82x36.30x1.0 INTERFACE SPI
ACTIVE SIZE(mm) 60.088x30.704 FULL REFRESH(s) 23
PIXEL PITCH(mm) 0.203x0.202 POWER CONSUMPTION OF THE REFRESH(mW) 12.9
OPERATING TEMP. 0℃~40℃ STANDBY POWER CONSUMPTION (mW) 0.003
STORAGE TEMP. -25℃~70℃

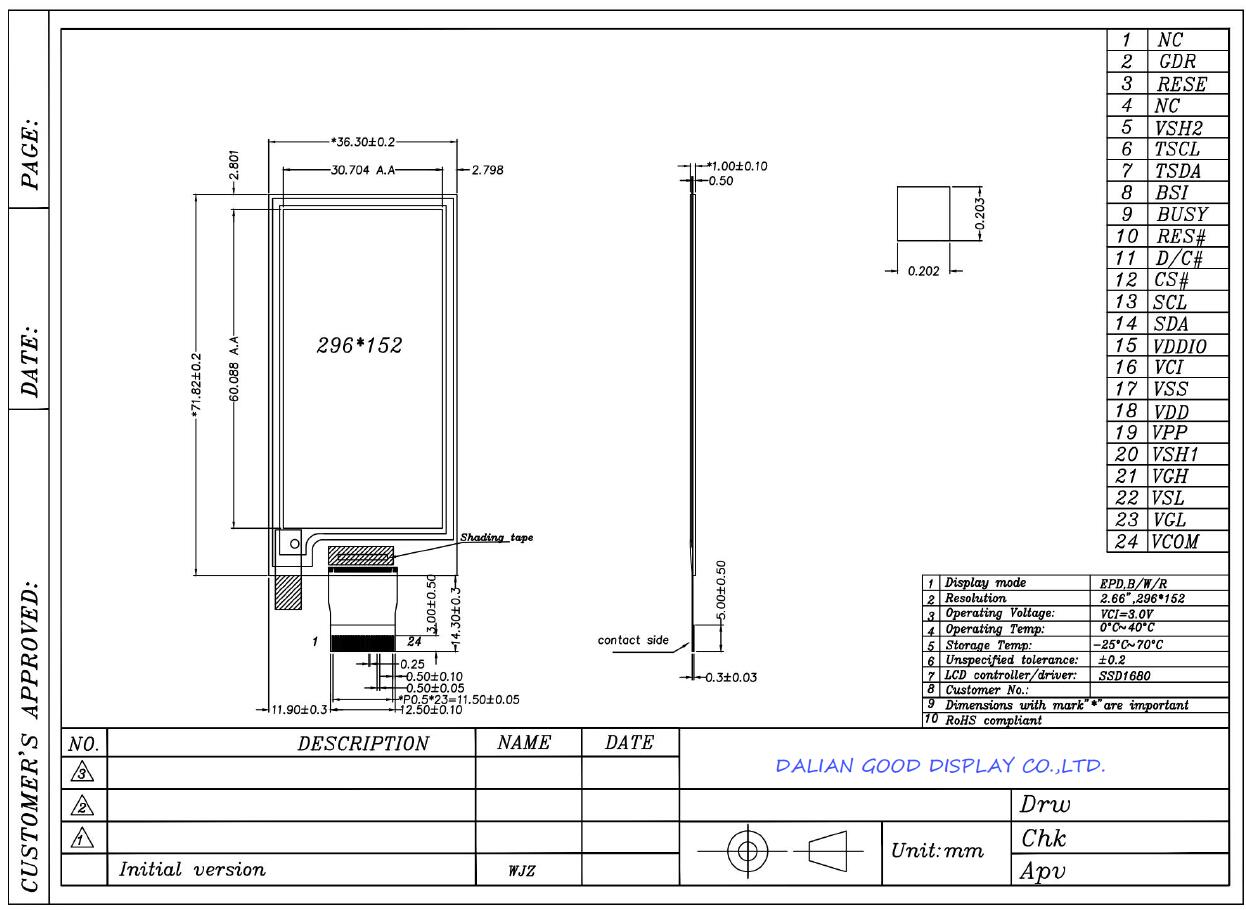

Product Drawings


    Please refer to the product drawings for detailed dimensions



Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.
Click image to buy

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit)





Related Information Download

Click on the subheadings below to download

  ● GDEY0266Z90 Specification ● GDEY0266Z90 Arduino Sample Code
  ● SSD1680 Driver IC Datasheet ● GDEY0266Z90 ESP32 Sample Code
  ● Picture Production and Bitmap Convert for GDEY0266Z90 ● The latest Catalog of ePaper display
  ● GDEY0266Z90 STM32 Sample Code ● Disabling-Pop-Up-Blockers
  ● GDEY0266Z90 ESP8266 Sample Code







WE ALSO SUGGEST
Click the following image to buy

2.6 inch e-paper display partial refresh 4 Grayscale e-ink screen GDEW026T0D

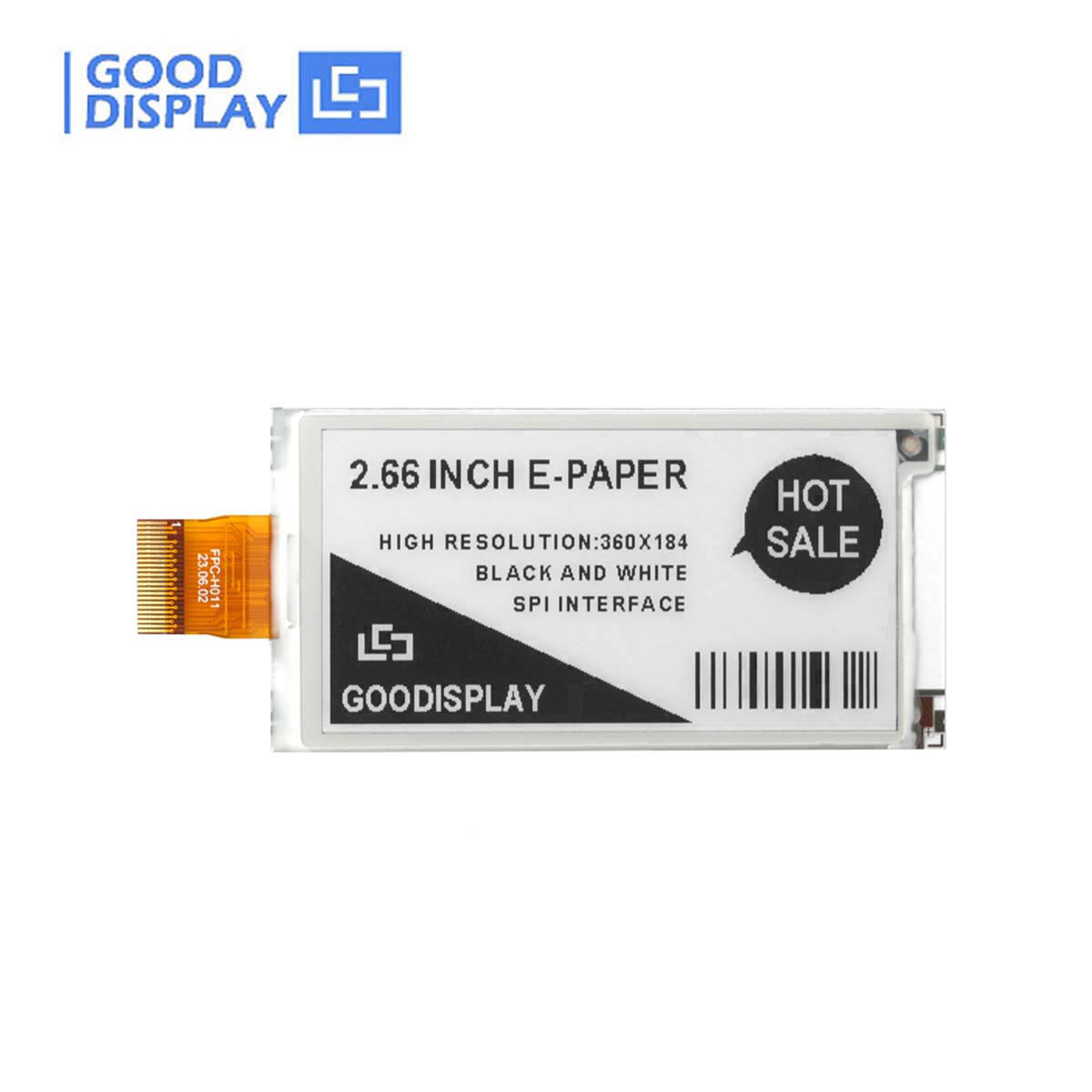

2.66-inch E-ink display with a high resolution of 360*184, GDEY0266T90H

2.66 inch Low Temperature E-Ink 296x152 E-Paper, GDEY0266D91LT

High Solution 2.66'' 4-color E Ink Screen 384x168, GDEY0266F51H





ABOUT US

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0097T50 0.97'' BW 2 184x88 22.264x10.648 4 0℃~50℃ √   SPI
GDEW0097C50 0.97'' BWY 2 184x88 22.264x10.648 22 0℃~40℃     SPI
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI

GDEW0102I4FC

1.02''

BW

2

128x80

21.76x14

3

0℃~50℃

√

√

SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEY0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃ √   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √   SPI
GDEY0154Z90 1.54'' BWR 2 200x200 27x27 16 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √ √ SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √ √ SPI
GDEY0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃ √   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃ √   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃ √   SPI
GDEY0266Z90 2.66'' BWR 2 296x152 60.088x30.704 12 0℃~40℃     SPI
GDEY027T91 2.7'' BW 4 264x176 57.29x38.19 3 0℃~50℃ √   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃ √   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √ √ SPI
GDEQ031T10 3.1'' BW 2 320x240 62.72x47.04 3 0℃~50℃     SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEY037T03 3.71'' BW 2 416x240 81.54x47.04 3 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEY042T91 4.2'' BW 2 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEQ042Z21 4.2'' BWR 2 400x300 84.8x63.6 19 0℃~40℃     SPI
GDEY0579T93 5.79'' BW 2 792x272 139.00×47.74 3 0℃~50℃     SPI
GDEY0579Z93 5.79'' BWR 2 792x272 139.00×47.74 20 0℃~40℃     SPI
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEY0583T8 5.83'' BW 2 648x480 118.78x88.22 3 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDEY075T7 7.5'' BW 4 800x480 163.2x97.72 3 0℃~50℃ √   SPI
GDEY075Z08 7.5'' BWR 2 800x480 163.2x97.72 12 0℃~40℃     SPI
GDEP097TC2

9.7''

BW

16

1200x825

202.8x139.425

1

0℃~50℃

√



Parallel
GDEQ102T90 10.2'' BW 2 960x640 215.52x143.68 4 0℃~50℃     SPI
GDEQ102Z90 10.2'' BWR 2 960x640 215.52x143.68 4 0℃~50℃     SPI
GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
GDEY1248Z51 12.48'' BWR 2 1304x984 252.98x190.90 25 0℃~40℃     SPI
GDEP133UT3 13.3'' BW 16 1600x1200 270.4x202.8 1 -15℃~65℃     Parallel
