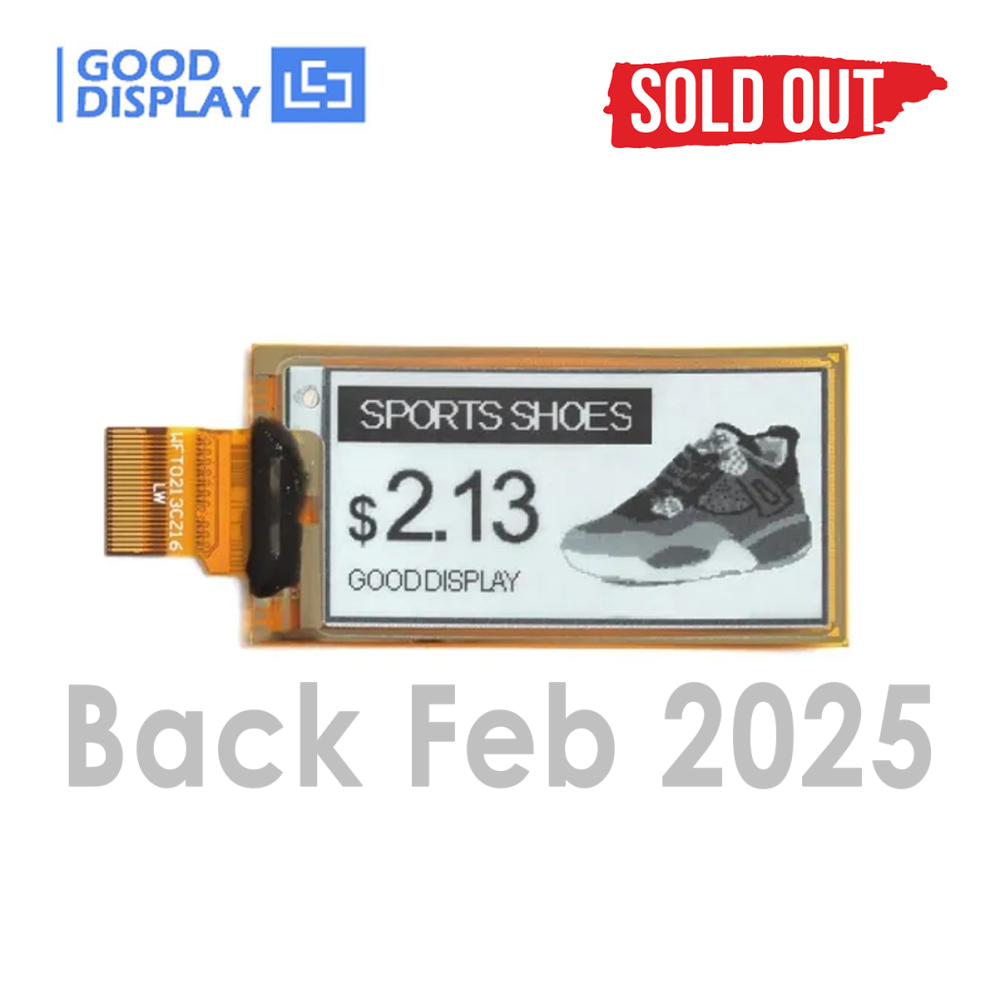

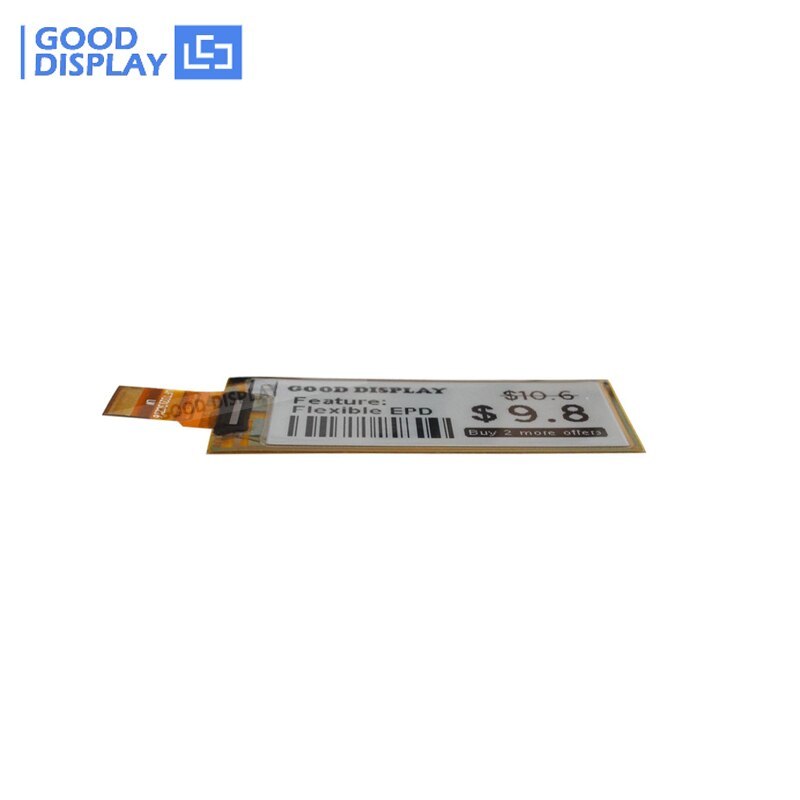

		Flexible 2.13-Inch E-Paper Display with 4 Grayscale UC8151D SPI Interface
		This is a 2.13-inch flexible e-paper display, model GDEW0213I5FD, with a resolution of 212x104 pixels. It is driven by the UC8151D controller and supports 4-level grayscale along with partial refresh capabilities. The refresh rates are 3 seconds for a full refresh and 0.3 seconds for a partial refresh. The display can be oriented either horizontally or vertically. It operates via an SPI interface and requires a working voltage of 3.3V. The operational temperature range is 0-50°C. The display features a bistable property, meaning it can retain the current image without power. It is purely reflective with an ultra-wide viewing angle exceeding 170 degrees and has an anti-glare surface. When the screen is not being refreshed, it consumes no power. Additionally, it emits no blue light or radiation, providing effective eye protection. This display is ideal for applications such as shelf labels, smart tags, smart home devices, and industrial instruments.

Our product boasts distinctive features that set it apart from the competition

● Incredible Power Efficiency: Enjoy unparalleled battery life with zero power consumption between refreshes. Efficiency at its best!
● Flexible Design: Bend and twist without worry. Perfect for dynamic, modern applications!
● Crystal Clear Readability: Pure reflection display with no glare and a wide 170-degree viewing angle. Always see clearly, from any angle!
● Quick Refresh Rates: Experience smooth performance with full refresh in 3s and partial refresh in just 0.3s. Fast and efficient!
● Eye-Friendly Technology: Protect your eyes with no blue light and zero radiation. Ideal for prolonged use!
● Versatile Applications: Perfect for smart tags, shelf labels, smart home devices, and industrial instruments. Adaptable to your needs!

		Technical Details

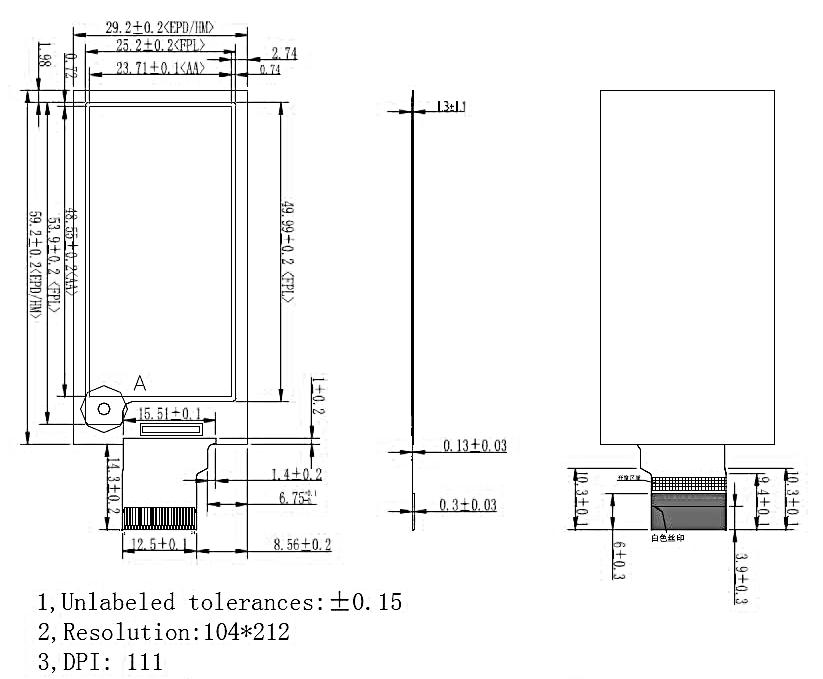

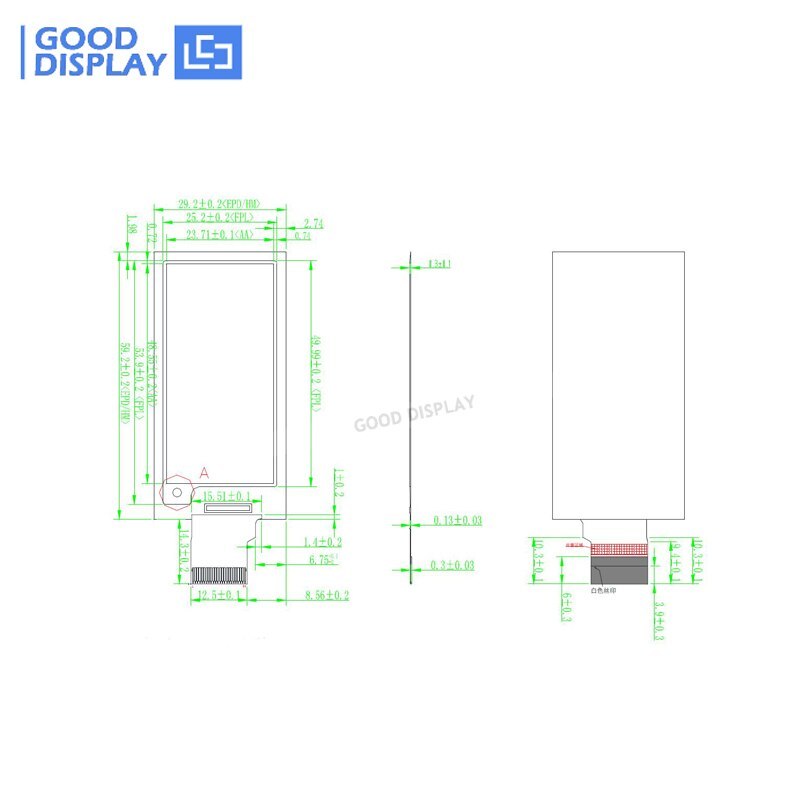

		Please refer to the product drawings for detailed dimensions

Please refer to the product specifications for more details

PART NUMBER	GDEW0213I5FD	CONNECTOR	24 Pin FPC
SIZE	2.13 inch	TYPE	Dot Matrix
IC	UC8151D	MAX GRAYSCALE	4
RESOLUTION	212x104	COLOR	Black,White
OUTLINE SIZE(mm)	59.2x29.2x0.3	INTERFACE	SPI
ACTIVE SIZE(mm)	48.55x23.71	GLOBAL UPDATE IMAGE TIME PER FRAME(s)	3
PIXEL PITCH(mm)	0.229x0.228	PARTIAL UPDATE IMAGE TIME PER FRAME (s)	0.3
OPERATING TEMP.	0℃~50℃	OPERATION POWER DISSIPATION (mW)	26.4
STORAGE TEMP.	-25℃~70℃	STANDBY POWER DISSIPATION (mW)	0.0165

Files and Download Click on the subheadings below to download

	● GDEW0213I5FD Specification	● GDEW0213I5FD STM32 Sample Code
	● UC8151D Driver IC Datasheet	● GDEW0213I5FD Arduino Sample Code
	● IC UC8151C to IC UC8151D Instructions	● GDEW0213I5FD ESP8266 Sample Code
	● Picture Production and Bitmap Convert for GDEW0213I5FD	● The latest Catalog of ePaper display
	● GDEW0213I5FD ESP32 Sample Code	● Why can't I download the files?

Product Application

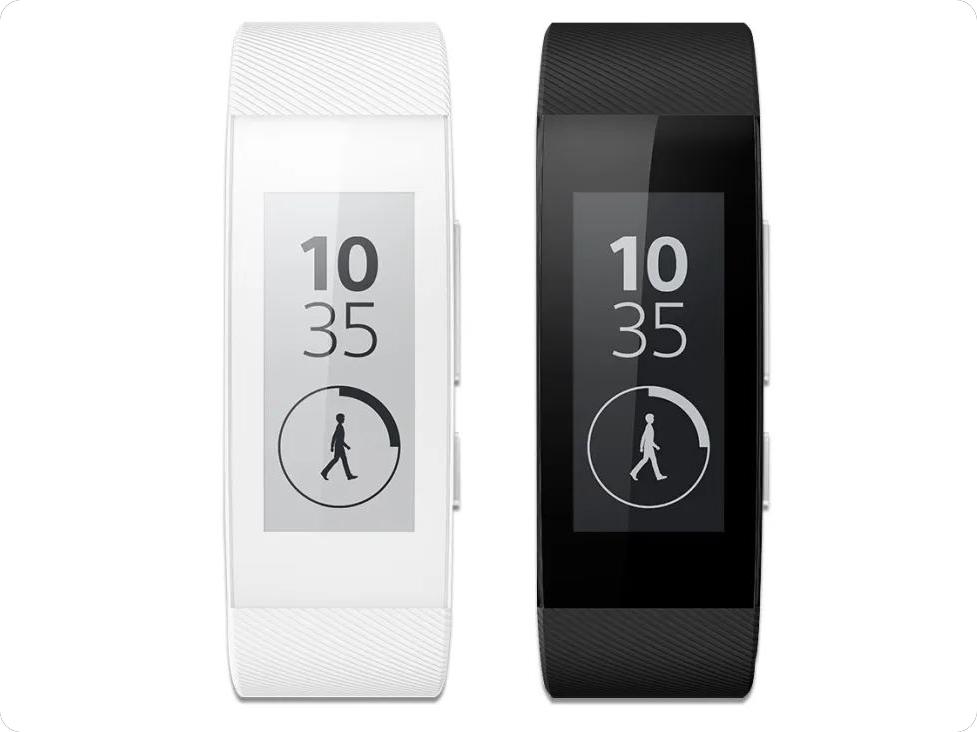

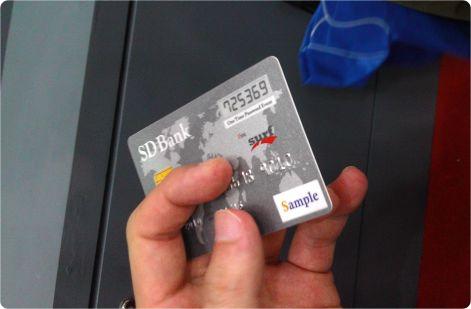

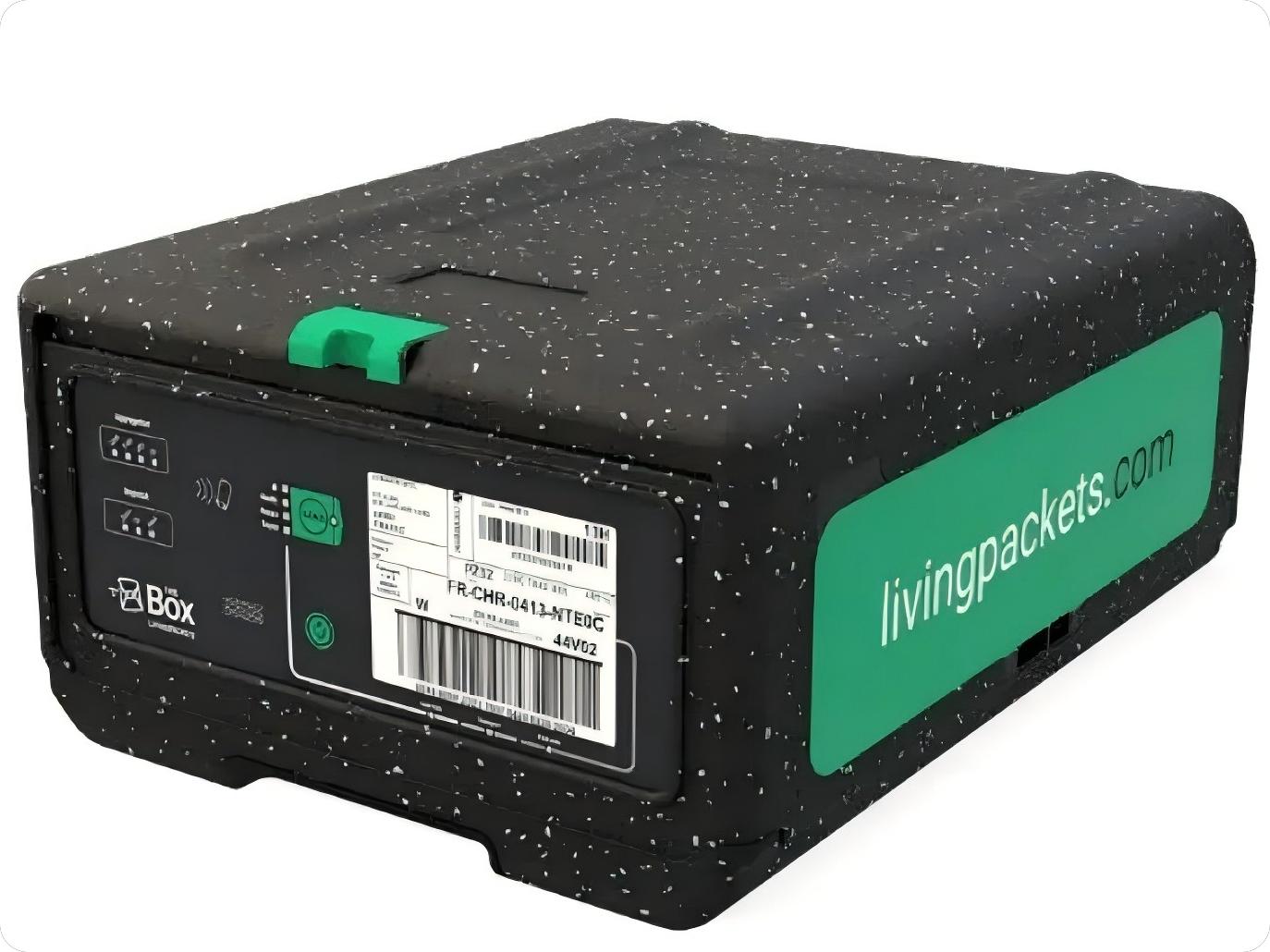

Air quality detection label	Wearable device	Shared bike	Logistics label	Smart card

WE ALSO SUGGEST
Click the image below to learn more about our products

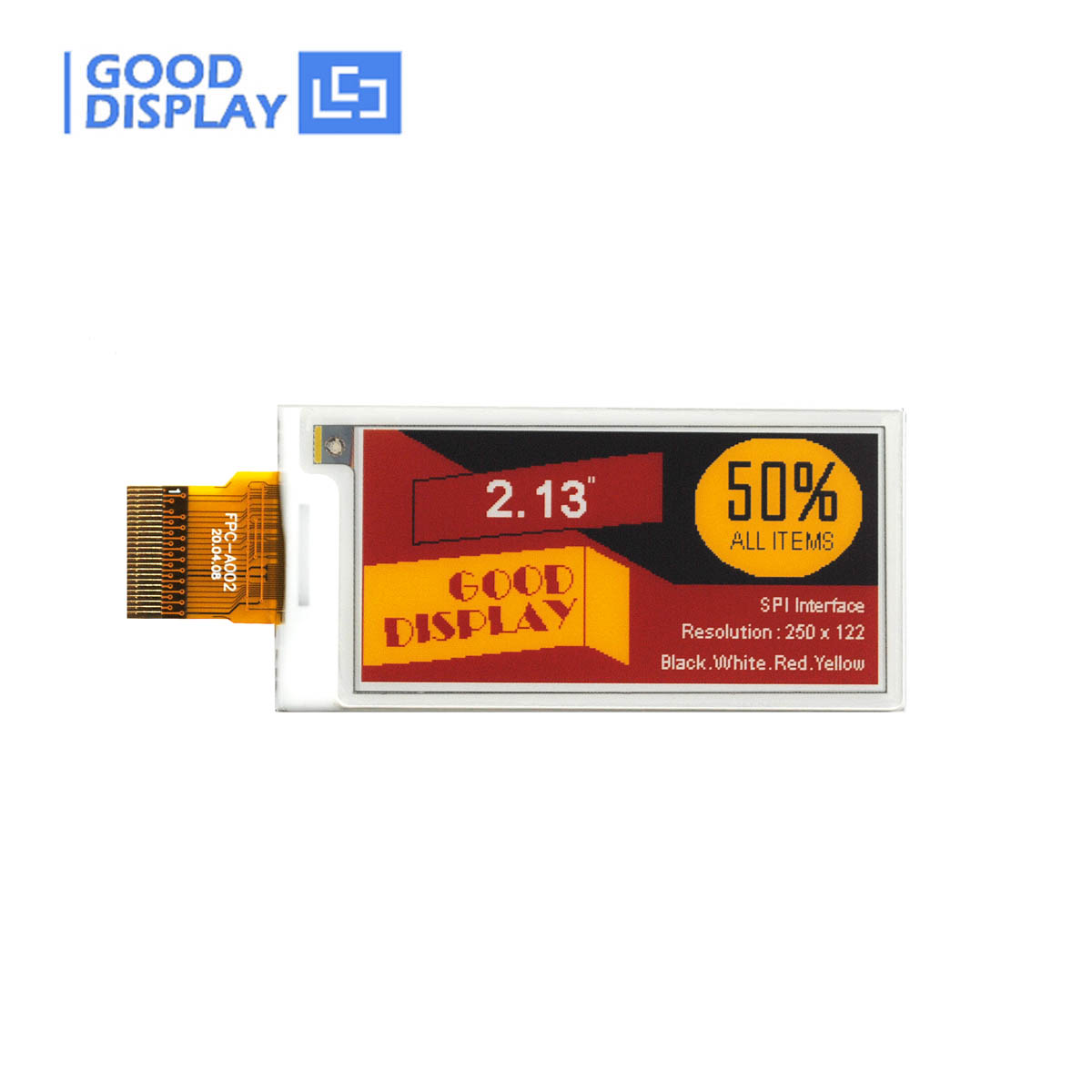

Fast Refresh 1.5s 2.13 inch 250x122 Raspberry Pi EPD supports Electronic Epaper price tag, GDEY0213B74	2.13 inch E-Paper Eink Display SSD1680Z Backlit Electronic Paper Screen, GDEY0213B74-FL01	2.13 inch color eink 250x122 HD raspberry pi e-paper display module, GDEY0213Z98	2.13 inch electronic paper screen 250x122 4-color e-ink display, GDEY0213F51

Matching Driver Board

To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

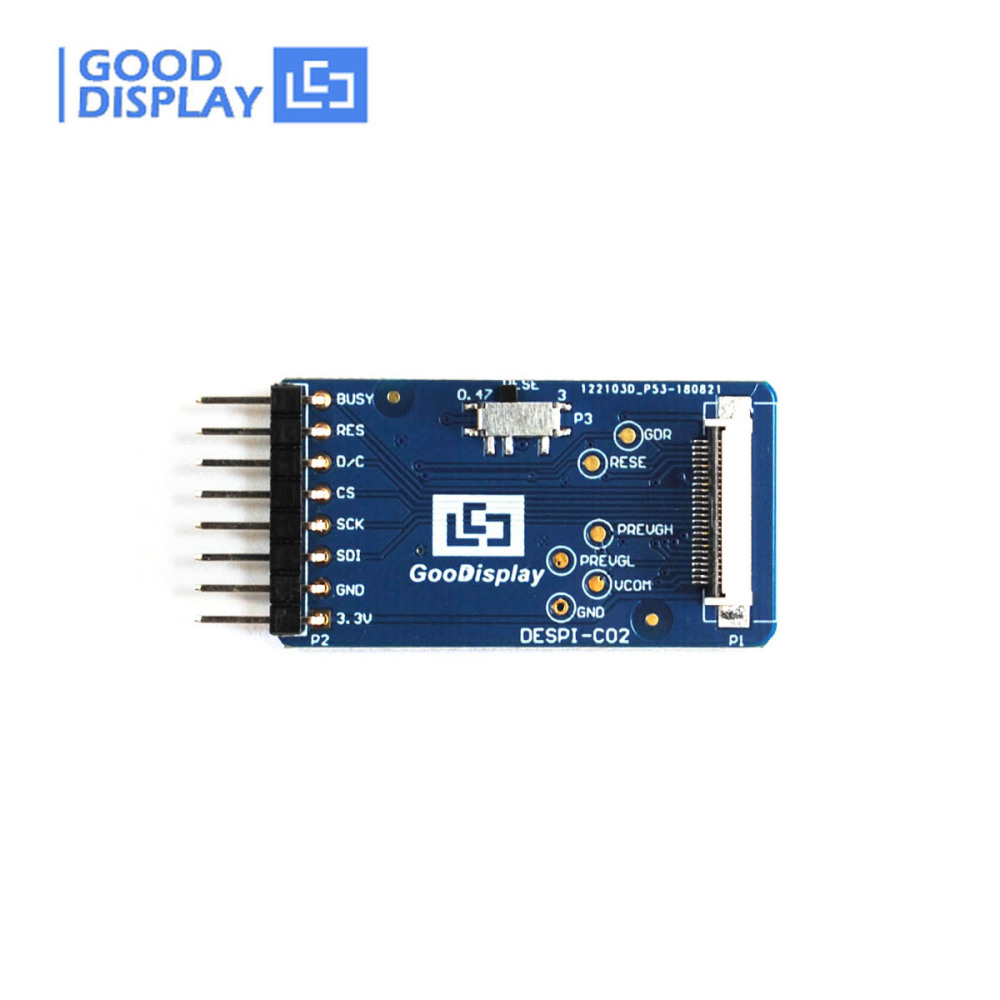

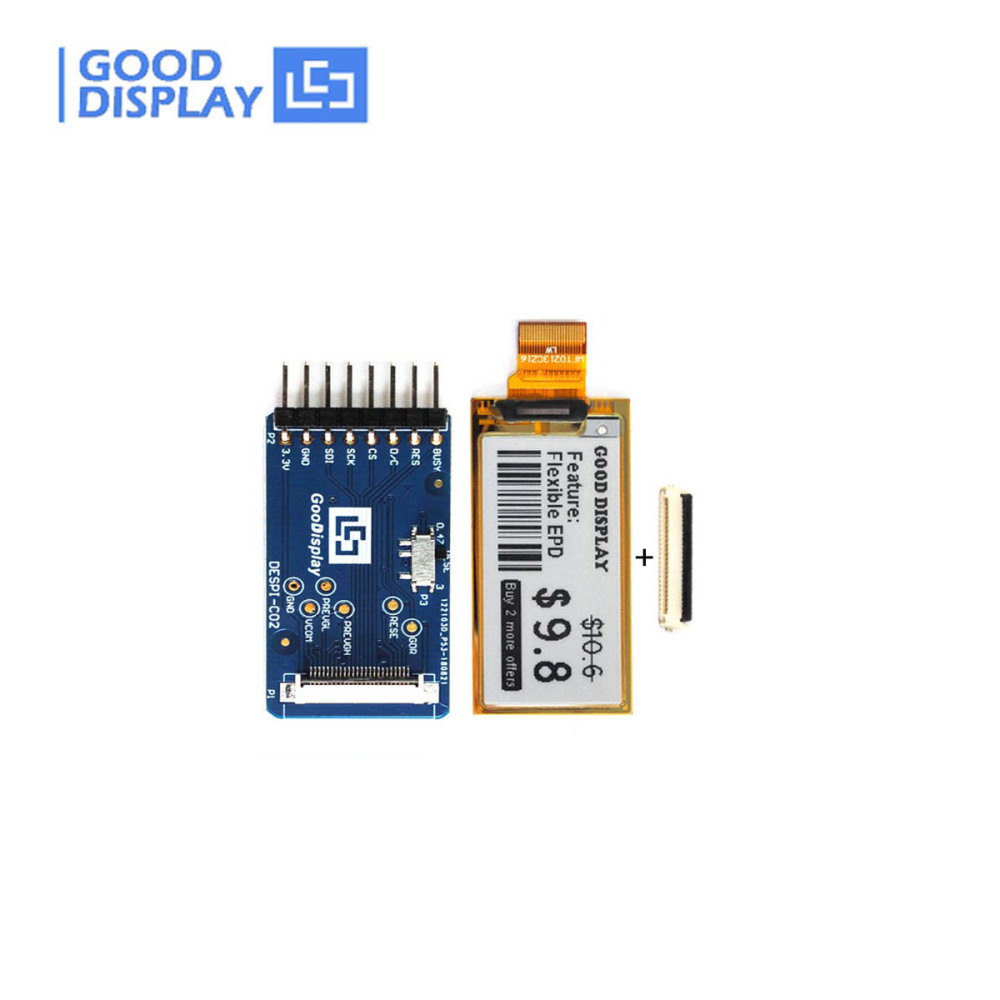

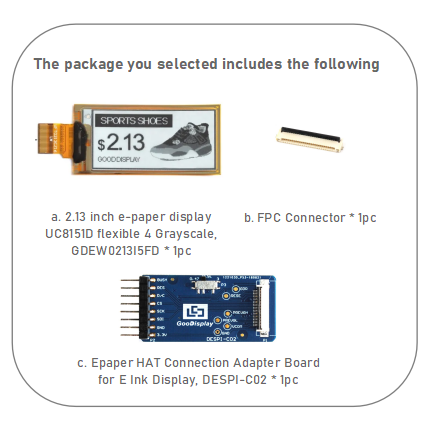

a.DESPI-C02 (E-ink Display adapter Board)

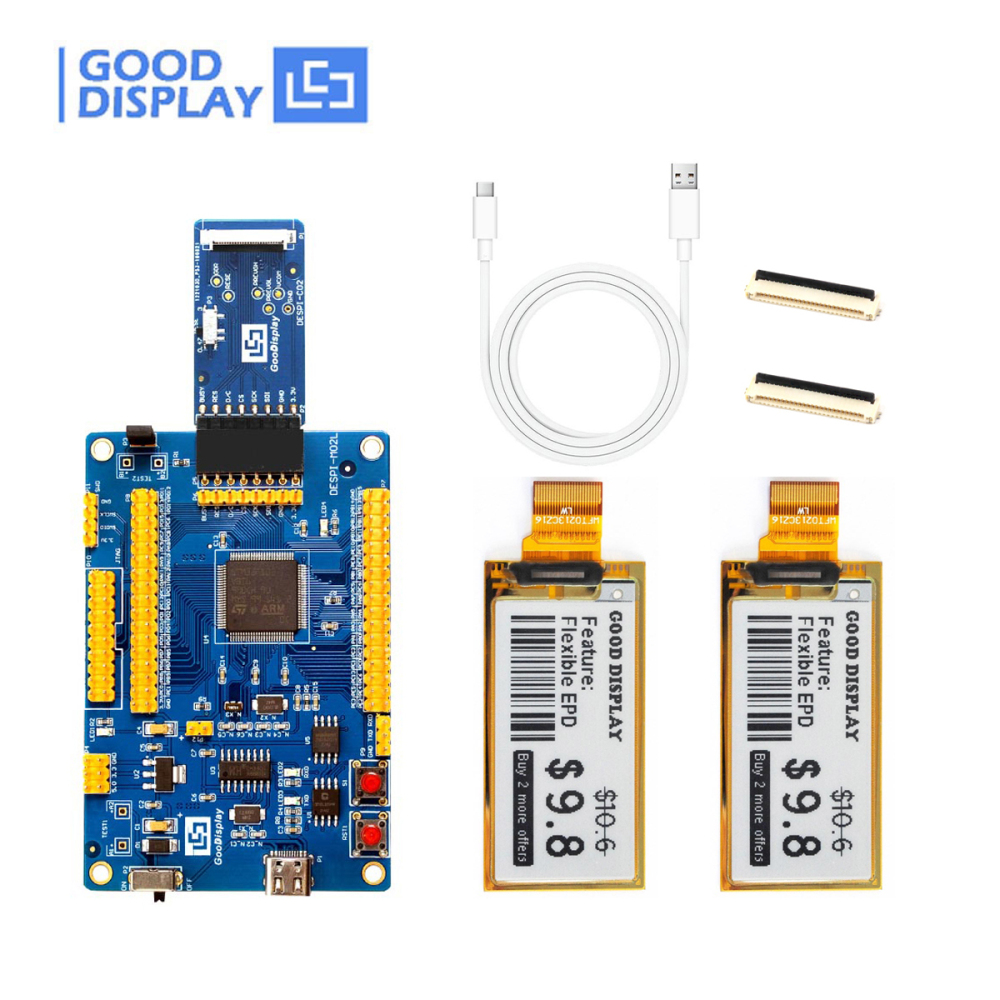

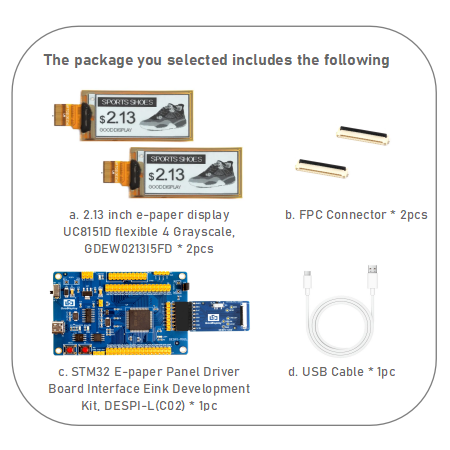

b.DESPI-L(C02) (STM32 Demo Kit)

c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit)

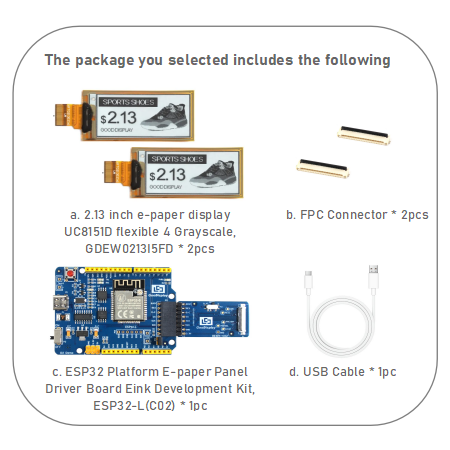

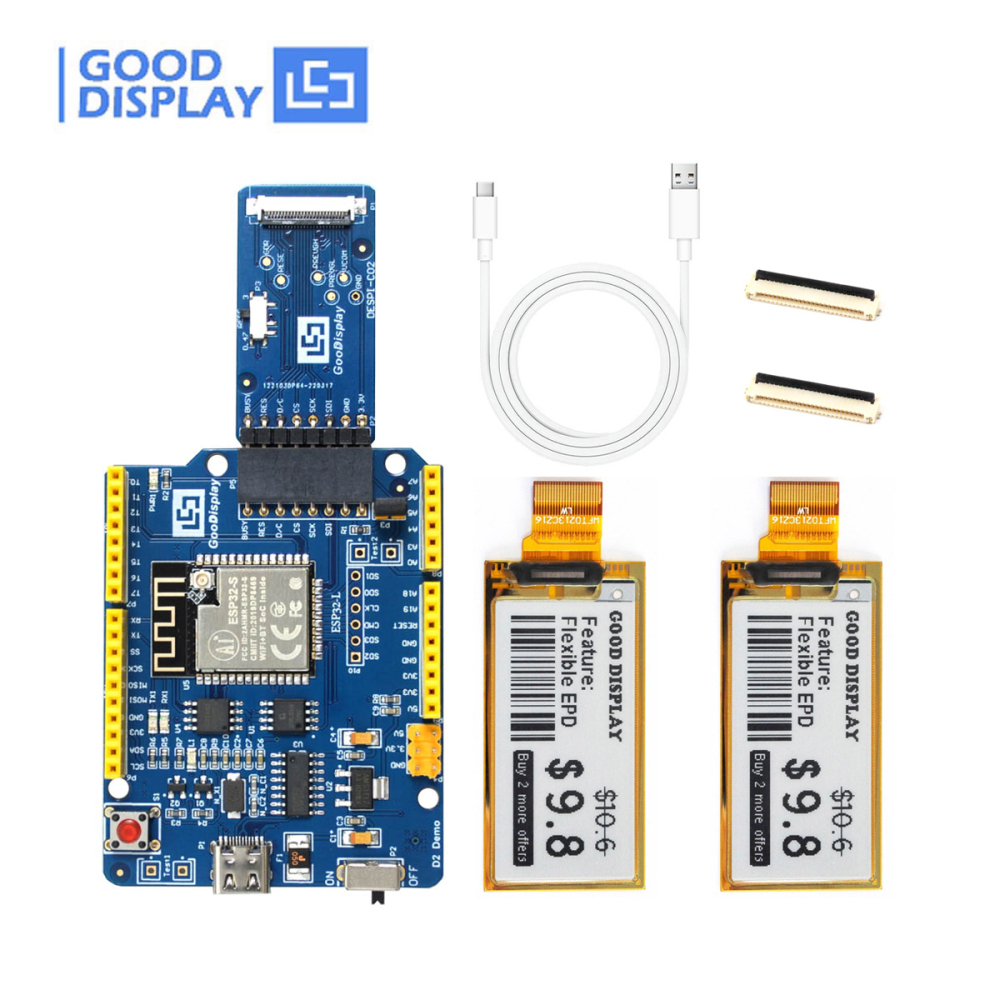

e.ESP32-L(C02) (ESP32 Demo Kit)

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
