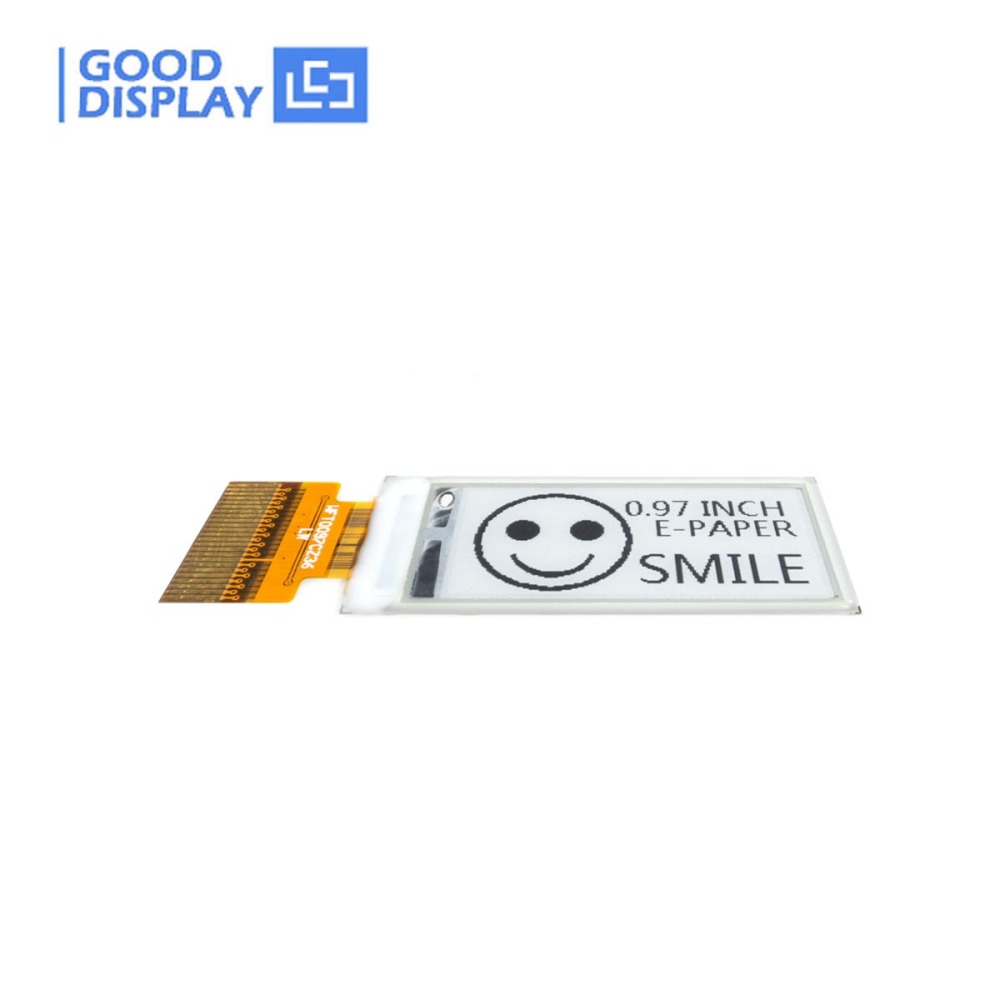

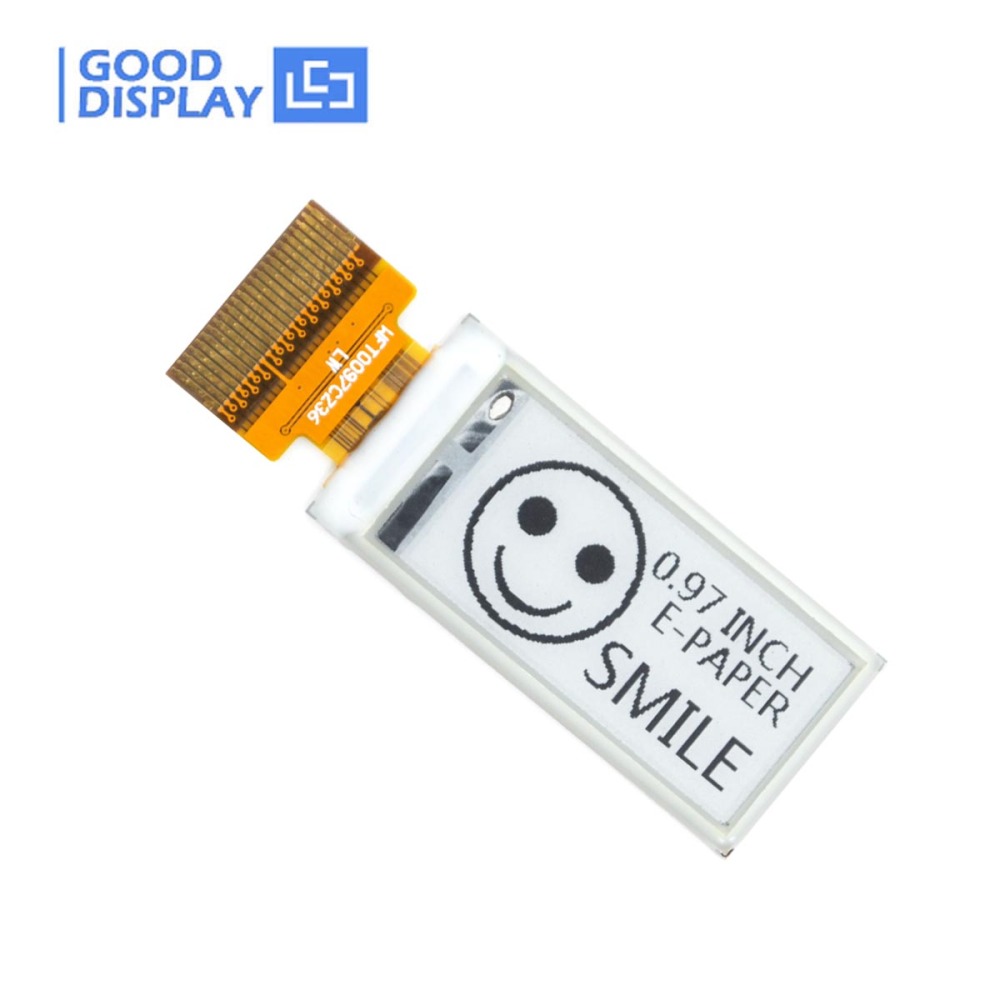

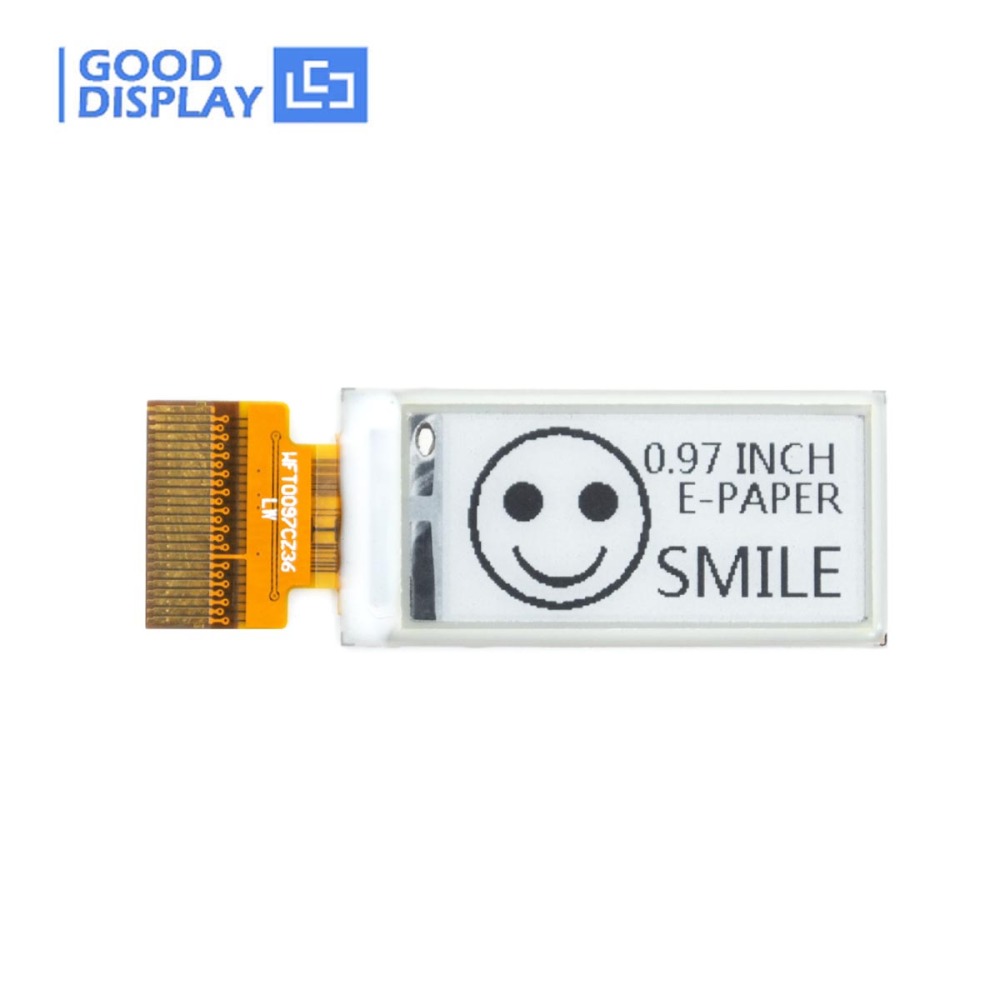

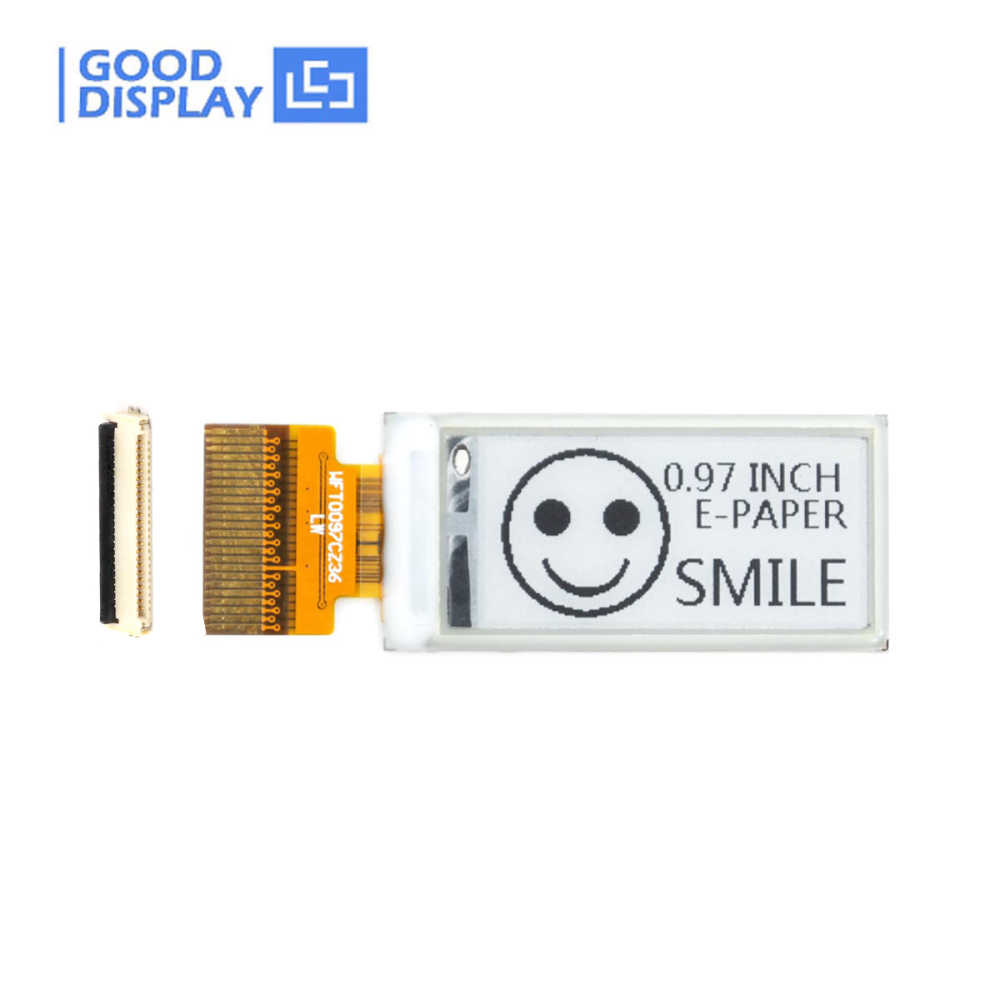

Mini 0.97 E-ink Display 184x88 resolution SPI Small E-paper Screen, GDEW0097T50

This is a mini e-paper screen, 0.97 inch, 184x88 resolution, SPI interface, and the display is capable to display images with black and white content.
3 Review(s) Sold:111
Have a question?
Price:
USD
$4.50
  • Product:

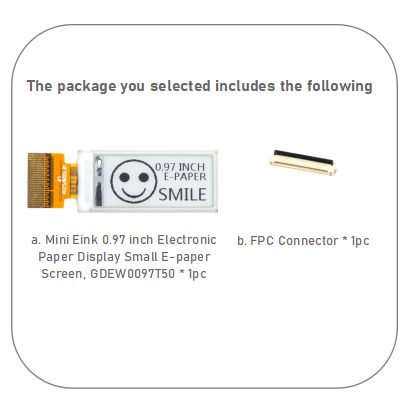

    EPD

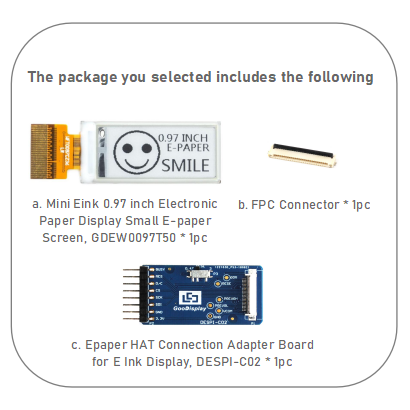

    EPD with adapter board

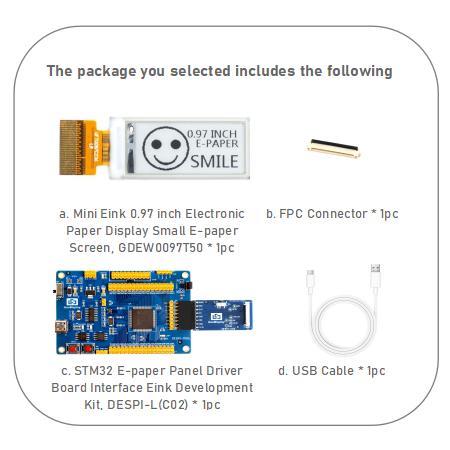

    EPD with STM32 demo kit

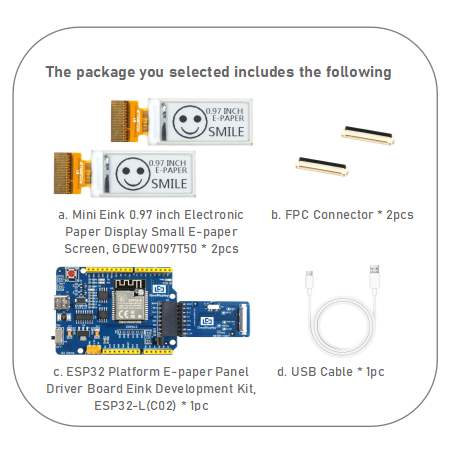

    EPD with ESP32 Demo kit
Quantity:
-
+
(200 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(3)


Compact 0.97-inch E-Ink Display - 184x88 Resolution SPI E-Paper Screen for DIY Projects and IoT Applications





This 0.97-inch e-paper display (model GDEW0097T50) features a 184x88 resolution and an SPI interface, capable of displaying black-and-white images with partial refresh times as quick as 0.26 seconds. Its bistable nature allows it to retain the current display without power, making it ideal for low-power devices powered by solar or batteries. With a wide viewing angle exceeding 170 degrees and an anti-glare hard-coated surface, it offers excellent visibility and eye protection with no blue light emission. Perfect for applications like shelf tags, smart tags, wearable devices, smart home systems, and industrial instruments.








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Ultra-thin and lightweight: The ultra-small 0.97-inch e-ink screen is extremely thin and weighs only 1g, making it suitable for use in portable devices without adding significant weight or thickness.
  ●  Blazing Fast Refresh: Enjoy full refresh in just 3 seconds and partial refresh in a mere 0.26 seconds.
  ●  Power-Free Retention: Bistable technology ensures your display retains content without any power.
  ●  Ultra-Wide Viewing Angle: With over 170 degrees of clarity, see your content from any angle.
  ●  Eye-Friendly Design: Zero blue light and no radiation, keeping your eyes comfortable for extended use.
  ●  Rugged Durability: Hard-coated for anti-glare and built to perform across various applications.







Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEW0097T50 CONNECTOR 24 Pin FPC
SIZE 0.97 inch TYPE Dot Matrix
IC JD79651 OPERATING TEMP. 0℃~50℃
RESOLUTION 184x88 STORAGE TEMP. -25℃~70℃
OUTLINE SIZE(mm) 30.15x14.3x0.98 MAX GRAYSCALE 16
ACTIVE SIZE(mm) 22.264x10.648 COLOR Black, White
PIXEL PITCH(mm) 0.121x0.121

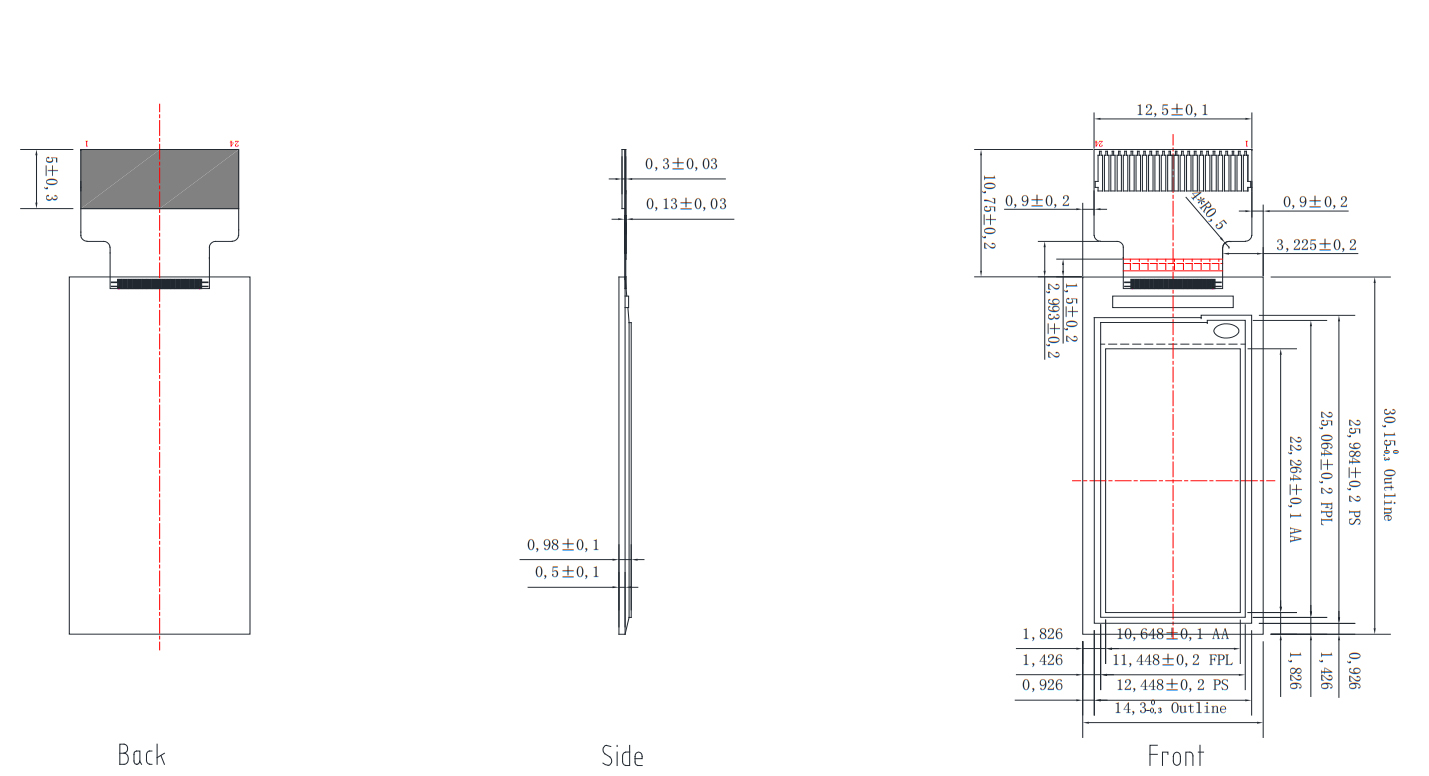

Product Drawings


    Please refer to the product drawings for detailed dimensions









Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.
Click image to buy

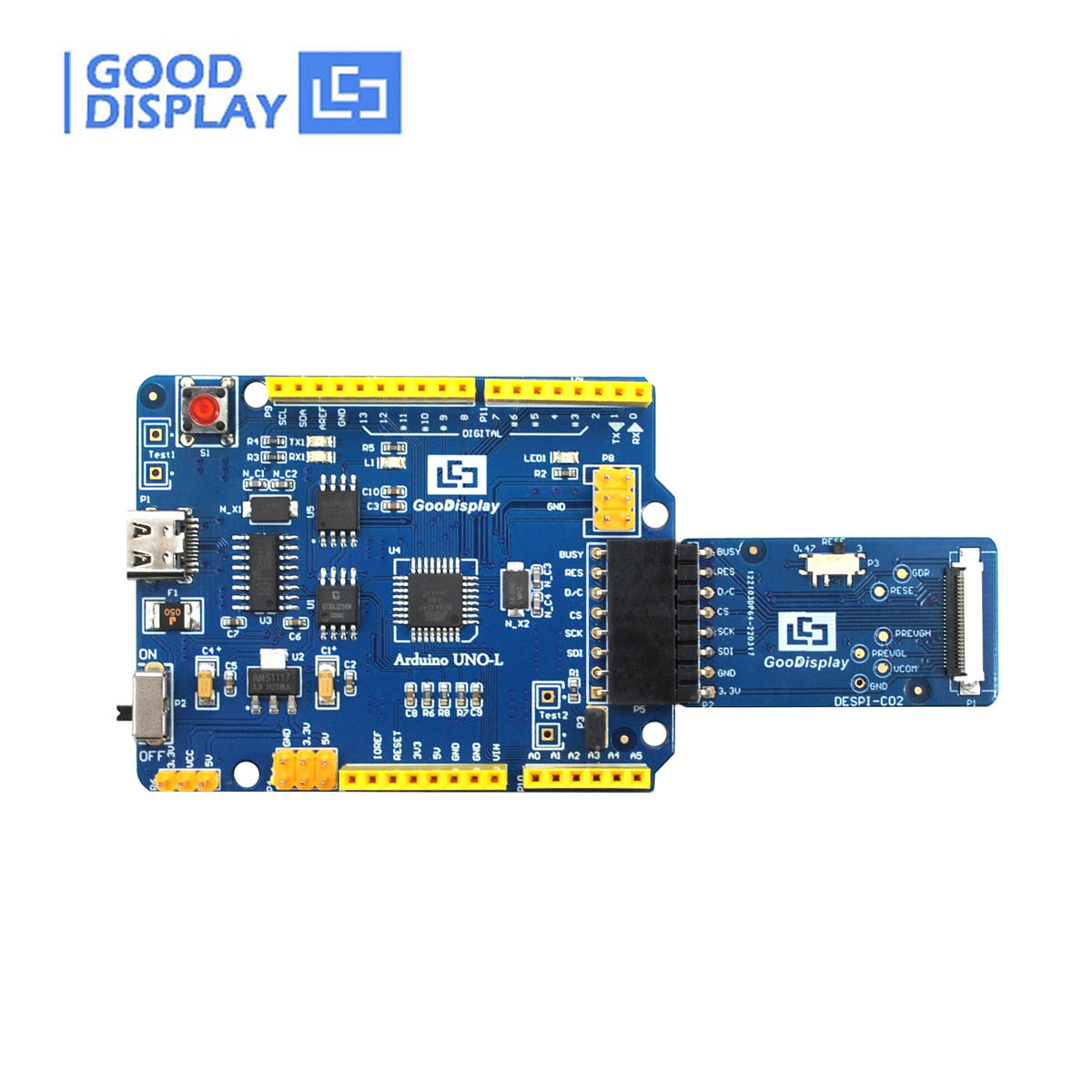

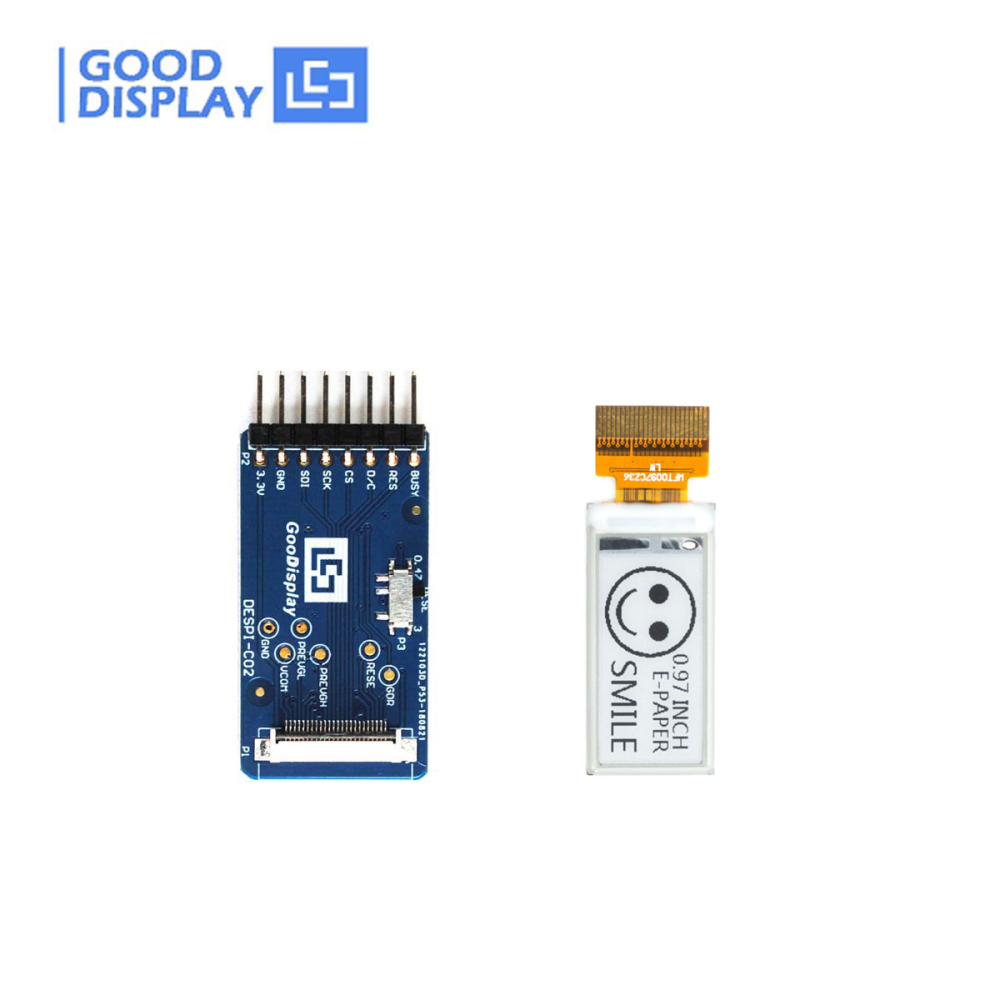

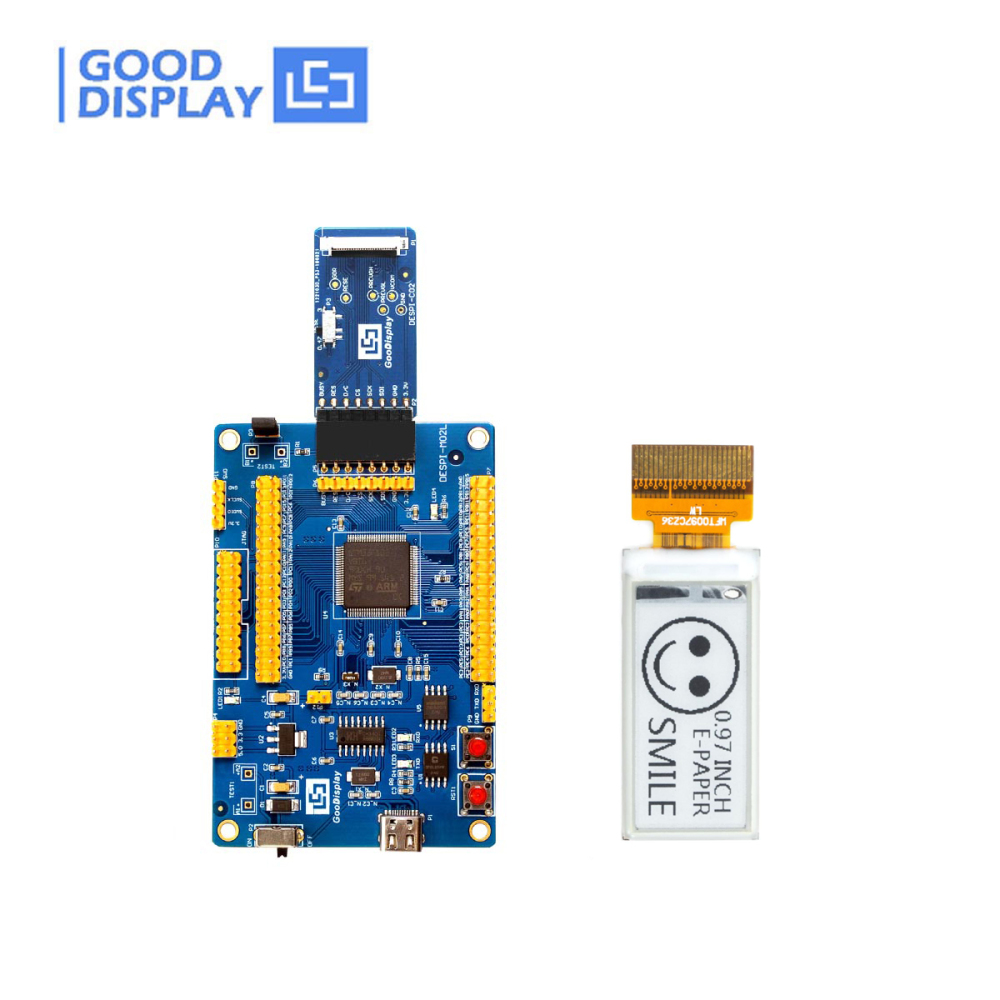

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit)







Related Information Download

Click on the subheadings below to download

  ● GDEW0097T50 Specification ● JD79651 Driver IC Datasheet
  ● GDEW0097T50 STM32 Sample Code ● Product Catalog
  ● GDEW0097T50 STM32 Sample Code ● The latest Catalog of ePaper display
  ● GDEW0097T50 Arduino Sample Code ● Disabling-Pop-Up-Blockers
  ● GDEW0097T50 ESP32 Sample Code ● ePaper Display Reach Report
  ● Picture Production and Bitmap Convert for GDEW0097T50 ● ePaper display RoHS Report
